User Manual for American DJ Ikon Profile Pearl - 32W LED Gobo Projector Click to enlarge the picture
Contents of the user manual for the American DJ Ikon Profile Pearl -
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Ikon Profile Pearl - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

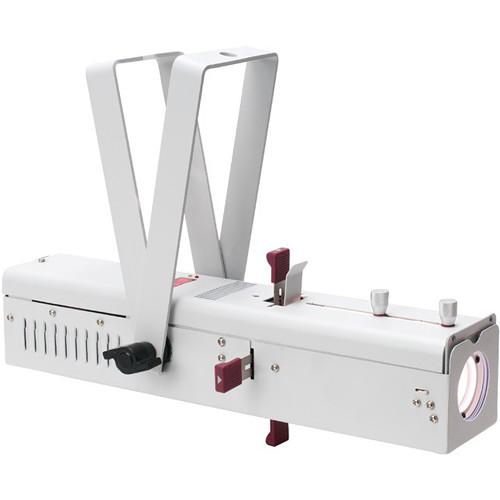

Product description The Ikon Profile Pearl from American DJ is a high-output single gobo projector that comes in a white finish, and is powered by a 32W, 7500K white LED engine. This fixture uses high-quality optics for crisp and clear projection. The unit's brightness and strobing can be controlled via DMX or via the UC IR remote (sold separately).The Ikon Profile Pearl includes one textured glass gobo and four metal gobos. Users may also easily insert custom gobos in the fixture's gobo slot on the top of the fixture and can control the beam angle (zoom), focus, and framing shutters manually. The beam angle is adjutable from 15-30°, making it versatile for a wide variety of applications. It includes a transmitter and is also compatible with the ADJ Airstream IR app for iOS devices. - Supports ADJ Airstream IR app for iOS devices
- High-quality optics provide for clear and powerful output
- Manually adjustable beam angle, focus, and framing shutters
- Includes one textured glass gobo
- Drop-in gobo slot for metal or glass gobos
- Color frame for color filters or color correction filters
- No duty cycle - runs all night
- Suitable for mobile DJs, clubs, bars, retail stores, and promotional events
- IEC AC outlet on side to daisy chain power (up to 16 units @ 120V and 27 units @ 230V)
- Includes dual yoke to mount on a wall or hang from trussing
UPC: 819730019080 In the Box American DJ Ikon Profile Pearl - 32W LED Gobo Projector Dual-Yoke Bracket Airstream Transmitter 3 x Interchangeable Lenses Textured Glass Gobo Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Ikon Profile Pearl - 32W LED Gobo Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

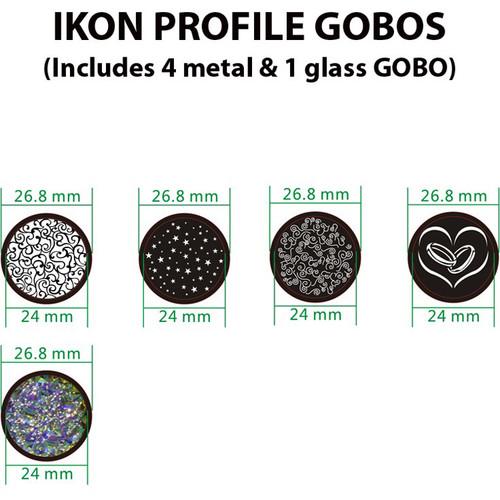

Technical parametersAmerican DJ Ikon Profile Pearl Specs | LED | 32 W, white | | LED Life | Approximately 50,000 hours | | Beam Angle | 15 to 40° | | Gobo Size | 1.05" (26.8 mm)
Viewable Size: 0.94" (24 mm) | | Color Filter System | Color frame for color/color-correction filters | | Controls | Beam angle (zoom), brightness, focus, and framing shutters
| | DMX Channel Modes | 1 x Mode: 3 channels | | DMX Connectors | 3-pin XLR input and output | | Dimmer Curves | 5 x curves | | Remote Control | ADJ UC IR (included) | | Compatible Apps | ADJ Airstream IR (free to download)
Requires IR adapters (sold separately) | | Multi Voltage | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | 44 W maximum | | Power Cord Daisy Chain | 16 x units @ 120 V, 27 x units @ 230 V
| | Dimensions (L x W x H) | 16 x 6 x 9" (41 x 15 x 23 cm) | | Weight | 6 lb (2.7 kg) | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 20.5 x 8.0 x 7.5" |
