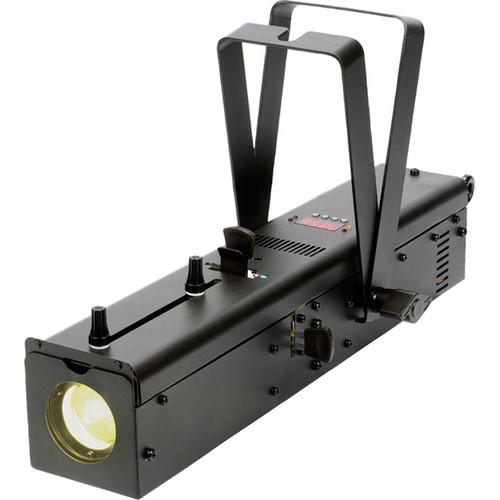

Product description The Ikon Profile WW from American DJ is a high-output single gobo projector that comes in a black finish, and is powered by a 32W, 3200K warm white LED engine. This fixture uses high-quality optics for crisp and clear projection. The unit's brightness and strobing can be controlled via DMX or via the UC IR remote (sold separately).The Ikon Profile WW includes one textured glass gobo and four metal gobos. Users may also easily insert custom gobos in the fixture's gobo slot on the top of the fixture and can control the beam angle (zoom), focus, and framing shutters manually. The beam angle is adjutable from 15-30°, making it versatile for a wide variety of applications. It includes a transmitter and is also compatible with the ADJ Airstream IR app for iOS devices. - Supports ADJ Airstream IR app for iOS devices
- High-quality optics provide for clear and powerful output
- Manually adjustable beam angle, focus, and framing shutters
- Includes one textured glass gobo
- Drop-in gobo slot for metal or glass gobos
- Color frame for color filters or color correction filters
- No duty cycle - runs all night
- Suitable for mobile DJs, clubs, bars, retail stores, and promotional events
- IEC AC outlet on side to daisy chain power (up to 16 units @ 120V and 27 units @ 230V)
- Includes dual yoke to mount on a wall or hang from trussing
UPC: 819730019110 In the Box American DJ Ikon Profile WW - 32W LED Gobo Projector Dual-Yoke Bracket Airstream Transmitter 3 x Interchangeable Lenses Textured Glass Gobo Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Ikon Profile WW - 32W LED Gobo Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

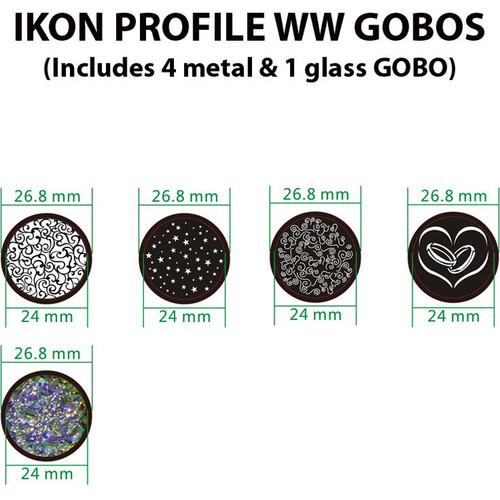

Technical parametersAmerican DJ Ikon Profile WW Specs | LED | 32 W, white | | LED Life | Approximately 50,000 hours | | Beam Angle | 15 to 40° | | Gobo Size | 1.05" (26.8 mm)
Viewable Size: 0.94" (24 mm) | | Color Filter System | Color frame for color/color-correction filters | | Controls | Beam angle (zoom), brightness, focus, and framing shutters
| | DMX Channel Modes | 1 x Mode: 3 channels | | DMX Connectors | 3-pin XLR input and output | | Dimmer Curves | 5 x curves | | Remote Control | ADJ UC IR (included) | | Compatible Apps | ADJ Airstream IR (free to download)
Requires IR adapters (sold separately) | | Multi Voltage | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | 44 W maximum | | Power Cord Daisy Chain | 16 x units @ 120 V, 27 x units @ 230 V
| | Dimensions (L x W x H) | 16 x 6 x 9" (41 x 15 x 23 cm) | | Weight | 6 lb (2.7 kg) |
