User Manual for American DJ Inno Color Beam Z19 LED Moving Head Click to enlarge the picture
Contents of the user manual for the American DJ Inno Color Beam Z19
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Inno Color Beam Z19 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

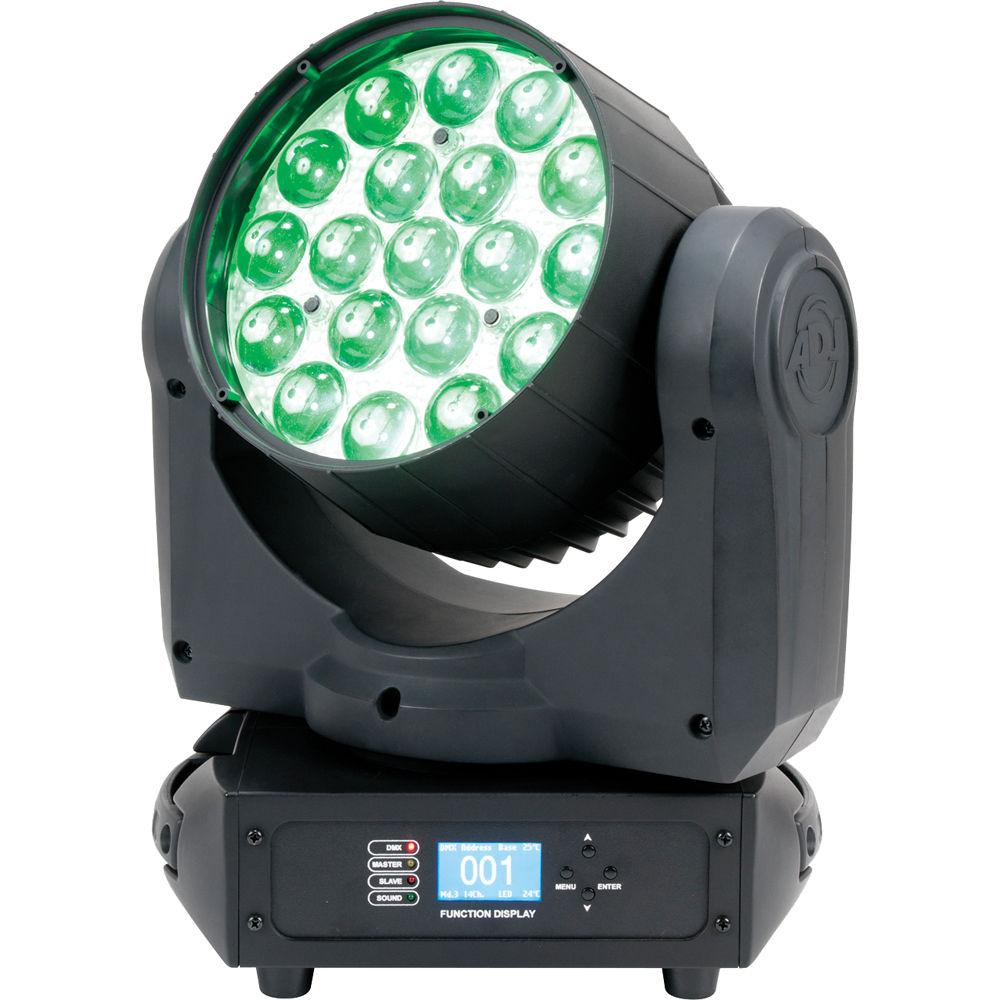

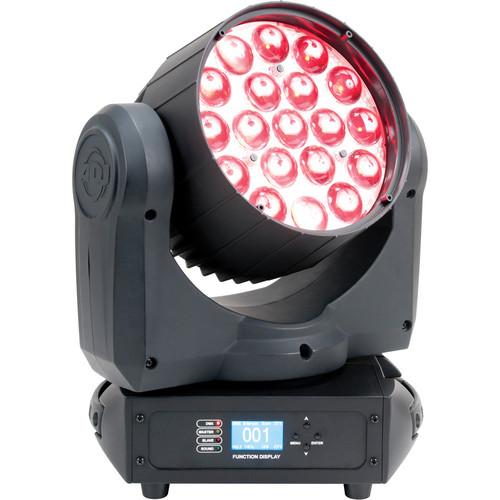

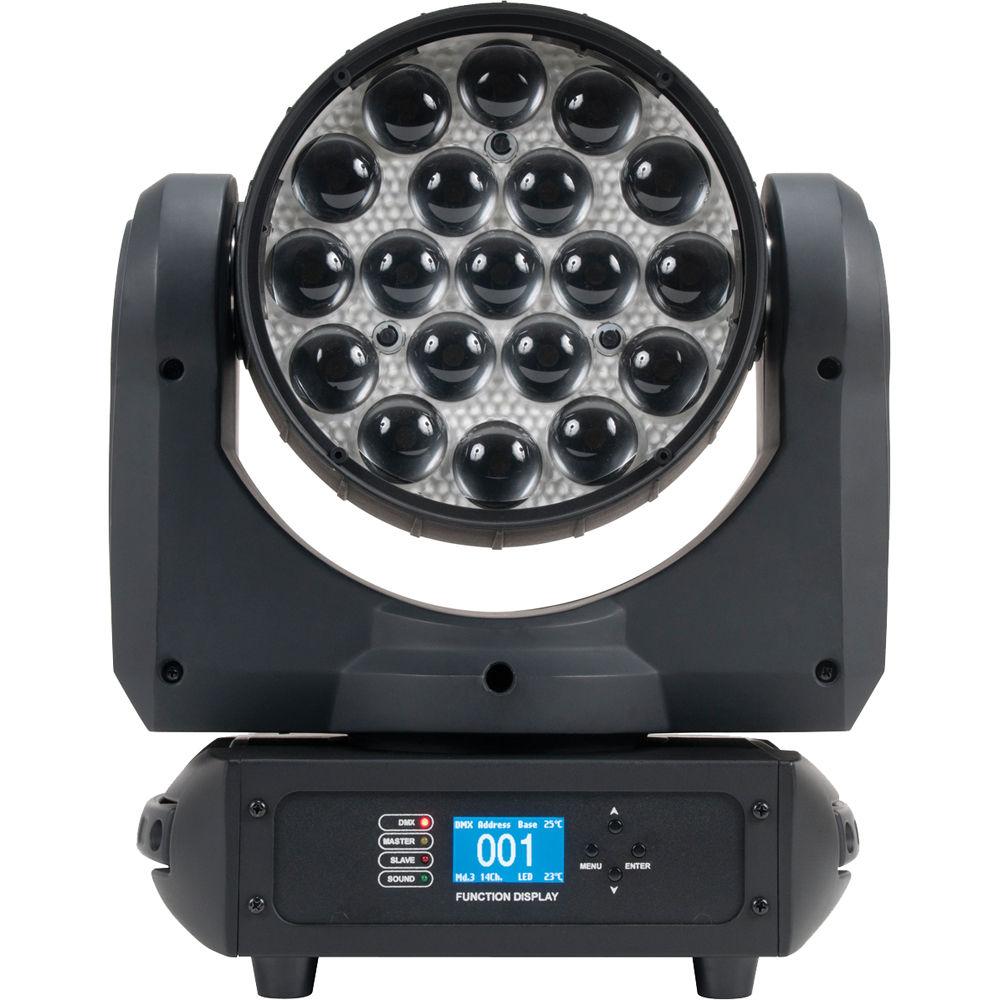

Product description The Inno Color Beam Z19 LED Moving Head from American DJ is a LED moving head beam fixture with motorized zoom allowing for a variable beam angle from 10° to 60°. The Z19 is powered by nineteen RGBW Quad Color (4-IN-1) Osram LEDs. It has speed and built-in light shows. This Color Beam features 14 DMX channels, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, PowerCon In/Out power connectors, and a 4-Button DMX LCD menu with 180° inverse view mode. - High output LED moving head wash with motorized zoom
- Nineteen RGBW quad color (4-IN-1) Osram Ostar LEDs
- Electronic strobe/pulse effect; random strobe slow to fast
- Stepper motors with micro stepping
- Includes Omega bracket for truss mounting
- 4-Button DMX LCD menu with 180° Inverse View mode
- Pan/Tilt inverse mode for contrasting movement when fixtures are linked together
UPC: 819730010834 In the Box American DJ Inno Color Beam Z19 LED Moving Head Omega Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Inno Color Beam Z19 LED Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Inno Color Beam Z19 Specs | Motorized Zoom | 10 to 60° beam angle | | Operating Mode | Sound Active, Show Mode, & DMX Controlled | | Dimming | 0% - 100% | | Pan | 540°

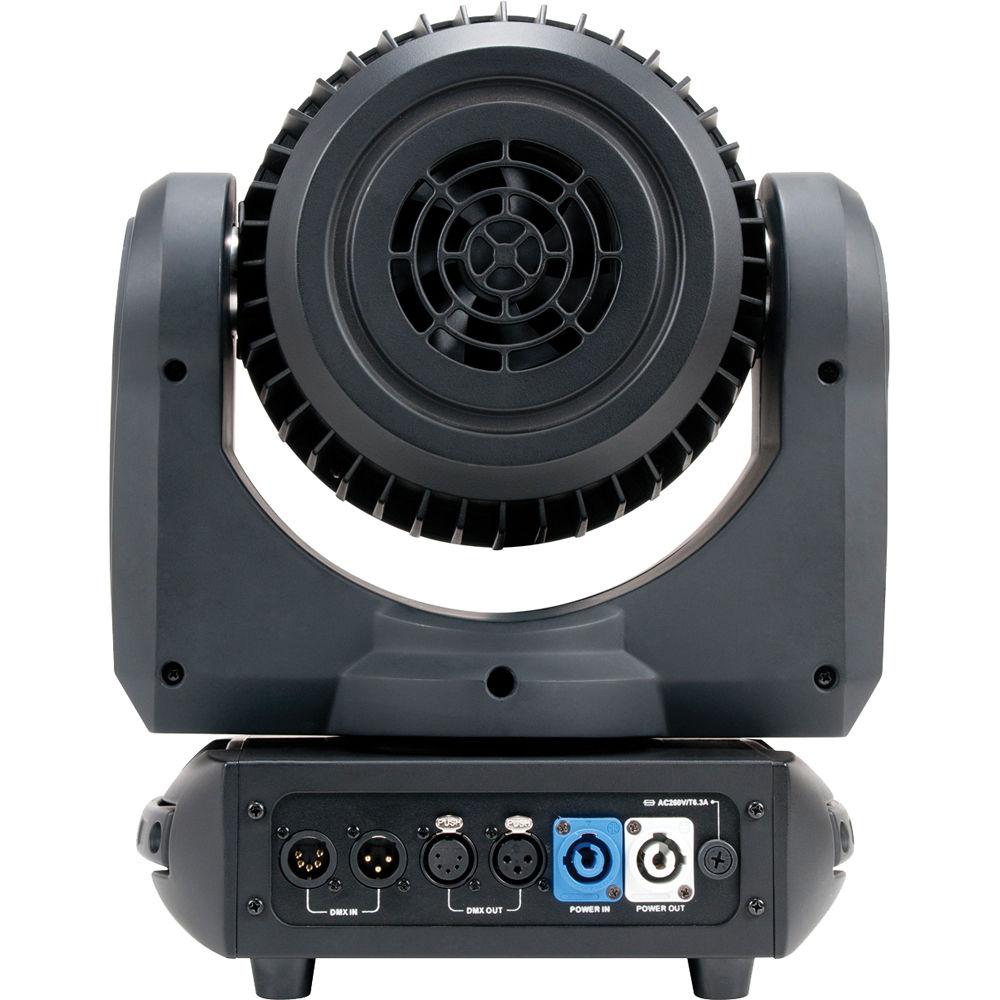

Tilt: 220° | | Power Control | AC In/Out on rear to daisy chain power (up to 5 Inno Color Beam Z19's @ 120 V and 11 Inno Color Beam Z19's @ 230 V ) | | Connections | Connector 1: DMX 5-pin XLR male input
Connector 2: DMX 3-pin XLR male input
Connector 3: DMX 5-pin XLR female output
Connector 4: DMX 3-pin XLR female output
Connector 5: IEC socket power input
Connector 6: IEC socket power output | | Light Source | 19 x 10 W High Output Osram Ostar LED's | | Operational Voltage Range | 100 - 230 VAC, 50 Hz/ 60 Hz | | Power / Consumption | 245 W | | Dimensions (L x W x H) | 13.0 x 7.5 x 15.8" (33 x 19 x 40 cm) | | Weight | 21 lb (9.5 kg) | | | | Package Weight | 51.1 lb | | Box Dimensions (LxWxH) | 25.0 x 18.0 x 16.0" |
