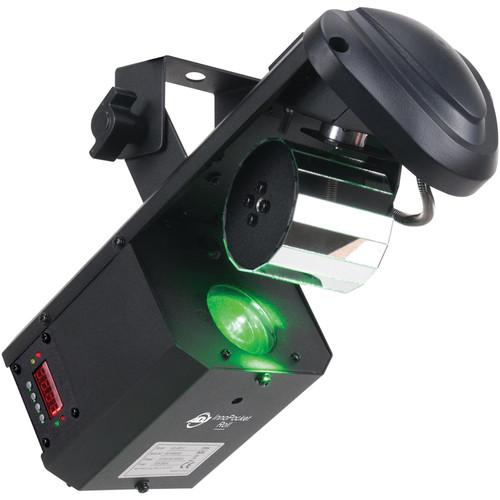

Product description With its compact size and light weight (at 6 lb), the American DJ Inno Pocket Roll is an ideal lighting effect for mobile entertainers looking to energize their light show when performing in small nightclubs, bars, lounges, and more. This barrel mirrored scanner features a 12W white LED, 12 built-in light shows and a 14° beam angle that projects 8 fixed gobo/color patterns (plus spot/white), from a single wheel. The Inno Pocket Roll is built with precision stepper motors that provide tilt and pan mirror movement, for shooting multiple beams around a room with speed and accuracy. Easy to use, the fixture gives you a variety of creative options. It offers automated programs such as Sound-Active, random Strobe (slow to fast), and Pulse effect for fast setup, as well as DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller. Other features include an LED display and an auto-sensing power supply. You can also daisy-chain power for up to 19 units at 120V. The American DJ Inno Pocket Roll comes equipped with a hanging yoke to attach it to a truss, and a safety hook to secure it with a safety cable (available separately), as a secondary precaution. The unit can be wirelessly controlled via the ADJ UC IR remote or the Airstream IR iOS app (both available separately). - Key Features
-
- Barrel-mirrored scanner with 12W white LED
- Single gobo/color wheel: 8 fixed gobo/colors + spot/white
- Produces multiple beams that shoot around a room
- Three operational modes (DMX, Sound Active, Internal Show Control)
- Six DMX channels
- Twelve built-in shows
- Gobo shake effect
- Gobo scroll mode
- Beam angle: 14°
- X/Y mirror movement
- Stepper motors with micro stepping
- Five selectable dimming curves (Standard, Stage, TV, Architectural, Theatre)
- Shutter: Pulse effect, random strobe (slow to fast)
- Operates as a standalone fixture or in Master/Slave configuration
- Internal microphone for Sound Active mode
- LED display with inversion mode
- Compatible with ADJ UC IR remote control (available separately) and ADJ Airstream IR App (free download)
- Hanging yoke and safety hook included
- No duty cycle, use all night
- Daisy-chain power for up to 19 units at 120V
- Multi-voltage operation: 100 to 240 VAC, 50/60 Hz, auto-sensing
UPC: 819730013750 In the Box American DJ Inno Pocket Roll LED Barrel-Mirrored Scanner Hanging Yoke Safety Hook Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Inno Pocket Roll LED Barrel-Mirrored Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Inno Pocket Roll LED Specs | Type | Barrel-mirrored scanner | | Light Source | 12 W white LED source, rated at approximately 50,000 hours | | Illuminance | 1200 lux at 6.5' / 2 m
310 lux at 13.1' / 4 m (14° beam) | | Beam Angle | 14° | | Gobos | Single gobo/color wheel
8 fixed gobo/colors + spot/white
Gobo shake effect
Gobo scroll mode | | DMX Channels | 6 | | Dimming | Electronic 0-100%
5 x dimmer curves (Standard, Stage, TV, Architectural, Theater) | | Modes of Operation | DMX512, Sound Active, Internal Show Control | | Effects | X/Y mirror movement
Shutter: Pulse effect, random strobe (slow to fast) | | Display | LED display with display inversion mode | | Motors | Stepper motors with micro stepping | | Connections | 1 x 3-pin XLR DMX input
1 x 3-pin XLR DMX output
1 x IEC power input | | Wireless Control | ADJ UC IR remote, Airstream IR app (available separately)
Controls: Full On, Stand by, Strobe, Color Change, Dimming, Sound Active On/Off | | Power | 100 to 240 VAC, 50/60 Hz | | Fuse | 3.15 A | | Power Consumption | 36 W, at full on | | Mount | Hanging yoke | | Power Linking | 19 fixtures at 120 VAC, 35 fixtures at 230 VAC | | Dimensions | 13 x 5.25 x 6.5" (329 x 133 x 165 mm) | | Weight | 6.0 lb (2.6 kg) | | | | Package Weight | 7.8 lb | | Box Dimensions (LxWxH) | 16.3 x 9.5 x 8.4" |
