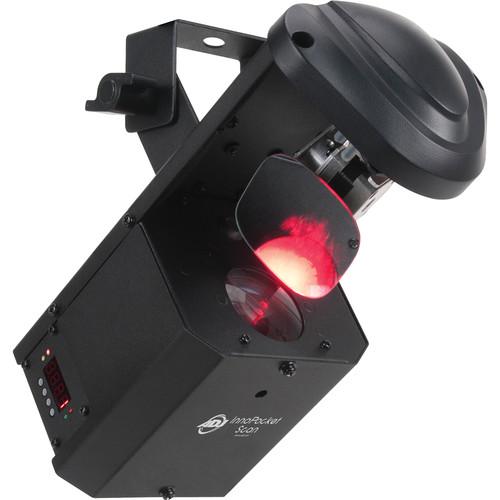

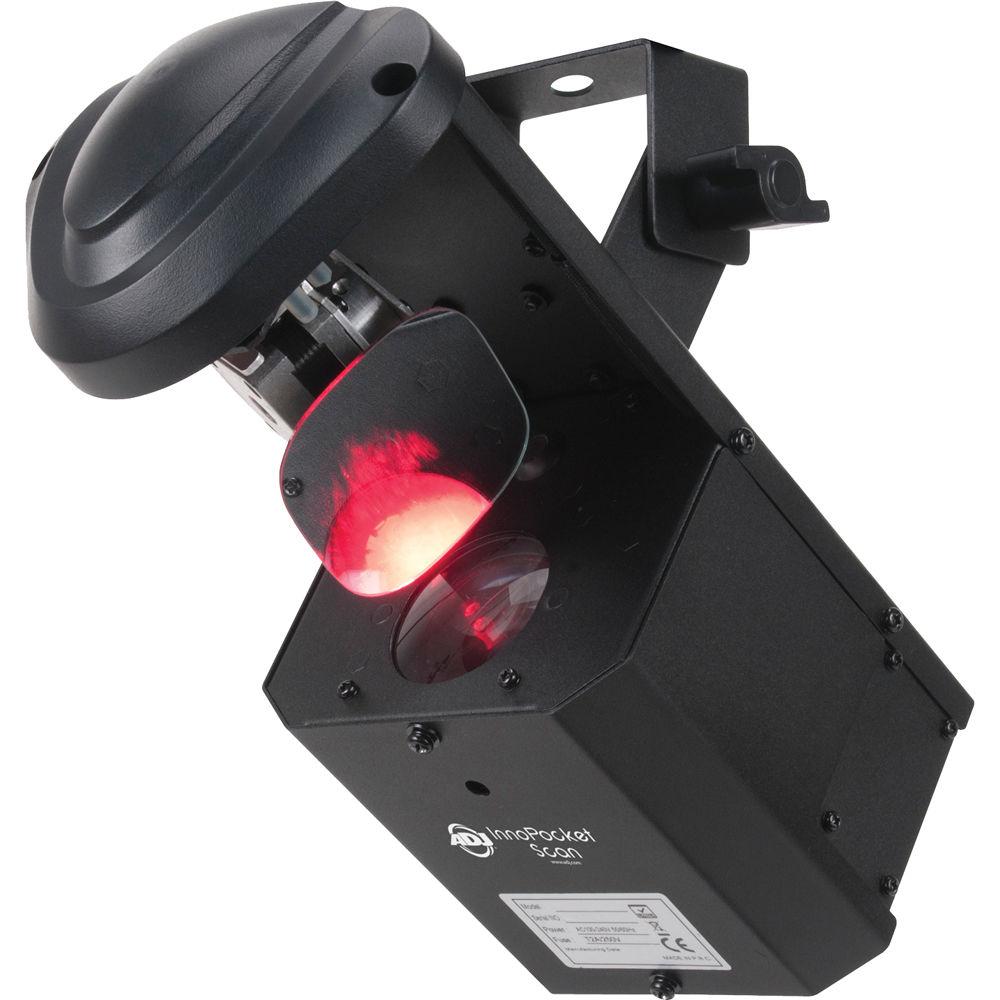

Product description With it s compact size and light weight, performance features, the American DJ Inno Pocket Scan is an eye-catching lighting effect well-suited to road shows, small nightclubs, bars, lounges, bowling alleys or entertainment centers. This fixture features 12 built-in light shows in a very compact, mobile case. Built with precision stepper motors for speed and accuracy, this flat-mirrored scanner has a 14 degree beam angle that projects 8 fixed gobo/color patterns (plus spot/white) from a single wheel. The Inno Pocket Scan is great for high energy music, and provides a great compliment to other fixtures with moving head effects. - Attributes
-
- 12W LED DMX flat-mirrored scanner
- Single gobo/color wheel: 8 fixed gobo/colors plus spot/white
- 3 Operational modes: DMX, Sound Active and Internal Show
- 6 DMX channels
- 12 Built-in shows
- Gobo Shake effect
- Gobo scroll mode
- Beam angle: 14 degrees
- Daisy-chain up to 21 units @ 120VAC
- X/Y mirror movement
- Stepper motors with micro stepping
- Dimming: 0-100%
- 5 Selectable dimming curves: Standard, Stage, TV, Architectural and Theater
- Shutter: pulse effect, random strobe slow to fast
- Display inversion mode
- Hanging Yoke and safety hook included
- Multi-voltage operation
- Optional IR wireless remote control
UPC: 819730013743 In the Box American DJ Inno Pocket Scan Hanging Yoke Safety Hook Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Inno Pocket Scan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Inno Pocket Scan Specs | Light Source | 12 W white LED source | | Bulb Life | Approximately 50,000 hr | | Color Wheel | 7 | | Gobos | 8 Fixed gobo/colors plus spot/white | | Beam Angle | 14° | | Color Wheel | 1x | | Modes | DMX, Sound Activation, Internal Show
12 Built-in shows, gobo shake effect
Gobo scroll mode, X/Y mirror movement
Display inversion mode | | Shutter | Pulse effect, random strobe slow to fast | | Dimming Range | 0 - 100%
5 Selectable dimming curves: Standard, Stage, TV, Architectural and Theater | | DMX Channels | 6 | | Connector | 1x DMX 3-pin XLR
IEC AC in/out | | Power Linking | Up to 21 Inno Pocket Scans @ 120V
Up to 37 Inno Pocket Scans @ 230V | | Power Consumption | 33 W full on | | Power Requirements | 100-240 VAC, 50/60 Hz | | Dimensions | 11.5 x 5.25 x 6.5" (294 x 132 x 160 mm) | | Weight | 6.0 lb (2.4 kg) | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 16.0 x 10.0 x 9.0" |
