User Manual for American DJ Inno Pocket Spot Twins Moving LED Heads Click to enlarge the picture
Contents of the user manual for the American DJ Inno Pocket Spot Twins
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Inno Pocket Spot Twins contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

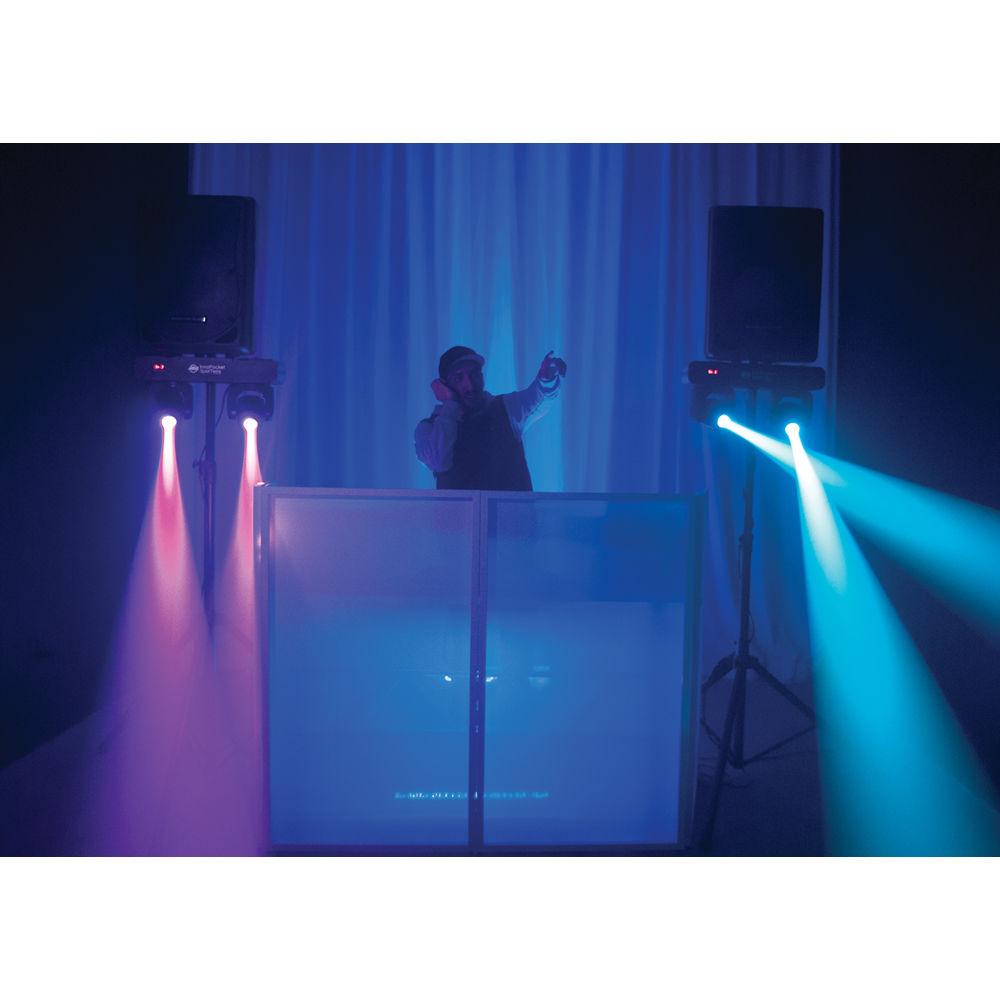

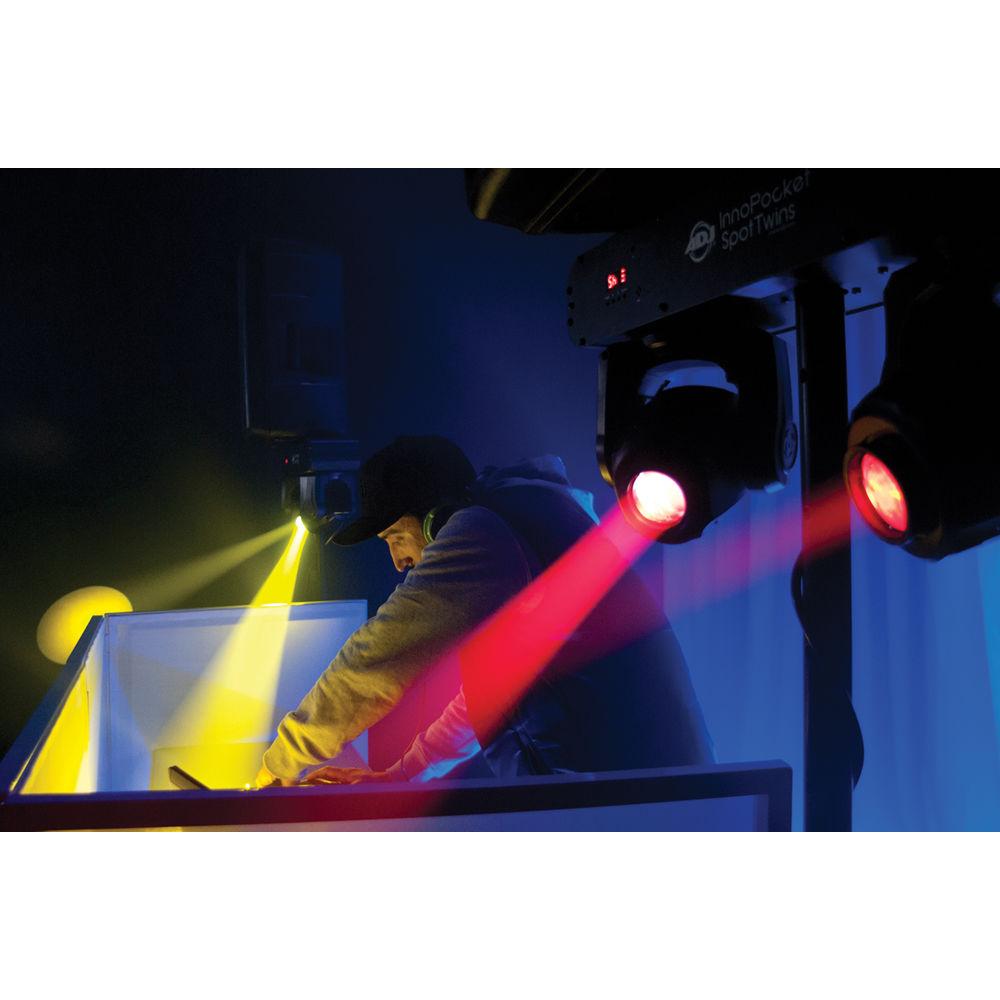

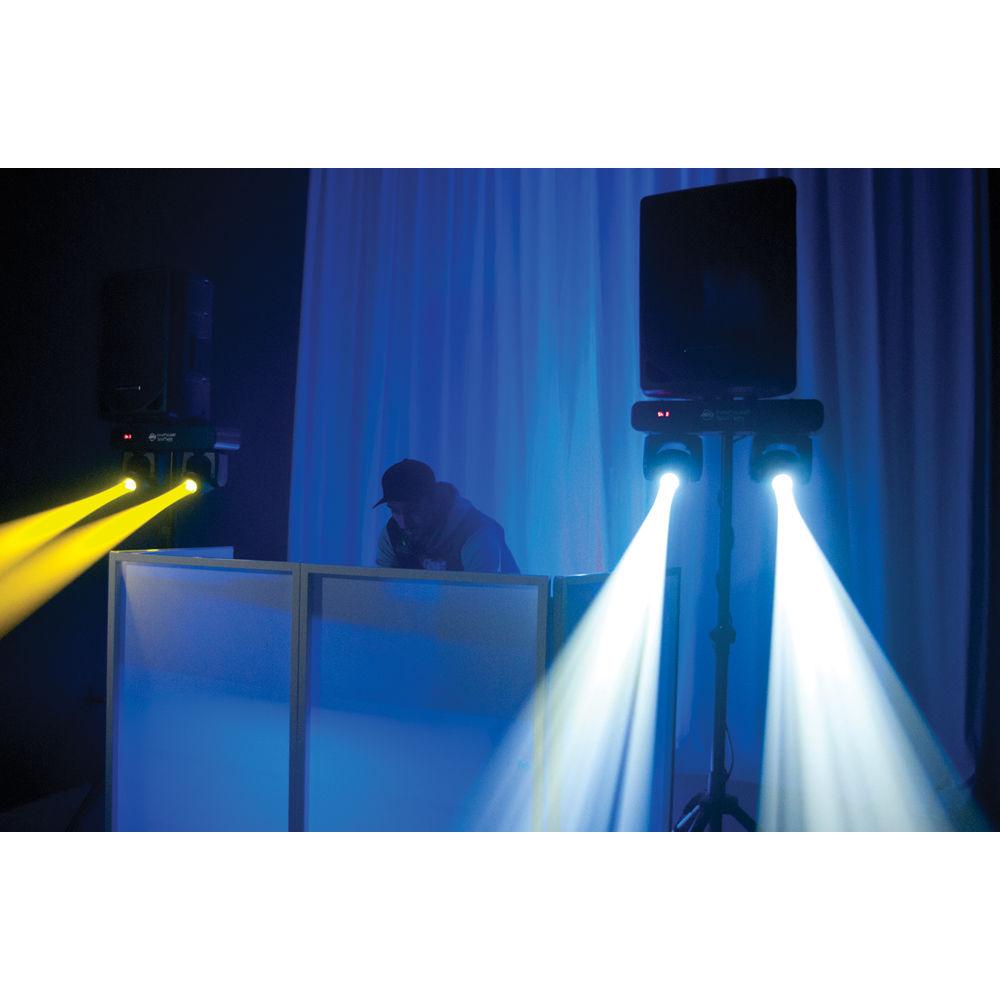

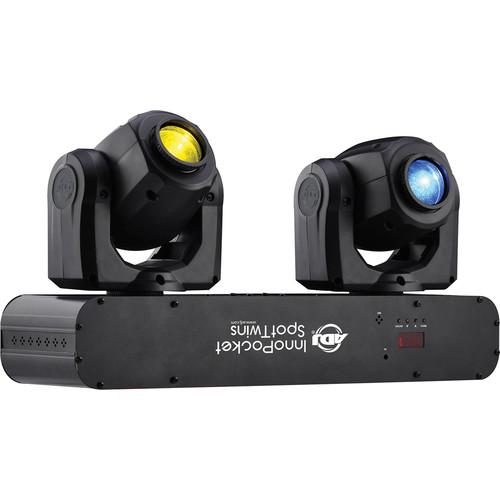

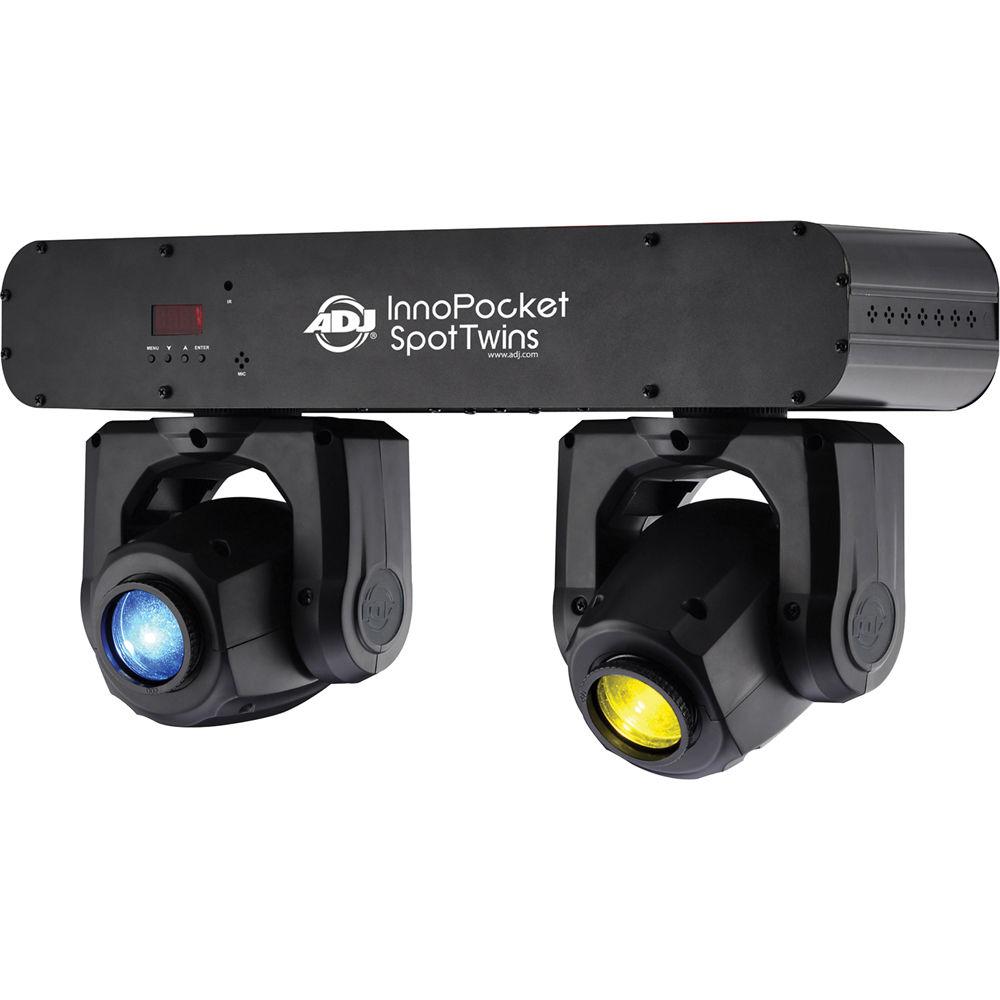

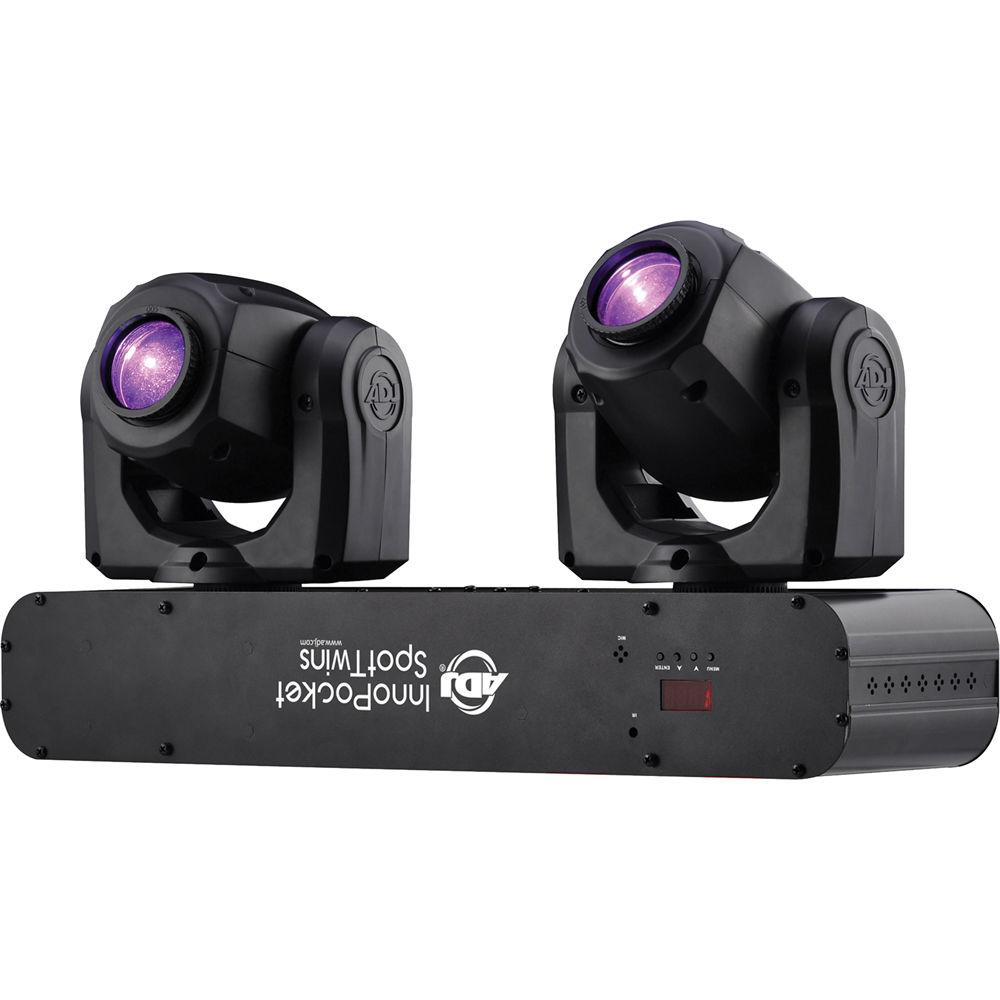

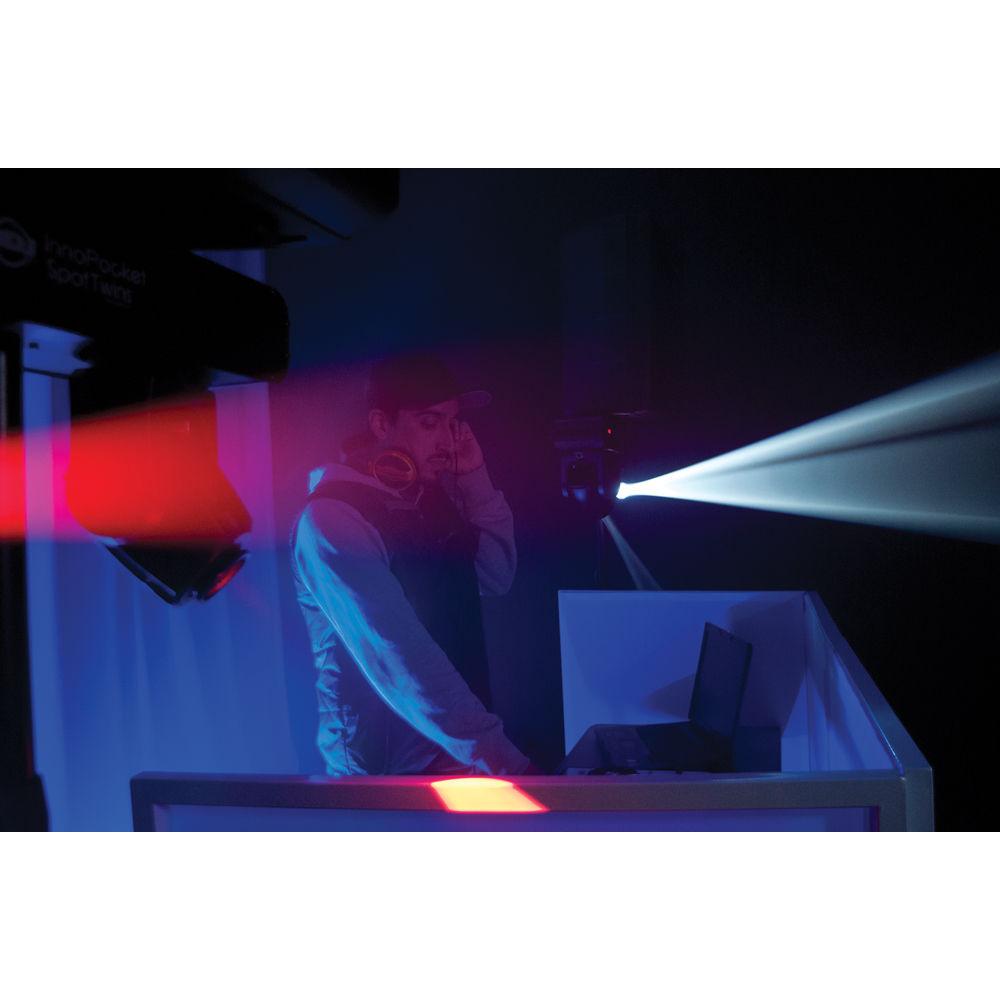

Product description The American Inno Pocket Spot Twins Moving LED Heads pairs 2 bar-mounted Pocket Spots that have identical capabilities but can operate independently from each other for double the effects.Designed for lighting installations and use at live performances such as parties, bars, concerts, and clubs, each fan-cooled fixture employs a long life 12W LED source rated for 50,000 hours. Each fixture can generate seven colors plus white, and includes seven fixed gobos with both a shake and scroll effect mode, as well as a spot pattern and separate color wheels. Each head can be dimmed from 0 and 100% with five selectable dimming curves (Standard, Stage, TV, Architectural, and Theater), while the Pocket Spot Twins' shutter generates a pulse effect with randomized strobing switching between slow and fast.The lights can pan 540° and tilt 230°; they have 13° beam angles, and feature a pan and tilt inversion mode that causes each fixture to move in the opposite direction of the other. Control features include an optional IR remote and two DMX channel modes (19 and 23) with 3-pin DMX in/out connectors that allow multiple units to be daisy chained to create complex lighting installations. A sound activation mode that utilizes an internal microphone, as well as four internal show modes, are selectable via the front panel.The Pocket Spot Twins come with 2 omega brackets for truss mounting, while a built-in receiver on the fixture also accepts an optional stand. - Attributes
-
- High output dual mini Moving Heads, each with a bright white 12W LED source
- 7 Colors + white
- 7 Fixed gobos + spot
- Separate color and gobo wheels
- Manual focus
- 3 Operational modes: DMX Control, Sound Active Mode and Show Mode
- 2 DMX channel modes
- 4 Built-in shows
- Gobo Shake effect
- Gobo Scroll mode
- Pan/Tilt Inversion mode
- Dimming: 0 - 100%
- 5 Selectable dimming curves: Standard, Stage, TV, Architectural, and Theater
- Shutter Pulse Effect: random strobe slow to fast
- Fan-cooled
- 2 Omega brackets included to hang from truss
- Stand mounting option

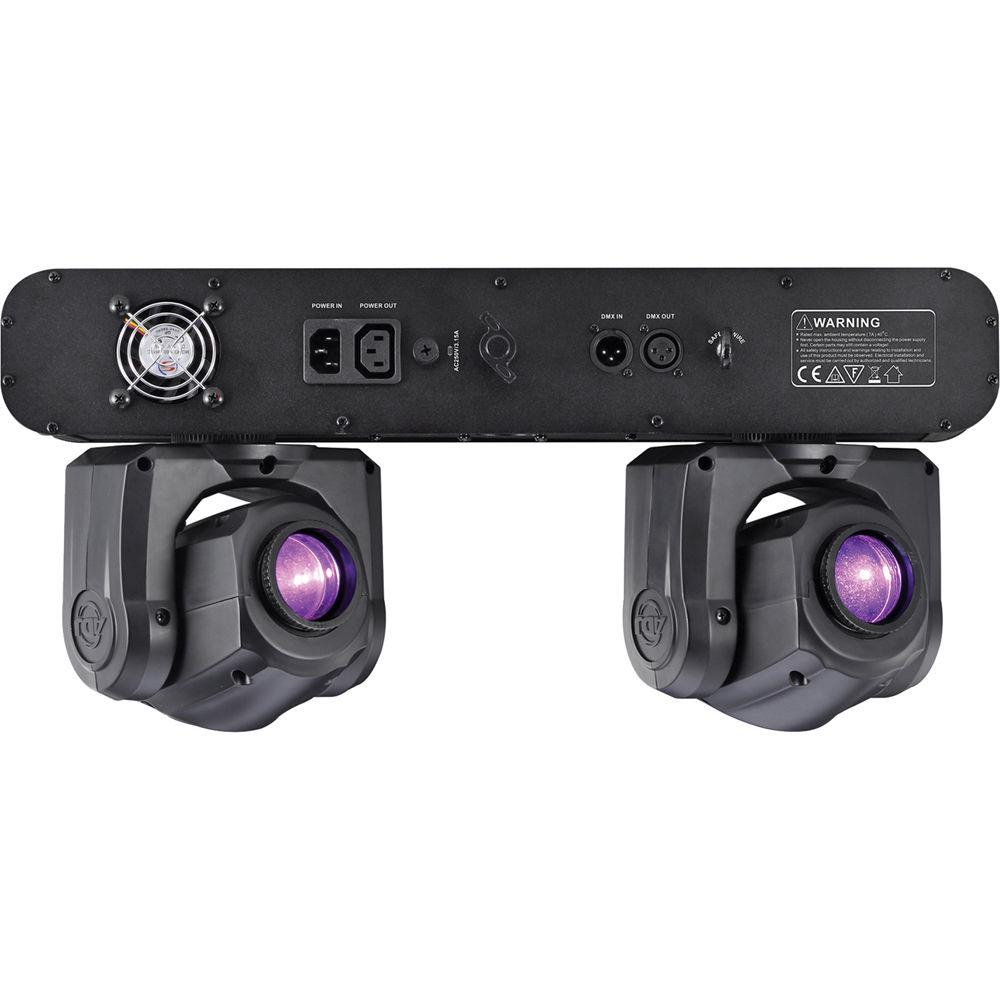

- DMX linkable via 3-pin XLR cable
- Optional IR wireless remote control
- Low power consumption
- Multi-voltage operation
UPC: 819730013767 In the Box American DJ Inno Pocket Spot Twins Moving LED Heads 2 x Omega Bracket Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Inno Pocket Spot Twins Moving LED Heads in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Inno Pocket Spot Twins Specs | | | Light Source | 12 W White LED | | Bulb Life | Approximately 50,000 hours | | Color Wheel | 7 | | Gobos | 7 Fixed + spot
Gobo Scroll and Gobo Shake modes | | Built-in Shows | 4 | | Beam Angle | 13° | | Pan | 540° | | Tilt | 230° (16-bit)
Also Pan/Tilt Inversion mode | | Control | Local, DMX, Optional IR remote | | Operation Modes | DMX, Sound Activation, Show modes | | Dimming | Standard, stage, TV, architectural, theater | | Dimming Range | 0 to 100% | | Shutter | Pulse effect: random strobe, switching between slow and fast | | Cooling | Fan | | DMX Channels | Channels 19 and 23 | | Mount | Truss via included brackets
Optional stand via 1.37" (35 mm) receiver | | Connector | 3-Pin DMX XLR in/out (linkable) | | Power Consumption | 66 W | | Power Requirements | 100-240 VAC at 50/60 Hz | | Dimensions (L x W x H) | 19.2 x 6.0 x 12.9" (487 x 153 x 327 mm) | | Weight | 13.2 lb (6 kg) | | | | Package Weight | 19.8 lb | | Box Dimensions (LxWxH) | 24.0 x 13.0 x 10.0" |
