User Manual for American DJ Inno Pocket Z4 Mini Zoom Moving Head Click to enlarge the picture
Contents of the user manual for the American DJ Inno Pocket Z4 Mini
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Inno Pocket Z4 Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

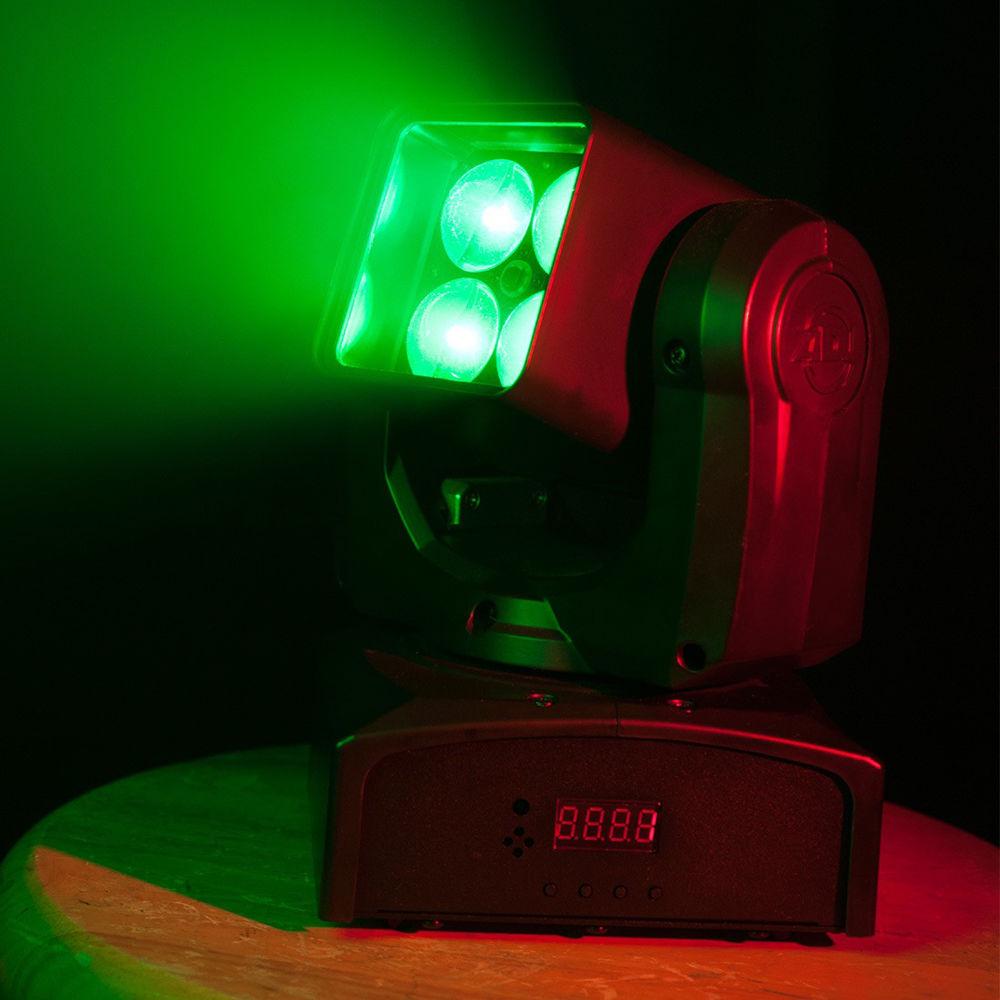

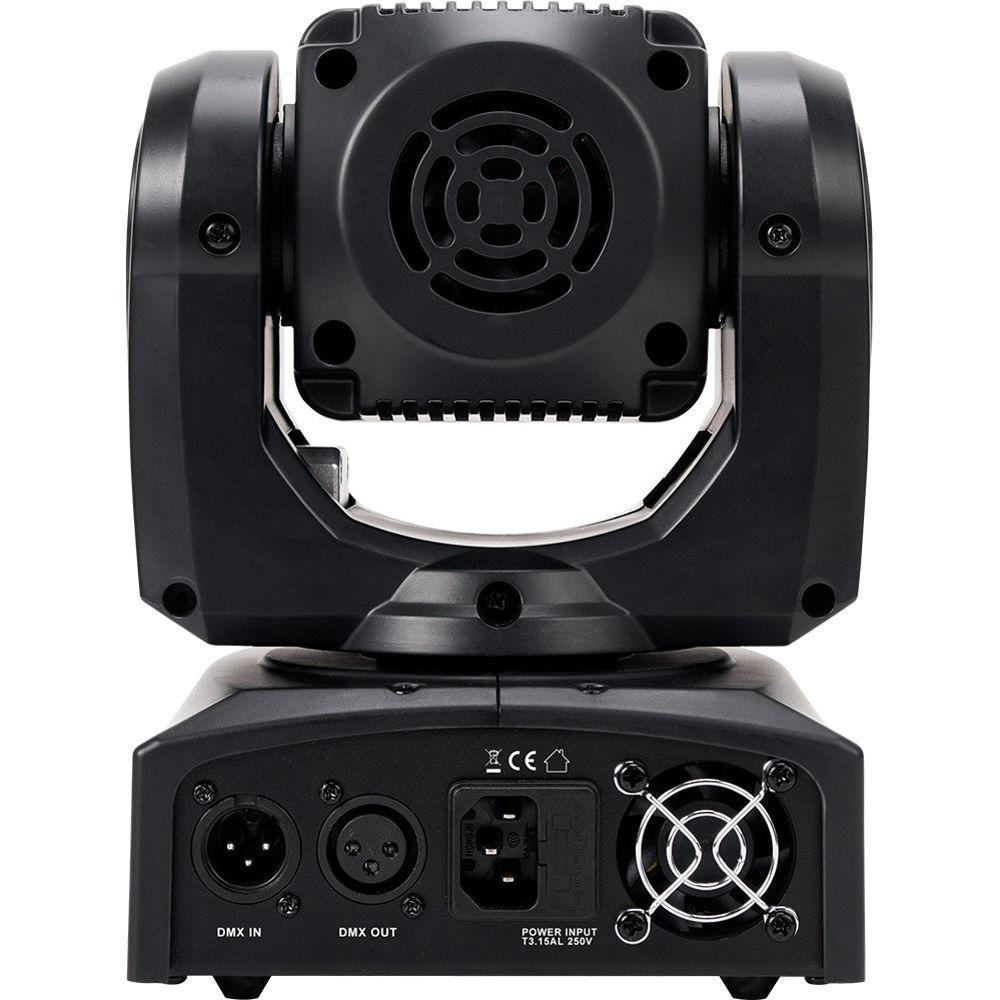

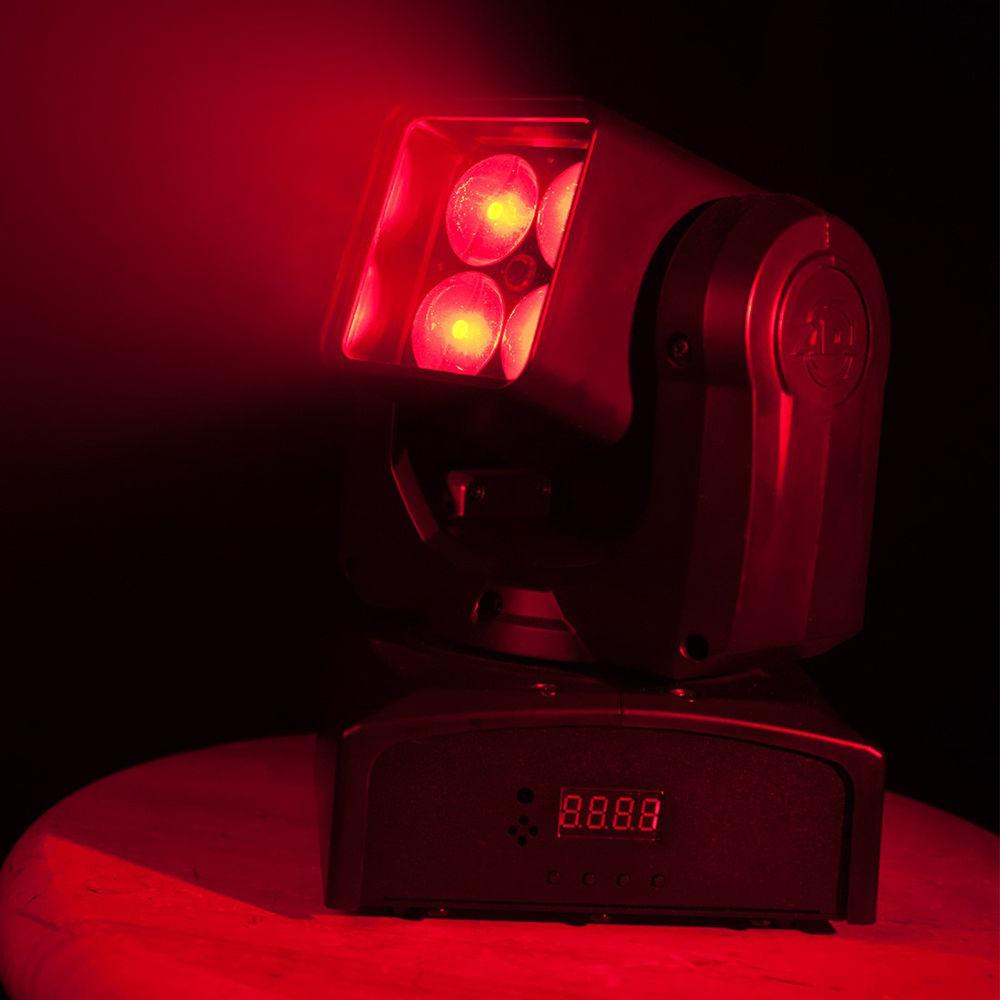

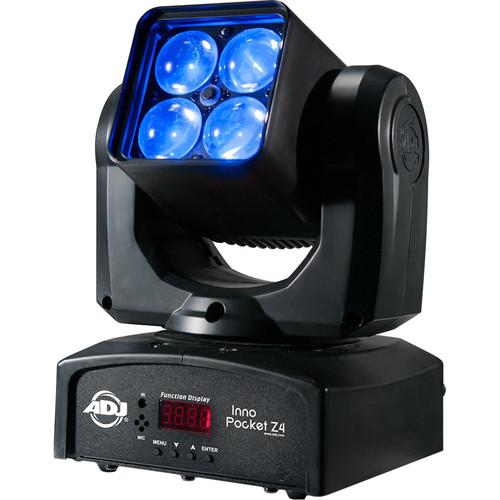

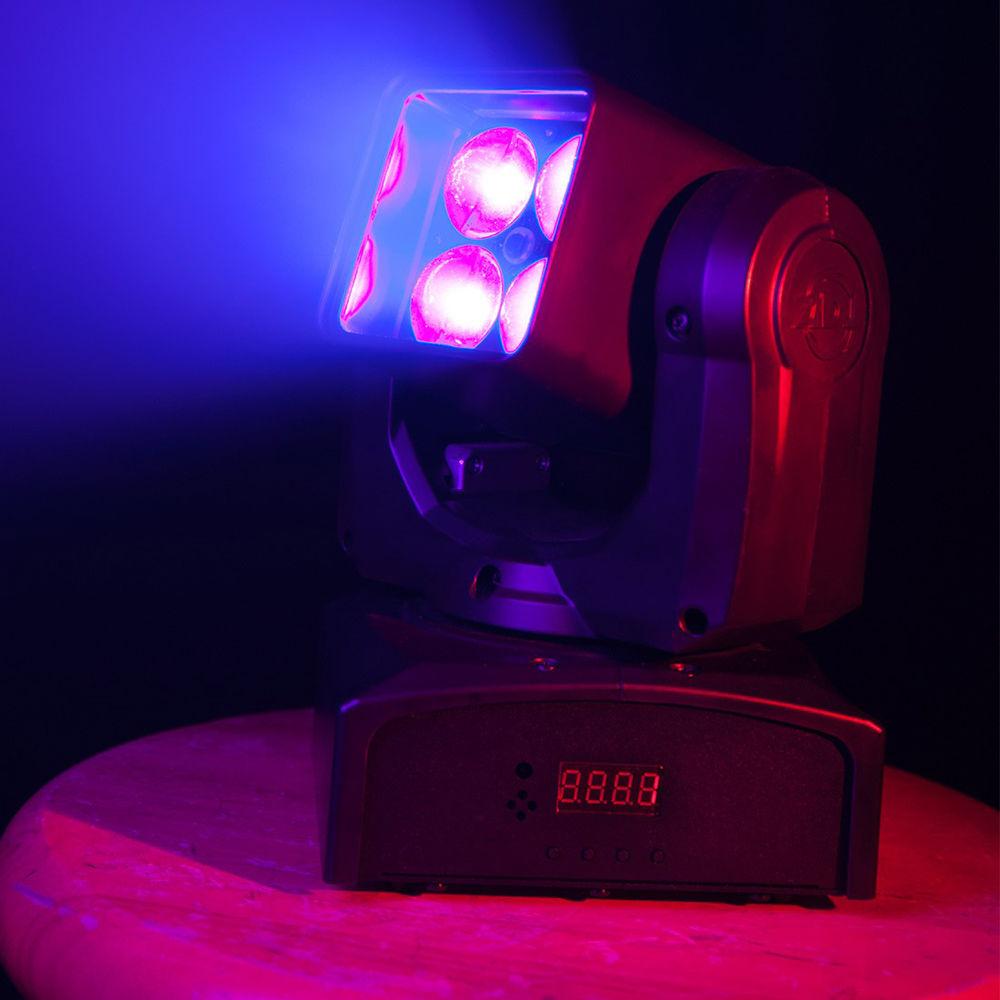

Product description The Inno Pocket Z4 from American DJ is a mini zoom moving head that produces washes of color with its 10 to 60° beam angle. It features 4 x 10W 4-in-1 Quad LEDs (RGBW - red, green, blue, and white) and has a pan and tilt inversion mode that makes one head do the opposite of another when linked together. The Inno Pocket Z4 can be controlled by sound activation with its 4 built-in shows, the optional UC IR wireless remote, or by using a DMX controller to create your own light shows. Its compact size and lightweight makes it suitable for mobile entertainers, small club and bars, roller rinks, bowling centers, churches, or any mobile production. - Mini moving head with 4 x 10W Quad RGBW LED source
- Standalone set up or master-slave configuration
- Five selectable dim curves: standard, stage, TV, architectural, and theater
UPC: 819730016829 In the Box American DJ Inno Pocket Z4 Mini Zoom Moving Head Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Inno Pocket Z4 Mini Zoom Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Inno Pocket Z4 Specs | Light Source | 4 x 10W 4-in-1 RGBW LED source | | LED Life | Rated at approximately 50,000 hours | | Operational Modes | DMX control, sound active mode, and show mode | | DMX Channel Modes | 16/19/22 channels | | Beam Angle | 10 to 60° | | Pan/Tilt | 540° / 180° (8-bit and 16-bit) | | Zoom | 10 to 60° | | Shutter | Pulse effect; random strobe slow to fast | | Dimming | 0 to 100% | | Linkable | DMX via 3-pin XLR cable | | Power Consumption | 67 W | | Multi Voltage | 100 to 240 VAC, 50/60 Hz | | Dimensions (L x W x H) | 5.50 x 6.75 x 9.75" (14.1 x 17.4 x 24.7 cm) | | Weight | 7 lb (3.2 kg) | | | | Box Dimensions (LxWxH) | 13.0 x 10.0 x 8.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
