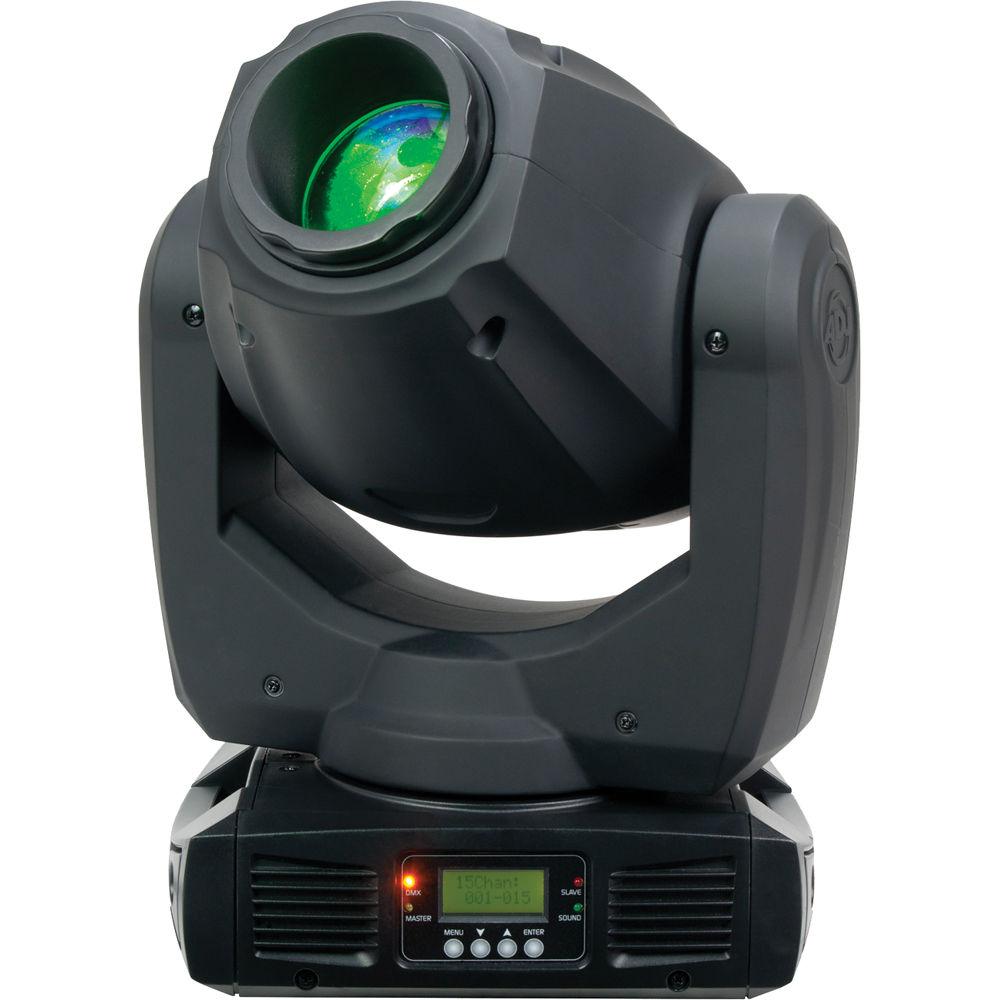

Product description The American DJ Inno Spot Pro is designed for lighting live performances such as DJing at a party or in a club. The spot utilizes an 80W LED light source with a 50,000 hour bulb life and only draws 140W total to power 6 rotating replaceable gobos, 8 color wheels plus white, and a stepper motor with micro stepping precision. The unit is designed to be portable and includes three operation modes: DMX-512 with 14 DMX control channels, sound activation mode with the unit's internal microphone, and show mode with the unit's internal programs.
The light features a 3-facet rotating prism, a gobo shake effect, 0 to 100% dimming, shutter control for random strobing from slow to fast, and pan/tilt fine adjustment control. The light is fan cooled and compatible with the ADJ UC3 series easy-to-ease controllers. Multiple units can be daisy chained together to save on cabling. The fixture comes with an omega clamp for attaching to a truss or for more permanent installations. UPC: 819730010902 In the Box American DJ Inno Spot Pro Omega Clamp Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Inno Spot Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Spot Pro Specs | Light Source | 80W LED | | Bulb Life | Approximately 50,000 hours | | Colors | 8x + white | | Gobos | 6x rotating + spot | | Gobo Size | 24 mm (20 mm viewable / 0.2 mm thickness for 4 metal gobo, 1.1 mm thickness for 2 glass gobo) | | Zoom | 12 to 17° | | DMX Channels | 14 | | Operation Modes | DMX-512, sound active, show mode (4 built-in) | | Pan & Tilt | 540° / 270° tilt (16-bit) | | Dimming | 0 to 100% | | Daisy Chain Capability | DMX Linkable via 3-Pin XLR Cable
Power cable up to 4 units at 120 VAC
Power cable up to 8 units at 220 VAC | | Compatibility | ADJ UC3 series easy-to-use controllers (sold separately) | | Power Consumption | 140 W at 110 VAC
134 W at 220 VAC | | Power Requirements | 100 to 240 VAC at 50/60 Hz | | Dimensions (L x W x H) | 11.5 x 6.75 x 16.75" (288 x 167 x 425 mm) | | Weight | 19 lb (8.5 kg) | | | | Package Weight | 24.8 lb | | Box Dimensions (LxWxH) | 21.2 x 14.4 x 12.4" |
