User Manual for American DJ Inno Spot Pro - Moving Head Fixture & ISP Tough Bag Click to enlarge the picture
Contents of the user manual for the American DJ Inno Spot Pro -
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Inno Spot Pro - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

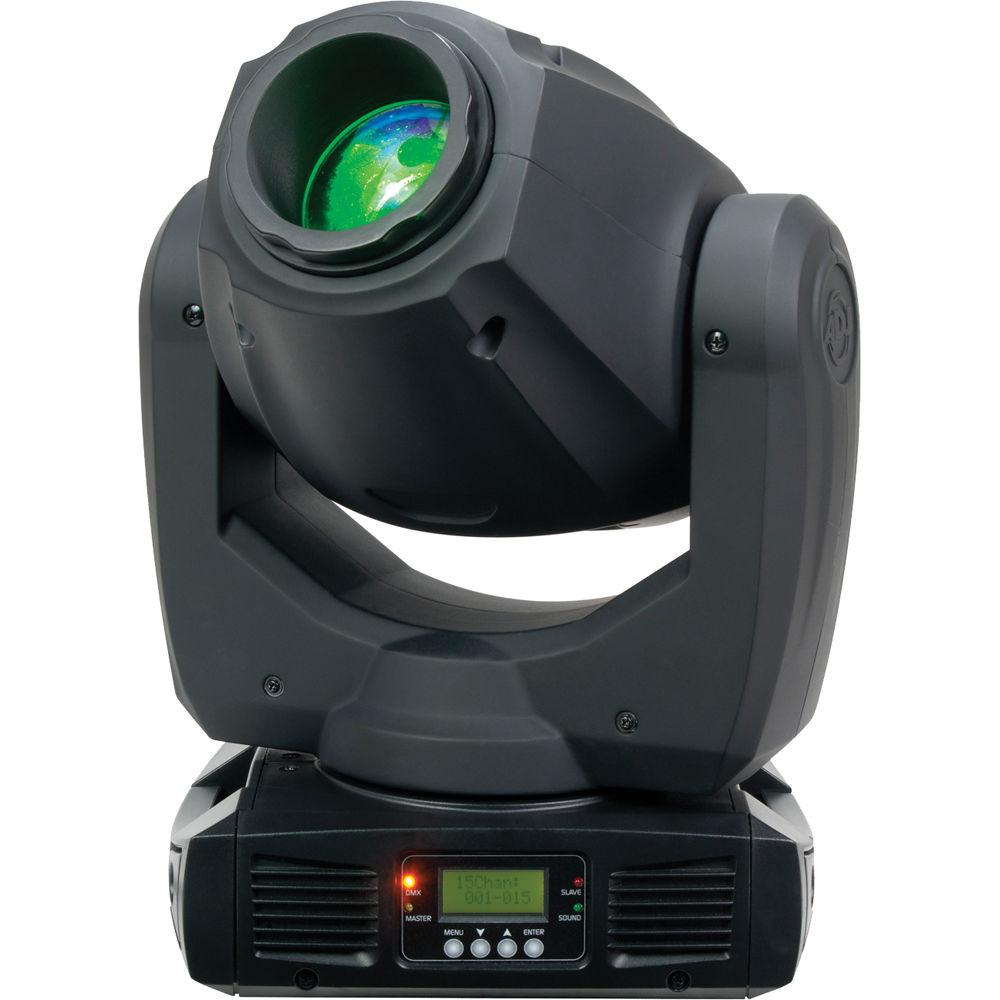

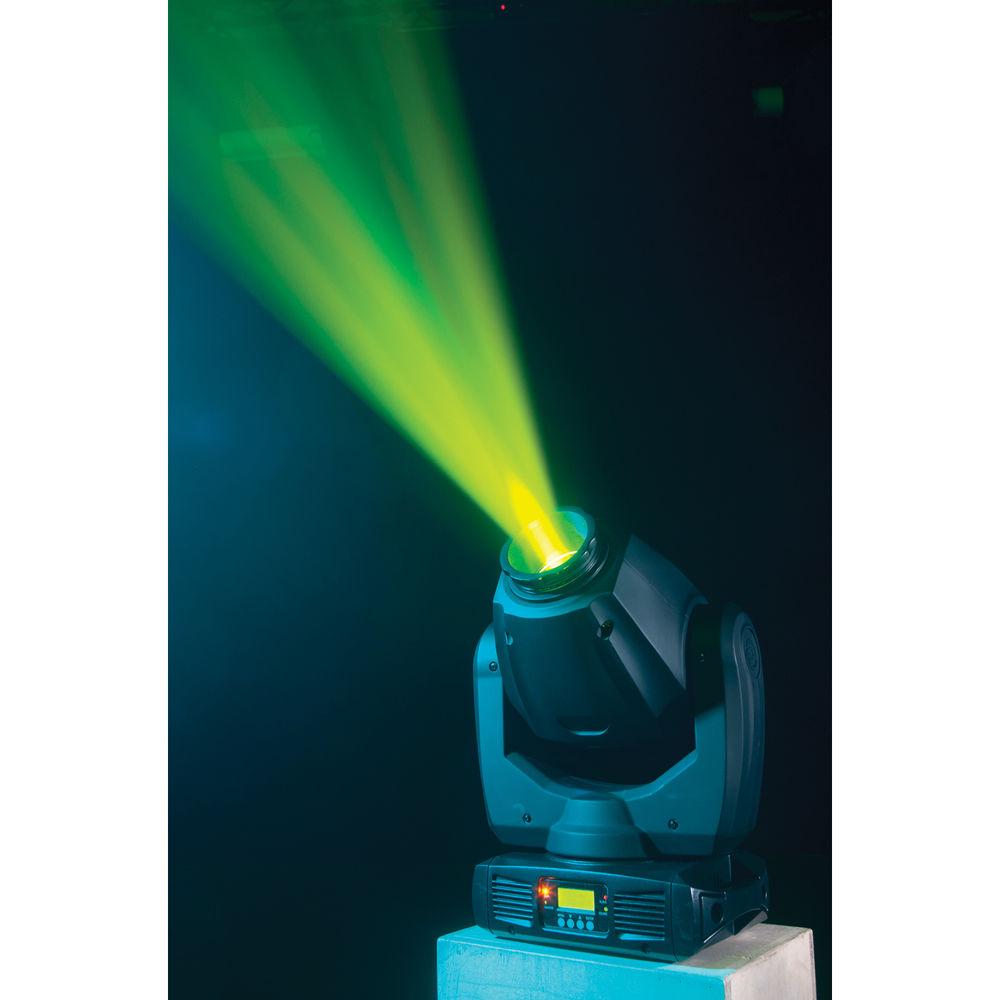

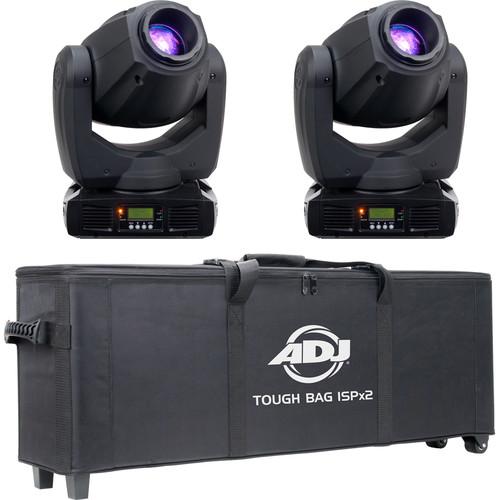

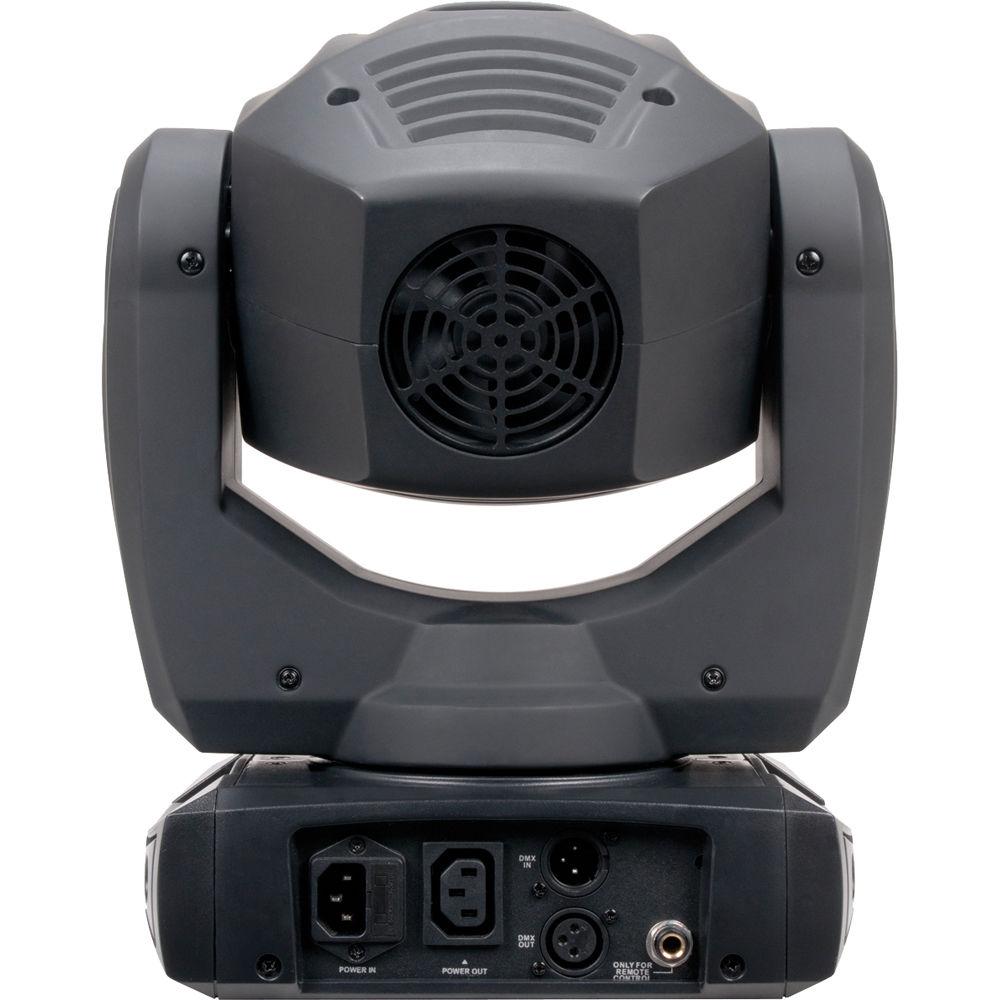

Product description The Inno Spot Pro (2-Pack) from American DJ includes two Inno Spot Pro moving head lights and one ISP Tough Bag. The moving heads are fairly compact and lightweight (19 lb), making them suitable for mobile production. The fixtures feature DMX operation, sound active mode, and built-in programs for a varied range of control options. The units have eight colors plus white, six rotating/replaceable gobos plus a spot, a three-facet prism, manual zoom, motorized focus, 540° of pan, 270° of tilt, XLR 3-pin DMX connections, and IEC power connections for power linking (up to 4 units). The ISP Tough Bag is a durable semi-hard case with wheels, designed specifically for transporting Inno Spot Pro fixtures. - Inno Spot Pro The American DJ Inno Spot Pro is designed for lighting live performances such as DJing at a party or in a club. The spot utilizes an 80W LED light source with a 50,000 hour bulb life and only draws 140W total to power 6 rotating replaceable gobos, 8 color wheels plus white, and a stepper motor with micro stepping precision. The unit is designed to be portable and includes three operation modes: DMX-512 with 14 DMX control channels, sound activation mode with the unit's internal microphone, and show mode with the unit's internal programs.

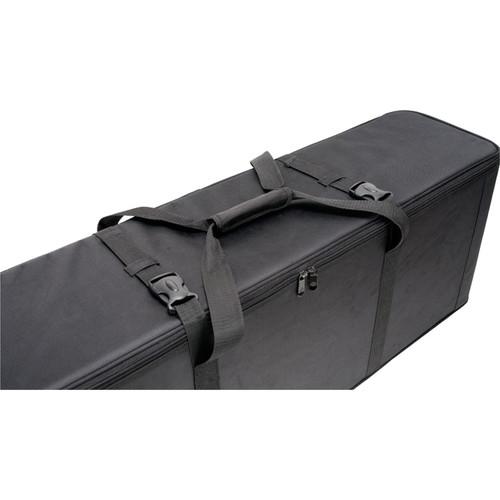

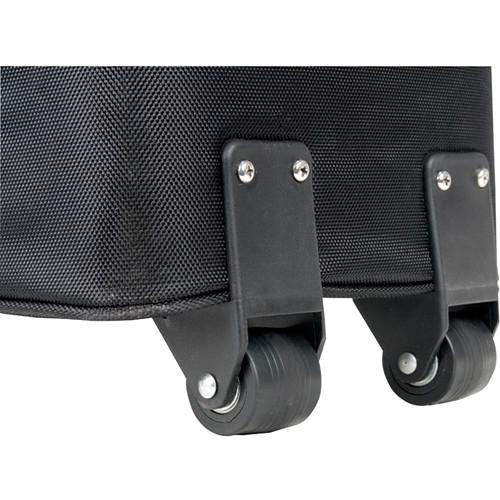

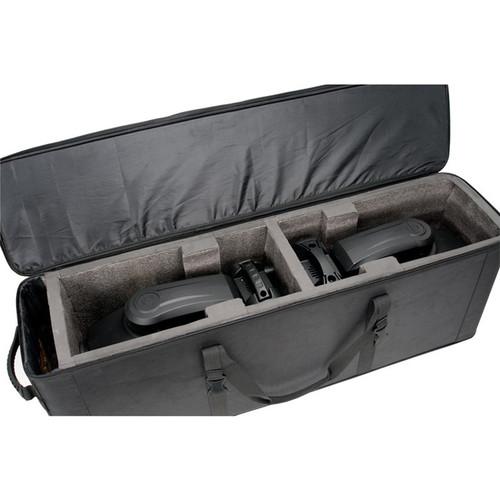

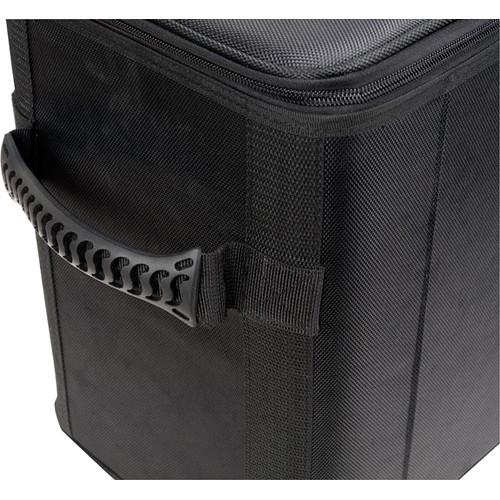

The light features a 3-facet rotating prism, a gobo shake effect, 0 to 100% dimming, shutter control for random strobing from slow to fast, and pan/tilt fine adjustment control. The light is fan cooled and compatible with the ADJ UC3 series easy-to-ease controllers. Multiple units can be daisy chained together to save on cabling. The fixture comes with an omega clamp for attaching to a truss or for more permanent installations. UPC: 819730010902 - Tough Bag ISPx2 Semi-Hard Case for 2 ADJ Inno Spot Pro / Inno Spot Pro WH Moving Heads (Black) Store, transport, and protect up to two ADJ Inno Spot Pro, ADJ Inno Spot Pro WH, Inno Spot Elites or Focus Spot Two Moving Heads with the black Tough Bag ISPx2 Semi-Hard Case from ADJ. This case may work for other light brands and models as well. The main storage area is divided into two light compartments, and one cable/accessory compartment. Carry the case with the dual connecting strap handles, or roll with the pull handle and wheels. Users will appreciate the zipper and buckle closure, and four feet for upright standing. UPC: 819730016607
In the Box Bundle Items 2 x Inno Spot Pro ydxybuaayuffaa Tough Bag ISPx2 Semi-Hard Case for 2 ADJ Inno Spot Pro / Inno Spot Pro WH Moving Heads (Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Inno Spot Pro - Moving Head Fixture & ISP Tough Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Inno Spot Pro
| Light Source | 80W LED | | Bulb Life | Approximately 50,000 hours | | Colors | 8x + white | | Gobos | 6x rotating + spot | | Gobo Size | 24 mm (20 mm viewable / 0.2 mm thickness for 4 metal gobo, 1.1 mm thickness for 2 glass gobo) | | Zoom | 12 to 17° | | DMX Channels | 14 | | Operation Modes | DMX-512, sound active, show mode (4 built-in) | | Pan & Tilt | 540° / 270° tilt (16-bit) | | Dimming | 0 to 100% | | Daisy Chain Capability | DMX Linkable via 3-Pin XLR Cable
Power cable up to 4 units at 120 VAC
Power cable up to 8 units at 220 VAC | | Compatibility | ADJ UC3 series easy-to-use controllers (sold separately) | | Power Consumption | 140 W at 110 VAC
134 W at 220 VAC | | Power Requirements | 100 to 240 VAC at 50/60 Hz | | Dimensions (L x W x H) | 11.5 x 6.75 x 16.75" (288 x 167 x 425 mm) | | Weight | 19 lb (8.5 kg) | | | | Box Dimensions (LxWxH) | 21.2 x 14.4 x 12.4" | - Tough Bag ISPx2 Semi-Hard Case for 2 ADJ Inno Spot Pro / Inno Spot Pro WH Moving Heads (Black)
| | | Compartment Dimensions (W x H x D) | 12 x 7.2 x 4.2" / 30.5 x 18.4 x 10.8 cm
9.2 x 7.2 x 12" / 23.5 x 18.4 x 30.5 cm | | | | Closure Type | Buckle, Zipper | | Carry and Transport Options | 2 x Connecting Handstrap
1 x Handle | | Casters | 2 | | Material of Construction | Nylon | | Exterior Dimensions (W x H x D) | 39.2 x 15.5 x 10.2" / 100 x 39.5 x 26 cm | | Weight | 17 lb / 7.7 kg | | | | Box Dimensions (LxWxH) | 42.8 x 14.8 x 10.6" |
