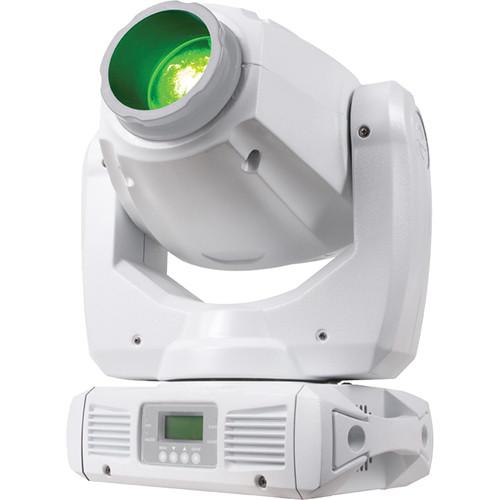

Product description The white Inno Spot Pro Pearl from American DJ is a 14-channel, DMX intelligent, moving head LED fixture. It features a bright 80W LED source, 6 rotating/replaceable gobos and 8 colors plus white light effects on separate gobo and color wheels. Its hard edge beam is similar to a traditional halogen or discharge lighting effect, but thanks to an LED source, it consumes less (140W) power and eliminates the need to change the light bulbs frequently.
Thanks to its lightweight design and compact size, the Inno Spot Pro Pearl is portable and can be set up by virtually any entertainer. The Inno Spot Pro has three operating modes: sound active, show mode, and DMX control. It features 4 exciting built-in light shows when used in sound active or linked in master/slave mode. Other features include 14 DMX channels, motorized focus, manual zoom, 4-button digital DMX menu, dimming, shutter, and gobo shake effect.
The Inno Spot Pro contains an automatic voltage switch, which auto senses the voltage when it is plugged into a power source. With this switch, the unit can be plugged virtually anywhere without worrying about the source power.
The Inno Spot Pro Pearl can be controlled via Sound Activation with built-in programs or the ADJ UC3 easy-to-use controller (sold separately). It can operate as a standalone fixture or in a master/slave configuration. In addition, this fixture is suitable for theaters, studios, retail stores, and other similar locations. Note: For best results, use fog or special effects smoke to enhance the beam projections. - High-output intelligent moving head with a bright white 80W LED source with white casing
- 80W white LED source rated at approximately 50,000 hours

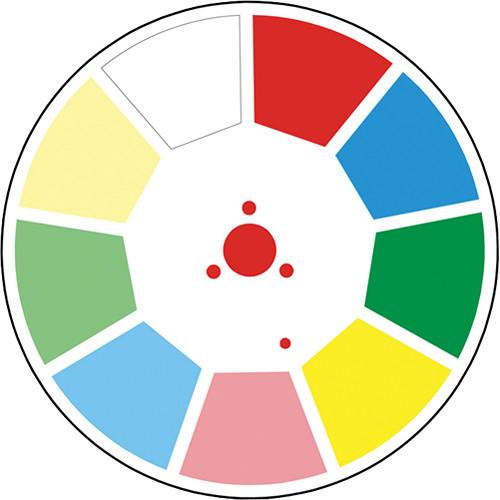

- Separate color & gobo wheels

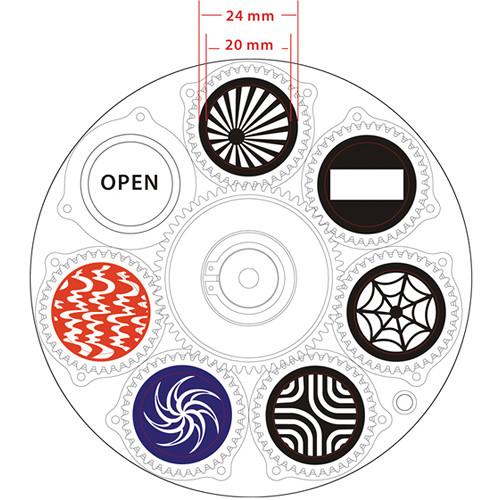

- 6 rotating, replaceable gobos + spot
- Manual zoom; adjustable from 12 to 17°
- 3 Operational Modes: DMX-512, Sound Active, and Show modes
- 4 built-in lighting shows
- 3-facet rotating prism effect
- 540° pan / 270° tilt (16-bit)
- Shutter: Pulse effect that initiates random strobe movement from slow to fast
- Stepper motors with micro stepping

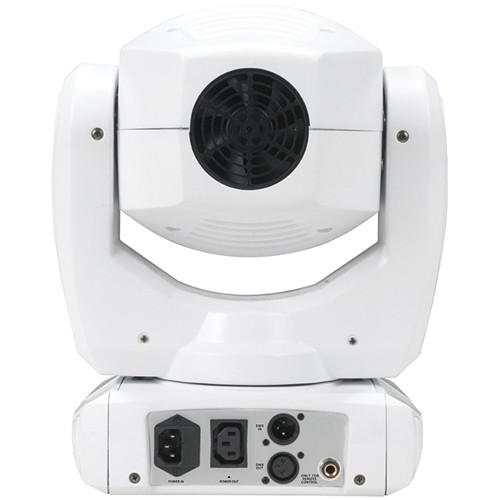

- Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link
- Compatible with the ADJ UC3 Series easy-to-use controllers (available separately)
- Multi-voltage operation (100 to 240VAC, 50/60 Hz)
- Digital display for address and function setting
UPC: 819730012487 In the Box American DJ Inno Spot Pro Pearl LED Fixture (White) Omega Clamp Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Inno Spot Pro Pearl LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Inno Spot Pro Specs | Voltage | 100 to 240 V, 50/60 Hz | | LED | 1 x 80 W White LED (rated at approximately 50,000 hours) | | Power Cord Daisy Chain | 4 fixtures maximum (120 V), 8 fixtures maximum (220 V), power cord | | Beam Angle | 12 to 17° | | Fuse | 7 A | | DMX | 14 DMX channels | | Colors | 8 + White | | Gobos | 6 + Spot
0.94" (24.00 mm)/0.007" (0.2 mm) thickness (metal gobo)
0.043" (1.100 mm) thickness (glass gobo)
0.78" (20.00 mm) viewable | | Positioning | Any safe, secure position | | Dimming | 0 to 100% | | Power Consumption | 140 W @110 V, 134 W @ 220 V | | Dimensions (LxWxH) | 11.50 x 6.75 x 16.75" (29.20 x 17.10 x 42.55 cm) | | Weight | 19.0 lb (8.6 kg) | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 15.0 x 13.0 x 12.0" |
