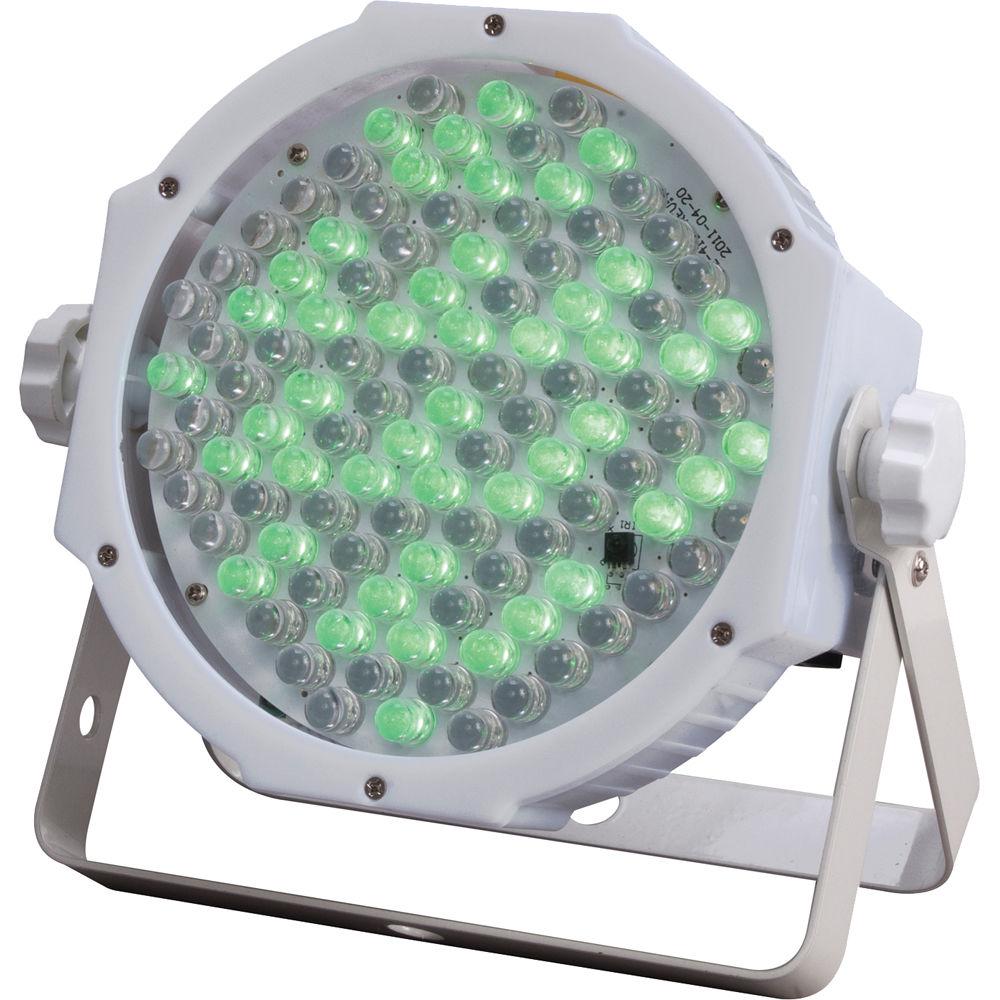

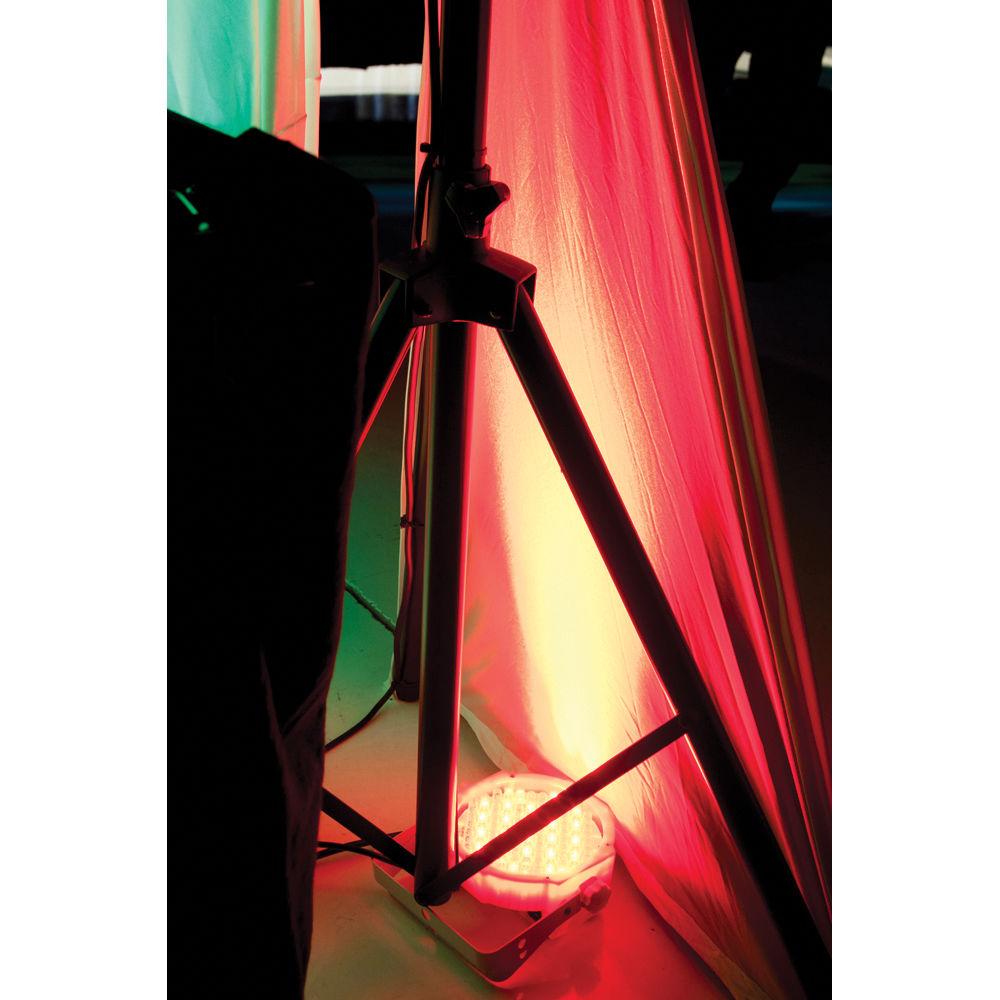

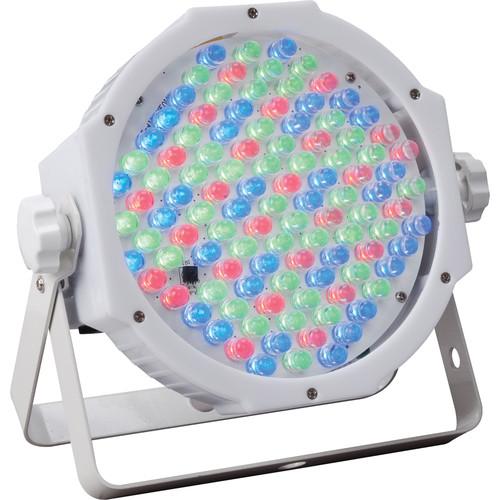

Product description The Jelly Par Profile LED Light from American DJ is part of the Jelly Series that features a glowing transparent housing. It's a compact, low profile wash fixture designed to bring color and excitement to any party. The fixture is well-suited to uplighting, stage lighting or color washing a room. This light features a unique sit-flat design allowing it to sit directly on the ground or inside truss sections without the scissor yoke due to the mounting of the power DMX Ins and Outs on the side of the fixture instead of the rear. The Jelly Par Profile offers smooth RGB color mixing, has a 30-degree beam angle, 5 operational modes (including DMX, Sound Active and Master/Slave), and has 7 DMX Channel modes for a variety of programming options. Users can also use the ADJ LED RC wireless remote, which is sold separately, to control the light. - Attributes
-
- 2-FX-IN-1: Glowing transparent Wash Fixture Smooth RGB Color Mixing (fast or slow color change operation)

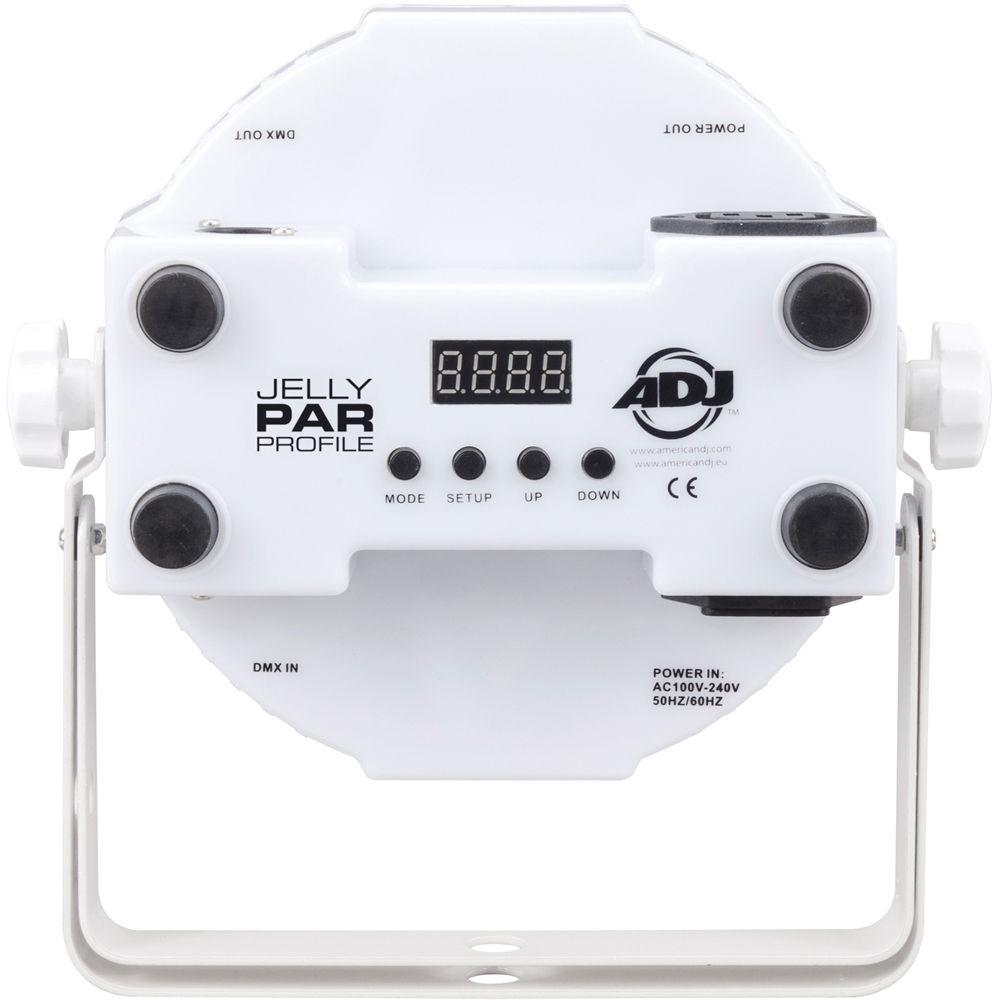

- Sit-flat" Design: power and DMX Ins/Outs sit sideways so the unit can be set flat on the ground or placed inside truss

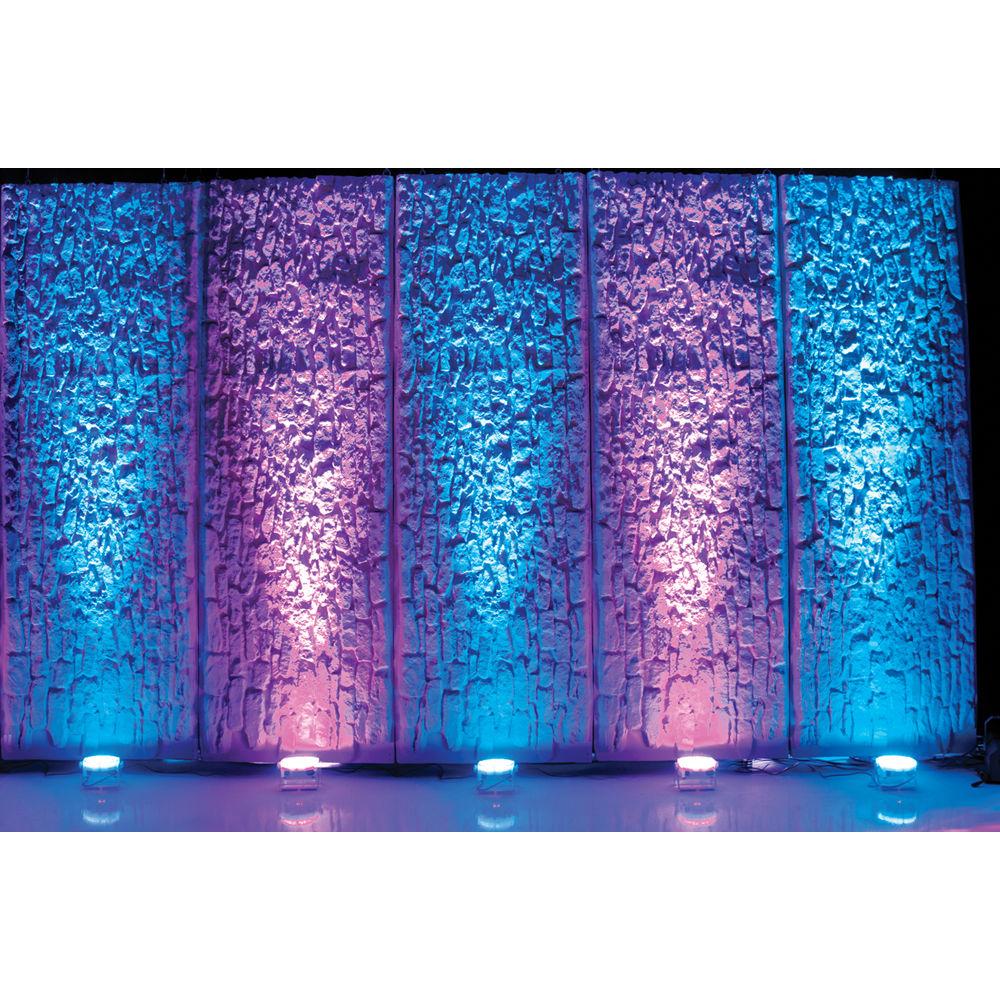

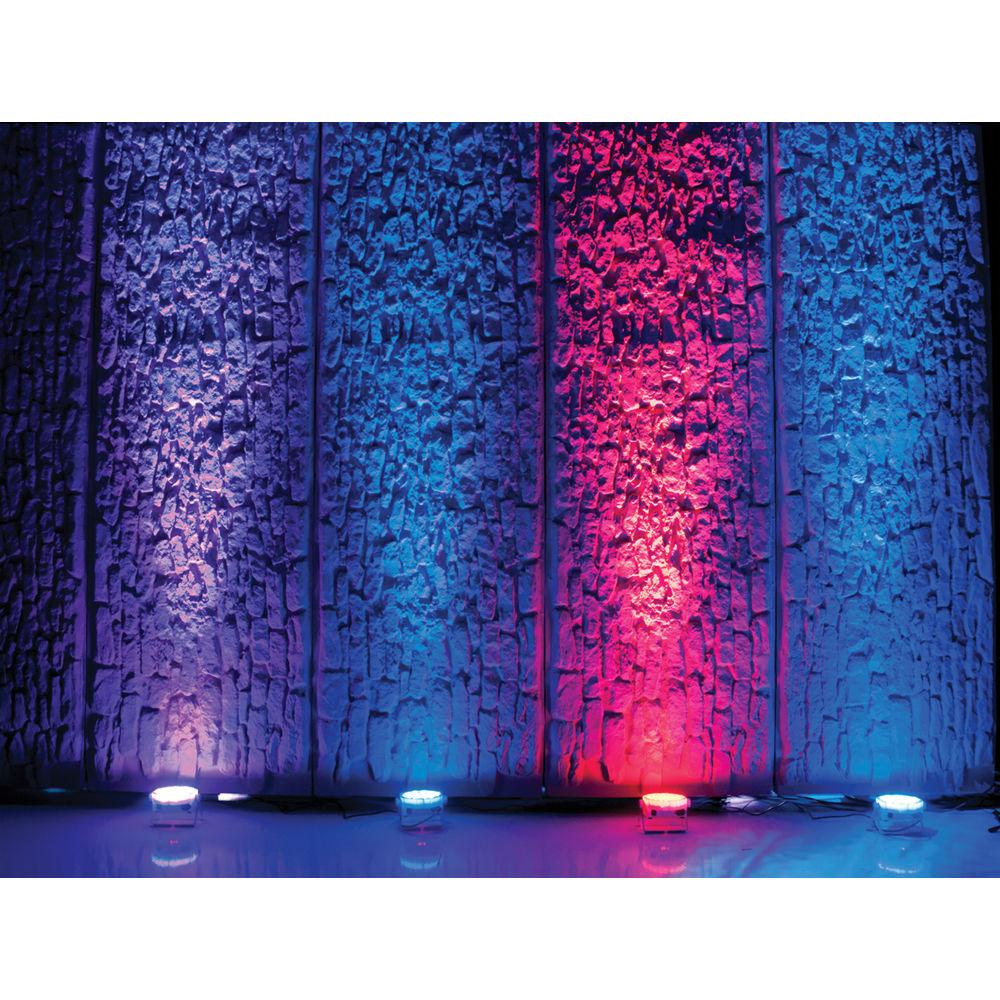

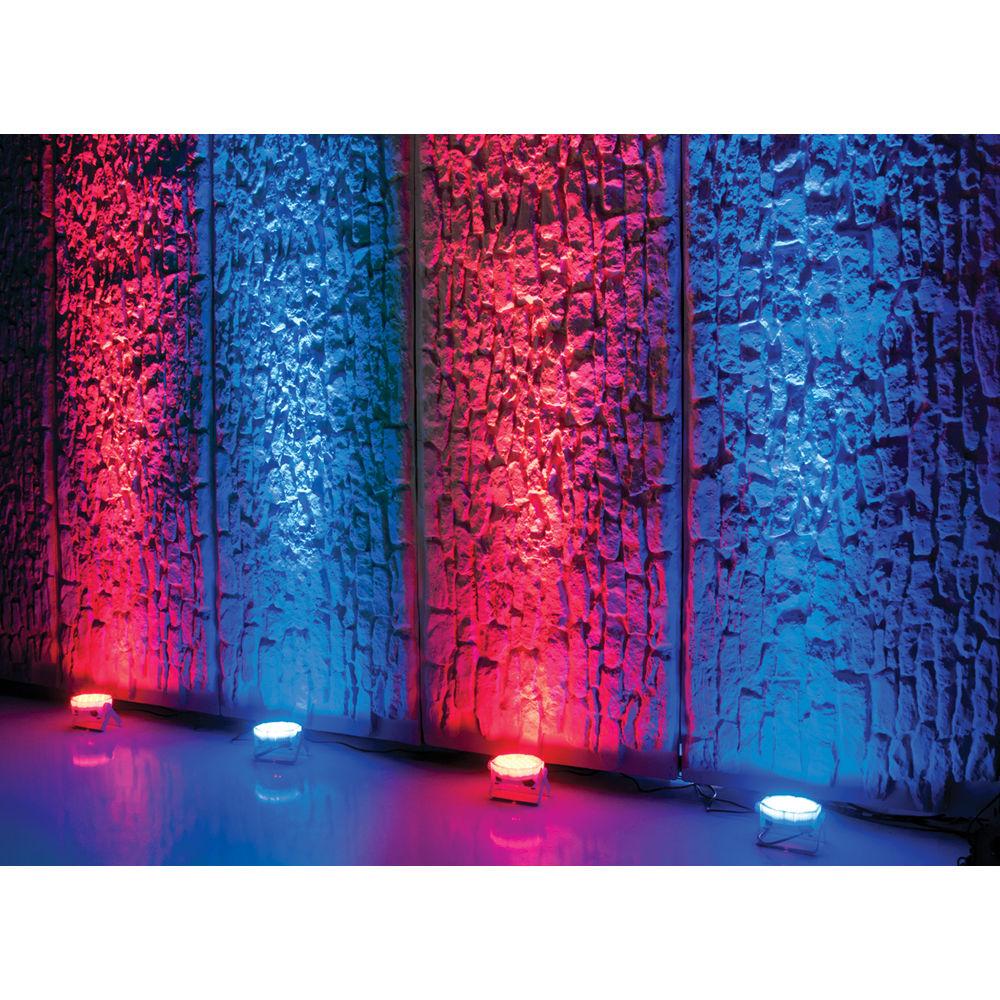

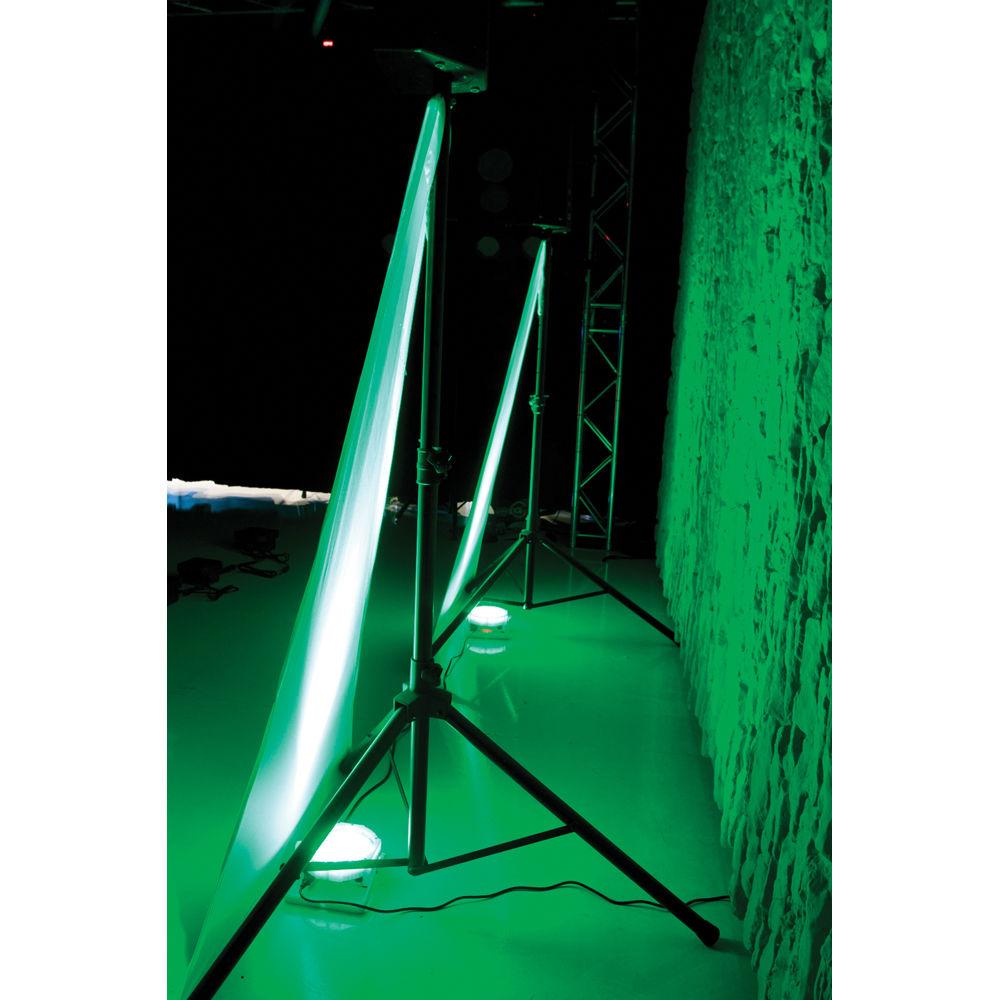

- Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
- 7 DMX Channel modes: 1, 2, 3, 4, 5, 6 or 7 channel
- 5 Operational modes: Auto mode and sound active feature with built-in programs
- Stand Alone or Master/Slave Configuration
- 32 built-in Color Macros
- LED Color Pulse and strobe effect
- Flicker-free
- Linkable via 3-pin XLR cable
- Electronic Dimming: 0-100%
- Includes dual mounting brackets to hang on truss, mount on a wall or set on the ground
- Long life LEDs (50,000 hr) Low power draw
- IEC AC input and output on rear to daisy chain power
- Compatible with optional ADJ LED RC wireless infrared remote control
- Multi-voltage operation
- ETL approved
UPC: 640282003056 In the Box American DJ Jelly Par Profile LED Light Power Cable Set Dual Mounting Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Jelly Par Profile LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Jelly Par Profile Specs | Light Source | 108 10 mm LEDs (26 red, 46 green, 36 blue) | | Bulb Life | Approximately 50,000 hr | | Beam Angle | 30° | | Modes | 5 Operational modes: auto mode and sound active feature with built-in programs
Stand Alone or Master/Slave configuration
32 built-in color macros 32 Built-in Color Macros RGBA dimmer mode
Sound active mode
Static color mode
Auto run mode x3
DMX control | | DMX | 7 DMX channel modes: 1, 2, 3, 4, 5, 6, 7 | | Remote Control | Via DMX
Optional IR remote control | | Shutter/Strobe | Color pulse and strobe effect | | Dimming Range | 0 - 100% | | Connector | 1x DMX 3-pin XLR
1x IEC AC in/out | | Power Linking | Yes | | Power Consumption | 14 W max | | Power Requirements | 100-240 VAC, 50/60 Hz | | Dimensions | 9.0 x 8.75 x 3.5 (225 x 220 x 85 mm) | | Weight | 3.0 lb (1.3 kg) | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 11.0 x 10.7 x 5.2" |
