User Manual for American DJ LED Pixel Tube 360 with 4-Channel Controller Driver System Click to enlarge the picture
Contents of the user manual for the American DJ LED Pixel Tube 360
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ LED Pixel Tube 360 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

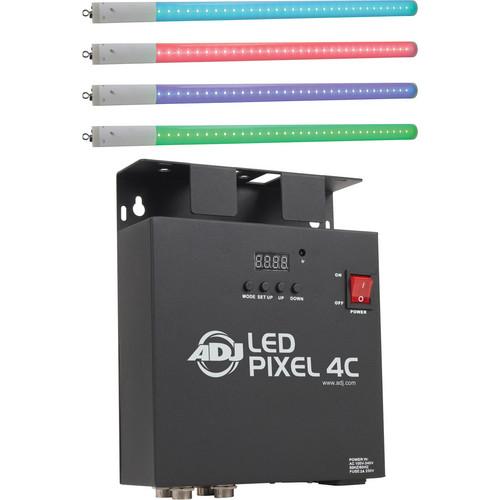

Product description The American DJ LED Pixel Tube System includes four LED Pixel 360 Color Tubes with attached connectors and an LED Pixel 4-Channel Controller / Driver.

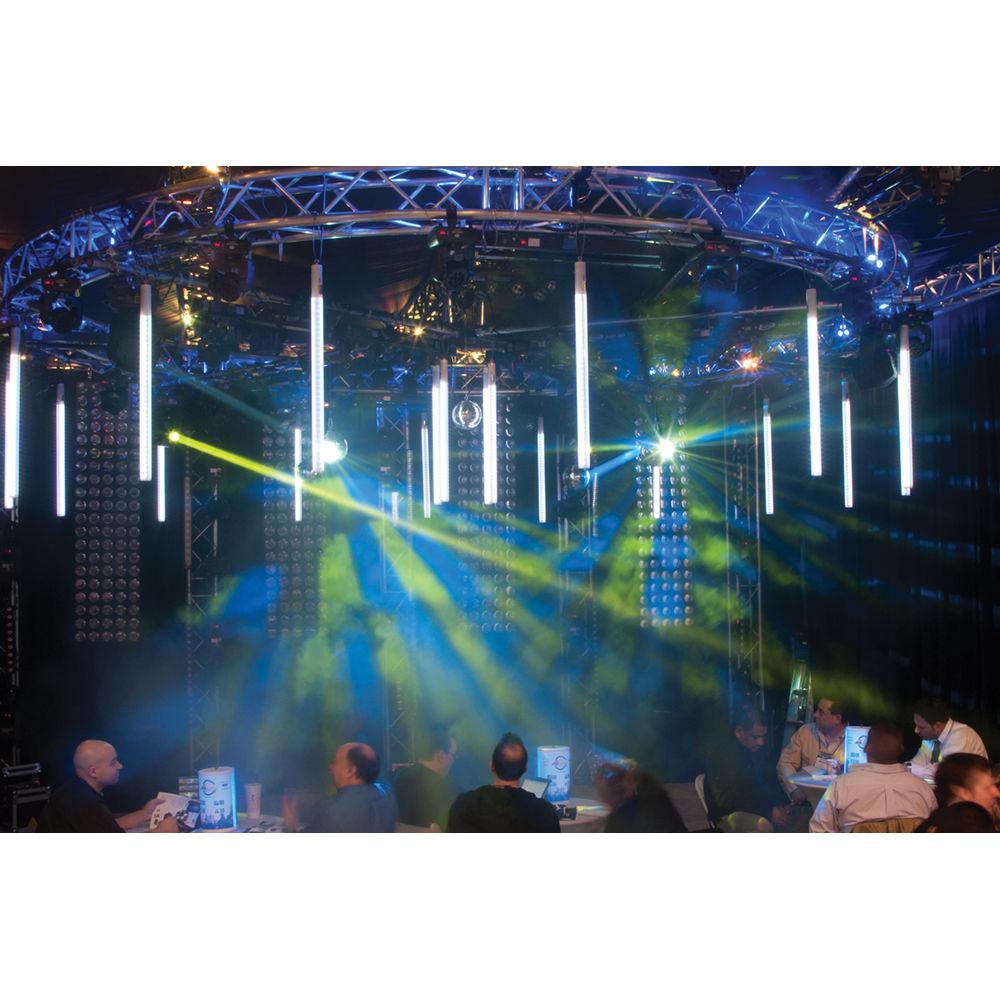

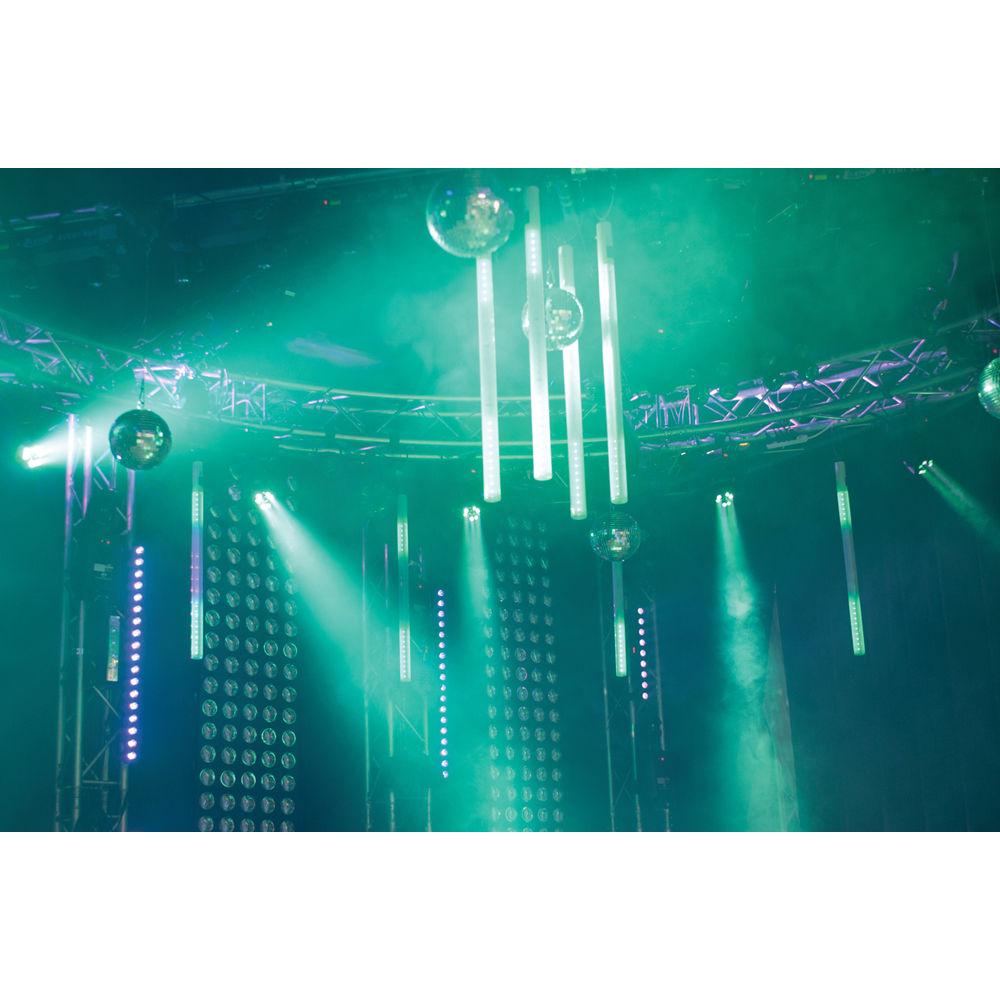

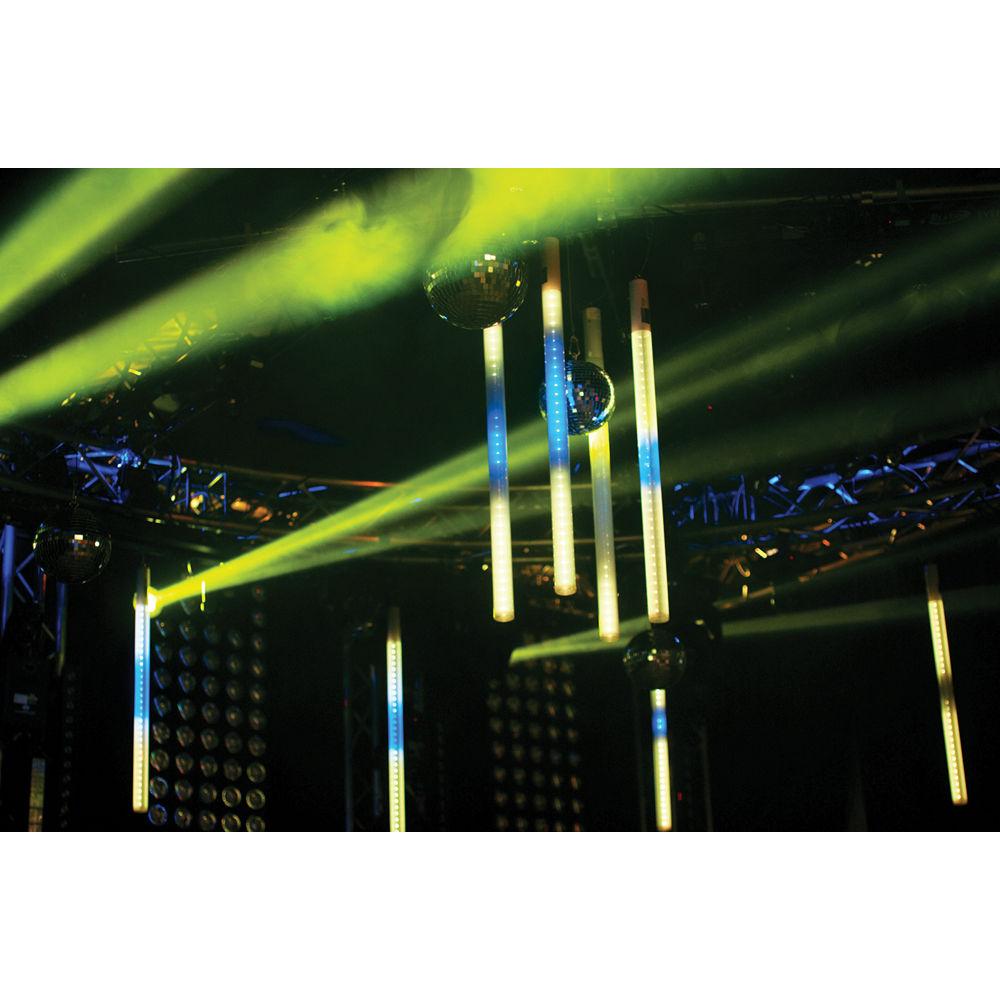

The LED Pixel Tube 360 is an exciting, bright LED color changing tube that consumes very little power, generates no heat, and has an LED lifespan of 50,000 hours. The tubes are visible a full 360°. The tube is for use with the LED Pixel 4C controller. This lighting effect is apt for use in multiples for home parties, holiday lighting, architectural lighting, retail stores, bands, night clubs,and mobile entertainers.

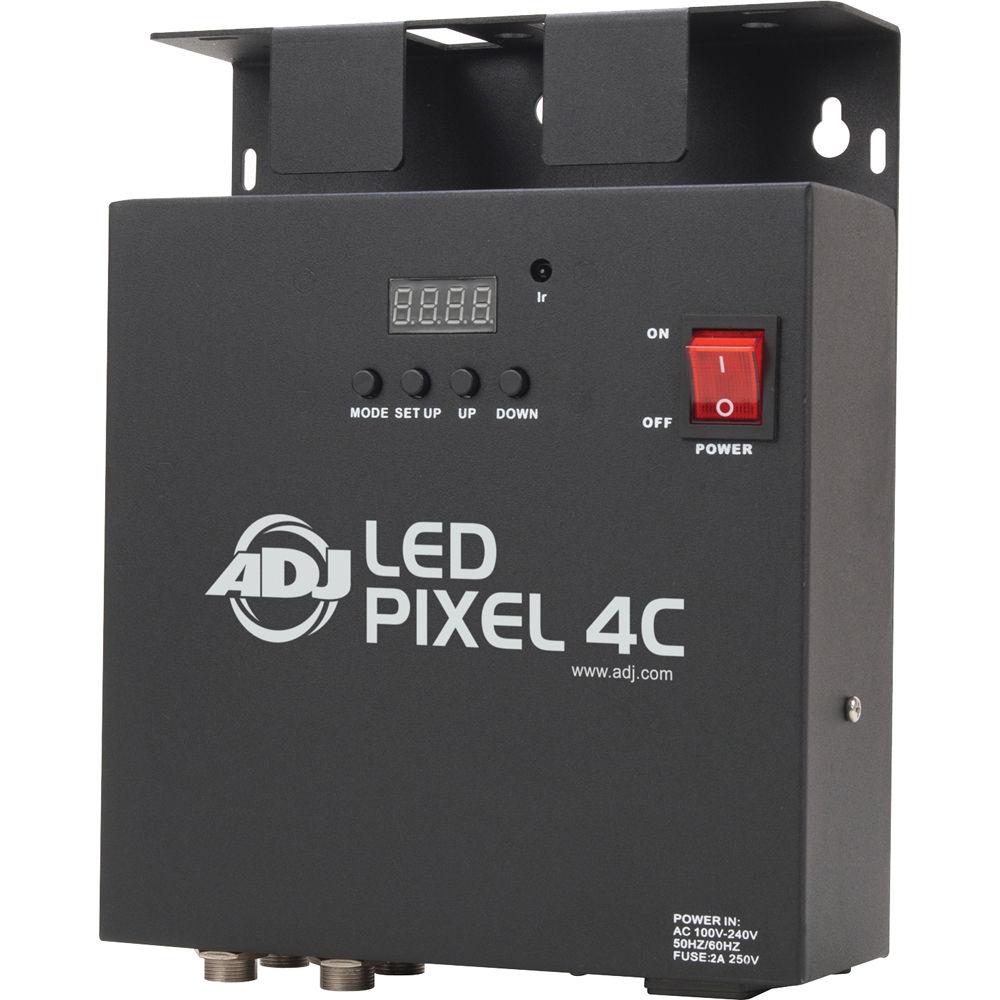

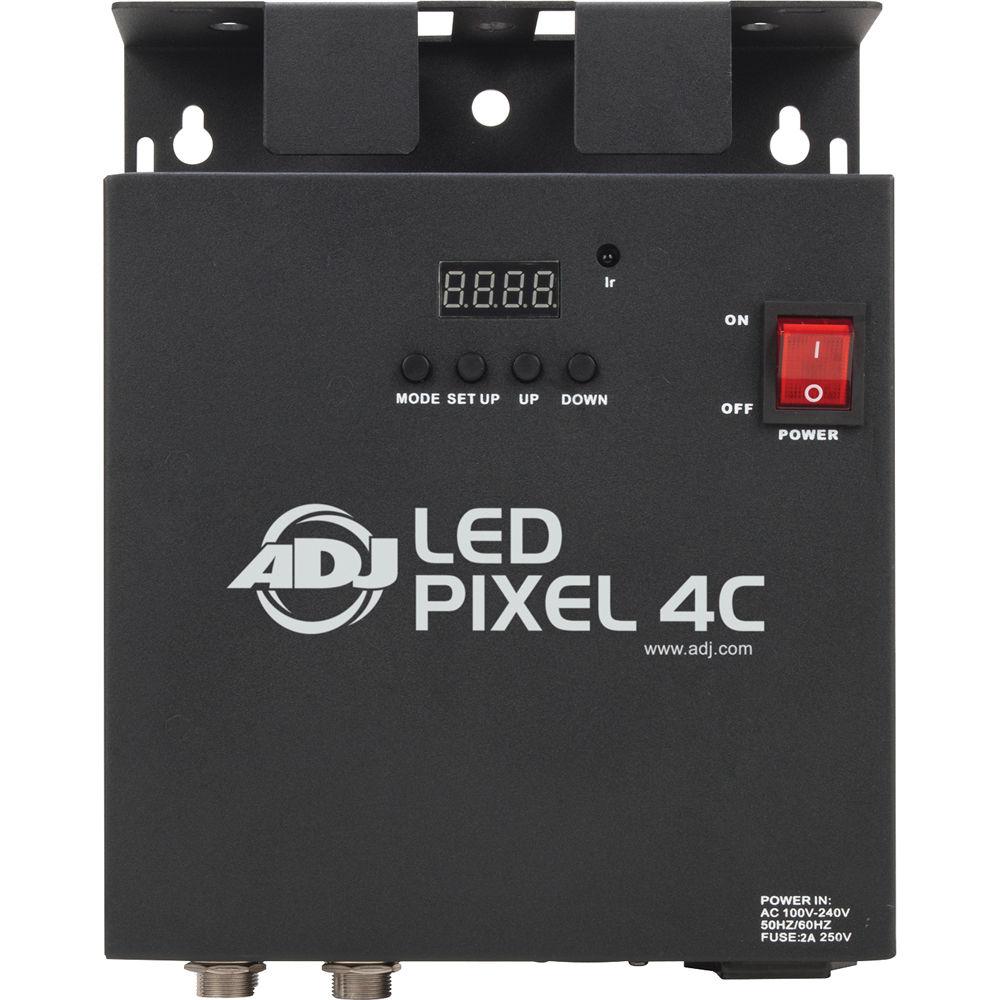

The LED Pixel 4C 4-Channel Driver / Controller is designed for the LED Pixel Tube 360. This fixture can be used in a standalone mode or connected in a Master / Slave configuration. The controller has 5 operating modes, namely a sound active mode, auto mode, RGB dimmer mode, static color mode, and a DMX (DMX-512) control mode. The LED Pixel 4C is fully operational in 3 different mounting positions, hanging upside-down from a ceiling, hanging sideways on trussing, or set on a flat level surface. Note: Extension cables are sold separately. LED Pixel Tube 360 - 39.5" tri LED color tube with UV-resistant polycarbonate tubing
- Built-in color macros (When using LED Pixel 4C Controllers)
- Long life LEDs (50,000-hour rating)
- Strobe & pulse LED effect
- Runs extremely cool with no duty cycles
LED Pixel 4-Channel Controller / Driver - Five operating modes & 24 built-in programs
- Electronic dimming 0 to 100%
- Sound active with built in microphone
- 4 DMX Modes: 5-channel, 7-channel, 14-channel , and 192-channel

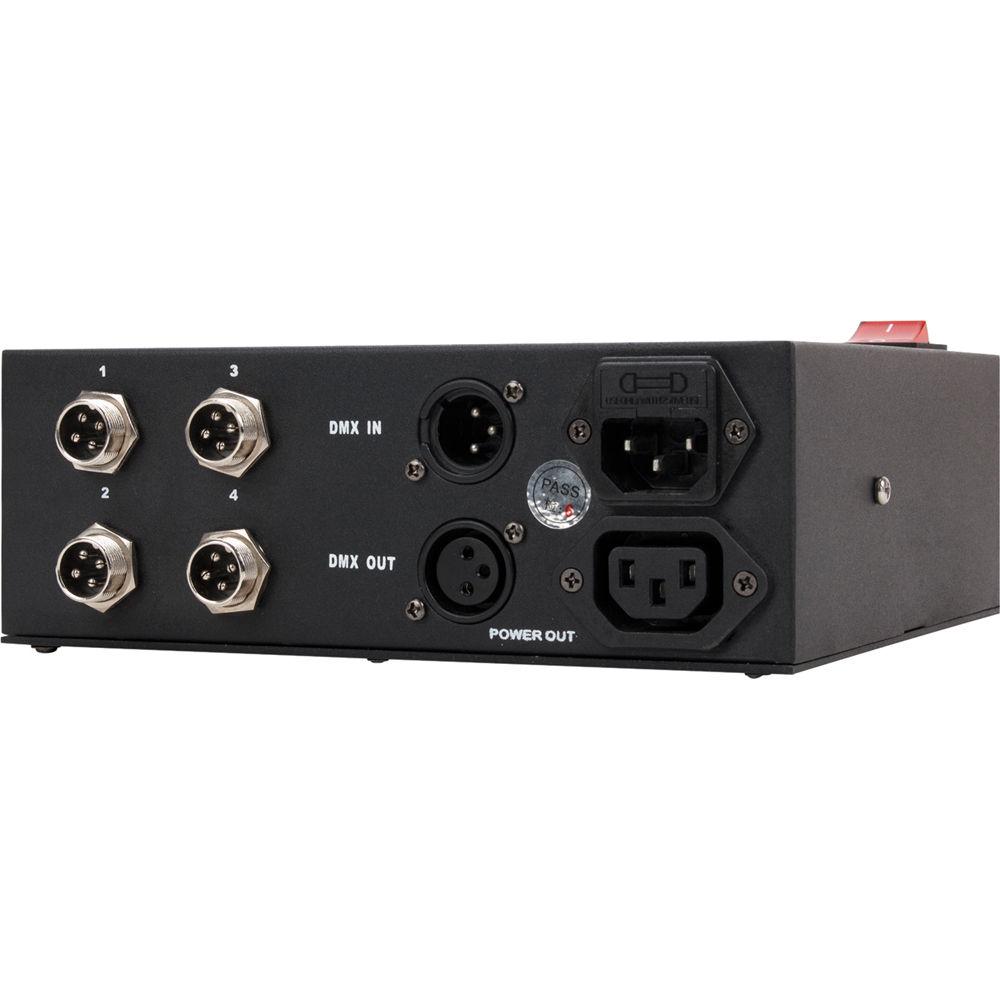

- IEC AC Power In / Out on rear to daisy chain power cord lets you connect up to 3 controllers to one another using IEC input & output sockets
- Built-in, reversible, hanging / truss bracket
- Compatible with ADJ LED RC wireless remote control (sold separately)
- Linkable via 3-pin XLR cable In/Out to other LED Pixel Controllers
- Suitable for a musician or DJ that wants manual control of their light show
In the Box American DJ LED Pixel Tube 360 with 4-Channel Controller / Driver System 4 x LED Pixel Tube 360 LED Pixel 4-Channel Controller / Driver Limited 3-Year Warranty on LED Pixel Tube 360 Limited 1-Year Warranty on LED Pixel 4-Channel Controller / Driver Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ LED Pixel Tube 360 with 4-Channel Controller Driver System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ LED Pixel Tube 360 Specs | Power Input | LED Pixel 360 Color Tube: 24 VDC, 4-pin input power cable with female connector | | LEDs | LED Pixel 360 Color Tube: 64 tri LEDs | | Positioning | Working Position for LED Pixel 360 Color Tube & 4-Channel Controller / Driver: Any safe working position | | Power Consumption | LED Pixel 360 Color Tube: 15 W per LED tube | | Voltage | LED Pixel 4-Channel Controller / Driver: 100 to 240 V / 50 to 60 Hz | | Power Draw | LED Pixel 4-Channel Controller / Driver: 72 W | | Power Cord | Power Cord Daisy Chain: 8 Controllers (maximum) | | Fuse | LED Pixel 4-Channel Controller / Driver: 2 A | | Channels | DMX Channels (LED Pixel 4-Channel Controller): 4 DMX modes, 5-channel mode, 7-channel mode, 14-channel mode, and 192-channel mode | | Dimensions (L x W x H) | LED Pixel 360 Color Tube: 39.5 x 2.00 x 2.00" (100.3 x 5.0 x 5.0 cm)
LED Pixel 4-Channel Controller / Driver: 10.25 x 8.00 x 3.25" (26.03 x 20.32 x 8.25 cm) | | Weight | LED Pixel 360 Color Tube: 2.0 lb (0.5 kg)
LED Pixel 4-Channel Controller / Driver: 5.0 lb (2 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 45.0 x 6.0 x 6.0" |
