Product description The American DJ LED Pixel Tube System includes ten LED Pixel 360 Color Tubes with attached connectors and an LED Pixel 10-Channel Controller / Driver.

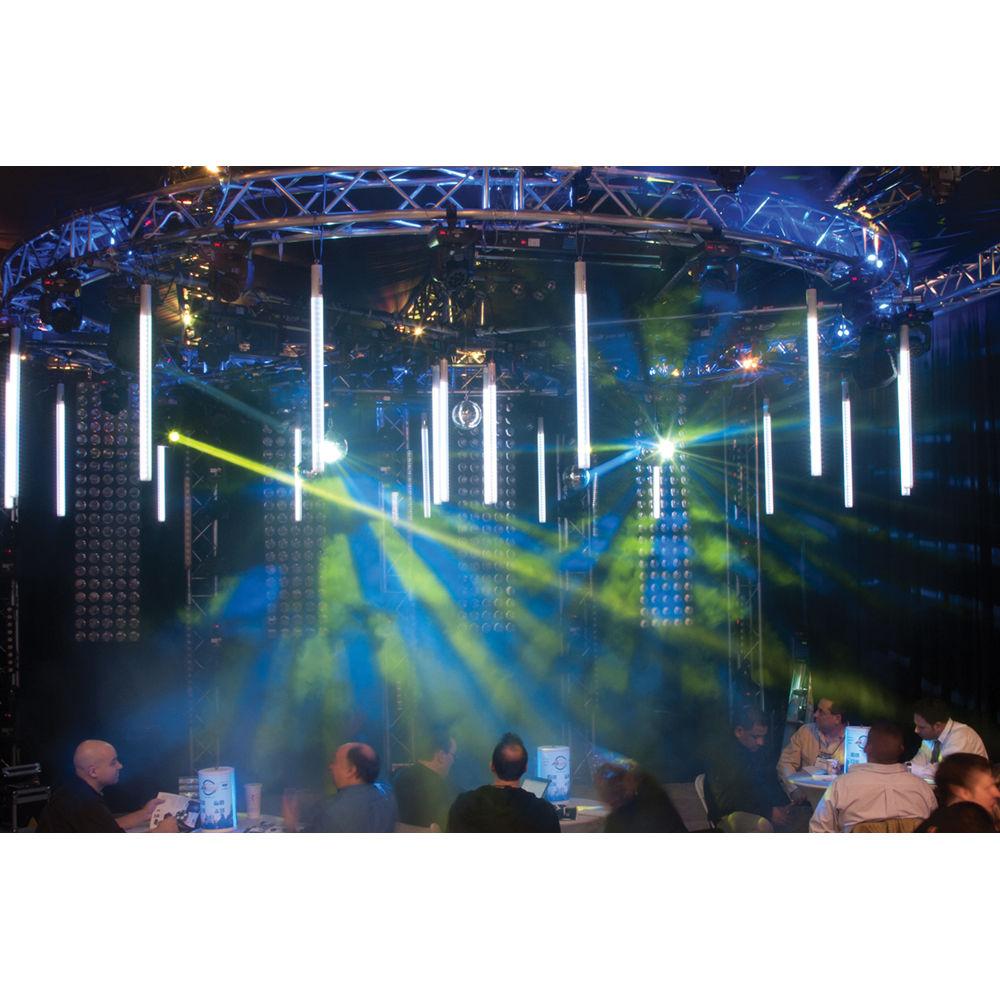

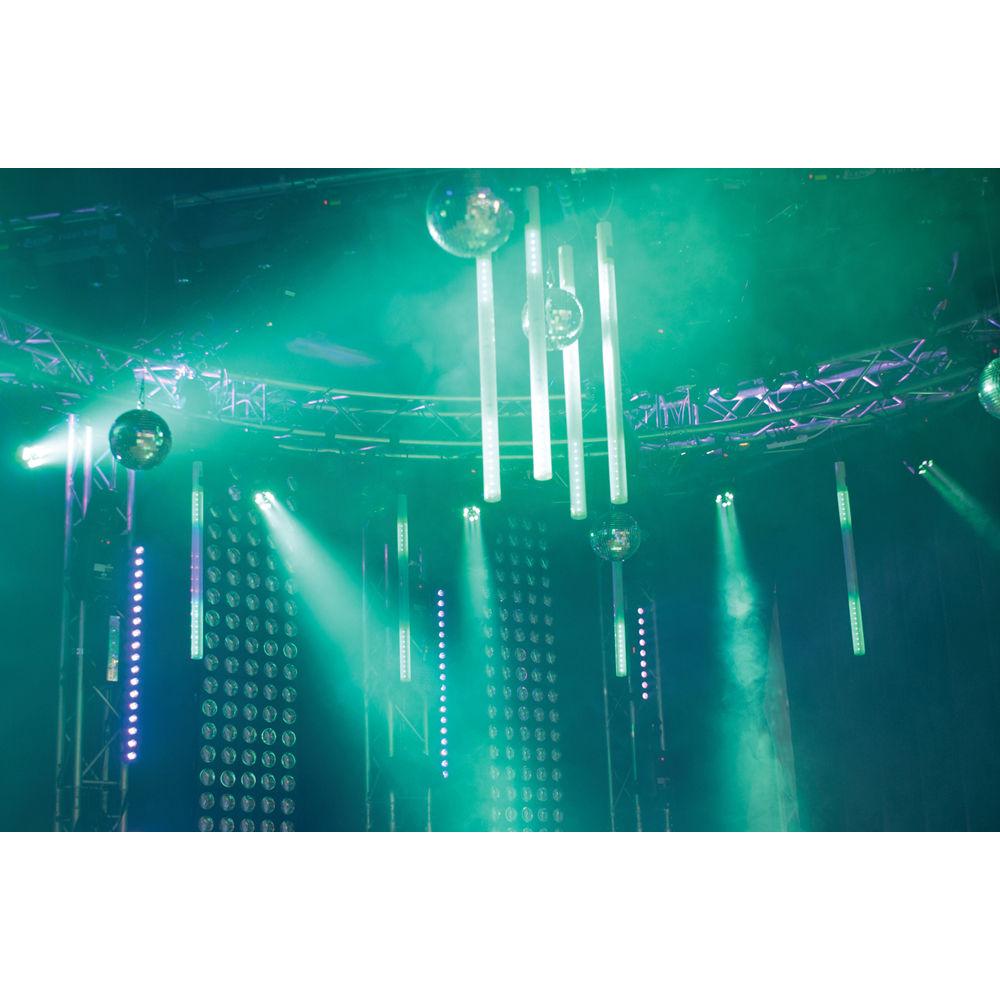

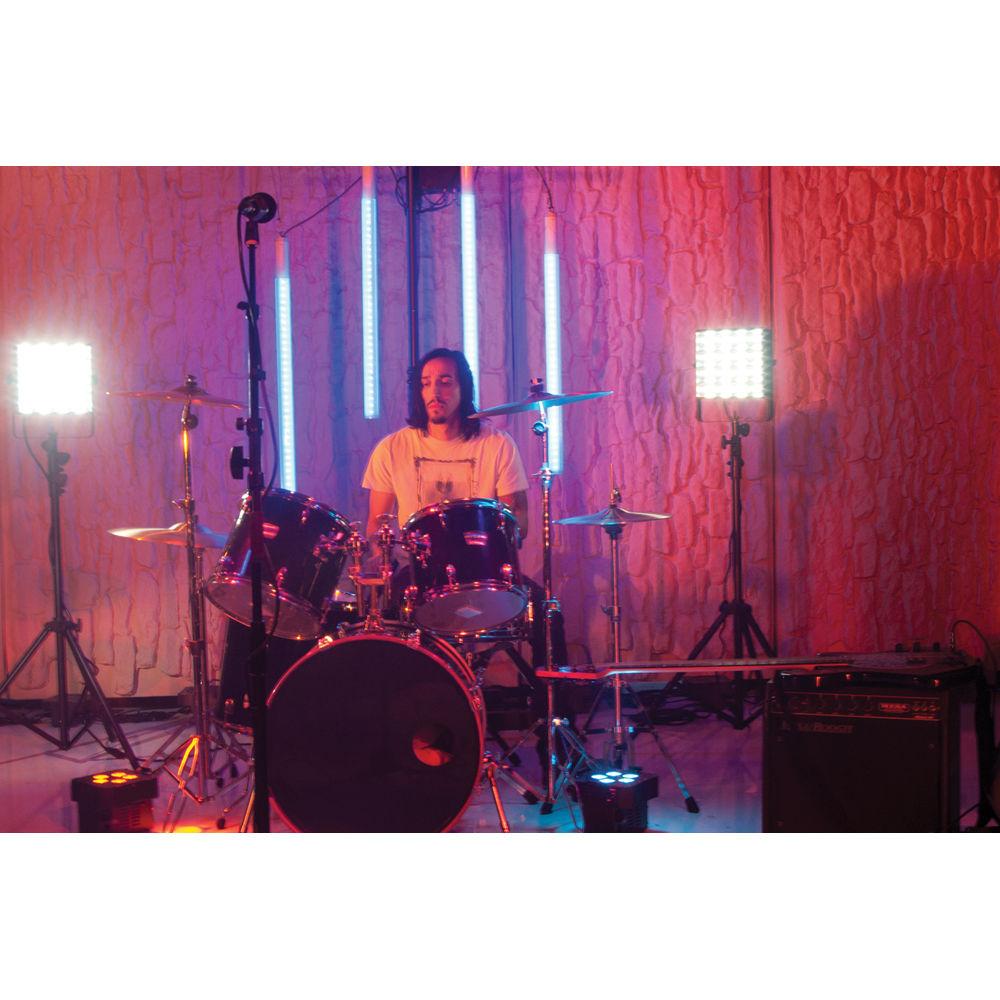

The LED Pixel Tube 360 is an exciting, bright LED color changing tube that consumes very little power, generates no heat, and has an LED lifespan of 50,000 hours. The tubes are visible at full 360°. The tube is for use with the LED Pixel 10C controller. This lighting effect is good when used in multiples for home parties, holiday lighting, architectural lighting, retail stores, bands, night clubs, and mobile entertainers.

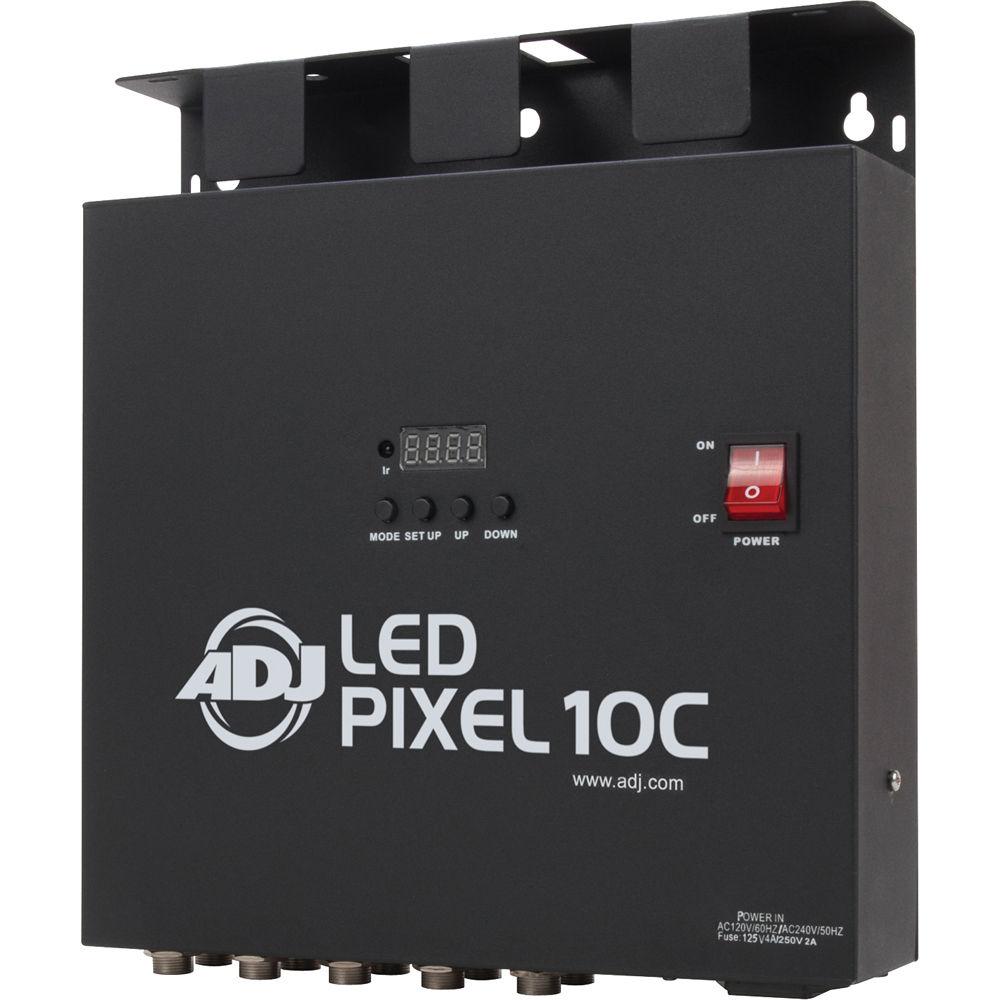

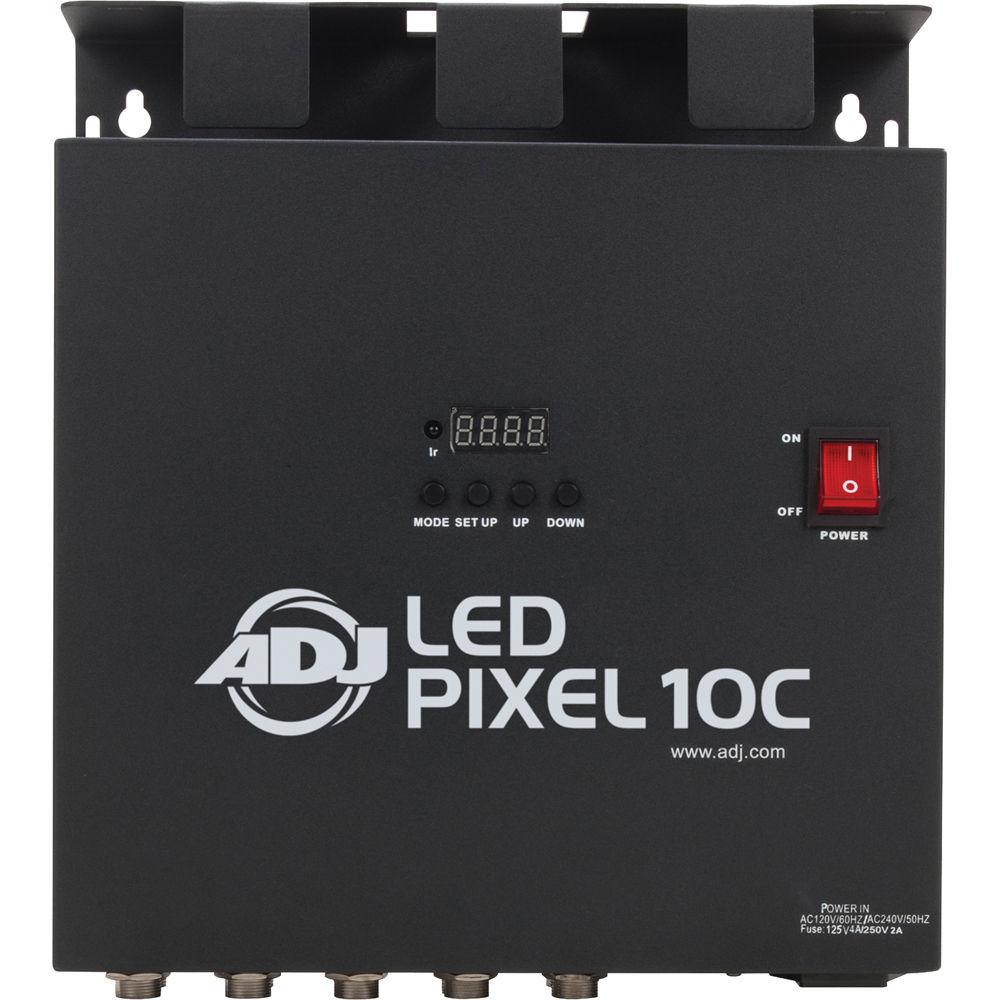

The LED Pixel 10-Channel Driver / Controller is designed for the LED Pixel Tube 360. This fixture can be used either in a standalone mode or can be connected in a Master / Slave configuration. The controller has 5 operating modes, namely a sound active mode, auto mode, RGB dimmer mode, static color mode, and a DMX (DMX-512) control mode. LED Pixel Tube 360 - 39.5" tri LED color tube with UV-resistant polycarbonate tubing
- Built-in color macros (When using LED Pixel 10C Controllers)
- Long life LEDs (50,000-hour rating)
- Strobe & pulse LED effect
- Runs extremely cool with no duty cycles
LED Pixel 10-Channel Controller / Driver - Five operating modes & 24 built-in programs
- Electronic dimming 0 to 100%
- Sound active with built in microphone
- 4 DMX Channel Modes: 5-channel mode, 7-channel mode, 32-channel mode, and 480-channel mode

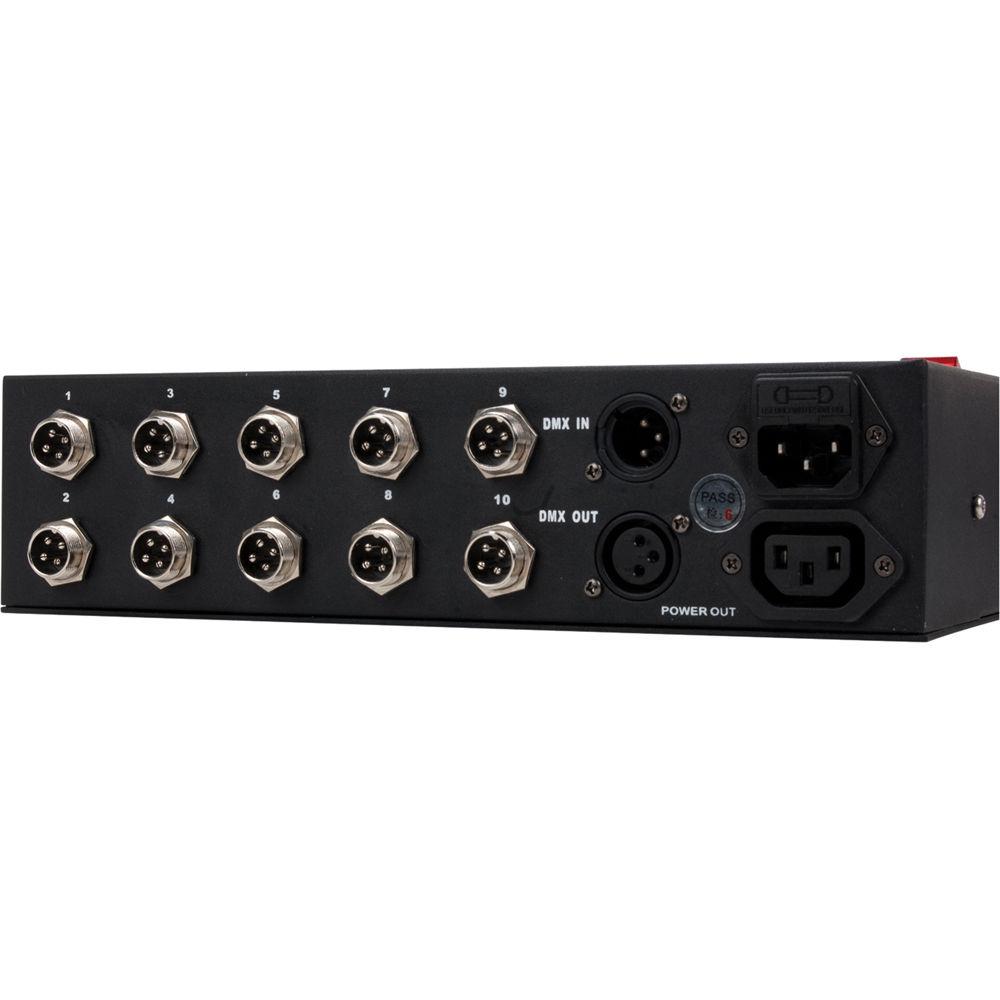

- IEC AC Power In / Out on rear to daisy chain power cord lets you connect up to 3 controllers to one another using IEC input & output sockets
- Built-in, reversible, hanging / truss bracket
- Compatible with ADJ LED RC wireless remote control (sold separately)
- Linkable via 3-pin XLR cable In/Out to other LED Pixel Controllers
- Suitable for a musician or DJ that wants manual control of his light show
In the Box American DJ LED Pixel Tube System 10 x LED Pixel Tube 360 LED Pixel 10-Channel Controller / Driver Limited 3-Year Warranty on LED Pixel Tube 360 Limited 1-Year Warranty on LED Pixel 10-Channel Controller / Driver Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ LED Pixel Tube System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ LED Pixel Tube 360 Specs | Power Input | LED Pixel 360 Color Tube: 24 VDC, 4-pin input power cable with female connector | | LEDs | LED Pixel 360 Color Tube: 64 tri LEDs | | Positioning | Working Position for LED Pixel 360 Color Tube & 10-Channel Controller / Driver: Any safe working position | | Power Consumption | LED Pixel 360 Color Tube: 15 W per LED tube | | Voltage | LED Pixel 10-Channel Controller / Driver: 120 V / 60 Hz or 240 V / 50 Hz | | Power Draw | LED Pixel 10-Channel Controller / Driver: 200 W | | Power Cord | Power Cord Daisy Chain: 3 Controllers (maximum) | | Fuse | LED Pixel 10-Channel Controller / Driver: 4 A (120 V) / 2 A (240 V) | | Channels | DMX Channels (LED Pixel 10-Channel Controller): 4 DMX modes, 5-channel mode, 7-channel mode, 32-channel mode, and 480-channel mode | | Dimensions (L x W x H) | LED Pixel 360 Color Tube: 39.5 x 2.0 x 2.0" (100.3 x 5.0 x 5.0 cm)
LED Pixel 10-Channel Controller / Driver: 12.75" x 11.25 x 3.25" (323.85 x 285.75 x 82.55 mm) | | Weight | LED Pixel 360 Color Tube: 2.0 lb (0.9 kg)
LED Pixel 10-Channel Controller / Driver: 6.0 lb (2.7 kg) | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 45.0 x 12.0 x 12.0" |
