User Manual for American DJ Mega 64 Profile Plus Lighting Fixture Click to enlarge the picture
Contents of the user manual for the American DJ Mega 64 Profile Plus
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Mega 64 Profile Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

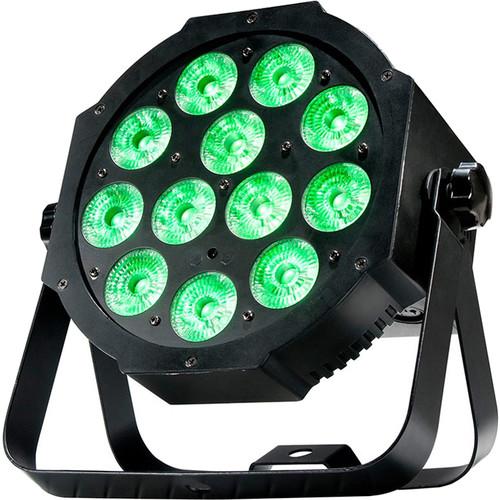

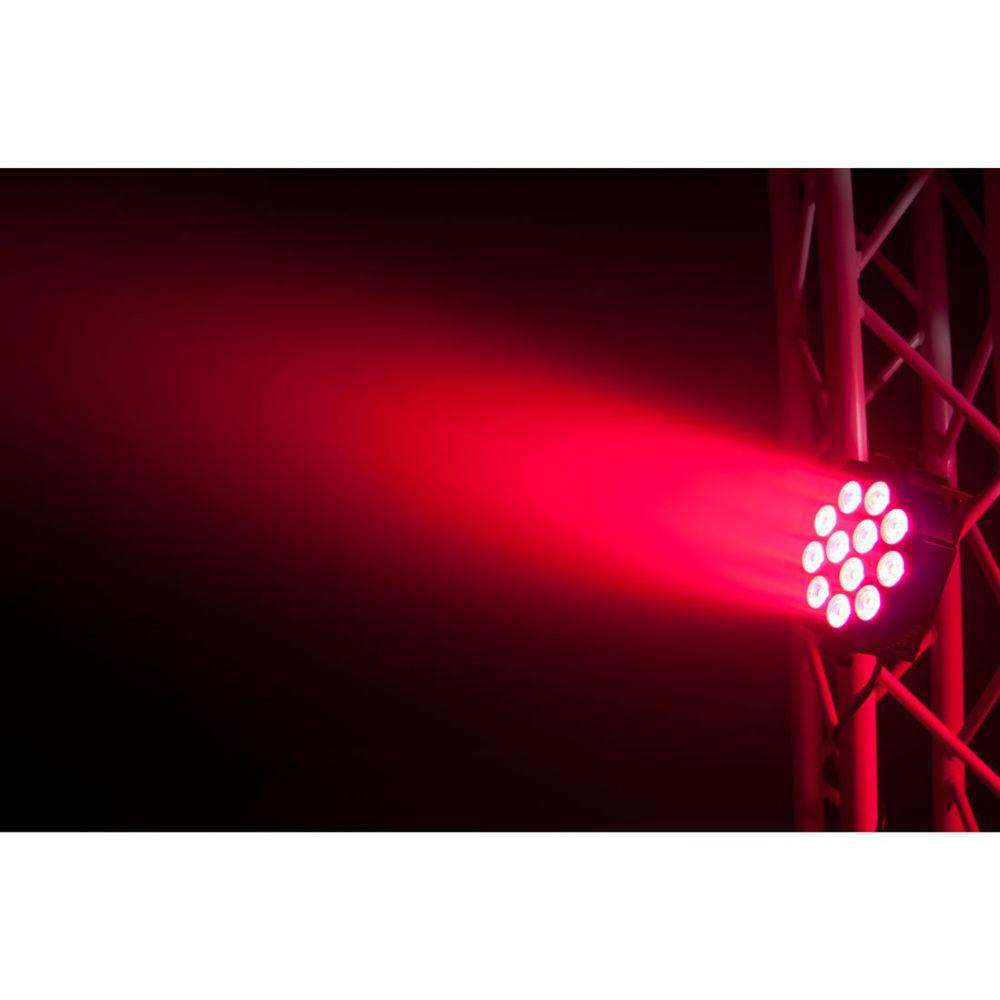

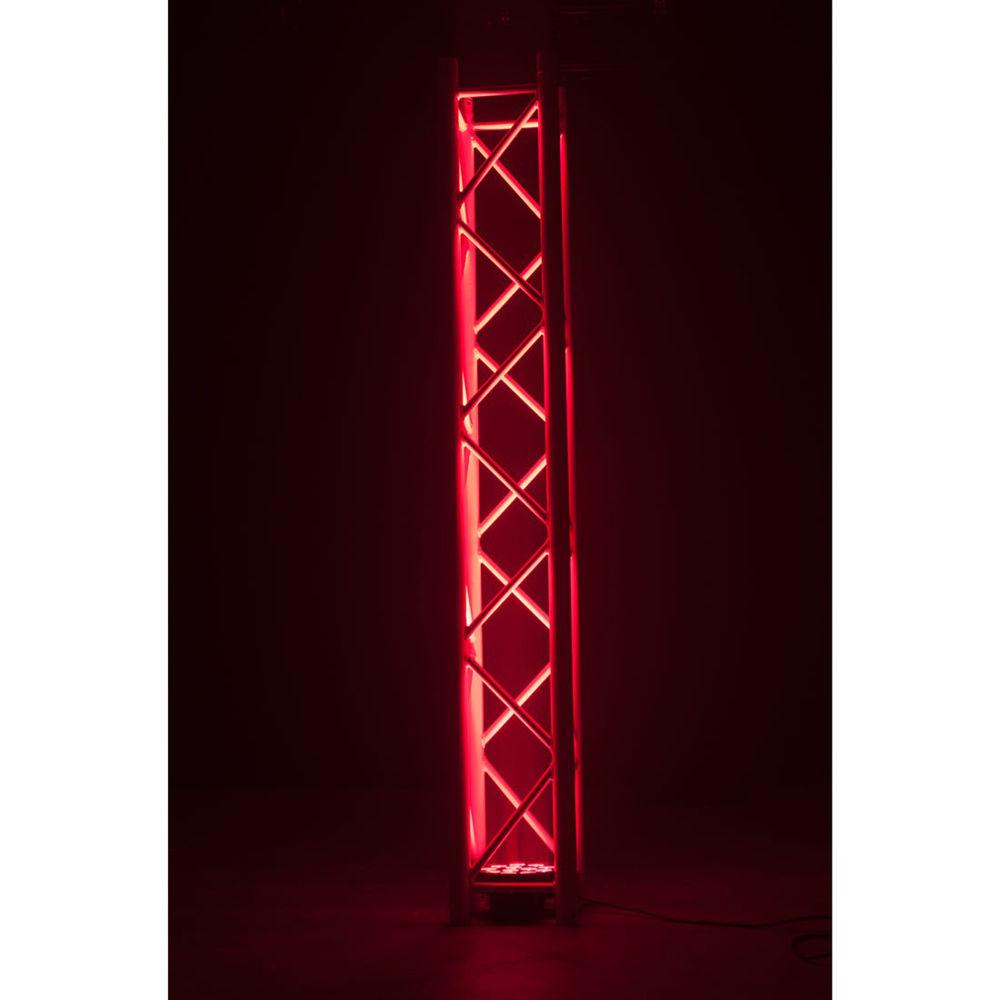

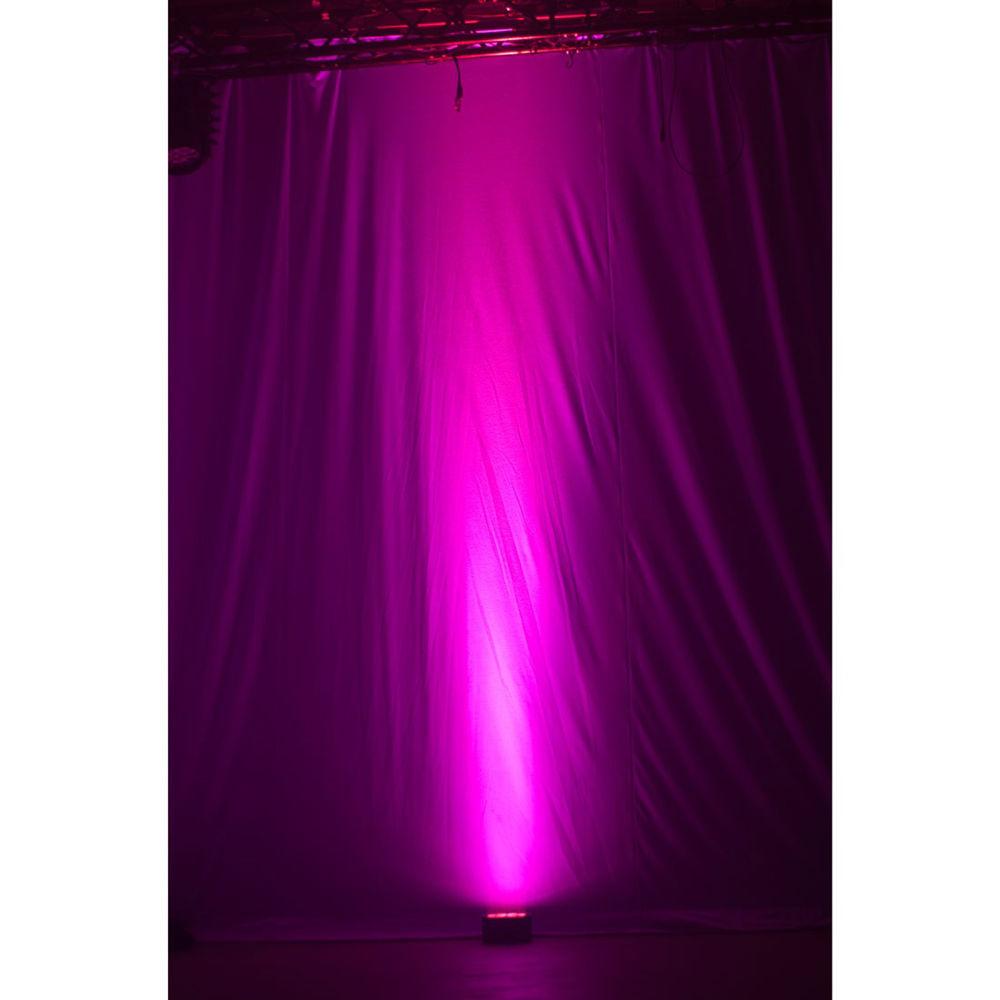

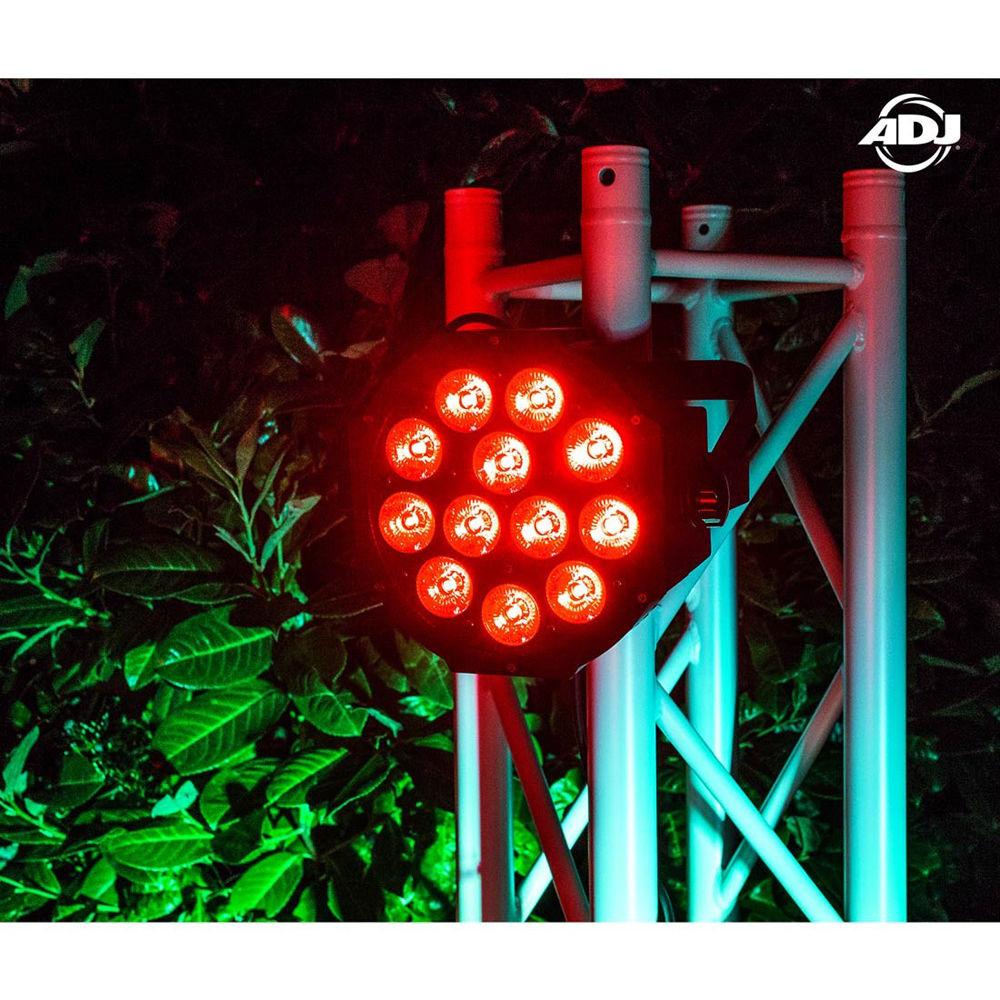

Product description The Mega 64 Profile Plus Lighting Fixture from American DJ is a compact, low-profile wash fixture designed for uplighting, stage lighting, and wall washing. The Mega 64 Profile Plus is powered by twelve 4W quad (RGB+UV 4-In-1) LEDs. This PAR is intelligently designed so that it may sit directly on the ground or inside a truss without the hanging bracket. This unit offers smooth RGB color mixing with no RGB+UV shadows. It has a 25° beam angle and has 5 DMX Channel modes for a variety of programming options. - Ultra-bright flat PAR with 12 x 4W Quad (RGB+UV 4-IN-1) LEDs
- Smooth RGB color mixing (fast or slow color change operation) with no RGB+UV shadows

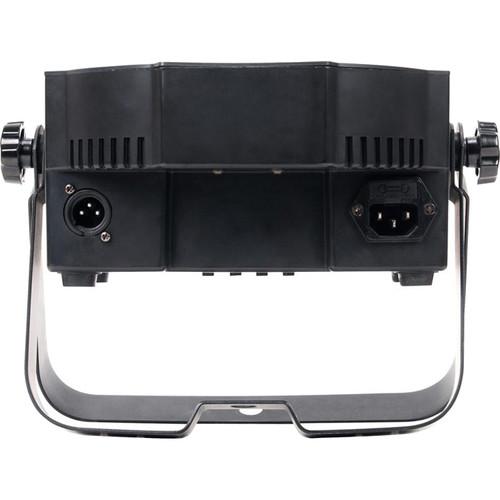

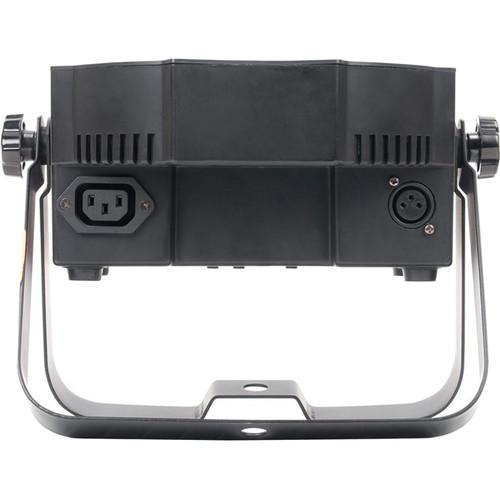

- Power & DMX in/out is intelligently designed to sit sideways so the unit can be set flat on the ground

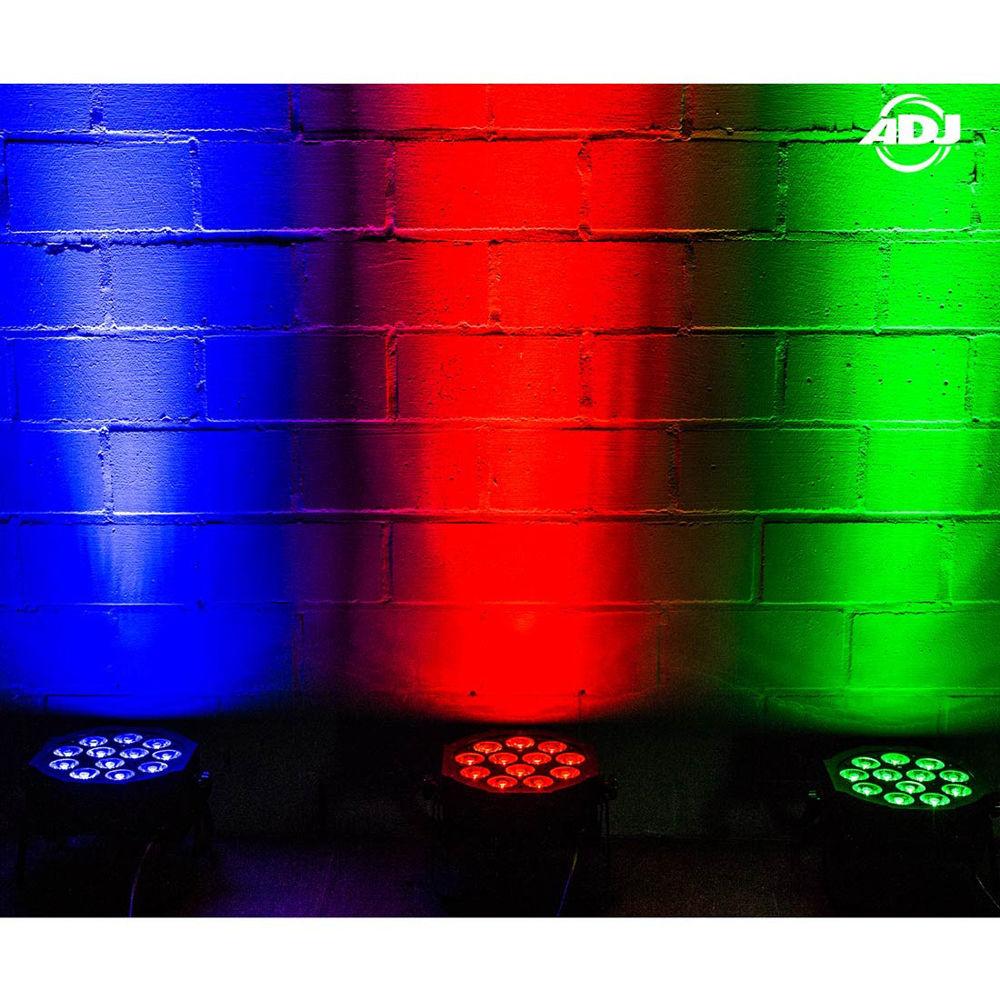

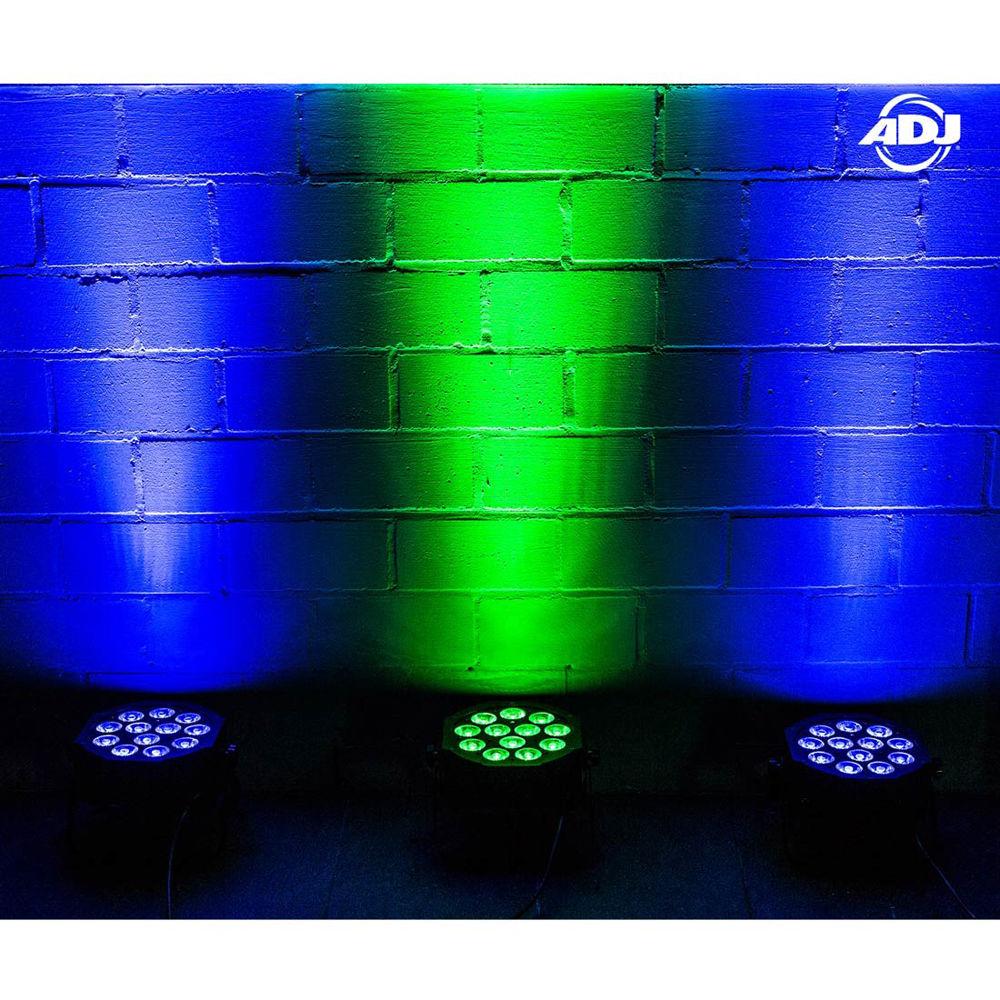

- Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
- 5 DMX Channel Modes: 4/5/6/9/10 channels
- 5 Operational modes: RGB+UV Dimmer Mode, sound active mode, auto run mode (16 color change programs, 16 color fade programs, color change & fade combination), static color mode, & DMX controlled
- Stand alone or master/slave configuration
- LED pulse and strobe effect
- Linkable via 3-pin XLR cable
- Electronic Dimming: 0 to 100%
- Includes scissor yoke to hang on truss, mount on a wall, or set on the ground
- Long Life LEDs (50,000 hours)
- Compatible with ADJ LED RC2 wireless infrared remote control up to 30' (sold separately)
UPC: 819730016492 In the Box American DJ Mega 64 Profile Plus Lighting Fixture Scissor Yoke Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Mega 64 Profile Plus Lighting Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Mega 64 Profile Plus Specs | LEDs | 12 x 4 W 4-in-1 quad LEDs | | Beam Angle | 25° | | Power Cord Daisy Chain | 12 fixtures maximum | | Colors | RGB + UV color mixing | | DMX Channels | 5 DMX Modes: 4, 5, 6, 9, and 10 channel mode | | Electronic Dimming | 0 to 100% | | Voltage | 100 to 240 V / 50 to 60 Hz | | Fuse | 2 A | | Power Draw | 54 W | | Dimensions (L x W x H) | 10.5 x 10.3 x 4.5" (26.1 x 26.2 x 11.0 cm) | | Weight | 5.0 lb (2.3 kg) | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 12.4 x 12.3 x 6.2" |
