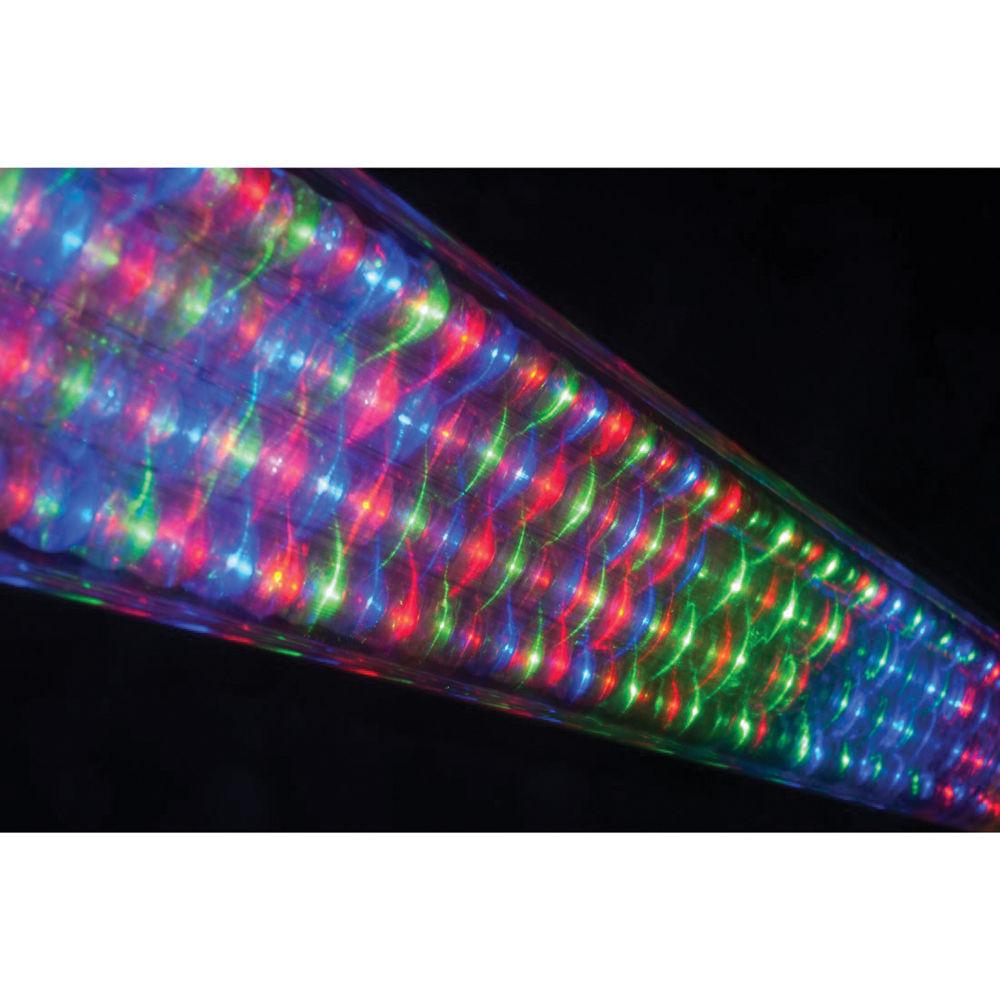

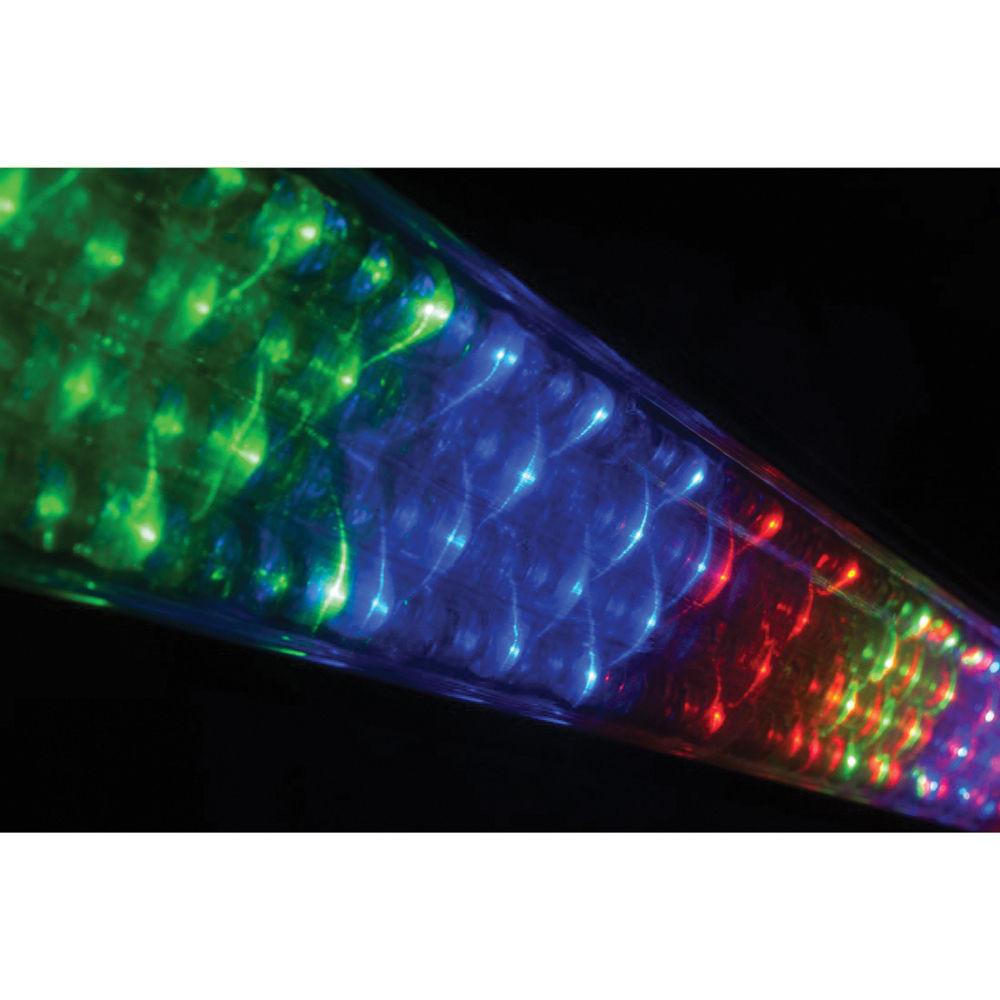

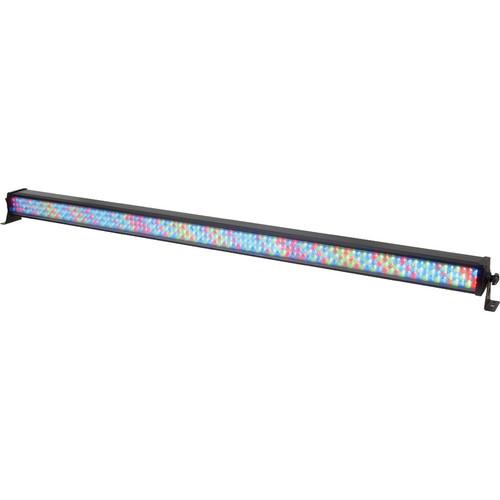

Product description The black Mega Bar RGBA from American DJ is a compact, 42” (1m) linear bar fixture that offers the flexibility of RGBA (Red, Green, Blue, and Amber) color mixing for stage or wall washing. The fixture has a total of 320 LEDs, with 64 red, 96 green, 96 blue, and 64 amber diodes.
The Mega Bar RGBA can be operated by the ADJ RFC wireless remote (sold separately) to control what would normally require a DMX controller or adjustments done manually on the rear panel. By aiming the wireless remote at the unit and you can control features such as blackout, built-in programs, flash, DMX addressing, and RGB color change. You can also control this fixture with a DMX Controller, Sound Active mode, or in Auto mode. This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 32W. The DMX controller addressing may also be changed by the unit’s 4-button LED display. There is no duty cycle on the Mega Bar RGBA, so it can run all night, plus you can daisy-chain the power from one unit to the next with the built-in IEC power inputs/outputs. The Mega Bar RGBA ships with mounting brackets and a power cord. Features - 42" (1m) indoor linear fixture with 320 x 10mm R/G/B/A LEDs (64 Red, 96 Green, 96 Blue, and 64 Amber)
- 7 DMX Channel Modes: 4, 6, 7, 9, 10, 18, or 34 channels
- 6 Operational Modes: Manual Color mode, Static Color Change mode, Auto (Program Run) mode, Sound Active mode, RGBA Manual Control mode, and DMX-512 mode
- Variable RGBA color mixing offers a seemingly unlimited color palette, suitable for stage or wall washing
- LED pulse and strobe effect
- Linkable via 3-pin XLR cable

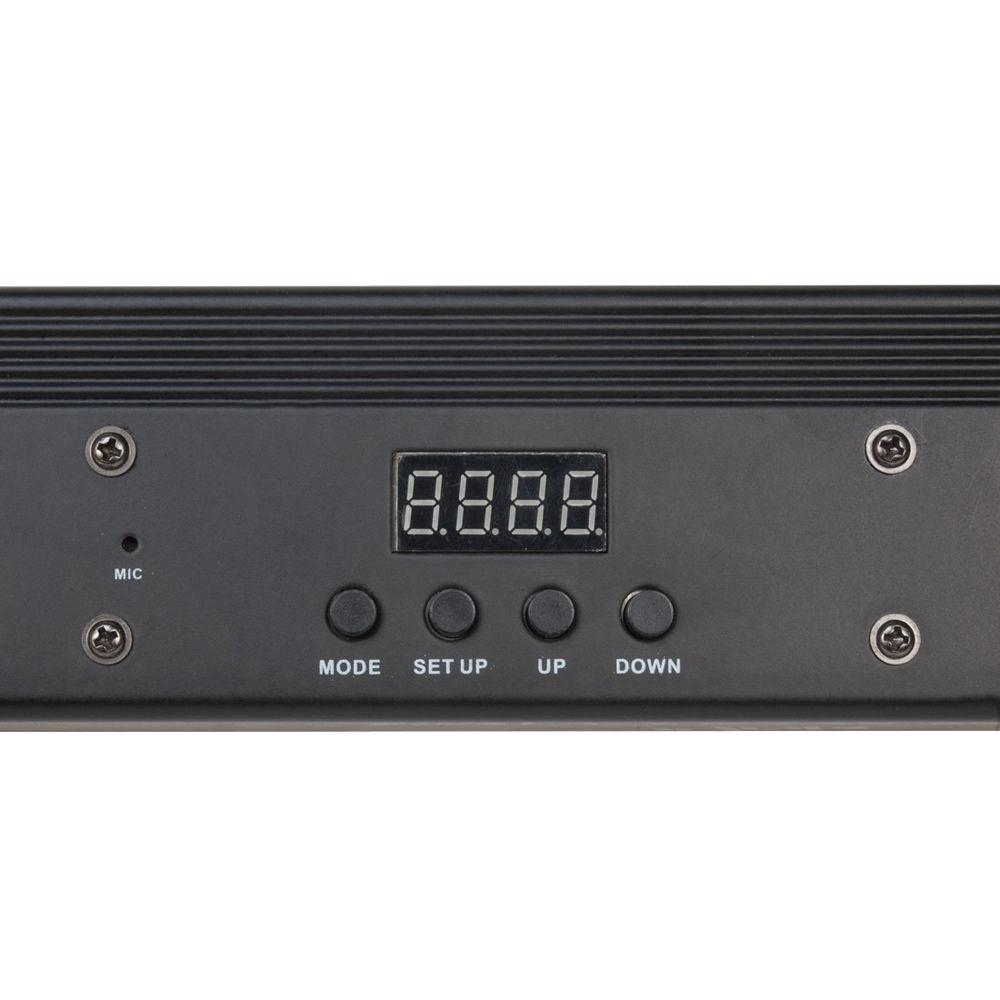

- 4-button LED display on rear panel

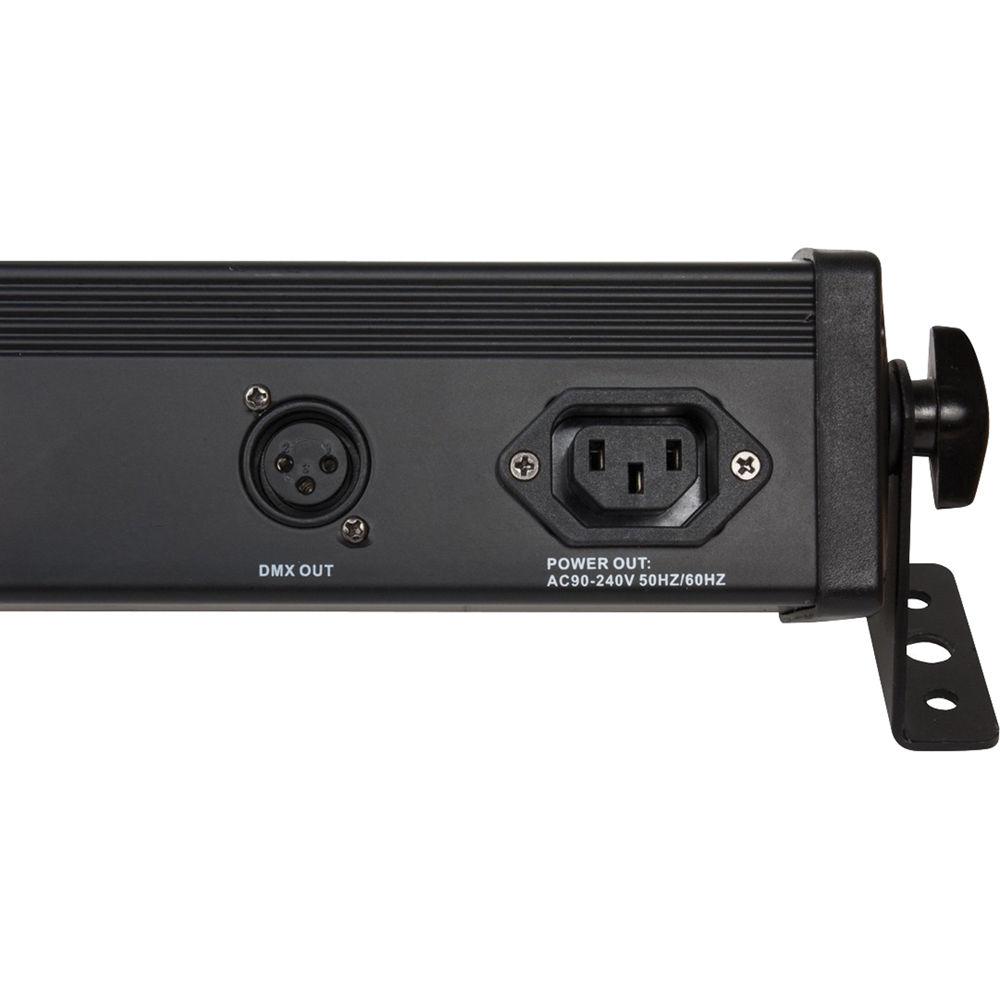

- IEC AC outlet on rear to daisy chain power (up to 20 units)
- Compatible with ADJ RFC wireless remote control (sold separately)
- Includes mounting brackets to mount on a wall or set on the ground
- Magnet system on end-caps to connect multiple bars together
- Long-life LEDs (Rated at 50,000 hours)
- Run all night, no duty cycle
- Auto-Sensing Voltage: This fixture contains an automatic voltage switch, which can auto-sense the voltage when it is plugged into the power source
UPC: 819730010087 In the Box American DJ Mega Bar RGBA (Black) Power Cord (5.9') Mounting Brackets Limited 2-Year Warranty User Manual PDF 795kb Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Mega Bar RGBA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Mega Bar RGBA Specs | Light Source | 320 x 10mm R/G/B/A LEDs
64 x Red, 96 x Green, 96 x Blue, 64 x Amber | | Life Expectancy | Up to 50,000 hours | | Illuminance | 650 lux at 6.56' (2 m)
275 lux at 13.12' (4 m) | | Beam Angle | 30° | | Colors | RGBA color mixing

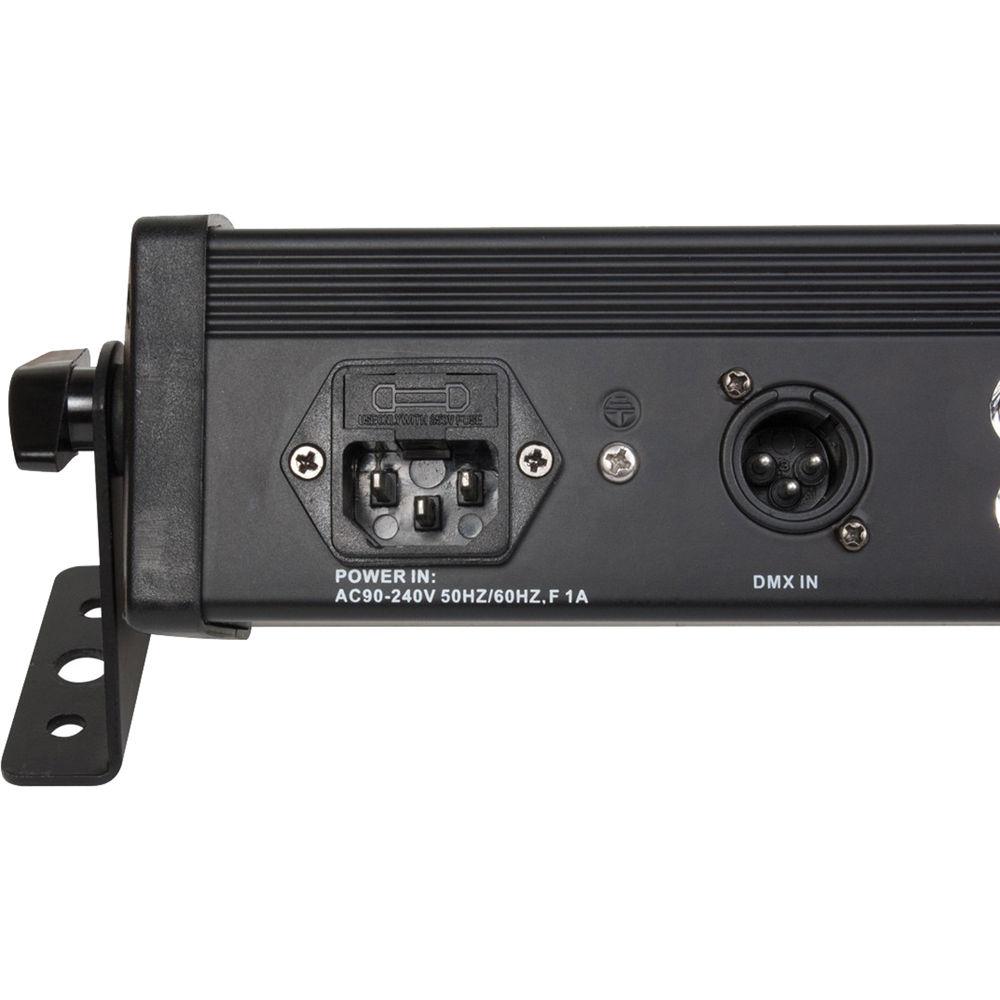

48 x color macros | | Dimming | Electronic: 0 to 100% | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 7 x Channel Modes: 4, 6, 7, 9, 10, 18, or 34 channels | | Input Voltage | 100 to 240 VAC, 50/60 Hz | | Power Connectors | Input: IEC
Output: IEC | | Power Cord Daisy Chain | 20 x fixtures maximum | | Power Draw | 32 W maximum | | Fuse | 1 A | | Working Position | Any safe working position | | Dimensions (L x W x H) | 41.75 x 3.00 x 5.75" (106 x 7.3 x 14.5 cm) | | Weight | 6 lb (2.7 kg) | | | | Package Weight | 7.8 lb | | Box Dimensions (LxWxH) | 44.0 x 7.0 x 5.0" |
