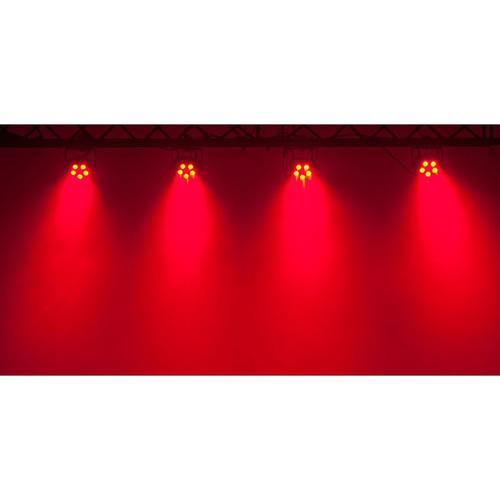

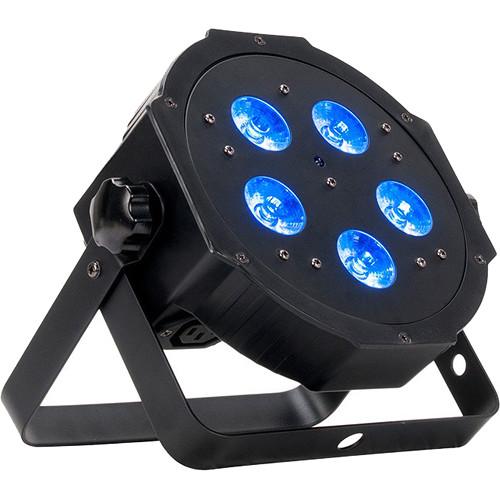

Product description The American DJ Mega Flat Hex Pak is an all-in-one lighting package featuring four Mega Hex Par lighting fixtures, power cables, three 3-pin XLR DMX cables, a wireless remote control, and a bag to carry it all. The Pak is well suited for mobile DJs, bars, restaurants, clubs, houses of worship, event halls, and more. - Mega Hex Par - Compact RGBAW+UV LED Wash Light The American DJ Mega Hex Par is a low-profile RGBAW+UV (red, green, blue, amber, white + ultraviolet) LED PAR fixture designed to produce a wide variety of bright color washes with smooth color mixing. Equipped with five 6W (6-in-1) Hex LEDs that have a beam angle of 25°, it can be used to create: wide washes of amber-infused white light at varying color temperatures, vibrant colors such as hot pinks, lime greens, and electric blues, or the classic UV glow for venue uplighting and heat-free illumination to stage performers.Featuring a sit-flat profile with convenient side-positioned power and DMX in/out sockets, the Mega Hex Par can sit directly on the ground or inside a truss without the scissor yoke, which is ideal for architectural wall washing. At only 2.7 lb, the lightweight and compact design allows for multiple units to be cased together for convenient transport and storage.Easy to operate and packed with creative options, the Mega Hex Par offers a standalone mode with automated programs such as Sound-Active, RGBAW+UV Dimmer, Auto Run, and Static Color. Effects include color strobing and 0-100% electronic dimming. For full remote control of all features, the unit can also be operated using the DMX mode with a choice of five channel options. The Master/Slave configuration lets you link multiple fixtures for synchronized color chases.Other features include flicker-free operation (for video applications) and an auto-sensing power supply. You can also daisy-chain power for up to 20 units at 120V or 36 units at 230V. The Mega Hex Par is wirelessly controllable with the included UC IR remote via the myDMX software or with the Airstream DMX Bridge app (both available separately) using the included Airstream IR app transmitter.The fixture ships with a scissor yoke that can be used to create a variable-angle floor stand for conventional mounting to a truss or lighting stand.
- Key Features
-
- Compact, low-profile PAR designed for uplighting and stage washes

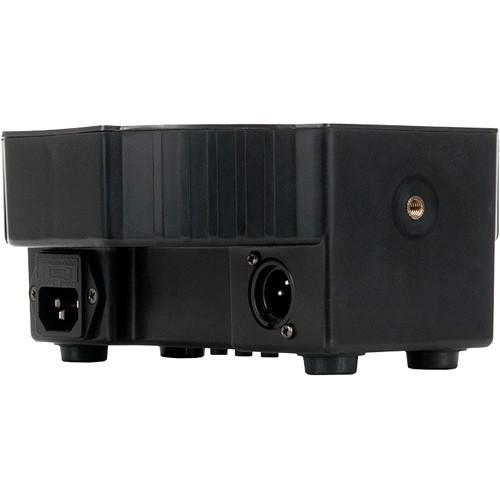

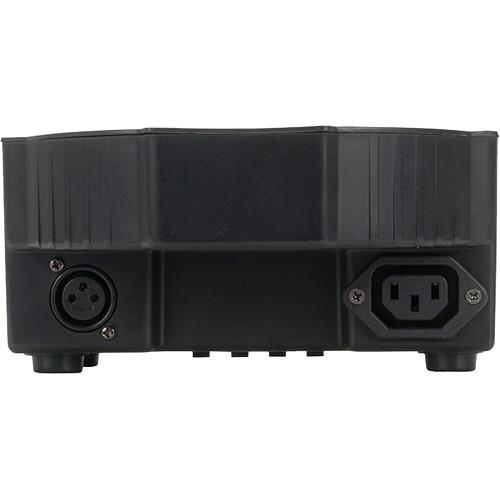

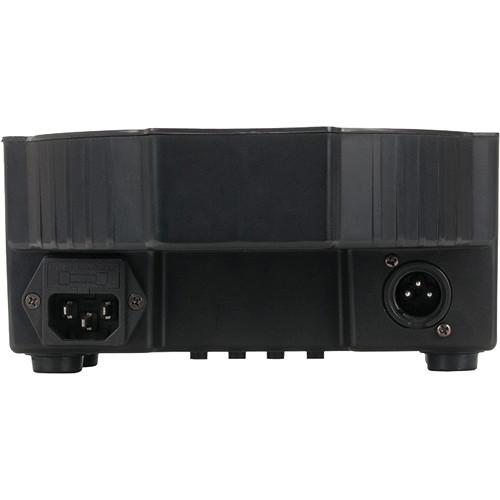

- Proprietary sit-flat design with DMX and IEC AC in/out connectors on the side, for positioning the fixture flat on the ground or recessed inside a truss
- 5 x 6W, 6-in-1 RGBAW+UV (red, green, blue, amber, white + ultraviolet) LEDs offers smooth color mixing—fast or slow color change operation

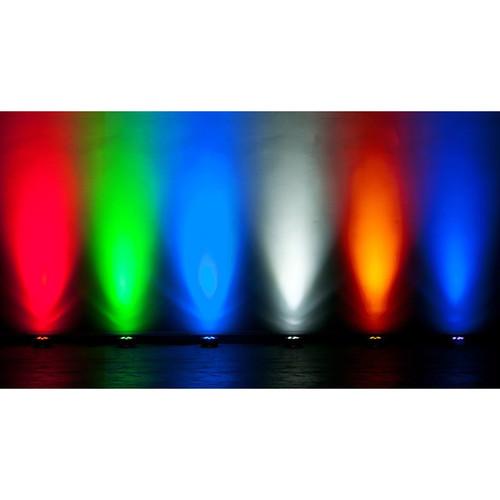

- Create a classic UV glow effect as well as exciting UV-infused colors—hot pinks, lime greens, electric blues
- Amber and white LED elements generate white light at varying color temperatures
- Variable color strobe effect
- 0-100% electronic dimming with five dimmer curves (Standard, Stage, TV, Architectural, Theater)
- 25° beam angle
- Flicker-free light for use with video applications
- Standalone or Master/Slave configurations
- Daisy-chain power for up to 20 units at 120V and 36 units at 240V

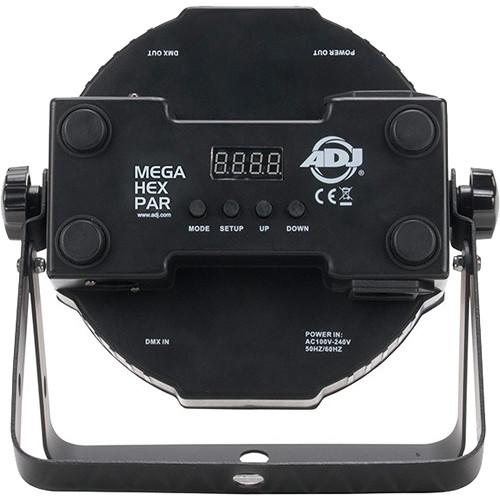

- Digital DMX display with 4-button menu for easy navigation

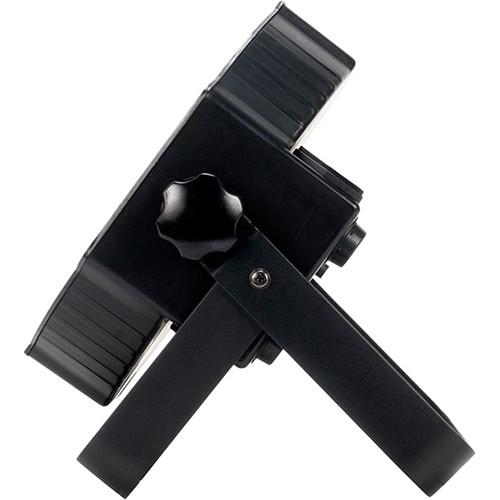

- Included scissor yoke to hang fixture on a truss, mount on a wall, or set on the ground
- Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
- Operational Modes
-
- DMX Mode: enables you to control the fixture's traits with a standard DMX512 controller—6, 7, 8, 11, or 12 channel modes
- RGBAW+UV Dimmer Mode: choose one of the six colors to remain static or adjust the intensity of each color to create your own color
- Sound-Active Mode: the unit reacts to the beat of the music, chasing through the built-in programs—16 sound active modes
- Auto Run Mode: 16 x color fade modes, 16 x color change modes, and 1 x combination mode
- Static Color Mode: 63 built-in color macros
- Wireless Control
-
- Wirelessly control Black Out, Full On, Strobe, Dimming, Sound Active, and Color Change functions
- Includes UC IR wireless remote
- Includes Airstream IR app transmitter used to control the fixture via the myDMX software or the Airstream DMX Bridge app (both available separately) running on an iPhone or iPad
UPC: 818651020984 - Accu-Case F4 Par Bag A soft padded bag designed to hold up to four slim LED par cans, the Accu-Case F4 Par Bag from American DJ features a versatile design for transporting your lights, cables, clamps, or other lighting accessories. Two padded dividers can be removed from the interior to make room for oversized items and exterior zippered pockets can also be used to stow cables or controllers.
- Durable padded gig bag ideal for transporting slim light fixtures, cables, and clamps.
- Accommodates up to four slim LED par cans.
- Two padded dividers may be removed to accommodate other accessories.
- Dual exterior zippered pockets are ideal for holding cables or controllers.
UPC: 819730012586 - IR Remote for Inno Pocket Spot The American DJ IR Remote for Inno Pocket Beam Q4 provides control of various functions of the unit such as Dimmer, Full On, Blackout, Gobo, Colors, Shows, Programs, Speed and Sound Active modes of your fixture. See features for expanded compatibility.
- Compatibility
- Inno Pocket Spot
Inno Pocket Spot Pearl
Inno Pocket Roll
Inno Pocket Scan
Monster Duo
Monster Quad
Monster Fun
Rotobeam 4
Quad Phase HP
LED UV Go
Pinspot LED Quad
Pinspot LED Quad DMX
Inno Pocket Beam Q4
Inno Pocket Wash
Inno Pocket Spot Twins
Super Spot LED

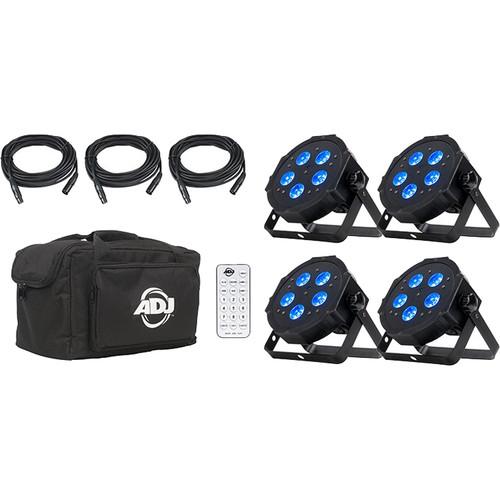

Zipper UPC: 819730013804 In the Box Bundle Items 4 x Mega Hex Par - Compact RGBAW+UV LED Wash Light wcazfdfbftewabubrbwxzza - Airstream IR App Transmitter
Accu-Case F4 Par Bag IR Remote for Inno Pocket Spot
Also Includes - 3 x DMX Cables (6')
- 4 x IEC Power Cords
Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Mega Flat Hex Pak with 4 PAR Fixtures, Cables, Bag, and Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mega Hex Par - Compact RGBAW+UV LED Wash Light
| Light Source | 5 x 6 W (6-in-1) Hex RGBAW+UV LEDs—Red, Green, Blue, Amber, White, Ultraviolet
UV Range: 399 to 435 nm
Life Expectancy: 50,000 hours | | Beam Angle | 25° | | Operational Modes | DMX Mode
RGBWA+UV Dimmer
Sound-Active
Auto Run
Static Color | | Effects | Variable Color Strobe
0-100% Electronic Dimming with Five Dimmer Curves (Standard, Stage, TV, Architectural, Theater) | | Configuration | Standalone
Master/Slave | | DMX Channel Modes | 6, 7, 8, 11, or 12 Channel Modes | | DMX Connectors | 3-Pin XLR, In/Out | | Remote Control Compatibility | UC IR Wireless Remote (Included)
Airstream IR App Transmitter (Included) | | Display/Controls | Digital DMX Display with 4-Button Menu for Easy Navigation | | Power Linking | 20 Units at 120 V
36 Units at 240 V | | Input Voltage | 100-240 VAC, 50/60 Hz (Auto-Sensing) | | Maximum Power Draw | 30 W | | Fuse | 2 A | | Mounting | Scissor Yoke (Included) | | Dimensions (L x W x H) | 10.25 x 10.25 x 4.25" / 260.35 x 260.35 x 107.95 mm | | Weight | 2.70 lb / 1.22 kg | | | | Box Dimensions (LxWxH) | 11.0 x 10.6 x 5.1" | - Accu-Case F4 Par Bag
| | | Interior Dimensions | 14 x 10 x 9.2" / 35.6 x 25.4 x 23.5 cm | | | | Closure Type | Zipper | | Carry and Transport Options | Handle | | | | Box Dimensions (LxWxH) | 14.9 x 11.7 x 4.2" | - IR Remote for Inno Pocket Spot
| Type | IR wireless remote control | | Control Options | Dimmer, Full On, Blackout, Gobo, Colors, Shows, Programs, Speed and Sound Active | | | | Box Dimensions (LxWxH) | 3.0 x 1.4 x 0.2" |
