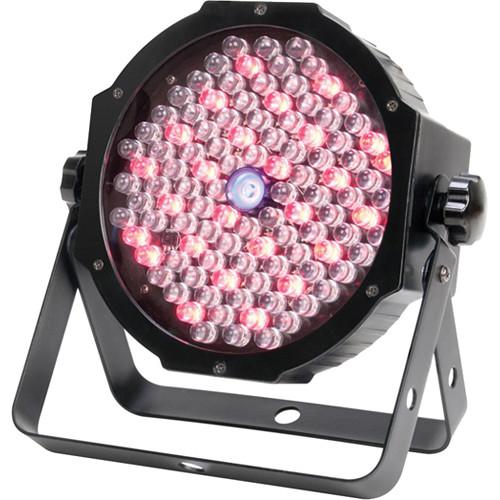

Product description The Mega Flat Pak 8 Plus from American DJ combines eight Mega Par Profile Plus LED fixtures with seven 6'/2m DMX cables and a soft carry bag, to provide the primary components of a mobile lighting rig with protection from the rigors of on-the-road wear and tear. The Mega Par fixture is a compact, low profile Par designed for up-lighting and stage lighting. This 2-in-1 fixture offers RGB color mixing plus UV black light, making it a multi-use wash fixture. And with 32 built-in light shows and 64 color macros, the Mega Par Profile Plus is an ideal solution for multiple venues.This intelligently designed light can sit directly on the ground or an inside truss without the hanging bracket because the power and DMX Ins and Outs are located on the side of the fixture, not on the rear. The Mega Par Profile Plus has a 30 degree beam angle, 5 operational modes (including DMX Controlled, Sound Active, and Auto Run), and has 5 DMX Channel modes for a variety of programming options. Users can also use the ADJ LED RC2 wireless remote which is sold separately, to control the Mega Par Profile Plus. - Mega Par Profile Plus LED
-
- Slim flat black Par with 107 LEDs
- Smooth RGB+UV color mixing (fast or slow color change operation)

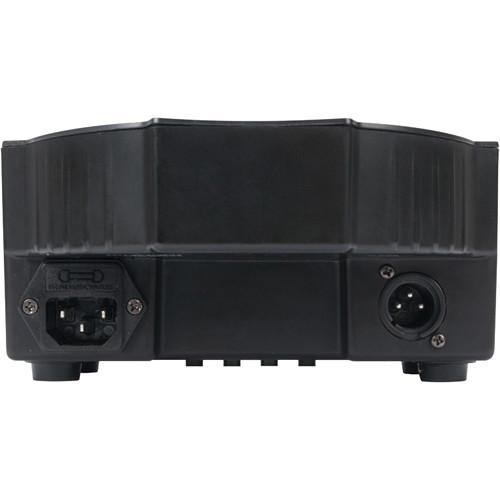

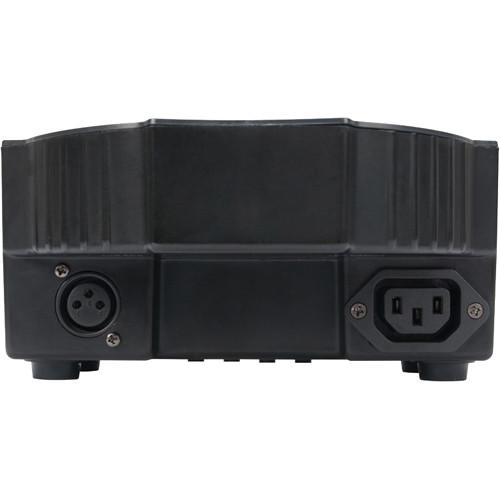

- Power and DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss using included scissor yoke
- DMX-512 protocol
- 5 DMX Channel modes: 4, 5, 6, 9, 10
- 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, and DMX Controlled
- Beam angle: 30 degrees
- 16 Sound Active shows
- 32 built-in shows (16 color changing Shows and 16 color fading Shows)
- 64 built-in color macros
- Standalone or Master/Slave configuration
- 5 Dimmer Curves (Standard, Stage, TV, Architectural and Theater)
- Display Inversion Mode
- Color strobe effect
- Linkable via 3-pin XLR cable
- Electronic Dimming: 0-100%

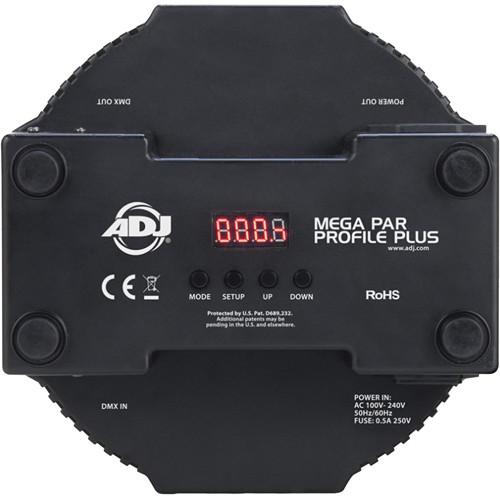

- 4-button function display
- Long life LEDs (50,000 hr)
- Low power draw
- IEC AC In/Out on rear to daisy chain power
- Compatible with ADJ LED RC2 wireless infrared remote control
- Multi-voltage operation

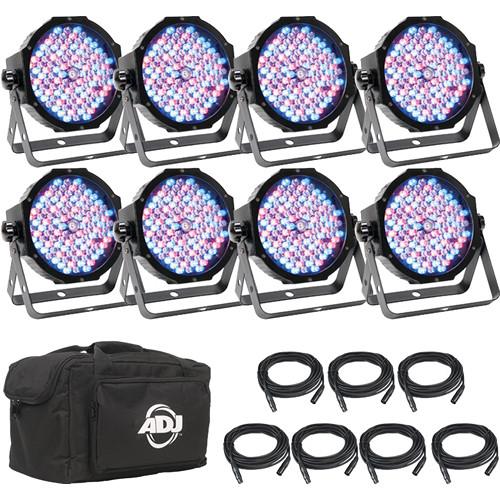

UPC: 819730014306 In the Box American DJ Mega Flat Pak 8 Plus - 8x Mega Par Profile Plus LED Pars, 7x DMX Cable, & Bag 8 x Mega Par Profile Plus LED Fixtures 8 x Scissor Yoke 8 x Power Cord 7 x DMX Cables Soft Carry Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Mega Flat Pak 8 Plus - 8x Mega Par Profile Plus LED Pars, 7x DMX Cable, & Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Mega Par Profile Plus Specs | Material | Aluminum | | Light Source | 107x 10 mm LEDs: 26x red, 45x green, 36x blue LEDs
1x 3 W UV LED
50,000 hr lamp life | | Beam Angle | 30° | | Operational Modes | RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, and DMX Controlled | | DMX Channel Modes | 4, 5, 6, 9, 10 | | Programs and Effects | 16 Sound Active shows
32 Built-in shows (16 color changing shows and 16 color fading shows)
64 built-in color macros
Display Inversion Mode
Color Strobe effect | | Dimming | 0-100%, Flicker-free
5 Dimming curve settings: Standard, Stage, TV, Architectural, Theater | | Color Mixing | RGB+UV color mixing (fast or slow color change) | | Display | 4-Button | | Yoke | Scissor type | | Connectors | 3-Pin XLR In/Out
IEC In/Out | | Power Linking | 33 Units @ 120 V and 60 units @ 230 V | | Remote Control | Optional wireless | | Power | 100 to 240 VAC, 50/60 Hz, auto-sensing | | Power Consumption | 16 W maximum | | Dimensions | Mega Par Profile Plus: 9.0 x 8.8 x 3.5" / 22.9 x 22.2 x 8.9 cm
Bag: 16.8 x 9.5 x 9.3" / 42.7 x 24.1 x 23.6 cm
DMX Cable: 6.0' / 1.8 m | | Weight | Each Light: 3.0 lb / 1.4 kg
System: 27.0 lb / 6.8 kg | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 32.0 x 14.4 x 14.3" |
