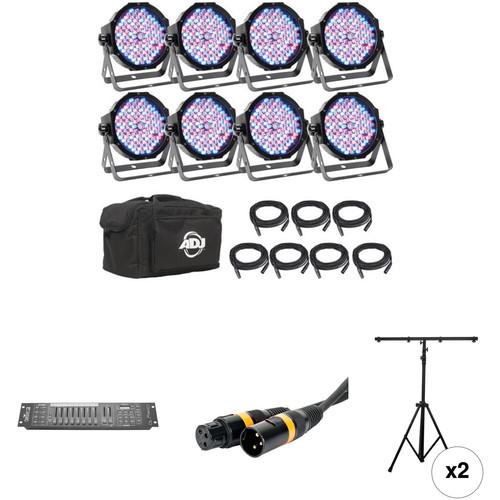

Product description This Mega Flat Pak 8 Plus with DMX Controller and Stands Kit from B&H combines eight American DJ Mega Par Profile Plus LED Washlights with a Chauvet DJ Obey 10 DMX controller, two TS-6 tripod stands with T-bars, and eight 3-pin DMX cables. It provides mobile entertainers with a compact and portable solution for creating and controlling UV-infused color washes with bright and smooth color mixing, for venue uplighting, dance floor color washing, and more.Lightweight (at 3 lb), the Mega Par Profile Plus PAR has a 30° beam angle, five operational modes, 48 built-in light shows, and 64 color macros. It can be controlled via five DMX channels. The DJ Obey 10 is a universal DMX controller that provides 128 channels of DMX control, with six sets of chases, each containing 999 steps. Connect the controller to the fixtures by daisy-chaining them using the included eight DMX cables.The two TS-6 tripod stands allow you to mount all eight fixtures on their T-bars, which extend up to 9'. The stands are easy to set up/take down, and collapse easily for transport. - American DJ Mega Flat Pak 8 Plus - 8x Mega Par Profile Plus LED Pars, 7x DMX Cable, & Bag The Mega Flat Pak 8 Plus from American DJ combines eight Mega Par Profile Plus LED fixtures with seven 6'/2m DMX cables and a soft carry bag, to provide the primary components of a mobile lighting rig with protection from the rigors of on-the-road wear and tear. The Mega Par fixture is a compact, low profile Par designed for up-lighting and stage lighting. This 2-in-1 fixture offers RGB color mixing plus UV black light, making it a multi-use wash fixture. And with 32 built-in light shows and 64 color macros, the Mega Par Profile Plus is an ideal solution for multiple venues.This intelligently designed light can sit directly on the ground or an inside truss without the hanging bracket because the power and DMX Ins and Outs are located on the side of the fixture, not on the rear. The Mega Par Profile Plus has a 30 degree beam angle, 5 operational modes (including DMX Controlled, Sound Active, and Auto Run), and has 5 DMX Channel modes for a variety of programming options. Users can also use the ADJ LED RC2 wireless remote which is sold separately, to control the Mega Par Profile Plus.
- Mega Par Profile Plus LED
-
- Slim flat black Par with 107 LEDs
- Smooth RGB+UV color mixing (fast or slow color change operation)
- Power and DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss using included scissor yoke
- DMX-512 protocol
- 5 DMX Channel modes: 4, 5, 6, 9, 10
- 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, and DMX Controlled
- Beam angle: 30 degrees
- 16 Sound Active shows
- 32 built-in shows (16 color changing Shows and 16 color fading Shows)
- 64 built-in color macros
- Standalone or Master/Slave configuration
- 5 Dimmer Curves (Standard, Stage, TV, Architectural and Theater)
- Display Inversion Mode
- Color strobe effect
- Linkable via 3-pin XLR cable
- Electronic Dimming: 0-100%
- 4-button function display
- Long life LEDs (50,000 hr)
- Low power draw
- IEC AC In/Out on rear to daisy chain power
- Compatible with ADJ LED RC2 wireless infrared remote control
- Multi-voltage operation
UPC: 819730014306 - CHAUVET DJ Obey 10 The Chauvet Obey 10 is a compact, affordable yet powerful DMX controller for up to 8 lighting fixtures, with 16-channels each and up to 6 programmable chases. Program up to 999 steps per chase for complex and stunning visual effects. Programs can be triggered by music, automatically or manually. Channel assignments are easily reprogrammed, and the control panel features 8 universal channel sliders, quick access scanner buttons and an LED display indicator. All this in a compact rack-mountable frame that occupies 2 spaces of a 19-inch rack.
- Universal DMX-512 controller
- Controls up to 8 intelligent lights of up to 16 channels each
- 128 DMX channels of control
- 6 sets of chases containing 999 steps each
- Program fade and speed time into each step
- Sequential linking of chases
- Grab any fixture on the fly
- Beat activation and auto run
UPC: 781462202903 - American DJ Accu-cable 3-pin DMX Cable (25') The 25' American DJ Accu-cable 3-pin DMX Cable is designed for connecting DMX controllers, DMX lights, and other 3-pin DMX512 devices into a stage lighting or effect system for live performance applications. The cables are constructed of 22 AWG stranded tinned copper conductors insulated by polyethylene within a PVC jacket. UPC: 640282090612
- 2 x American DJ LTS-6 Tripod Stand with T-Bar (9') The 9' American DJ LTS-6 Tripod Stand with T-Bar is a black stand with a single T-bar for mounting par cans, lighting fixtures, lighting effects, and other accessories. It collapses for easy transport, and weighs 11 lbs (5kg). Mounting hardware is included.
- Stand collapses easily for transport and is suitable for mobile DJs, bands, or small stage productions
- LTS-6 comes with T-bar with 8 hanging point bolts
- Includes FS-adapter - designed to mount one light at a time at the top of the stand
UPC: 640282033763 In the Box - Mega Flat Pak 8 Plus - 8x Mega Par Profile Plus LED Pars, 7x DMX Cable, & Bag seuvrdrrzdsrxbczefrdauaxyucxryrzdtvyzz
- 8 x Mega Par Profile Plus LED Fixtures
- 8 x Scissor Yoke
- 8 x Power Cord
- 7 x DMX Cables
- Soft Carry Bag
- Limited 2-Year Warranty
- Accu-cable 3-pin DMX Cable (25') seuvrdrrzdsrxbczefrdauaxyucxryrzdtvyzz
- 2 x LTS-6 Tripod Stand with T-Bar (9')
Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Mega Flat Pak 8 Plus with DMX Controller and Stands Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - American DJ Mega Flat Pak 8 Plus - 8x Mega Par Profile Plus LED Pars, 7x DMX Cable, & Bag
| Material | Aluminum | | Light Source | 107x 10 mm LEDs: 26x red, 45x green, 36x blue LEDs
1x 3 W UV LED
50,000 hr lamp life | | Beam Angle | 30° | | Operational Modes | RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, and DMX Controlled | | DMX Channel Modes | 4, 5, 6, 9, 10 | | Programs and Effects | 16 Sound Active shows
32 Built-in shows (16 color changing shows and 16 color fading shows)
64 built-in color macros
Display Inversion Mode
Color Strobe effect | | Dimming | 0-100%, Flicker-free
5 Dimming curve settings: Standard, Stage, TV, Architectural, Theater | | Color Mixing | RGB+UV color mixing (fast or slow color change) | | Display | 4-Button | | Yoke | Scissor type | | Connectors | 3-Pin XLR In/Out
IEC In/Out | | Power Linking | 33 Units @ 120 V and 60 units @ 230 V | | Remote Control | Optional wireless | | Power | 100 to 240 VAC, 50/60 Hz, auto-sensing | | Power Consumption | 16 W maximum | | Dimensions | Mega Par Profile Plus: 9.0 x 8.8 x 3.5" / 22.9 x 22.2 x 8.9 cm
Bag: 16.8 x 9.5 x 9.3" / 42.7 x 24.1 x 23.6 cm
DMX Cable: 6.0' / 1.8 m | | Weight | Each Light: 3.0 lb / 1.4 kg
System: 27.0 lb / 6.8 kg | | | | Box Dimensions (LxWxH) | 32.0 x 14.4 x 14.3" | - CHAUVET DJ Obey 10
| Refresh Rate | DMX Refresh Rate: 40Hz | | Power | Power: 12VDC 500mA (external power supply: 100-240VAC 50/60Hz) | | Dimensions | 19 x 3.5 x 3.5" (482 x 89 x 89mm) | | Weight | 3.9lb (1.78kg) | | | | Box Dimensions (LxWxH) | 22.0 x 6.0 x 4.5" | - American DJ Accu-cable 3-pin DMX Cable (25')
| | | Wire Gauge | 22 AWG | | Conductor Capacitance | 12.8 pF/ft at 1 kHz | | Conductor DC Resistance | 24 Ohms/ft (Up to 1000' / 304.80 m) | | Nominal Impedance | 110 Ohms | | Attenuation | 0.6 dB @ 1 MHz | | | | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Number of Conductors | 2 | | Conductor Material | Tinned Copper | | Shielding | 85% Tinned Copper Braid | | Jacket Type | Polyvinyl Chloride (PVC) | | Insulation Type | Polyethylene | | Outer Diameter | 0.09" / 2.29 mm | | Bend Radius | 3.2" / 8.1 cm | | Maximum Pull Tension | 72 lb / 33 kg | | Operating Temperature | -22 to 167°F / -30 to 75°C | | Cable Length | 25' / 7.62 m | | Weight | 0.8 lb / 0.4 kg | | | | Box Dimensions (LxWxH) | 11.8 x 3.6 x 1.0" | - 2 x American DJ LTS-6 Tripod Stand with T-Bar (9')
| Mounting Options | T Bar & Light Tree | | Maximum Working Height | 9' / 2.7 m | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 11.0 lb / 5.0 kg | | | | Box Dimensions (LxWxH) | 44.5 x 5.0 x 4.0" |
