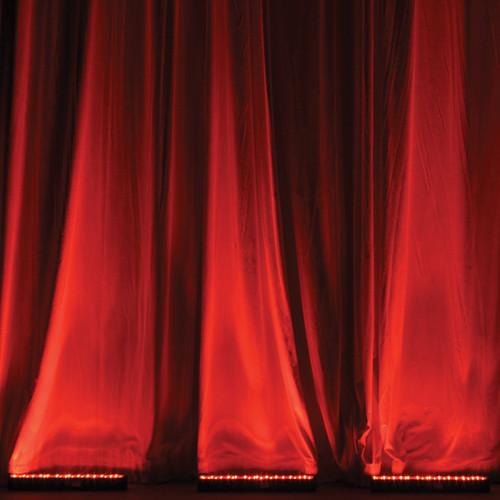

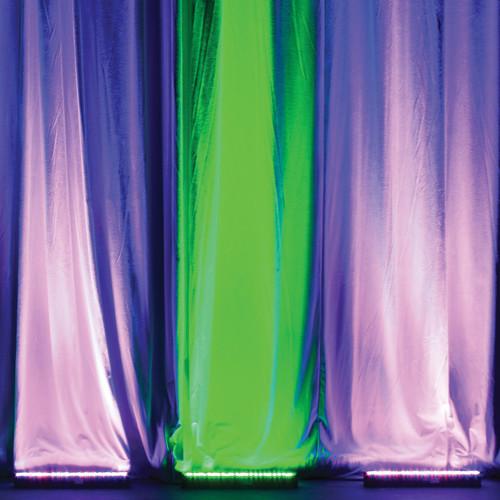

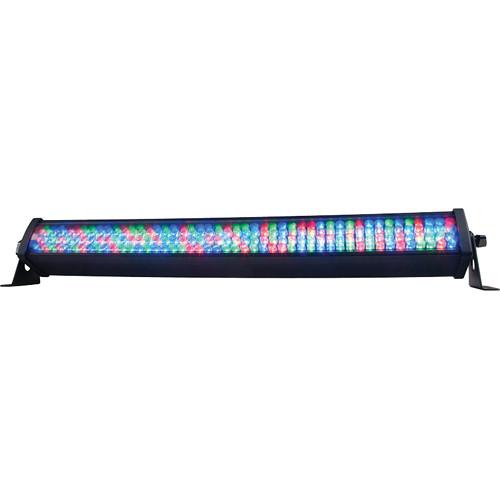

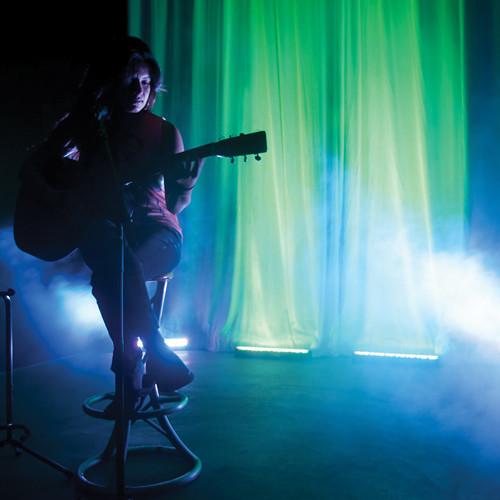

Product description The 24" American DJ Mega Go Bar 50 RGBA is a battery-powered, RGBA (red, green, blue, amber) LED linear fixture designed to produce bright color washes and smooth color mixing. With 141 LEDs and a 30° beam angle, it is well suited for enhancing the atmosphere of your space or mobile light show. Ideal for entertainers on the go, it features a built-in rechargeable battery which lasts up to 8 hours on a full charge, allowing you to quickly position your washes anywhere in the venue regardless of power outlet availability. The unit gives you many creative options while still being easy to use. It offers automated programs such as Sound-Active, Auto-Run, Strobe, RGBA Dimmer, and Static Color modes for fast setup in standalone mode, as well as DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller. Other features include flicker-free operation (ideal when used for video applications), 47 built-in color macros, and an auto-sensing power supply. You can also daisy-chain power for up to 25 units. The Mega Go Bar 50 RGBA can be wirelessly controlled with the ADJ RFC remote (available separately). - Battery-powered, 24" linear fixture provides vibrant, variable RGBA LED color mixing for washing stages, walls, and dance floors
- 141 x 10mm RGBA LEDs (23 x red, 48 x green, 47 x blue, 23 x amber) – rated at approximately 50,000 hours
- Rechargeable lithium-ion battery lasts 8 hours at full-on (with a full charge)
- 47 x built-in color macros – fast or slow color change operation
- 5 x operational modes: Auto-Run, Sound Active, RGBA Dimmer, Static Color, DMX-512
- 7 DMX modes: 1, 2, 4, 5, 6, 7, and 8 channel mode
- Variable LED pulse & strobe effect
- Flicker-free light for use with video applications

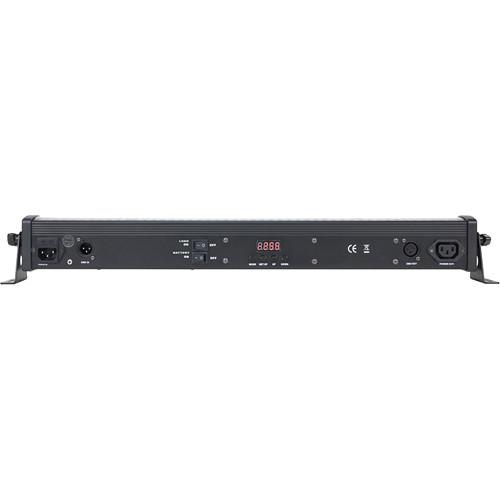

- 4-button LED display on rear panel
- Compatible with ADJ RFC wireless remote (available separately)
- IEC AC outlet on rear panel to daisy chain power (up to 25 fixtures)
- Low power consumption, low heat output
- Runs all night, no duty cycle
- Universal auto-sensing power supply
UPC: 819730010698 In the Box American DJ Mega Go Bar 50 RGBA - Battery-Powered LED Linear Fixture (24") Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Mega Go Bar 50 RGBA - Battery-Powered LED Linear Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Mega GO Bar 50 RGBA Specs | Light Source | 141 x 10 mm LEDs (23 x red, 48 x green, 47 x blue, 23 x amber)
Length: 24" / 0.6 m | | Life Expectancy | Up to 50,000 hours | | Illuminance | 458 lux at 6.56' (2 m)
147 lux at 13.12' (4 m) | | Beam Angle | 30° | | Colors | RGBA color mixing, fast or slow color change operation
47 x built-in color macros | | Operation Modes | Auto-Run, Sound Active, RGBA Dimmer, Static Color, DMX-512 | | Built-In Programs | LED pulse and strobe effect | | Dimming | Electronic: 0 to 100% | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channels | 1, 2, 4, 5, 6, 7, 8 | | Display/Controls | 4-button LED display on rear panel | | Refresh Rate | 7.8 kHz | | Wireless Control | RFC remote (available separately)
Range: Up to 30' / 9 m | | Battery | Charge Time: 6.5 hours
Life: 8 hours, full-on (full charge)
Lifetime: 500 charges (average lifetime, depending on charging frequency)
Type: Fixed lithium-ion battery
Energy: 73.26 W
Weight: 0.9 lb / 0.4 kg
Voltage: 11.1 V
Capacity: 6.6 Ah
Total Lithium-Ion Cells: 9 pieces
Wrap Material: PVC sleeving, Highland barley paper | | Operating Environment | Any safe working position | | Power Cord Daisy Chain | 25 fixtures maximum (on one 20 A circuit) | | Power | 100-240 VAC, 50/60 Hz
Power Cable Length: 5.9' / 1.8 m | | Power Draw | 25 W | | Fuse | 2 A | | Dimensions (L x W x H) | 24.75 x 2.75 x 3.5" / 628.65 x 69.85 x 88.9 mm | | Weight | 5 lb / 2.3 kg | | | | Package Weight | 5.95 lb | | Box Dimensions (LxWxH) | 27.25 x 6.4 x 4.9" |
