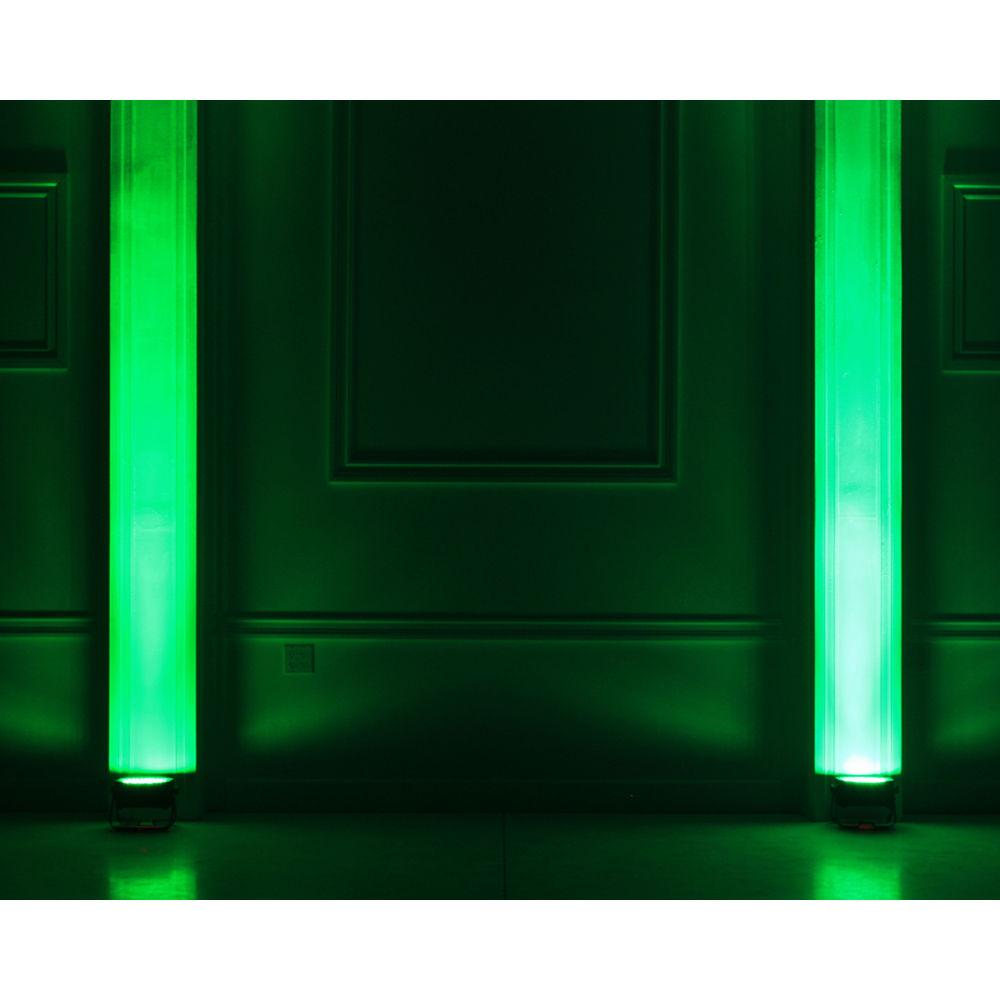

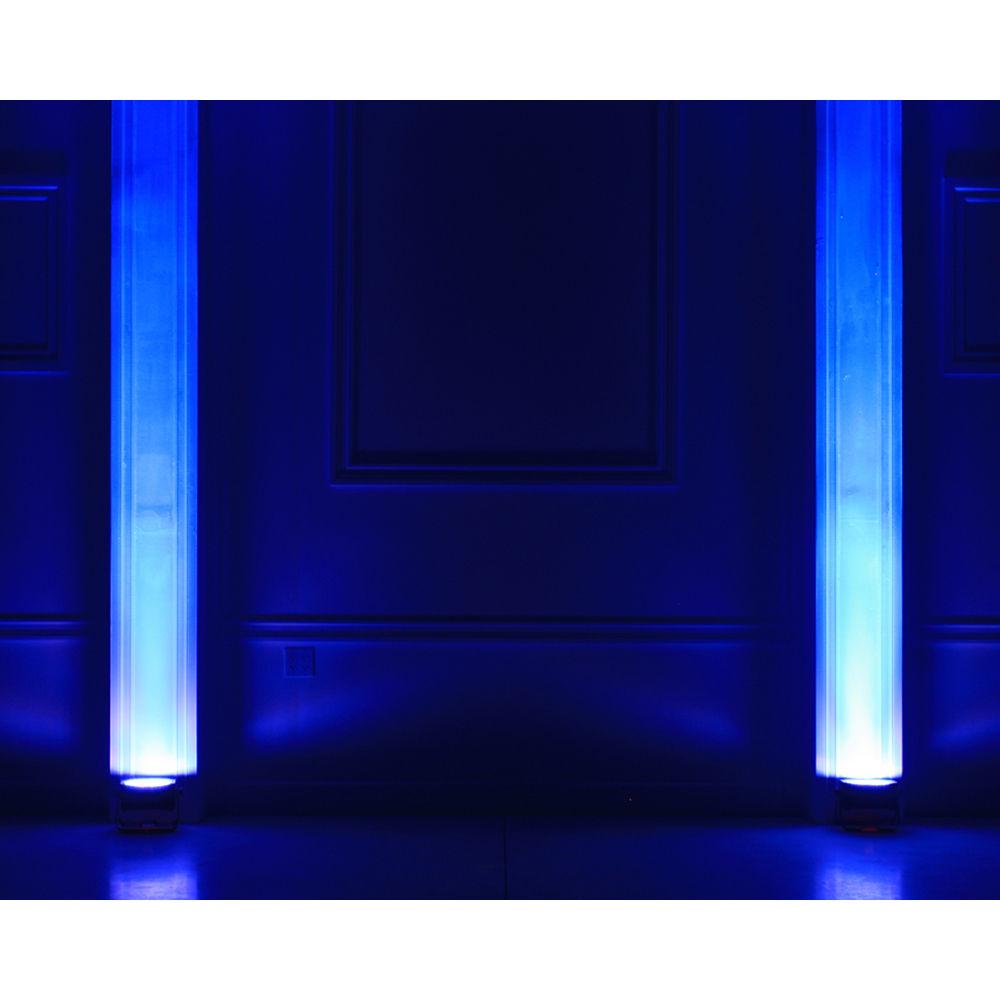

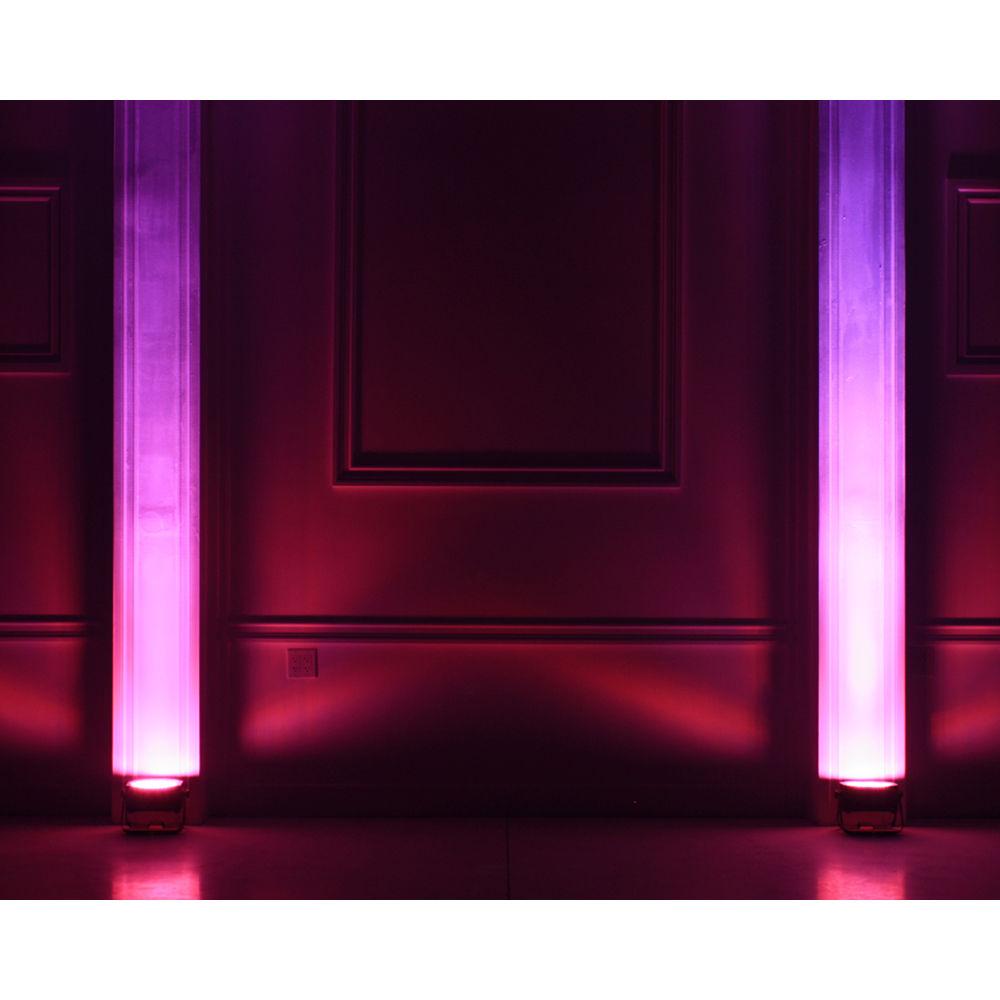

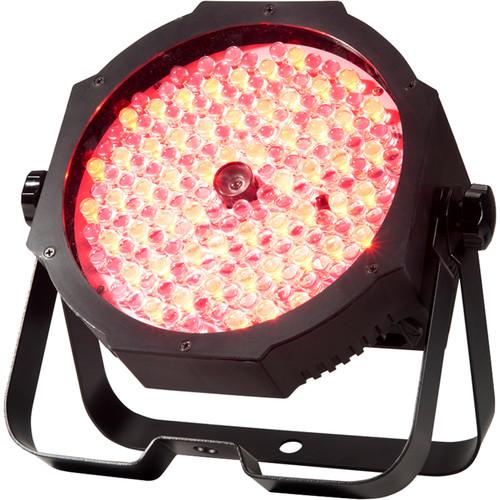

Product description The battery-powered Mega Go Par64 Plus from American DJ is an RGB+UV LED wash light designed to produce UV-infused color washes with bright and smooth color mixing. With 172 10mm RGB LEDs, one 3W UV LED, and a 30° beam angle, it is well suited for venue up-lighting, dance floor color washing, and providing illumination of stage performers.The Mega Go Par64 Plus is ideal for mobile entertainers. The built-in rechargeable battery lasts up to 4.5 hours full-on and lets you quickly position your washes anywhere in the venue, regardless of power-outlet availability. The lightweight (at 5 lb) and compact design allows for multiple units to be cased together for convenient transport and storage. Featuring a sit-flat slim profile with convenient side-positioning of power and DMX in/out sockets, the fixture can sit directly on the ground or inside a truss for up-lighting effects.The unit gives you many creative options while still being easy to use. It offers automated programs such as Sound-Active, Auto-Run, Strobe, RGB+UV Dimmer, and Static Color modes for fast setup in stand-alone mode, and DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller.Other features include flicker-free operation (ideal when used for video applications), 64 built-in color macros, and an auto-sensing power supply. You can also daisy-chain power for up to 25 units.The fixture comes equipped with a scissor yoke which can be used for conventional mounting to a truss or lighting stand, as well as to create a variable-angle floor stand. Furthermore, it can be wirelessly controlled with the UC IR remote, the LED RC2 remote or the Airstream IR iOS app (all available separately). - Battery-powered bright PAR with 172 x 10mm (0.07W) LEDs (56 red, 60 green, 56 blue), and 1 x 3W UV LED (ultraviolet)

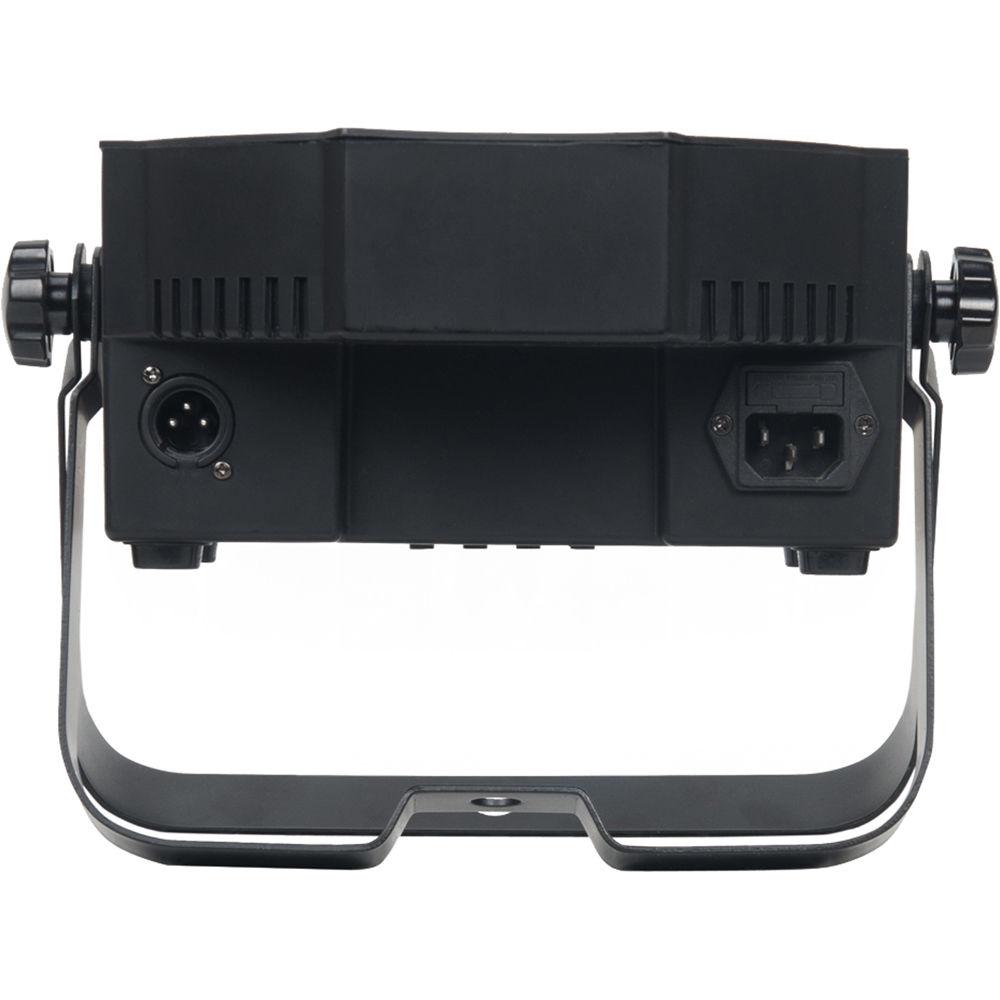

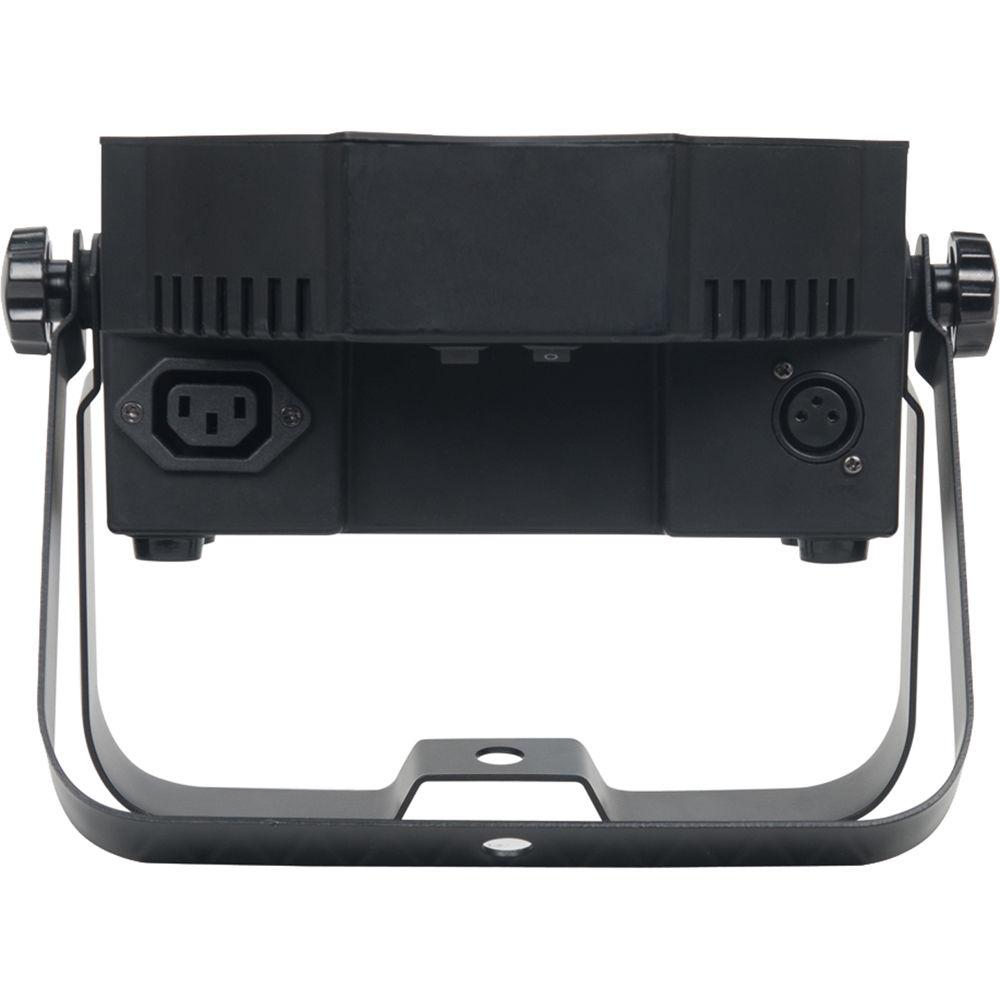

- Sit-flat design with DMX and IEC AC in/out connectors on the side, for positioning fixture flat on the ground or recessed inside a truss
- Smooth RGB+UV color mixing with fast or slow color-change operation
- Rechargeable lithium-ion battery lasts 4.5 hours at full-on (with a full charge)
- Flicker-free light for use with video applications
- 5 x DMX channel modes: 4, 5, 6, 9 & 10 channels
- 5 x operational modes: Auto-Run, Sound-Active, RGB+UV Dimmer, Static-Color, and DMX-Controlled
- 64 x built-in color macros
- Electronic dimming: 0-100%, with five dimmer curves (Standard, Stage, TV, Architectural, & Theater)
- LED pulse and strobe effect
- Stand-alone or master/slave configuration

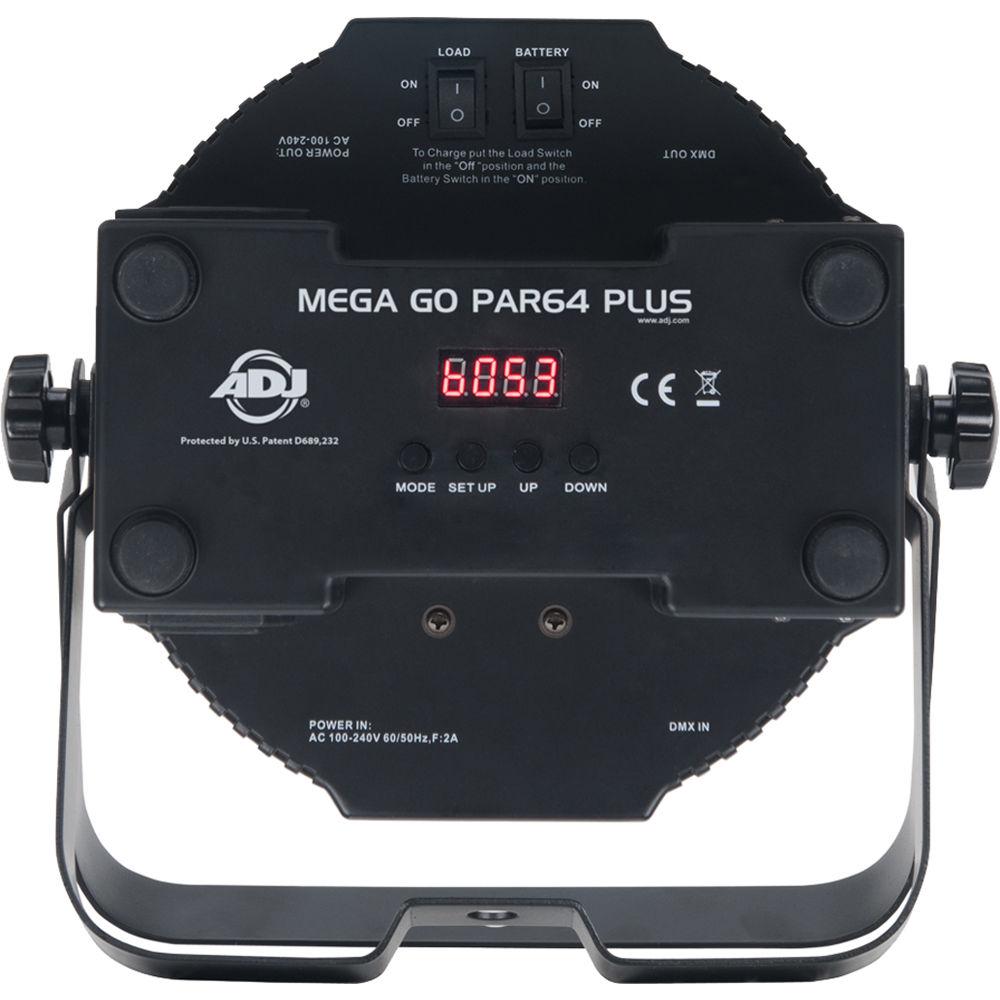

- LED display with 4-button menu for easy navigation
- Daisy-chain power for up to 25 units
- Scissor yoke to hang fixture on truss, mount on a wall or set on the ground
- Compatible with ADJ UC IR and ADJ LED RC2 remote controls (available separately), and ADJ Airstream IR App (free download)
- Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
UPC: 819730018694 In the Box American DJ Mega Go Par64 Plus Battery-Powered RGB+UV LED Wash Light IEC Power Cable (6') Limited 180-Day Warranty on Battery Limited 2-Year Warranty on LEDs Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Mega Go Par64 Plus Battery-Powered RGB UV LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Mega Go Par64 Plus Specs | Light Source | 172 x 10 mm (0.07 W) RGB LEDs (56 red, 60 green, 56 blue)
1 x 3 W UV LED | | Life Expectancy | Approximately 50,000 hours | | Colors | RGB+UV color mixing (red, green, blue, ultraviolet)
64 x built-in color macros | | Illuminance | 438 lux at 6.5' / 2 m
172.1 lux at 13.1' / 4 m | | Beam Angle | 30° | | Dimming | Electronic: 0-100%
5 x Curves: Standard, Stage, TV, Architectural, Theater | | Operation Modes | Auto Run (16 x color change modes, 16 x color fade modes)
Sound Active (16 modes)
RGB+UV Dimmer
Static Color (64 colors)
DMX-Controlled | | DMX Connectors | Input: XLR 3-Pin
Output: XLR 3-Pin | | DMX Channel Modes | 5 x Modes: 4, 5, 6, 9 & 10 channels | | Display/Controls | 4-button LED display on rear panel | | Wireless Control | ADJ UC IR and ADJ LED RC2 remote controls (available separately)
ADJ Airstream IR App (free download), requires IR transmitters (available separately) | | Rechargeable Battery | Type: lithium-ion
Battery Life: 4.5 hours at full-on (with a full charge)
Charge Time: 4 hours | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-sensing | | Power Connectors | Input: IEC
Output: IEC | | Power Linking | Up to 25 units | | Maximum Power Draw | 24 W | | Fuse | 2 A | | Working Position | Any safe position | | Dimensions (L x W x H) | 10.25 x 10.25 x 4.5" / 260.0 x 260.0 x 110.0 mm | | Weight | 5.0 lb / 2.2 kg | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 12.3 x 12.3 x 6.2" |
