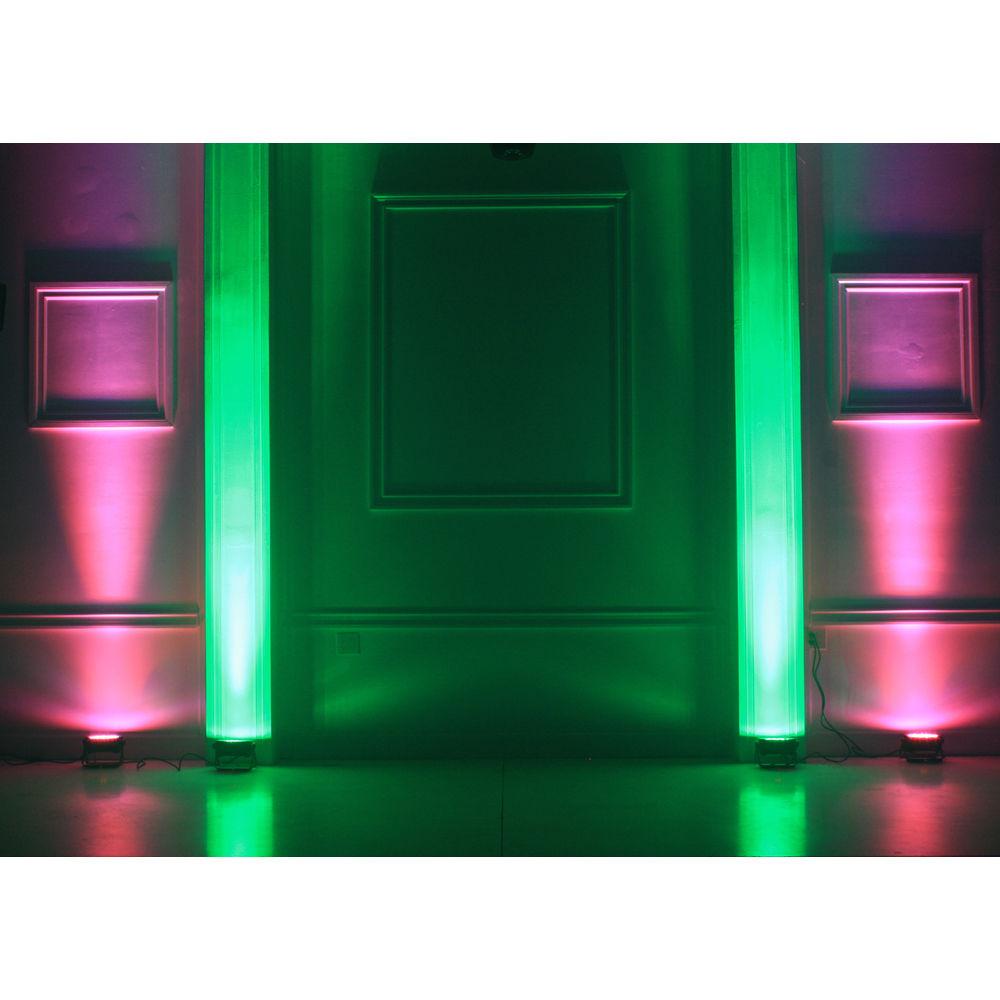

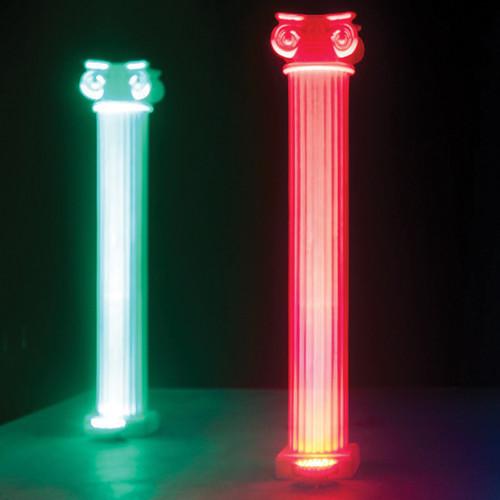

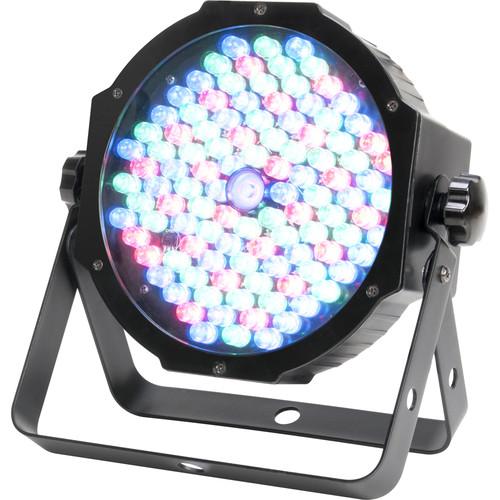

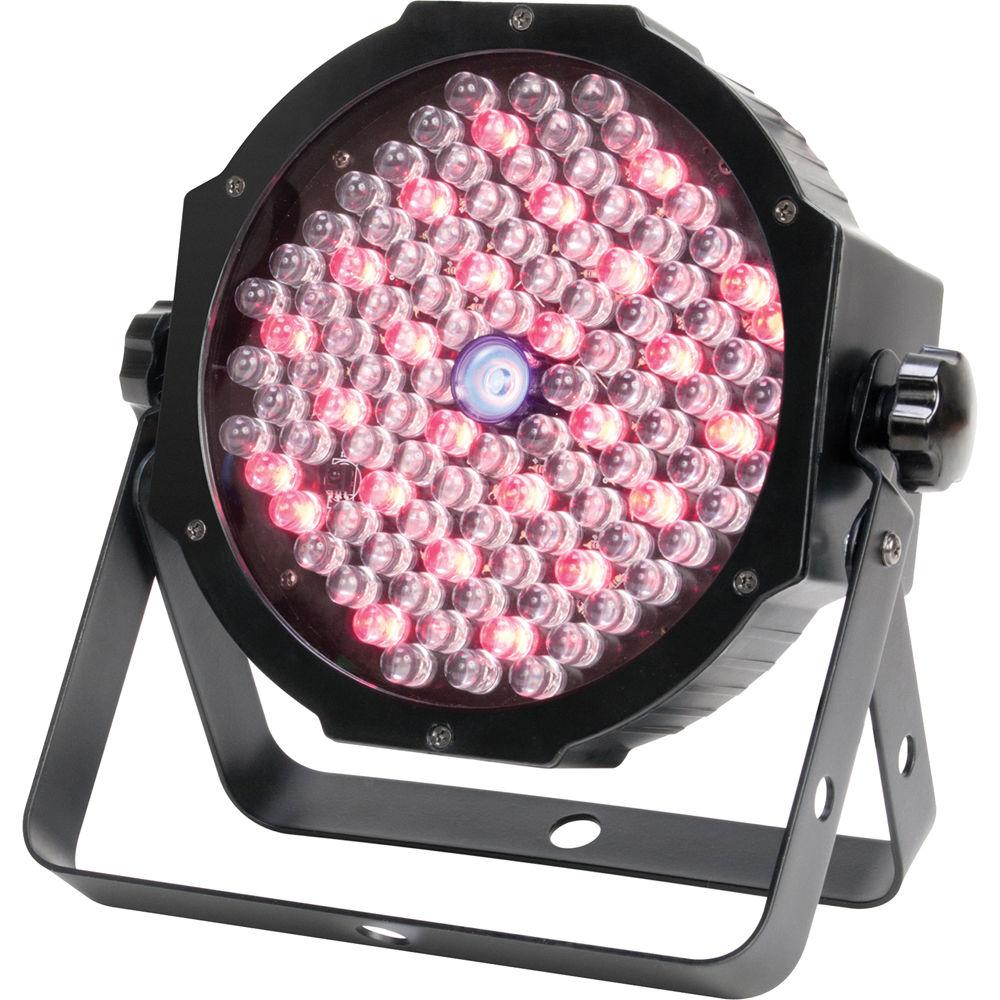

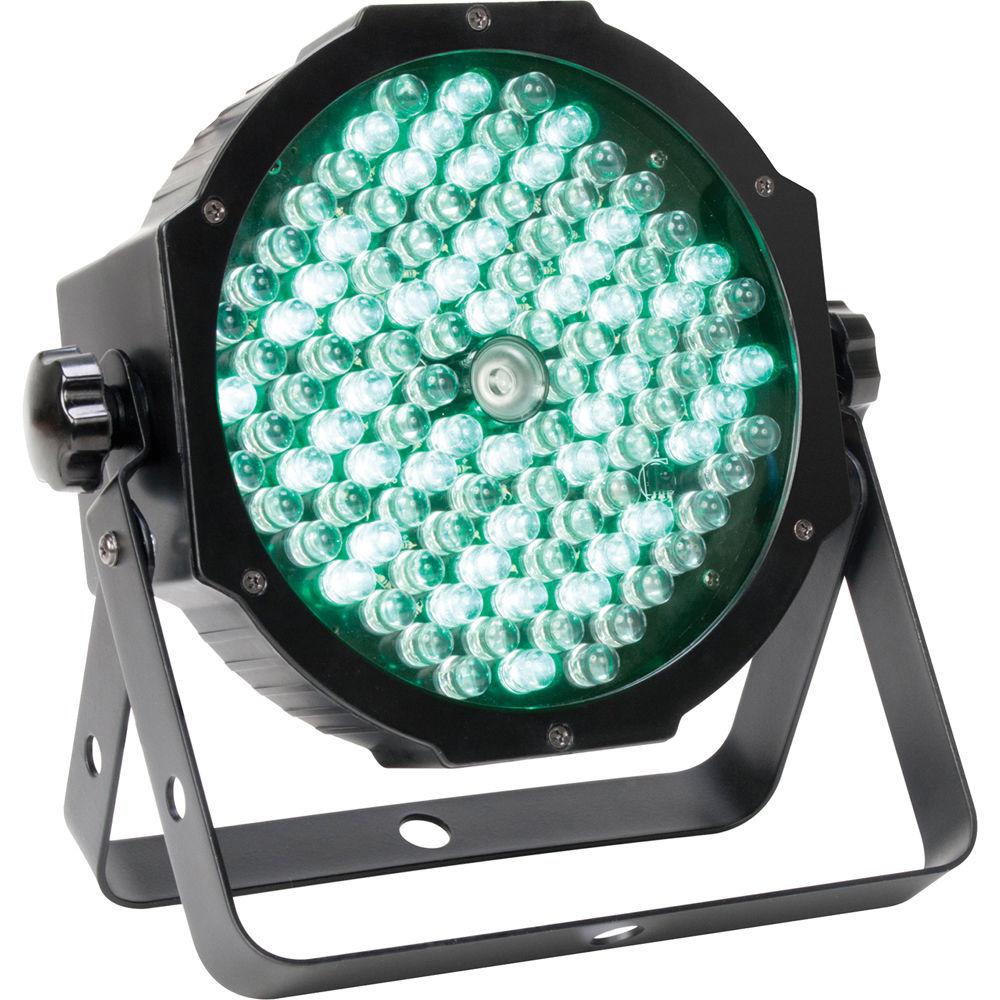

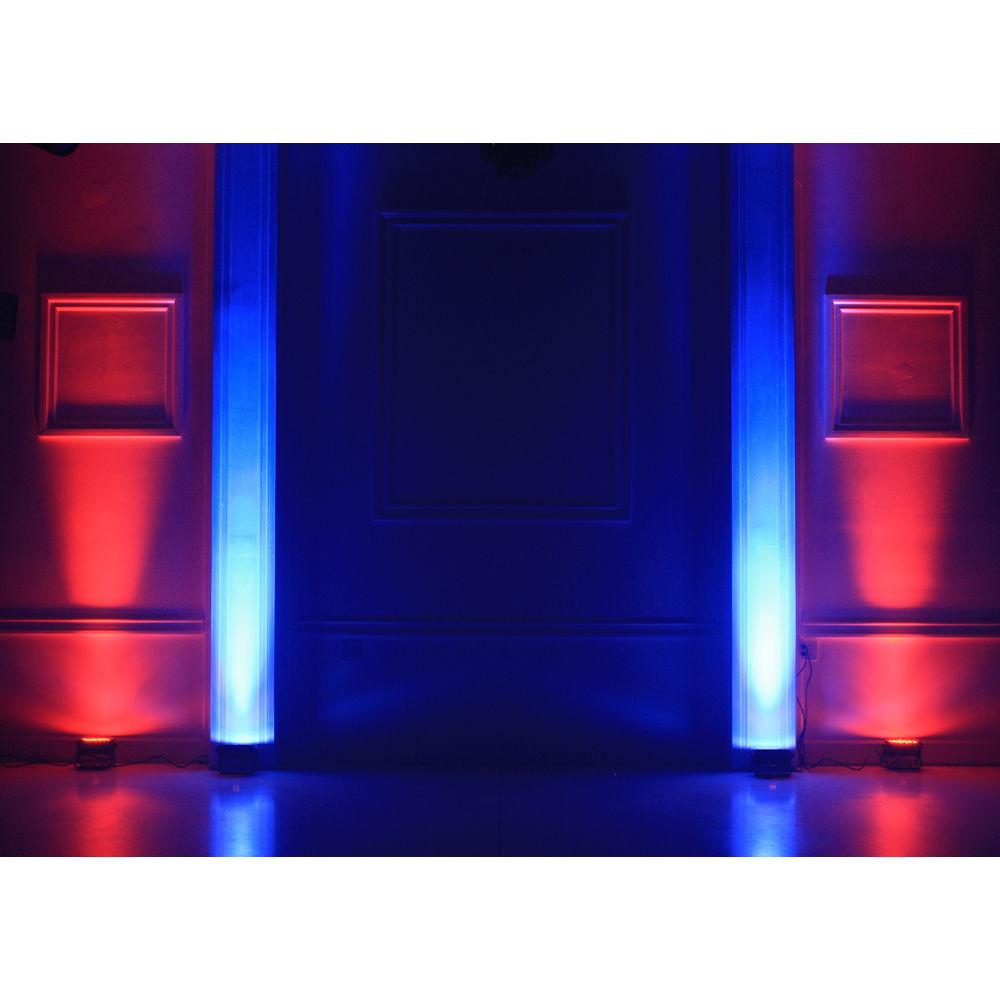

Product description The Mega Par Profile Plus from American DJ is an RGB+UV LED wash light designed to produce color washes with bright and smooth color mixing, and black light effects. With 107 10mm RGB LEDs, one 3W UV LED, and a 30° beam angle, it is well suited for venue lighting, dance floor color washing, and providing illumination of stage performers. The fixture's lightweight (at 3 lb) and compact design allows for multiple units to be cased together for convenient transport and storage. Featuring a sit-flat slim profile with convenient side-positioning of power and DMX in/out sockets, the Mega Par Profile Plus can sit directly on the ground or inside a truss for up-lighting effects.The unit gives you many creative options while still being easy to use. It offers automated programs such as Sound-Active, Auto-Run, Strobe, RGB+UV Dimmer, & Static Color modes for fast setup in stand-alone mode, and DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller.Other features include 64 built-in color macros, an LED display with a 4-button menu for easy navigation, and an auto-sensing power supply. You can also daisy-chain power for up to 33 units at 120V and 60 units at 240V.The fixture comes equipped with a scissor yoke that can be used for conventional mounting to a truss or lighting stand, as well as to create a variable-angle floor stand. It can be wirelessly controlled with the ADJ LED RC2 remote (available separately). - Slim PAR with 107x10mm RGB LEDs and 1x3W UV LED (red, green, blue, UV) for color washes and black light effects
- Smooth RGB+UV color mixing with fast or slow color-change operation – 30° beam angle
- The ultraviolet LED extends the color range for more color mixing possibilities

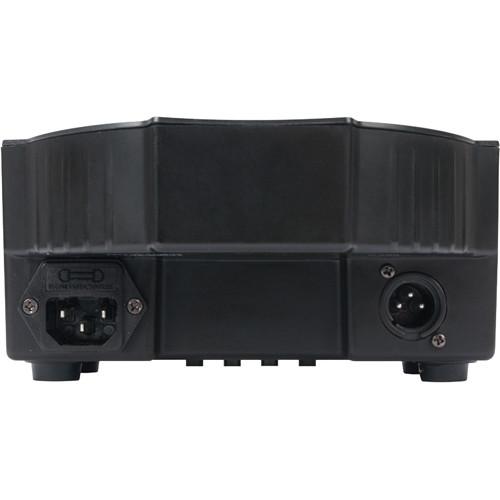

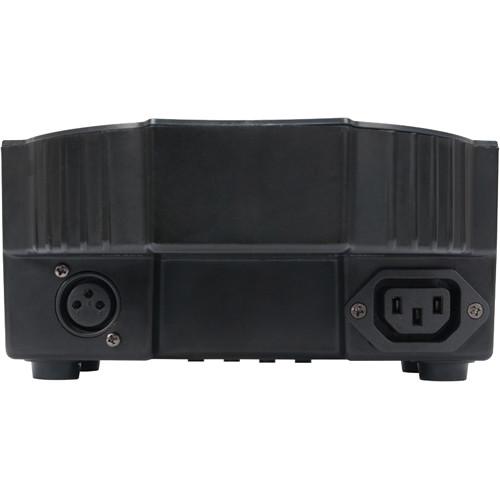

- Sit-flat design with DMX and IEC AC in/out connectors on the side, for positioning fixture flat on the ground or recessed inside a truss
- 5 x DMX channel modes: 4, 5, 6, 9 or 10 channels
- 5 x operational modes with 32 built-in shows: Auto-Run, Sound-Active, RGB+UV Dimmer, Static-Color, and DMX-Controlled
- 64 x built-in color macros
- Electronic dimming: 0-100%, with five dimmer curves (Standard, Stage, TV, Architectural, & Theater)
- LED display with 4-button menu for easy navigation
- Standalone or master/slave configuration
- Daisy-chain power for up to 33 fixtures at 120V and 60 fixtures at 240V
- Scissor yoke to hang fixture on truss, mount on a wall, or set on the ground
- Compatible with ADJ LED RC2 remote (available separately)
- Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
UPC: 819730014146 In the Box American DJ Mega Par Profile Plus RGB+UV LED Wash Light Scissor Yoke IEC Power Cable (6') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Mega Par Profile Plus RGB UV LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Mega Par Profile Plus Specs | Light Source | 107 x 10 mm RGB LEDs (26 x red, 45 x green, 36 x blue)
1 x 3 W UV LED | | Life Expectancy | Approximately 50,000 hours | | Colors | RGB+UV color mixing (red, green, blue, ultraviolet)
64 x built-in color macros | | Illuminance | 345 lux at 6.5' / 2 m
92 lux at 13.1' / 4 m | | Beam Angle | 30° | | Dimming | Electronic: 0-100%
5 x Curves: Standard, Stage, TV, Architectural, Theater | | Operational Modes | Auto Run (16 x color jump modes, 16 x color fade modes
Sound Active (16 modes)
RGB+UV Dimmer
Static Color (64 colors)
DMX-Controlled | | DMX Connectors | Input: 3-pin XLR
Output: 3-pin XLR | | DMX Channel Modes | 5 x Channel Modes: 4, 5, 6, 9 or 10 channels | | Display/Controls | Digital LED display with 4-button menu | | Wireless Control | ADJ LED RC2 remote (available separately)
Range: 30' / 9 m | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-sensing | | Power Connectors | Input: IEC
Output: IEC | | Power Linking | Maximum 33 fixtures at 120 V
Maximum 60 fixtures at 240 V | | Maximum Power Draw | 16 W | | Fuse | 0.5 A | | Mounting | Any safe position | | Dimensions (L x W x D) | 9.0 x 8.75 x 3.5" / 225 x 220 x 85 mm | | Weight | 3 lb / 1.1 kg | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 11.3 x 10.5 x 5.0" |
