User Manual for American DJ Mega QA Go Battery-Powered RGBA LED PAR Light Click to enlarge the picture
Contents of the user manual for the American DJ Mega QA Go Battery-Powered
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Mega QA Go Battery-Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

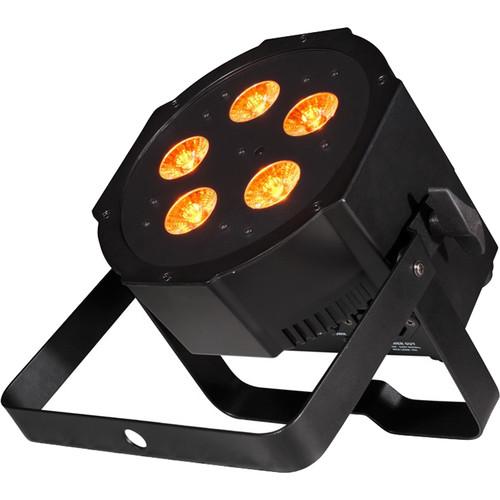

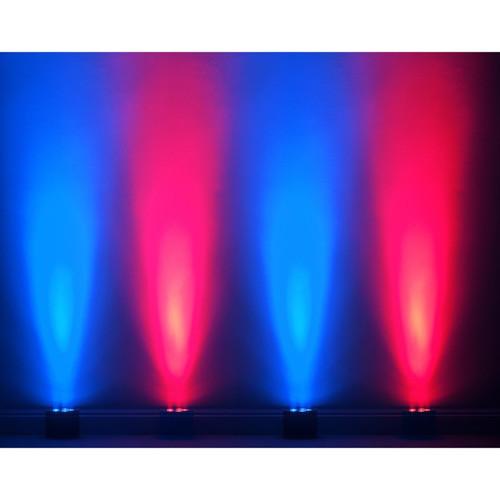

Product description The battery-powered Mega QA Go from American DJ is an RGBA (red, green, blue, amber) LED PAR fixture designed to produce bright color washes and smooth color mixing. With five 4W (4-in-1) quad LEDs, a 40° beam angle, and a true amber LED to get the hard-to-achieve orange and amber hues, it is well suited for venue up-lighting and dance floor color washing.The Mega QA Go is ideal for mobile entertainers. The built-in rechargeable battery lasts up to 4 hours full-on and lets you quickly position your washes anywhere in the venue, regardless of power-outlet availability. At only 4 lb, the lightweight and compact design allows for multiple units to be cased together for convenient transport and storage. Featuring a sit-flat slim profile with convenient side-positioning of power and DMX in/out sockets, the fixture can sit directly on the ground or inside a truss for up-lighting effects.The unit gives you many creative options while still being easy to use. It offers automated programs such as Sound-Active, Auto-Run, Strobe, RGBA Dimmer, and Static Color modes for fast setup in standalone mode, as well as DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller. Other features include flicker-free operation (ideal when used for video applications), 64 built-in color macros, and an auto-sensing power supply. You can also daisy-chain power for up to 20 units.The fixture comes equipped with a scissor yoke, which can be used to create a variable-angle floor stand and for conventional mounting to a truss or lighting stand. It can be wirelessly controlled with the ADJ UC IR remote (available separately), or with the ADJ Airstream IR app for iOS devices (requires separately available IR transmitter). - Battery-powered, ultra-bright slim PAR with 5 x 4W RGBA quad (4-in-1) LEDs and 40° angle
- With true amber LED to get hard-to-achieve orange and amber hues

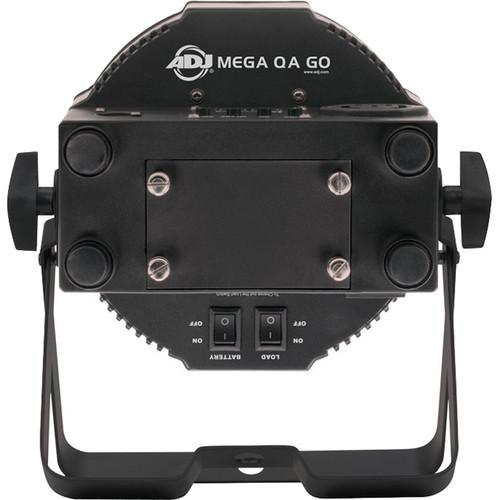

- Built-in rechargeable lithium-ion battery, lasts 4 hours at full-on (with a full charge)

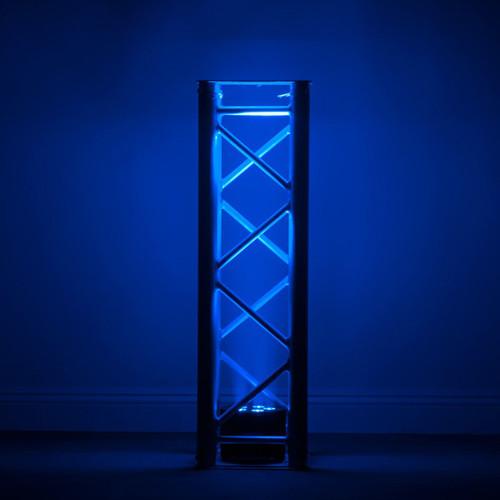

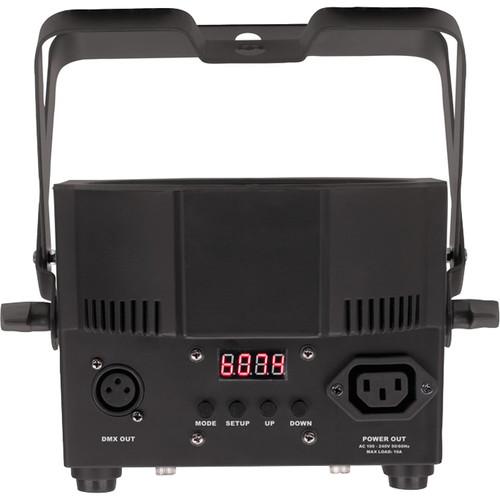

- Sit-flat design with DMX and IEC AC in/out connectors on the side, for positioning fixture flat on the ground or recessed inside a truss
- Smooth RGBA color mixing with fast or slow color-change operation
- Flicker-free light for use with video applications
- 8 x DMX channel modes: 1, 2, 3, 4, 5, 6, 7, or 8 channels
- Five operational modes: Auto Run, Sound Active, RGBA Dimmer, Static Color, DMX512
- 16 built-in programs (color change, color fade, sound active)
- Electronic dimming: 0-100%, with five dimmer curves (Standard, Stage, TV, Architectural, Theater)
- Standalone or master/slave configuration
- LED display with 4-button menu for easy navigation
- Daisy-chain power for up to 20 units
- Scissor yoke to hang fixture on truss, mount on a wall or set on the ground (included)
- Compatible with ADJ UC IR wireless remote (available separately) and free ADJ Airstream IR App for iOS devices (requires IR transmitter available separately)
- Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
UPC: 819730019615 In the Box American DJ Mega QA Go Battery-Powered RGBA LED PAR Light IEC Power Cable (6') Scissor Yoke Limited 2-Year Warranty on LEDs Limited 180-Day Warranty on Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Mega QA Go Battery-Powered RGBA LED PAR Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Mega QA Go Specs | Light Source | 5 x RGBA LEDs, 4 W | | Life Expectancy | 50,000 hours | | Illuminance | 622 lux at 6.5' / 2 m
182.3 lux at 13.1' / 4 m | | Beam Angle | 40° | | Dimmer | Electronic | | Dimmer Curves | 5 | | Shutter/Strobe | Electronic | | Color Mixing | RGBA | | Color Effects | 64 x presets | | Built-In Programs | Yes | | Master/Slave Support | Yes | | Sound Active | Yes | | Protocols | DMX | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 8 x Modes: 1, 2, 3, 4, 5, 6, 7, 8 channels | | Battery Type | Lithium-ion | | Battery Voltage | 11.1 V | | Battery Capacity | 6.6 Ah | | Battery Energy | 37.26 Wh | | Battery Charge Time | 4 hours | | Battery Cycle Life | 500 hours | | Battery Life | Full On: 4.5 hours
Energy-Saving Mode: 5.5 hours | | Input Voltage | 100-240 VAC, 50/60 Hz (auto-sensing) | | Power Connectors | Input: IEC
Output: IEC | | Power Linking | 20 units maximum | | Maximum Power Draw | 28 W | | Fuse | 2 A | | Remote Control Compatibility | ADJ UC IR remote control (available separately)
ADJ Airstream IR App (free download), requires IR transmitters (available separately) | | Display/Controls | LED display with 4-button control panel | | Mounting | Scissor yoke | | Working Position | Any safe position | | Dimensions (L x W x H) | 5.5 x 9.0 x 10.0" / 140 x 227 x 253 mm | | Weight | 4.0 lb / 1.9 kg | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 11.8 x 11.3 x 7.4" |
