User Manual for American DJ Mister Kool II - Low-Lying Fog Machine with Wired Remote Click to enlarge the picture
Contents of the user manual for the American DJ Mister Kool II -
- Product category: Fog & Haze Machines American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ Fog & Haze Machines
 |
User manual for the American DJ Mister Kool II - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

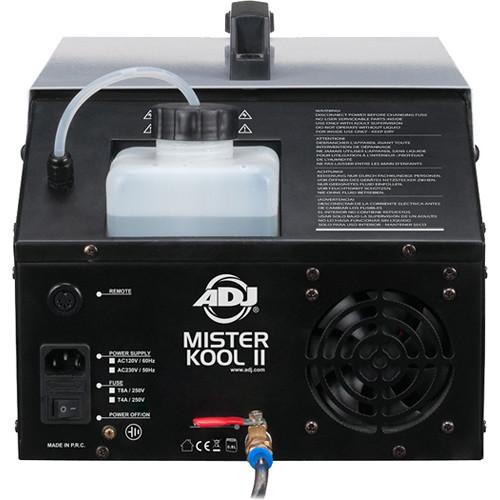

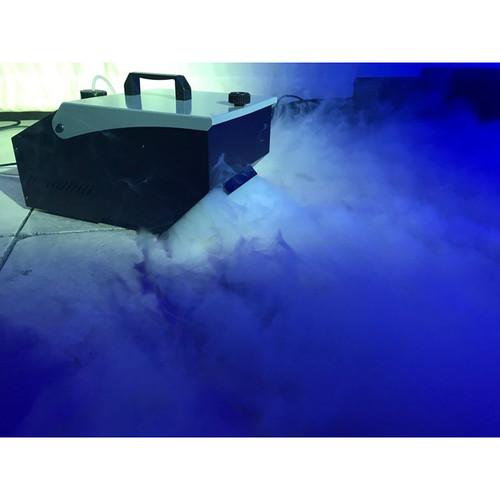

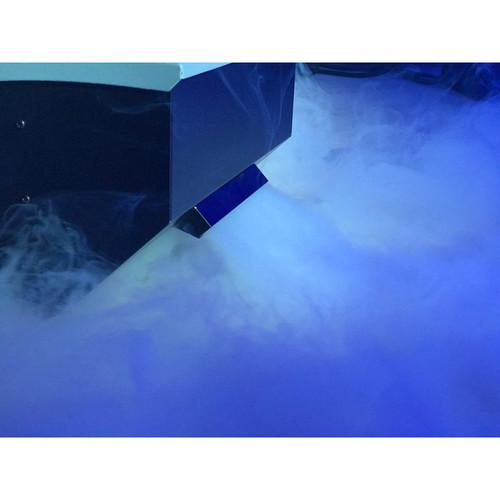

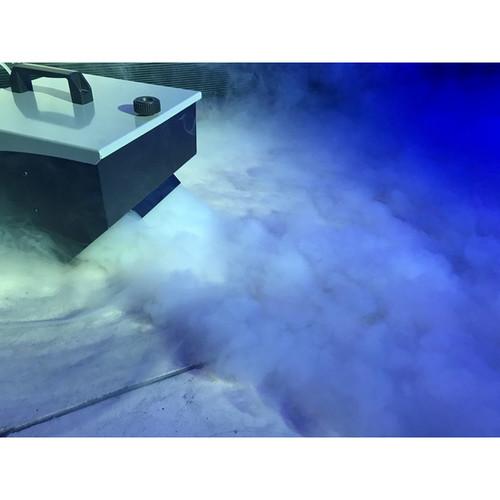

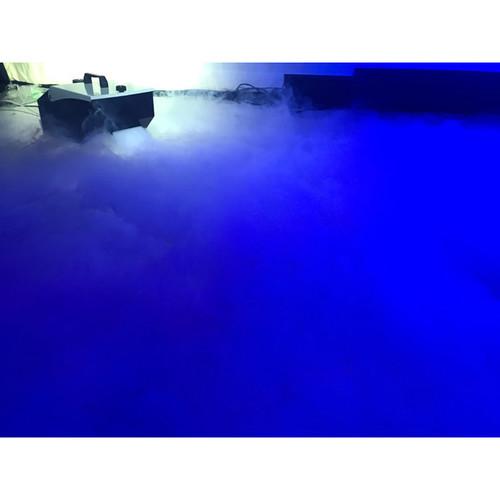

Product description American DJ Mister Kool II is a second-generation fog machine which uses ice cubes and water-based fog juice to create low-lying fog, and add dramatic, atmospheric effects for your light shows in small- to medium-sized clubs or venues.Mister Kool II features a powerful 700W heater, a generous 25.6 oz tank, and a chiller box that stores 4 lb of cubed ice. The unit warms up within 3 minutes and is capable of rapidly diffusing fog at a rate of 3000 ft³/minute. The included wired remote is equipped with a 12' cable. It lets you operate the machine in manual, continuous or time-controlled mode. In timer mode, two potentiometers allow you to set the duration and interval of fogging.A drainage system with valve, plastic hose, and plastic water-collection bag can be used to empty the machine of melted ice. Compact and lightweight (at 19 lb), Mister Kool II is easy to store and transport with its integrated carry handle and robust metal construction. - What's New with Mister Kool II
-
- More powerful heater (700W)
- Increased output: up to 3000 ft³/minute
- Warm-up time only 3 minutes
- Larger 25.6 oz fluid tank
- Key Features
-
- Uses water-based fog fluid and ice cubes to rapidly create cool, low-lying fog
- Up to 8 minutes of continuous operation on a single tank

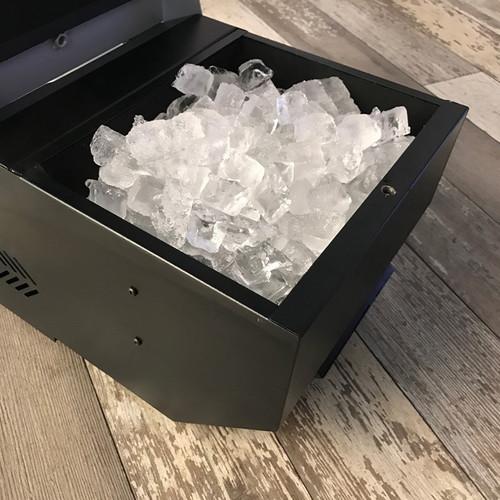

- Chiller box stores 4 lb of cubed ice

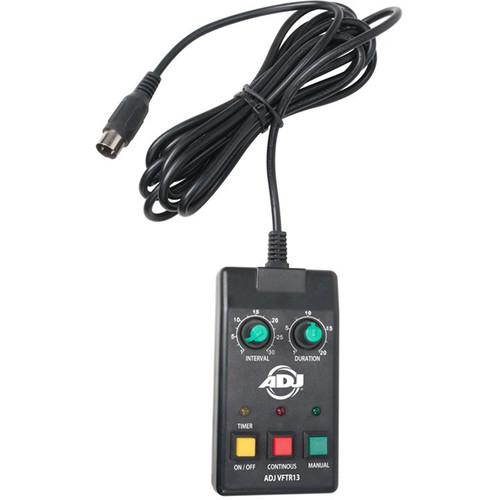

- Includes ADJ VFTR13 timer remote, with 12' cable
- Manual, continuous, time-controlled fogging
- Set the duration and interval when timer mode is in operation

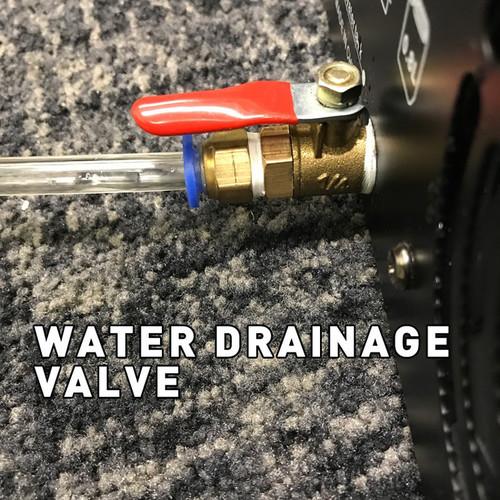

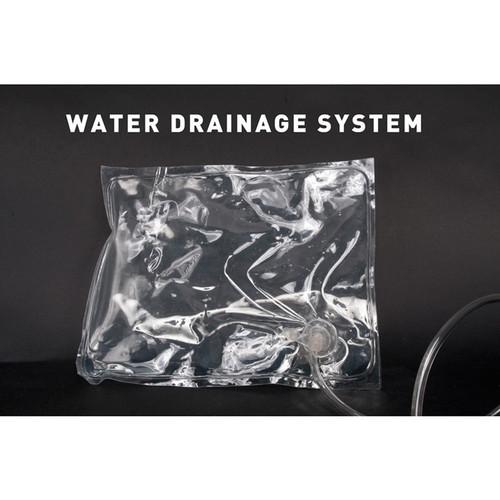

- Includes water drainage system with valve, plastic hose, plastic water-collection bag
- Lightweight (at 19 lb) and compact design – easy to store and transport with integrated carry handle and robust metal construction
UPC: 819730019929 In the Box American DJ Mister Kool II - Low-Lying Fog Machine with Wired Remote Wired Remote Control Plastic Bag for Drainage Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Mister Kool II - Low-Lying Fog Machine with Wired Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Mister Kool II Specs | Haze Output | 3000 ft³/minute (85 m³/minute) | | Tank Capacity | 25.6 oz (800 mL), removable | | Heater | 700 W | | Warm-Up Time | 3 minutes | | Fluid Consumption | 90 mL/minute | | Running Time | Up to 8 minutes of continuous operation on a single tank | | Compatible Fluid | Water-based
Kool Fog Low-Lying Fog Fluid (recommended), F4L Premium, F1L Premium | | Chiller Box | Capacity: Up to 4.0 lb (1.8 kg), cubed ice | | Wireless Control | ADJ VFTR13 wired remote with 12' (3.6 m) cable, included
Buttons: On/Off, Continuous, Manual
Potentiometers: Interval, Duration output | | Input Voltage | 120 VAC, 50 Hz, fixed | | Dimensions (L x W x H) | 18 x 11.75 x 10.25" (460 x 300 x 262 mm) | | Weight | 19 lb (9 kg) | | | | Package Weight | 20.15 lb | | Box Dimensions (LxWxH) | 19.85 x 15.5 x 13.0" |
