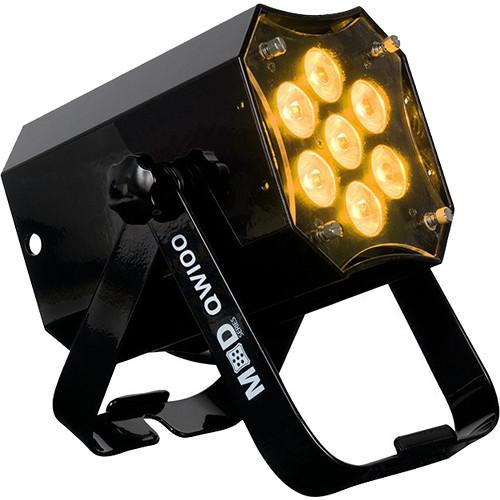

Product description The modular American DJ MOD QW100 is a 105W PAR wash light with seven, 15W (4-in-1) Quad RGBW (red, green, blue, white) LEDs. Featuring three interchangeable frost filters used to alter the fixture's 17° beam angle to either 20, 40, or 60°, it creates wide and vibrant color washes with intense cool-whites for stages, installations, or mobile events. The MOD QW100 offers a unique modular design that enables users to move the fixture's body to create a snoot and eliminate side glare. Event designers can also remove the black, metal housing and replace it with a pearl-white housing (available separately) to match the aesthetics of the event. Other features include four DMX channel modes, 64 built-in color macros, 0-100% electronic dimming, LED strobe effects, an LED display with 4-button menu for easy navigation, an auto-sensing, multi-voltage power supply, and more. The MOD QW100 comes equipped with a dual-yoke bracket, which can be used for conventional mounting to a truss or lighting stand, or to create a variable-angle floor stand. The fixture is wirelessly controllable via the UC IR remote control (available separately). - Modular Design
-

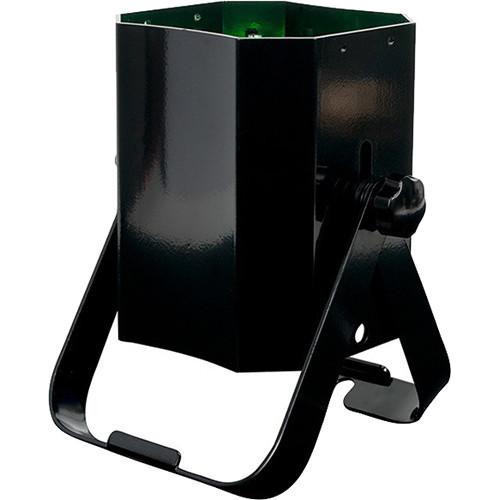

- Metal housing moves to create a snoot for eliminating side glare
- Black, glossy metal housing may be removed and replaced with pearl-white housing kit (available separately)
- Key Features
-
- Bright PAR with 7 x 15W RGBW (4-in-1) LEDs with a total output of 105W
- Create vibrant color washes with intense cool-whites for stages, installations, or mobile events
- 17° beam angle

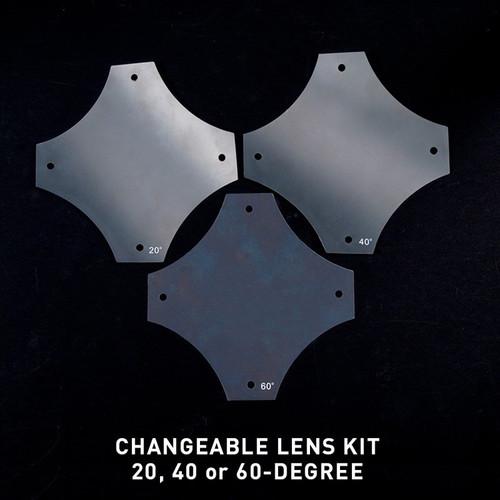

- Includes three frost filters to change beam angle to 20, 40, or 60°
- 4 x DMX channel modes: 4, 5, 6, 9 or 10
- Color macros
- LED strobe effect
- Variable electronic dimmer: 0-100%
- LED display with 4-button menu for easy navigation
- Gloss-black, metal housing
- Included scissor yoke to hang fixture on truss, mount on a wall, or set on the ground
- Compatible with ADJ UC IR wireless remote (available separately) and ADJ Airstream IR App (free download)
- powerCON connectors for secure power connections
- Multi-voltage operation: 100-240 VAC, auto-ranging
In the Box American DJ MOD QW100 - Modular RGBW LED PAR 3 x Frost Filters powerCon Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ MOD QW100 - Modular RGBW LED PAR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ MOD QW100 Specs | Light Source | 7 x 15 W (4-in-1) RGBW (red, green, blue, white) LEDs
Total Output: 105 W
Life Expectancy: 50,000 hours | | Illuminance | Total Lumens: <2300
Lux: 3887 at 9.8' / 3 m | | Beam Angle | 17° | | Effects | Electronic Dimming: 0-100%
Variable strobe
64 x built-in color macros

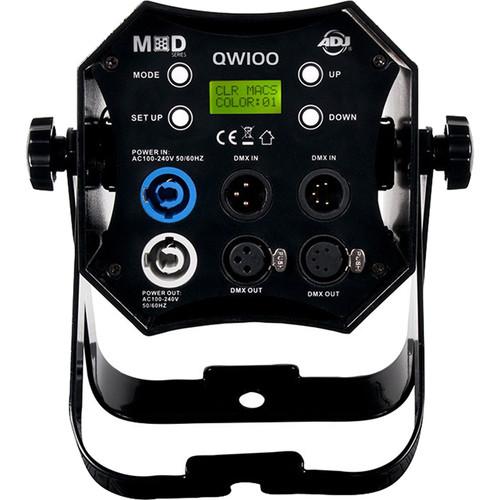

6 x operational modes | | DMX Interface | DMX Channels Modes: 4, 5, 6, 9 or 10 | | DMX Connectors | 3-pin XLR, in/out
5-pin XLR, in/out | | Wireless Control | UC IR wireless remote (available separately)
Compatible with Airstream IR control app (available separately) | | Manual Controls | 4-button control menu with display | | Power Requirements | Input Voltage: 100-240 VAC, 50/60 Hz (auto-sensing)
Power Draw: 114 W, maximum | | Power Connectors | Input: 1 x powerCON
Output: 1 x powerCON | | Mounting | Double-bracket yoke | | Housing | Metal
Black, glossy | | Dimensions (L x W x H) | 6.85 x 8.03 x 9.25" / 174 x 204 x 235 mm | | Weight | 5.7 lb / 2.6 kg |
