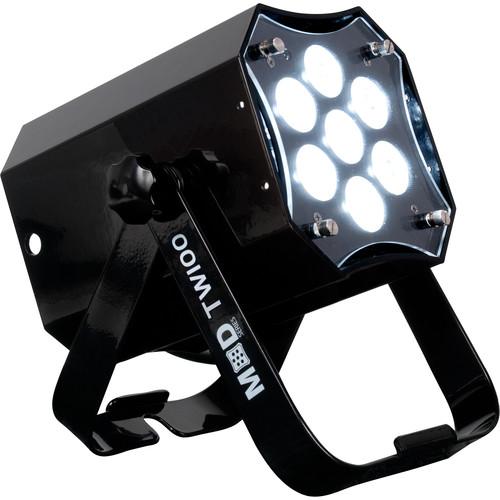

Product description The modular American DJ MOD TW100 is a 105W PAR wash light with seven, 15W (4-in-1) CW (cool white), WW (warm white), and A (amber) LEDs. Featuring three interchangeable frost filters used to alter the fixture's 17° beam angle to either 20, 40, or 60°, it creates wide and vibrant white light washes with exacting color temperature control for stages, installations, or mobile events.The MOD TW100 offers a modular design that enables users to move the fixture's body to create a snoot and eliminate side glare. Event designers can remove the black metal housing and replace it with pearl-white housing (available separately) to match the aesthetics of the event.
Other features include five DMX channel modes, 64 built-in color macros, 0-100% electronic dimming, LED strobe effects, an LED display with 4-button menu for easy navigation, and an auto-sensing, multi-voltage power supply.
The MOD TW100 comes equipped with a dual-yoke bracket that can be used for conventional mounting to a truss or lighting stand, or to create a variable-angle floor stand. The fixture is wirelessly controllable via the separately available UC IR remote control. - Modular Design
-
- Metal housing moves to create a snoot for eliminating side glare
- Black, glossy metal housing may be removed and replaced with pearl-white housing kit (available separately)
- Key Features
-
- Bright PAR with 7 x 15W CW, WW, A (4-in-1) LEDs with a total output of 105W
- Create vibrant white washes with exacting color temperature control for stages, installations, or mobile events
- 17° beam angle

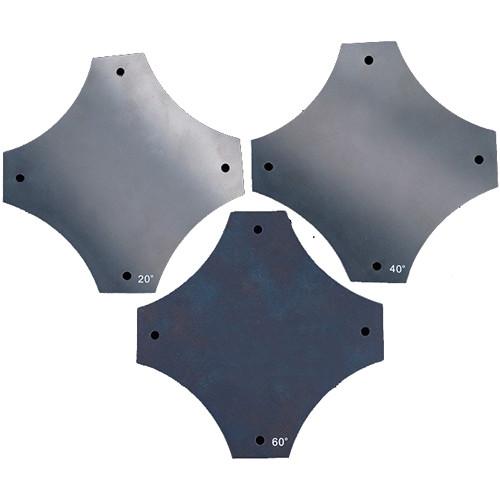

- Includes three frost filters to change beam angle to 20, 40, or 60°
- 5 x DMX channel modes: 3, 4 , 5, 8, or 9
- 64 built-in macros
- LED strobe effect
- Variable electronic dimmer: 0-100%
- LED display with 4-button menu for easy navigation
- Gloss-black metal housing
- Included scissor yoke to hang the fixture on a truss, mount it on a wall, or set it on the ground
- Compatible with ADJ UC IR wireless remote (available separately) and ADJ Airstream IR App (free download)
- powerCON connectors for secure power connections
- Multi-voltage operation: 100-240 VAC, auto-ranging
In the Box American DJ MOD TW100 - Modular CW, WW, Amber LED PAR 3 x Frost Filters powerCon Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ MOD TW100 - Modular CW, WW, Amber LED PAR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ MOD TW100 Specs | Light Source | 7 x 15 W (4-in-1) CW/WW/A (cool white, warm white, amber) LEDs | | Total Outputs | 105 W | | Life Expectancy | 50,000 hours | | Illuminance | Total Lumens: <2400
Lux: 2973 at 9.8' / 3 m | | CRI | Cool White: 92
Warm White: 97 | | Color Temperature | Cool White: 6000K
Warm White: 2700K | | Beam Angle | 17° | | Effects | Electronic Dimming: 0-100%
Variable strobe
64 x built-in macros
6 x operational modes | | DMX Interface | DMX Channels Modes: 3, 4, 5, 8, or 9 | | DMX Connectors | 3-pin XLR, in/out
5-pin XLR, in/out | | Wireless Control | UC IR wireless remote (available separately)
Compatible with Airstream IR control app (available separately) | | Manual Controls | 4-button control menu with display | | Power Requirements | Input Voltage: 100-240 VAC, 50/60 Hz (auto-sensing)
Power Draw: 111 W, maximum | | Power Connectors | Input: powerCON
Output: powerCON | | Mounting | Double-bracket yoke | | Housing | Metal | | Dimensions | 7.00 x 8.00 x 9.25" / 174 x 204 x 235 mm | | Weight | 6 lb / 2.6 kg |
