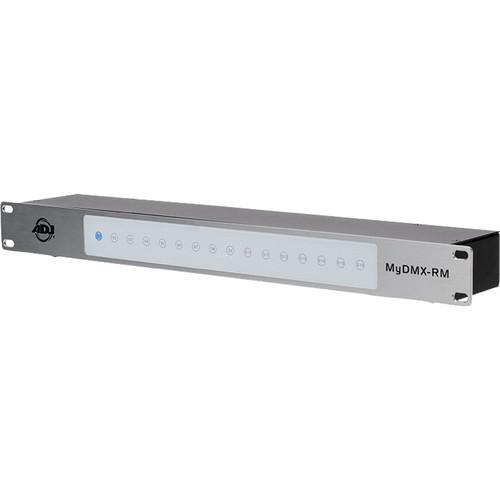

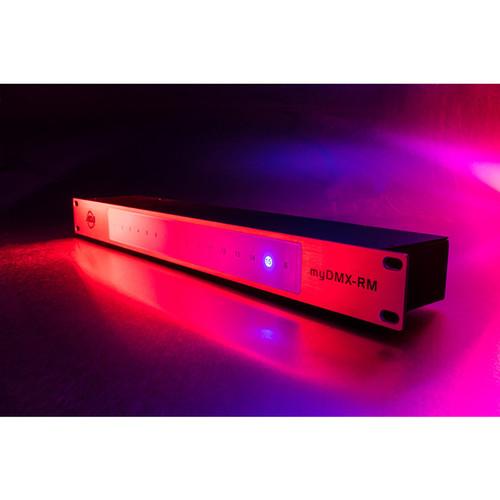

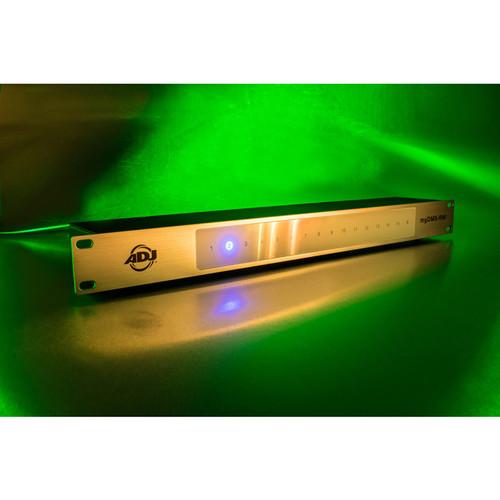

Product description Building upon the success of the myDMX 3.0 DMX controller and software, the American DJ myDMX-RM is a Windows and Mac OS X compatible multi-platform DMX control software/hardware system, built into a 19" 1 RU rackmount interface that functions as a hardware dongle and includes 16 front-panel triggers for recalling 16 pre-set shows without the need of a connected computer. The myDMX-RM is a great solution for a lighting designer to leave at a venue so that their staff can trigger lighting scenes without the use of a computer or myDMX software.

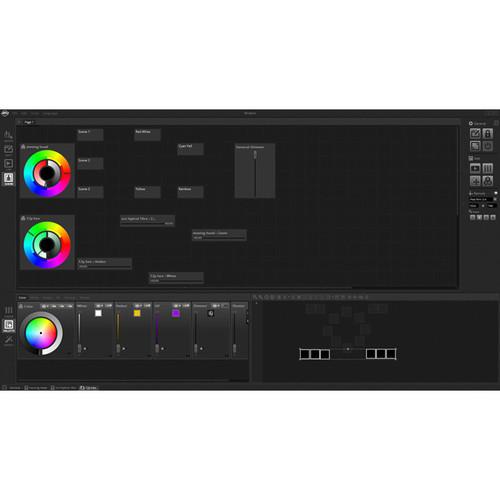

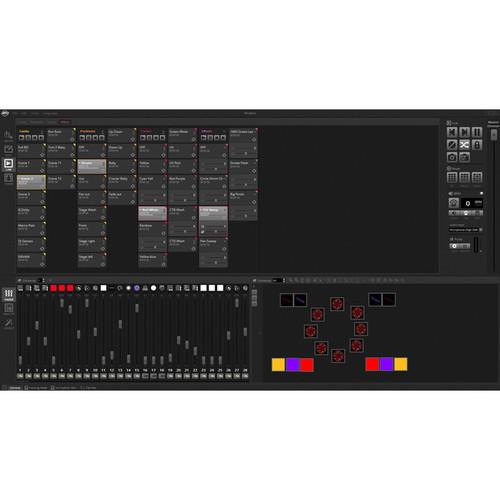

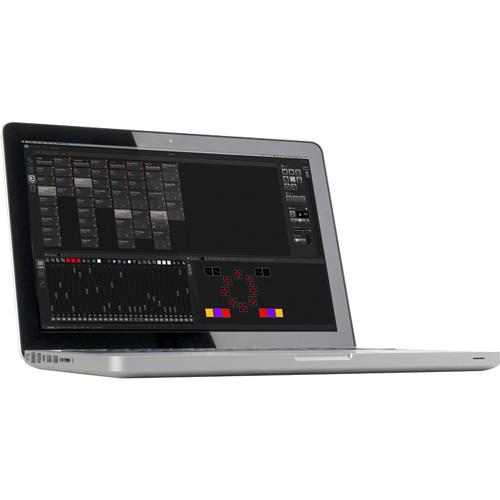

The myDMX 3.0 software features an extensive fixture profile library, 3D Visualizer, drag-and-drop effects generator, improved multi-pan-and-tilt support, and a maintenance application that installs with the program to check for component updates or new versions of the software. Version 3.0 offers the ability to arrange scenes into groups and play multiple scenes simultaneously, as well as BPM audio and pulse analysis, live snapshots and scene dimming, live speed control, standalone backup memory, BPM tap, and blind editing, which allows you to edit scenes without outputting DMX data. Note: Some features require myDMX-RM to be connected to a computer -
- Some features listed below require myDMX RM to be connected to a computer
- 16 Assignable port triggers
- Arrange scenes into groups
- Sound-light with BPM audio analysis and pulse analysis
- Live snapshots
- Live scene dimming and scene speed controls
- BPM tap
- Flash scenes
- Blind editing: edit scenes without outputting the DMX
- Fully compatible with myDMX 2.1 software
- Easy-to-use DMX software
- 512 Live DMX channels
- 512 Stand-Alone channels
- Extensive fixture profile library
- SSL2 Profile editor & support
- Drag and drop effects generator
- Works with simple scenes/steps
- Windows and Mac installers that will download the latest SSL library with an internet connection upon install
- “Maintenance” application that installs with the program to check for component updates or new versions of the software
- “Cloud search for profiles” Search for the latest and greatest fixture profiles from within the program itself, no more hunting through Dropbox
- Improved multi Pan and Tilt support
- Users can multi select steps in a scene and modify a channel parameter without it interfering with the rest of the channels
- Vast optimizations and stability improvements for both Windows and Mac OS
- Not compatible with ARM based Windows tablets (only Intel)
- Optional Upgrades (Additional Charge)
-
- 3D: Design your 3D environment and add 3D objects from the built-in 3D object library and create your own virtual venue to program your light show without having to set up your entire rig
- MIDI: Use your favorite USB to MIDI device to assign physical buttons and faders to the virtual buttons and faders in the program to get that perfect hardware lighting console feel to your show and playback capabilities. NOTE: You must have a computer connected to myDMX-RM for MIDI features to work

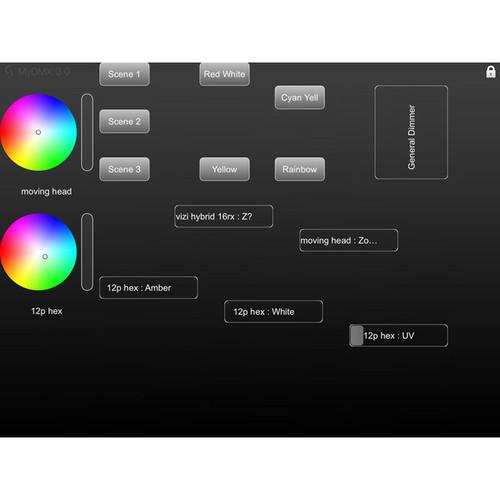

- Easy Remote: Using the “Show” function in the program, you can quickly and easily build your own Virtual Lighting desk using any DMX channel or preset or Scene in the MyDMX 3.0 software to get your very own custom console set up, and it is automatically linked to your smartphone or tablet running the Easy Remote app. There are even presets for popular iOS and Android devices ready to be used and edited. Note: You must have a computer connected to myDMX-RM in order for Easy Remote to work
UPC: 818651024869 In the Box American DJ myDMX-RM Rackmount DMX Control Software/Hardware System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ myDMX-RM Rackmount DMX Control Software Hardware System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ MYDMX-RM Specs | System Requirements | Minimum System Requirements:
Computer running Windows 7 or higher, or Mac OS X 10.10 or higher
1 GHz speed processor
2 GB memory (RAM)
1280 x 768 screen resolution
OpenGL 3.1 (for 3D)
Best Performance System Requirements:
Computer running Windows 7 or higher, or Mac OS X 10.10 or higher
2 GHz speed processor
4 GB Memory (RAM)
1920 x 1080 screen resolution

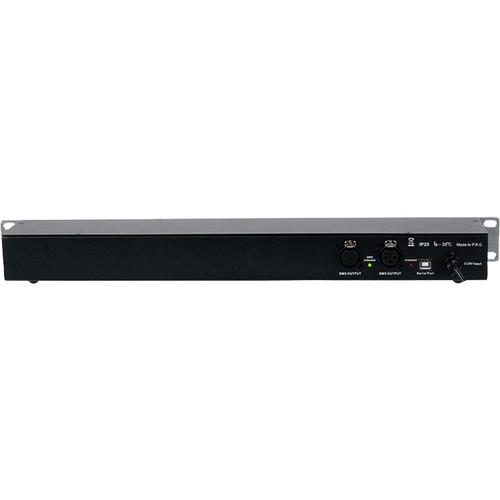

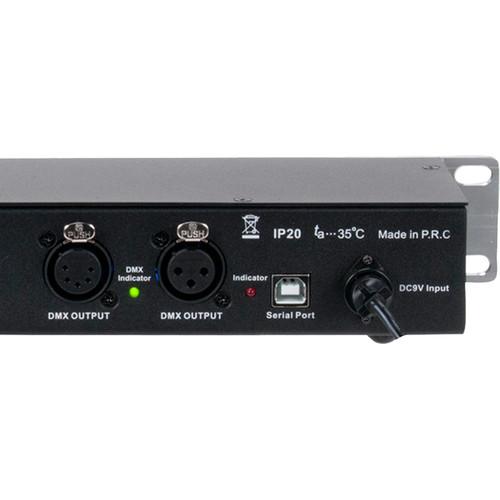

OpenGL 3.1 (for 3D) | | Connectors | 1 x 3-pin DMX output
1 x 5-pin DMX output
1 x USB Type-B port (serial)
1 x 9 VDC power input
| | Size | 1 RU | | Dimensions (W x H) | 19.0 x 1.8" / 482.6 x 44.5 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 24.25 x 5.5 x 3.5" |
