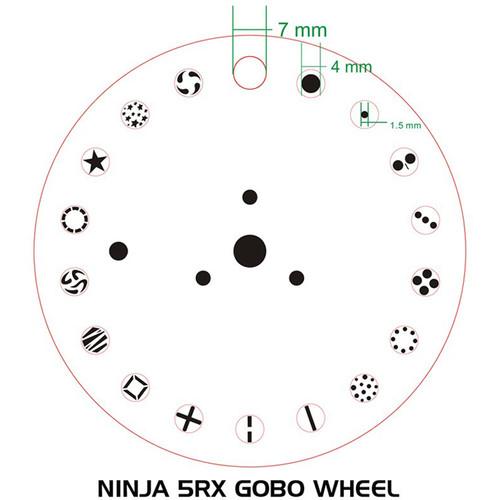

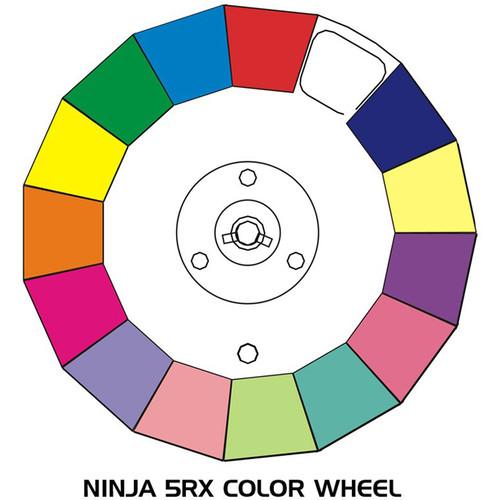

Product description The Ninja 5RX from American DJ features 4 tilting mirrors that independently move and scatter dozens of beams all around a room, stage, or dance floor. It features the 189W Philips Platinum 5R lamp, 17 static gobo patterns, and a separate color wheel with 15 colors. The fixture has 12 built-in shows and a sound active mode, with support for master/slave configurations to create coordinated shows with other Ninja 5RX fixtures.DMX control allows for advanced operation, such as control over the 18 tilt macros to quickly and easily set different looks, or control over the tilt of each mirror for a myriad of custom designs. Eight stepper motors allow for dynamic and precise beam movement, while special functions such as blackout macros allow for further customized operation. The unit can also be controlled wirelessly via all ADJ UC IR remotes or via the ADJ Airstream IR app (both available separately). The Ninja 5RX ships with a single yoke and an IEC power cable. Features -
- Control each mirror's tilt separately
- Tilt invert and tilt macros
- Stepper motors with micro stepping
- 5° beam angle
- 15 colors + white
- 17 static, fixed gobos + open
- Independent gobo and color wheels
- Standard, pulse, and random strobe effects
- 3 operating modes including Show Mode (12 Shows), Sound Active Mode, & DMX Control
- Support for master/slave configuration
- 3 DMX Channel Modes: 1, 10, or 13 DMX channels
- Compatible with all UC IR wireless remotes and Airstream IR (both available separately)
- LED menu with 4-button interface
UPC: 819730017970 In the Box American DJ Ninja 5RX 4-Mirror Scanner IEC Power Cable (4.9') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Ninja 5RX 4-Mirror Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Ninja 5RX Specs | Light Source | 1 x 189 W Philips MSD Platinum 5R discharge lamp | | Life Expectancy | 3000 hours | | Color Temperature | 8000K | | Color Wheel | 15 x colors + white
Color Scroll: yes | | Beam Angle | 5° | | Illuminance | 3° at 19.7' / 6 m: 27,000 lux | | Dimming | Type: electronic
Range: 0 - 100% | | Strobe | Type: electronic
Rate: variable
Effects: standard, pulse, random | | Gobos | 17 x gobos + open
Gobo Scroll: yes
Rotation: no

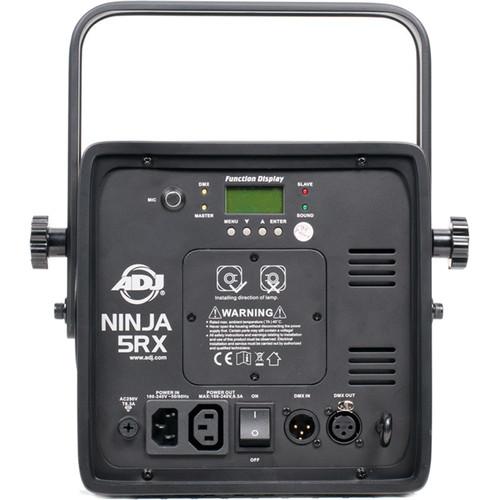

Interchangeable: no | | Built-in Shows | 12 x shows | | Sound Active | Yes | | Master/Slave Support | Yes | | Protocols | DMX | | DMX Connectors | Input: 3-pin XLR
Output: 3-pin XLR | | DMX Channel Modes | 3 x Modes: 1 / 10 / 13 channels | | Wireless Control | ADJ UC IR Remotes (available separately)
ADJ Airstream IR (available separately) | | Input Voltage | 100 to 240 VAC, 50/60 Hz | | Power Connectors | Input: IEC
Output: Edison | | Power Linking | 120 VAC: 2 fixtures max.
230 VAC: 5 fixtures max. | | Power Consumption | 260 W | | Fuse | 7 A | | Power Cable Length | 4.9' / 1.5 m | | Duty Cycle | None | | Working Position | Any safe, secure position | | Dimensions (L x W x H) | 13.25 x 12.25 x 13.0" (340 x 313 x 333 mm) | | Weight | 22 lb (10 kg) | | | | Package Weight | 26.2 lb | | Box Dimensions (LxWxH) | 18.2 x 15.3 x 12.4" |
