User Manual for American DJ PAR Z Move 200W COB LED PAR Can Moving Head with Motorized Zoom Click to enlarge the picture
Contents of the user manual for the American DJ PAR Z Move 200W
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ PAR Z Move 200W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

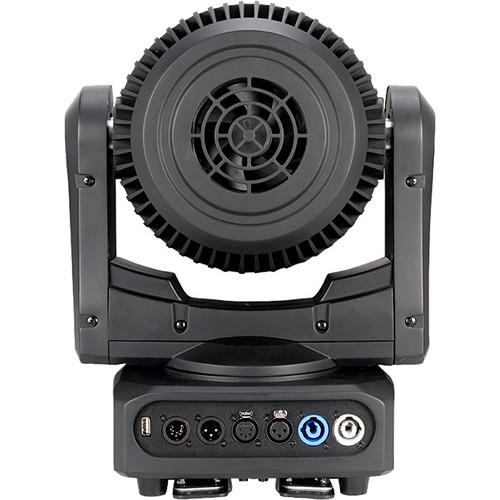

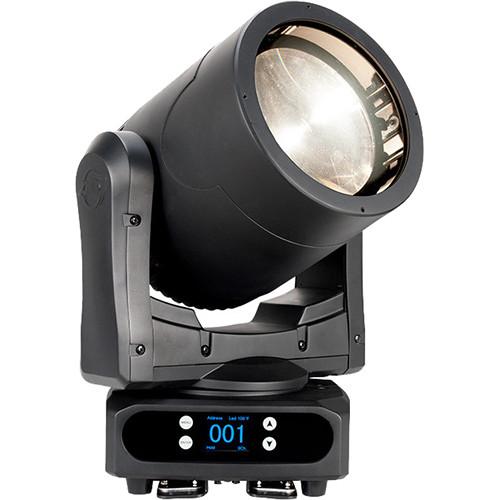

Product description The American DJ PAR Z Move is a bright, warm-white moving PAR fixture with an onboard 200W COB (Chip on Board) LED engine well suited for stages, theaters, churches, nightclubs, concert venues, and event productions. The fixture features a motorized zoom capable of a 9 to 43° beam angle. The moving head base offers a 540/200° pan/tilt with 16-bit fine controls, making it invaluable to lighting and stage designers who are looking for the feel of a traditional stage PAR, but with the advantages of DMX/RDM control, low power draw, no duty cycle, and low heat onstage. An easy-to-install filter slot is built into the head for adding a color gel or diffusion filter.Other features include 0 to 100% electronic dimming plus 16-bit fine dimming, a color LED display with a 4-button menu for easy navigation, and a universal auto-sensing power supply. The rear panel sports 5- and 3-pin DMX I/O plus powerCON I/O connectors for daisy-chaining additional fixtures. The American DJ PAR Z Move includes a powerCON power cable and an omega bracket for easy installation. -
- 200W warm-white COB LED engine (3000K)
- 9 to 43° motorized zoom
- 540° pan (plus 16-bit fine pan)
- 200° tilt (plus 16-bit fine tilt)
- DMX512 and RDM control
- Various DMX control modes
- Smooth 0 to 100% dimming (plus 16-bit fine dimming)
- Color display with touch button
- Built-in USB software upgrade port
- Locking powerCON in/out to daisy-chain power
- 3- and 5-pin in/out DMX connections
- Easy-to-install color/diffusion filter slot next to the lens
- Includes Omega bracket
UPC: 818651026016 In the Box American DJ PAR Z Move 200W COB LED PAR Can Moving Head with Motorized Zoom (3000K) PowerCon Power Cable Omega Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ PAR Z Move 200W COB LED PAR Can Moving Head with Motorized Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Par Z Move Specs | Optical | 200 W COB (Chip on Board) Warm-White LED
Color Temperature: 3000K | | Zoom | Motorized Zoom: 9 to 43° | | Pan & Tilt | Pan: 540° (Plus 16-Bit Fine Pan)
Tilt: 200° (Plus 16-Bit Fine Tilt) | | Connections | 5-pin DMX In/Out
3-pin DMX In/Out
Locking powerCon In/Out | | Controls | DMX512 Protocol
RDM | | Dimming | Smooth 0 to 100% (plus 16-Bit Fine Dimming) | | Menu Display | Color Display with Touch Button | | USB | USB Software Upgrade Port | | Power | Multi-Voltage Operation: 100 to 240 VAC, 50/60 Hz | | Dimensions (L x W x H) | 12.0 x 8.3 x 18.0" / 30.5 x 21.1 x 45.7 cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 28.97 lb | | Box Dimensions (LxWxH) | 22.2 x 16.0 x 13.0" |
