Product description - ADJ PAR Z100 3K & PAR Z100 5K

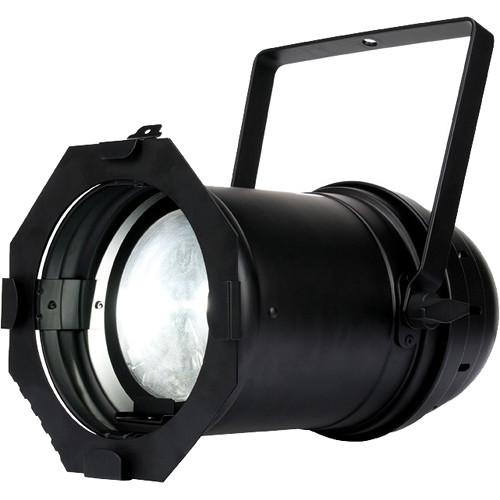

The black American DJ PAR Z100 5K is a bright, warm white LED PAR fixture, which offers a modern twist on the classic halogen PAR can. It provides lighting and stage designers with the look and feel of the traditional stage PAR, but with the advantages of low power draw, DMX control of dimming and strobe, no duty cycle, no dimmer controller needed, and a fixture that does not get hot on stage.The PAR Z100 5K features a 100W white COB (Chip On Board) LED with a 5700K color temperature and an output comparable to that of a 1000W halogen sealed beam PAR. A manual zoom lets you focus the beam at 9, 15, 20, 25, and 30° angles. The unit can be controlled via two channels of DMX, and comes equipped with a powerCon in/out to daisy-chain up to 25 fixtures at 230V.Other features include 0 to 100% electronic dimming with five dimmer curves, an LED display with a 4-button menu for easy navigation, and a universal, auto-sensing power supply. A gel frame for diffusion filters is also included (filters available separately). - LED twist on the traditional halogen PAR can—offers the technological conveniences of modern-day lighting
- Efficient LED fixture ideal for applications where look of traditional lamps is needed—theater, stage, and more
- Low power draw—fixture and performers do not get hot on stage
- 1 x 100W COB (Chip On Board) white LED with 5700K color temperature
- Output is comparable to a 1000W halogen sealed beam PAR
- Manual zoom with five different beam angle options—9, 15, 20, 25, 30°
- 5-pin in/out DMX connectors
- powerCon in/out connectors allow for fixture to be daisy-chained—up to 25 fixtures at 230V
- Electronic dimming: 0 to 100%, with five dimmer curves (Standard, Stage, TV, Architectural, Theater)
- Flicker-free light for use with video applications

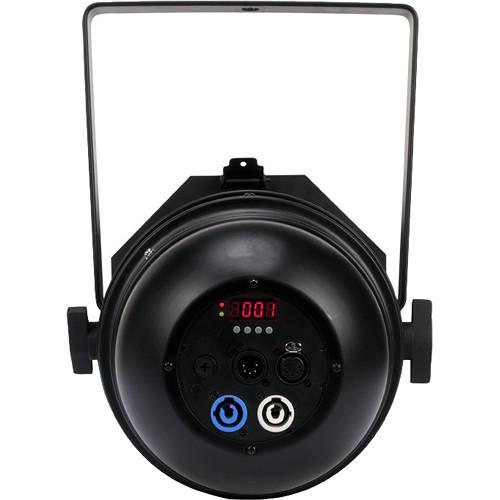

- LED display with 4-button menu for easy navigation
- Universal auto-sensing power supply (100-240 VAC, 50/60 Hz)
- Includes gel frame for diffusion filters (filters available separately)
UPC: 818651020939 In the Box American DJ PAR Z100 5K - White LED Stage PAR Can (5700K, Black) Gel Frame for Diffusion Filters PowerCon Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ PAR Z100 5K - White LED Stage PAR Can in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ PAR Z100 Specs | Optical | 1 x 100 W COB (Chip On Board) warm white LED
Color Temperature: 5700K
Life Expectancy: Approximately 50,000 hours
Beam Angles: 9, 15, 20, 25, 30°
LUX: 7874 (9°), 4900 (15°), 2467 (20°), 1397 (25°), 896 (30°)
CRI: 90
PWM Frequency: 1200 Hz | | Connections | 5-pin DMX in/out connectors
powerCon in/out connectors to daisy-chain fixture | | Controls | DMX-512 protocol
2 x DMX Channels | | Specifications | 4-button DMX menu display on rear panel
0-100% electronic dimming
Dimmer Curves: 5 x dimmer modes
Strobe Flash Rate: 25 Hz maximum
Flicker-free operation
No duty cycle

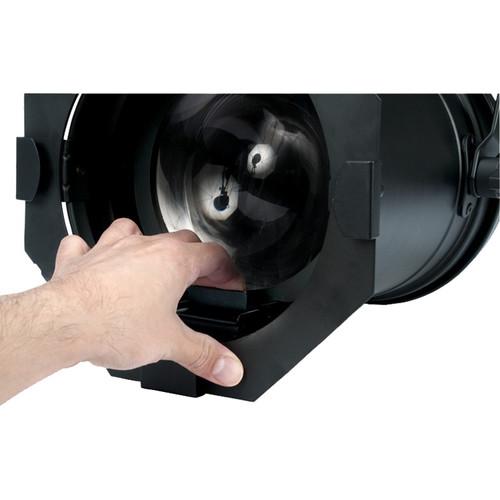

Adjustable latch to manually change beam angle | | Electrical | Multi-Voltage Operation: 100-240 VAC, 50/60 Hz
Power Draw (All LEDs Full On): 115 W, 0.964 A at 120 V / 60 Hz or 112 W, 0.5 A at 220 V / 50 Hz
Daisy-Chaining: 15 fixtures (120 V), 25 fixtures (230 V) | | Dimensions (L x W x H) | 19.50 x 10.75 x 10.75" / 495.30 x 273.05 x 273.05 mm | | Weight | 7.5 lb / 3.4 kg | | | | Package Weight | 11.25 lb | | Box Dimensions (LxWxH) | 22.3 x 17.75 x 13.5" |
