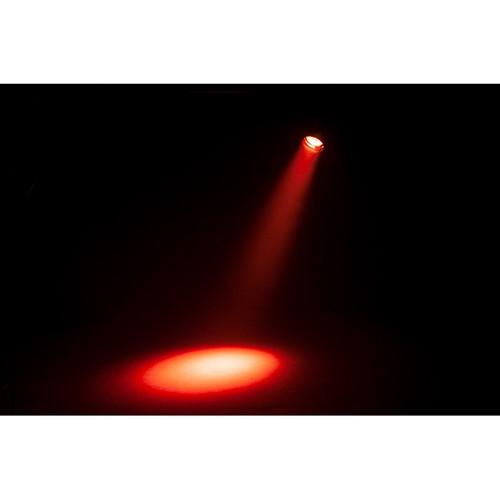

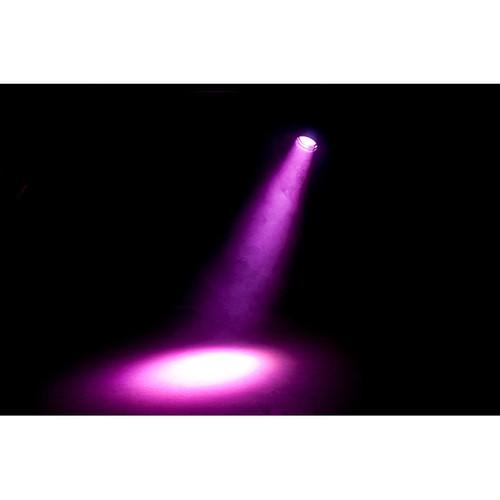

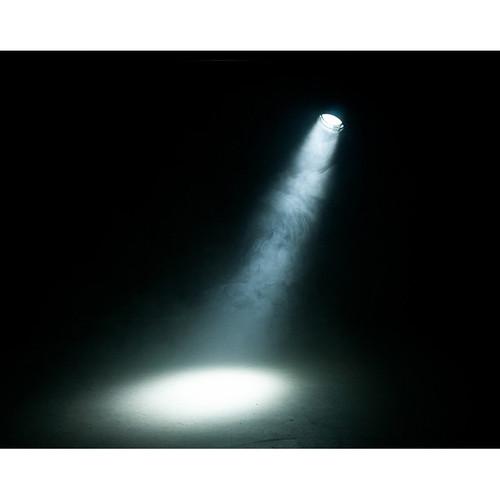

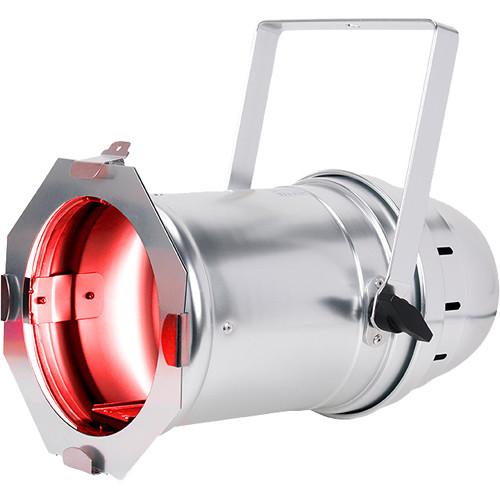

Product description The silver American DJ PAR ZP120 is a bright RGBW LED PAR fixture which offers a modern twist on the classic halogen PAR can. It provides lighting and stage designers with the look and feel of the traditional stage PAR, but with the advantages of low power draw, DMX control of color mixing, dimming, and strobing with no duty cycle, no dimmer controller needed, and a fixture that does not get hot on stage.The PAR ZP120 features a 100W RGBW COB (Chip on Board) LED with an output comparable to that of a 1000W halogen sealed beam PAR. A manual zoom lets you focus the beam at 7, 11.5, 16, 20.5, or 25° angles. The unit can be controlled via six channels of DMX, and comes equipped with a powerCon in/out to daisy-chain up to 14 fixtures at 120V.Other features include 0 to 100% electronic dimming with five dimmer curves, an LED display with a 4-button menu for easy navigation, and a universal auto-sensing power supply. A gel frame for diffusion filters is also included (filters are available separately). - LED twist on the traditional halogen PAR can—offers the technological conveniences of modern-day lighting
- Efficient LED fixture ideal for applications where the look of a traditional lamp is needed—theater, stage, and more
- Low power draw—fixture and performers do not get hot on stage
- Single 115W COB (Chip on Board) RGBW LED
- Output is comparable to a 1000W halogen sealed beam PAR
- Manual zoom with five different beam angle options—7, 11.5, 16, 20.5, or 25°
- 5-pin in/out DMX connectors
- powerCon in/out connectors allow for fixture to be daisy-chained—up to 14 fixtures at 120V
- Electronic Dimming: 0 to 100%, with five dimmer curves (standard, stage, TV, architectural, and theater)
- Flicker-free light for use with video applications
- LED display with 4-button menu for easy navigation
- Universal auto-sensing power supply (100 to 240 VAC, 50/60 Hz)
- Includes gel frame for diffusion filters (filters available separately)
UPC: 818651025439 In the Box American DJ PAR ZP120 RGBW LED Stage PAR Can (Silver) Gel Frame powerCon Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ PAR ZP120 RGBW LED Stage PAR Can in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ PAR ZP120 RGBW Specs | Optical | 1 x 115 W RGBW COB (Chip on Board - red, green, blue, white) LED
Life Expectancy: Approximately 50,000 hours
Beam Angles: 7, 11.5, 16, 20.5, or 25° manual adjustment | | Connections | 5-pin DMX in/out connectors
Wired digital communication network
powerCon in/out connectors to daisy-chain fixture | | Controls | DMX-512 protocol
DMX Channels: 4,5,6,7,8, or 9

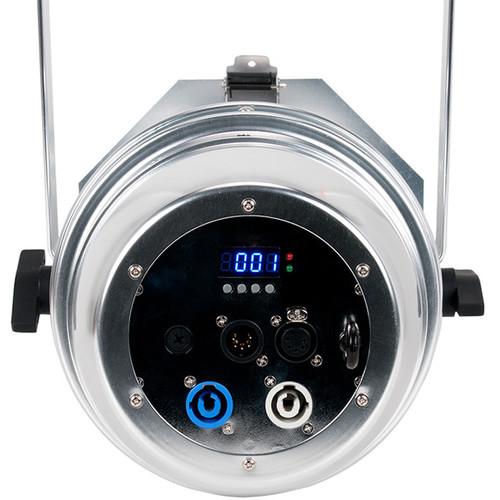

64 built-in color macros | | Features | 4-button DMX menu display on rear panel

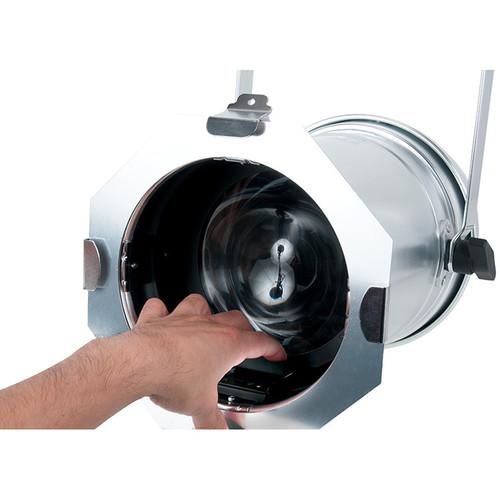

Adjustable latch to manually change beam angle
Includes gel frame for diffusion filters (diffusion filter sold separately)
Strobe effect
Flicker-free operation
Electronic Dimming: 0 - 100% with 5 dimming curves
No duty cycle | | Electrical | Multi-Voltage Operation: 100-240 VAC, 50/60 Hz
Power Draw (All LEDs Full On): 107 W
Daisy-Chaining: 14 fixtures at 120 V, 27 fixtures at 230 V | | Dimensions (L x W x H) | 19.5 x 11.0 x 9.0" / 49.5 x 27.9 x 22.8 cm | | Weight | 8.5 lb / 3.9 kg |
