User Manual for American DJ PinPoint GO WW Plus LED Fixture Click to enlarge the picture
Contents of the user manual for the American DJ PinPoint GO WW Plus
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ PinPoint GO WW Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

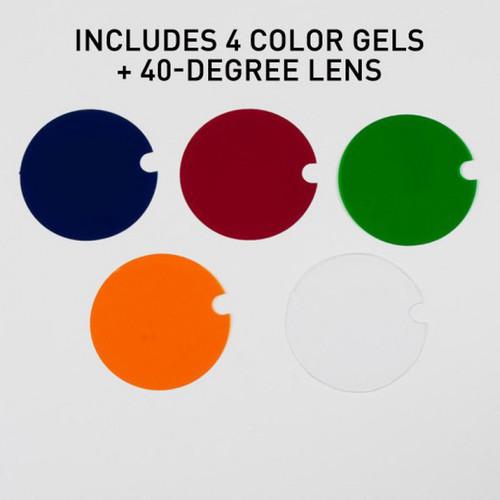

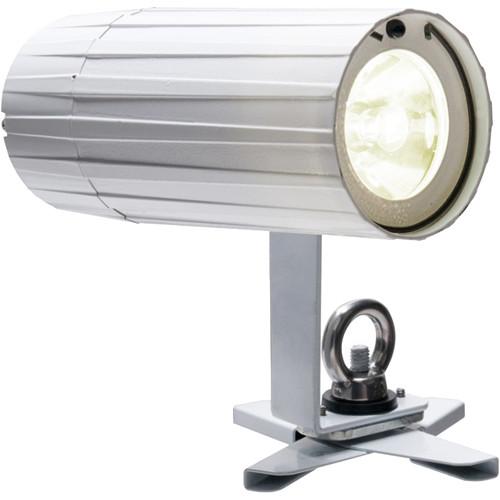

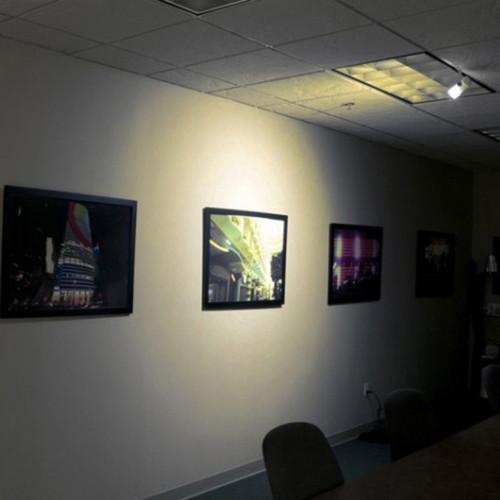

Product description Powered by a 3W warm white LED (2700K), the PinPoint GO WW Plus LED Fixture from American DJ produces sharp 20° beams of light designed to spot tables, decor, or architecture, and can be used for special effects. The fixture comes with a magnetic bracket for easily attaching to metal and a X-CLIP bracket to attach to the metal of a drop ceiling. It also includes a 4-pack of color gels (red, green, blue, and amber) and a 40° beam frost filter.

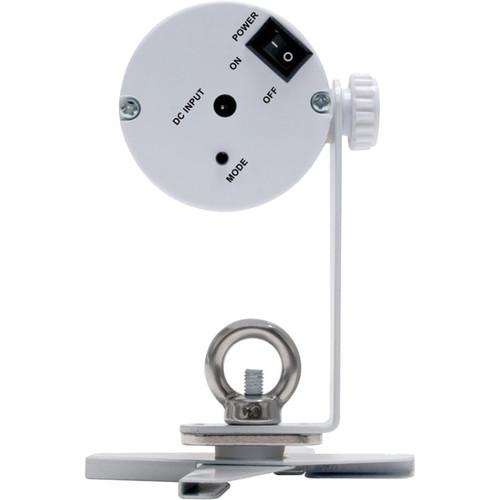

You can control the different operational modes by pressing the button on the rear of the fixture. There are also three wireless remote control options to operate the fixture (ADJ's UC IR remote control, ADJ LED RC3, and Airstream IR app—all sold separately). - Rechargeable battery-powered, bright 2700K 3W warm white LED pinspot
- 20° beam angle (40° with frost filter)
- Compact high-tech plastic case design
- Magnetic bracket for easy quick install on metal
- X-CLIP bracket for drop-ceiling frame mounting
- Compatible with ADJ UC IR remote control (not included), Airstream IR app, and ADJ LED RC3
In the Box American DJ PinPoint GO WW Plus LED Fixture Rechargeable Battery Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ PinPoint GO WW Plus LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ PinPoint Go WW Plus Specs | LED Life | 50,000 hours | | Power Consumption | 3 W and 10 W (When battery is charging) | | Color Filter | Red, green, blue, and amber | | Power Supply | 8.7 VDC, 1 A | | Compatibility | ADJ UC IR remote control (not included), Airstream IR App, and ADJ LED RC3 | | Battery Charge Time | 6.5 hours (with power switch off) | | Battery Life | 10 hours (full on)
18 hours in energy saving mode (full charge) | | Dimensions | 7.3 x 3.5 x 2.5" (183 x 90 x 61 mm) | | Weight | 1 lb (0.5 kg) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
