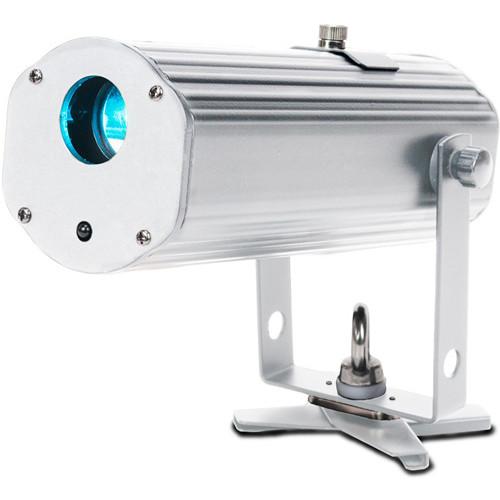

Product description With its bright 10W cool white LED, the battery-powered PinPoint Gobo by American DJ is a compact gobo projector that lets venue designers, production companies, and mobile DJs communicate their message with light in clubs, stores, or event spaces, without having to run power cables.Easy to use, the unit features a convenient gobo holder that can accommodate either metal or glass gobos. Two sliders on the side let you manually concentrate the light output into a tight beam with a variable angle of 12 to 25°, and focus the image for a crisp gobo projection at any distance. And with 17 brightness settings, you can adjust the fixture to output the desired amount of light.The rechargeable battery boasts a battery life of 4.5 hours (12.5 hours in Energy-Saving mode) and can be recharged in just 6.5 hours using the included power adapter.The PinPoint Gobo CW comes with a set of four standard gobos (heart shape surrounding two rings, myriad of stars & two abstract patterns), four color gels (red, green, blue & amber), and a frost filter used to create wider washes. You can also personalize your event by projecting your own custom-designed gobos. When the gobo is removed, the projector can function as a pinspot to spot tables, decor, architecture or create special effects.The fixture offers a variety of mounting options including a magnetic bracket to affix it to any metal surface and an X-Clip bracket for drop-ceiling frame mounting. Furthermore, it can be wirelessly controlled with the UC IR Remote, the LED RC3 Remote or the Airstream IR iOS app (all available separately). - Battery-powered, bright 10W CW (cool white) LED pinspot with 12 to 25° variable beam angle
- Easily replace metal or glass gobos using the drop-in gobo slot on the front of the unit
- Includes four standard removable gobos, four color gels (red, green, blue & amber), and a frost filter to diffuse the beam for wider washes of light
- Sliders located on side of the unit to manually adjust focus and beam angle
- 17 brightness settings from off to 100%
- Built-in rechargeable battery life: 4.5 hours (full on), 12.5 hours (in Energy-Saving mode with full charge)
- Includes a magnetic bracket for quick, easy mounting onto metal surfaces and an X-Clip bracket for drop-ceiling frame mounting
- Compatible with ADJ UC IR and ADJ LED RC3 remote controls (available separately), and ADJ Airstream IR App - free download, IR transmitter required (available separately)
- Compact high-tech metal case design
UPC: 819730017987 In the Box American DJ PinPoint Gobo Battery-Powered CW LED Gobo Projector Magnetic Bracket X-Clip Bracket 4 x Metal Gobos 4 x Color Gels Frost Filter Power Adapter Limited 2-Year Warranty on LEDs Limited 1-Year Warranty Power Supply Limited 180-Day Warranty on Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ PinPoint Gobo Battery-Powered CW LED Gobo Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ PinPoint Gobo Specs | Light Source | 1 x 10 W CW (cool white) LED | | Life Expectancy | Approximately 50,000 hours | | Illuminance | 876 lux at 6.5' / 2 m
203 lux at 13.1' / 4 m (17° beam) | | Gobos | Gobo Size: 1.02" / 25.8 mm
Viewable Size: 0.75" / 19 mm
Thickness: 0.007 / 0.2 mm | | Beam Angle | 12 to 25° (variable) | | Focus | Manual | | Electronic Dimming | 17 x Brightness Levels (0-100%):
Off, 6%, 12%, 18%, 24%,
30%, 36%, 42%, 48%,
54%, 60%, 66%, 72%,
78%, 84%, 90%, 95%, 100% | | Rechargeable Battery | Battery Life: 4.5 hours (full on), 12.5 hours (in Energy-Saving mode with full charge)
Battery Charge Time: 6.5 hours (With power switch off) | | Wireless Control | ADJ UC IR and ADJ LED RC3 remote controls (available separately)
ADJ Airstream IR App – free download, IR transmitter required (available separately) | | Power Adapter | 8.7 VDC, 1 A | | Power Consumption | 11 W | | Working Position | Any safe position | | Dimensions (L x W x H) | 9.75 x 2.75 x 4.00" / 245 x 70 x 102 mm | | Weight | 3 lb / 1.1 kg | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 12.1 x 4.6 x 4.5" |
