User Manual for American DJ PinPoint Gobo Battery-Powered RGBA LED Gobo Projector Click to enlarge the picture
Contents of the user manual for the American DJ PinPoint Gobo Battery-Powered RGBA
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
|
User manual for the American DJ PinPoint Gobo Battery-Powered RGBA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

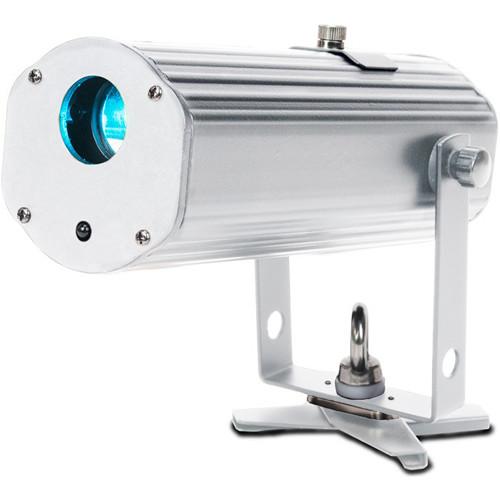

Product description The PinPoint Gobo Color from American DJ is a battery-powered gobo projector powered by a 10W Quad (RGBA 4-in-1) LED. It includes four standard removable gobos and a frost filter to defuse the beam for wider washes of light. When the gobo is removed it can be used as a pinspot to spot tables, decor, architecture, or used for special effects. It has an easily replaceable gobo holder so that you can interchange the supplied gobos or to insert custom gobos.
The Pinpoint Gobo features a magnetic bracket so the fixture can be attached to metal and an included X-Clip mount to attach to the metal frames in drop down ceilings. The battery has a charge time of 6 hours to achieve a full charge. The battery life is rated at 5 hours (full on) or 18 hours when set in energy saving mode. On the side of the fixture are sliders to manually adjust the focus and beam angle. - Rechargeable, battery-powered, bright 10W RGBA 4-in-1 LED Pinspot / Gobo Projector
- Compact high-tech metal case design
- Drop in gobo slot for metal or glass gobos
- ADJ UC IR remote control (sold separately) and Airstream IR compatible
- Energy saving mode is activated from the UC IR remote (sold separately)
- Includes magnetic bracket for quick install on metal, X-Clip bracket for drop ceiling frame mounting, frost filter to defuse the beam, 4 metal gobos, and a power adapter (8.7 VDC, 1A)
UPC: 819730017994 In the Box American DJ PinPoint Gobo Battery-Powered RGBA LED Gobo Projector Magnetic Bracket X-Clip Bracket Frost Filter 4 x Metal Gobos Power Adapter (8.7 VDC, 1A) Limited 1-Year Warranty on Motors, PCBs, and Power Supplies Limited 2-Year Warranty on LEDs Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ PinPoint Gobo Battery-Powered RGBA LED Gobo Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ PinPoint Gobo Color Specs | LED | Bright, 10 W RGBA 4-in-1 LED (red, green, blue, amber) | | LED Life Expectancy | 50,000 hours | | Beam Angle | 17–33° | | Focus Adjustment | Manual | | Gobos | Size: 1.05" (26.8 mm)
Viewable Size: 0.94" (24 mm)
Metal or glass | | Battery Charge Time | 6 hours (with power switch off) | | Battery Life | 5 hours (full on)
18 hours (in energy saving mode with full charge) | | Wireless Control | ADJ UC IR Remote (sold separately)
Airstream IR App (free to download, requires additional IR adapters) | | Power Supply | 8.7 VDC, 1 A (included) | | Power Consumption | 11 W | | Dimensions (L x W x H) | 10 x 4 x 3" (25 x 10 x 8 cm) | | Weight | 3.0 lb (1.4 kg) | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 11.9 x 4.8 x 4.5" |
