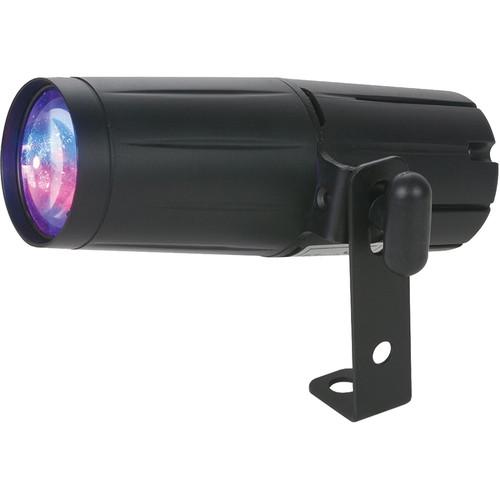

User Manual for American DJ Pinspot LED Quad DMX Click to enlarge the picture
Contents of the user manual for the American DJ Pinspot LED Quad DMX
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
|
User manual for the American DJ Pinspot LED Quad DMX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description The Pinspot LED Quad DMX from American DJ is a full-featured 8W Quad Color (4-in-1) fixture with red, green, blue and white diodes on a single LED that produces a sharp 15 degree beam angle, allowing you to isolate small areas of a set or stage. While it can be used an a decorative fixture in architectural applications or restaurants to spot tables, it's at entertainment venues that you realize the light's full worth. The Pinspot has DMX Controlled, Sound Active, IR Remote and Auto Run program modes for control and performance features. The unit's 6-Channel DMX modes allow adjustment and control of the light remotely via a console while dimming and strobing can also be handled by the included IR Remote. The Pinspot LED Quad has a multi-voltage power supply for worldwide use. UPC: 819730012678 In the Box American DJ Pinspot LED Quad DMX IR Remote for Inno Pocket Spot dzvxxvvxvfatdcbqyvet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Pinspot LED Quad DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Pinspot LED Quad DMX Specs | Light Source | 8.0 W Quad (4-in-1) RGBW LED, flicker-free Approx. 10,000 hr lamp life | | Beam Angle | 15° | | Light Intensity | 740 lumens @ 3.28' (1.0 m) | | Operational Modes | DMX Controlled, Sound Active, IR Remote, Auto Run programs | | DMX | 6-Channel | | Connectors | 3-Pin DMX In / Out | | Dimming | Yes, via IR remote and DMX | | Shutter/Strobe | Yes, adjustable via IR remote and DMX | | Voltage | 100 - 240 VAC, 50/60 Hz | | Power Consumption | 11 W max. | | Dimensions | 8.0 x 4.0 x 2.75" (203 x 100 x 70 mm) | | Weight | 1.0 lb (0.4 kg) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 9.3 x 5.5 x 4.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
