Product description - ADJ Pocket Pro
- ADJ Pocket Pro Lightshow

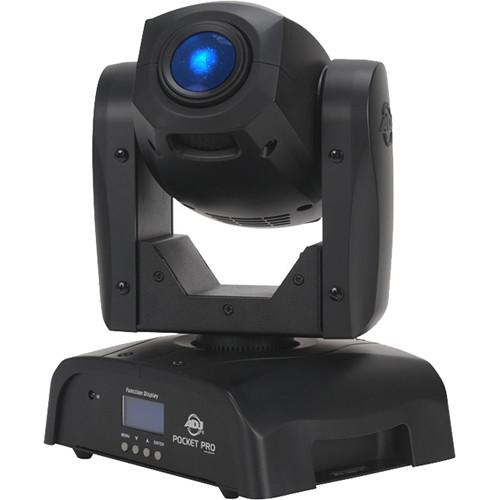

The black American DJ Pocket Pro - Compact LED Moving Head Light is designed to create vivid surface projections and beams of light in small clubs and bars, venues with low ceilings, roller rinks, bowling centers, and more. It features a bright 25W white LED light source that generates a 15° beam angle, a gobo wheel pre-loaded with seven replaceable gobos, and a separate color wheel with seven vibrant color filters (red, orange, yellow, green, UV, blue, pink) plus open white. Compact and lightweight (at 7.3 lb), the fixture is easy to transport and set up, and is ideal for mobile entertainers or any mobile production.Crisp optics and a manual-focus wheel enable you to precisely focus the gobos at varying distances, with shake and scroll-mode effects. The fixture's moving head is equipped with 16-bit motors that deliver smooth movements and accurate positioning, and provide a pan range of 540° and a tilt range of 230°, with inversion modes for both.For control, the DJ Pocket Pro features two DMX channel modes (11 and 13) with XLR 3-pin DMX in/out connectors. Multiple units can be connected to create complex lighting installations. The fixture offers a sound-active mode, a show mode with four built-in shows, random pulse effects, and a variable-speed strobe. It can also be dimmed between 0 and 100%, with five selectable dimming curves (standard, stage, TV, architectural, theater).The DJ Pocket Pro is equipped with a universal, auto-sensing power supply and a powerCon connector, which locks into place to prevent the power cord from unplugging. The unit ships with a kit of four additional gobos and an Omega mounting bracket. -
- Compact and lightweight (at 7.3 lb) spot moving head LED fixture
- Bright white 25W LED light source (rated at 50,000 hours)
- Create vivid surface projections and beams of light
- Crisp optics – manual focusing wheel allows easy and precise focusing of gobo
- 7-position (+ open) gobo wheel, pre-loaded with collection of detailed patterns
- Compatible with any metal gobo with an outer size of 0.72"/18.4 mm and a visible area of 0.51"/13 mm
- Replaceable gobos (kit of four additional gobos included)

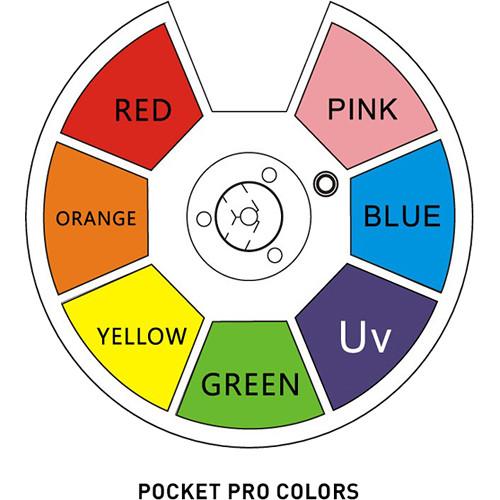

- Separate color wheel with seven vibrant color filters (plus open white): Red, orange, yellow, green, UV, blue, pink
- 3 x Operational modes: DMX, Sound Active, Internal Show
- 4 x Built-in shows
- 2 x DMX channel modes: 11, 13
- Gobo shake effect
- Gobo scroll mode
- Beam angle: 15°
- 540° pan / 230° tilt – pan/tilt inversion mode
- 16-bit motors allow for smooth movements and accurate positioning
- Electronic dimming: 0-100%, with five dimmer curves (Standard, Stage, TV, Architectural, Theater)
- Fan-cooled
- Compatible with ADJ UC IR remote control (available separately) and ADJ Airstream IR App (free download, transmitter available separately)
- Omega mounting bracket included

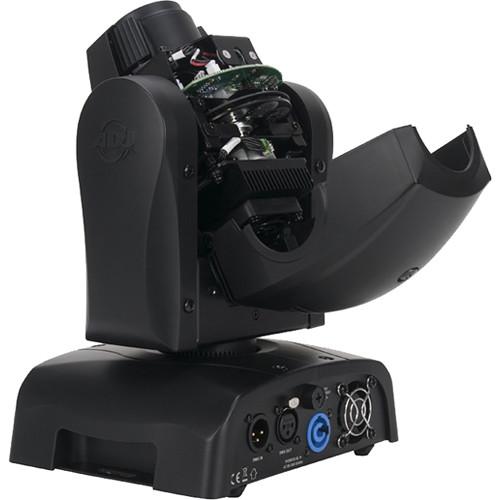

- PowerCon power connector on the rear panel locks into place to prevent cord from unplugging
- Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
UPC: 818651020342 In the Box American DJ Pocket Pro - Compact LED Moving Head Light (Black) Kit of Four Additional Gobos Power Cord with PowerCon Connector Omega Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Pocket Pro - Compact LED Moving Head Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Pocket Pro Specs | Light Source | 1 x 25 W white LED | | LED Life Expectancy | Approximately 50,000 hours | | Color Wheel | 7 x colors (red, orange, yellow, green, UV, blue, pink) + white | | Gobos | 7 x fixed gobos + spot
Size: 0.72" / 18.4 mm (0.51" / 13 mm viewable)
Effects: Shake and scroll | | Beam Angle | 15° | | Pan / Tilt | 540° pan / 230° tilt
Pan / tilt inversion mode
Resolution: 16-bit | | Shutter/Strobe | Shutter: Pulse effects (random)
Strobe: Variable speed (0.3 to 19 Hz) | | Focus Adjustment | Manual | | Electronic Dimming | 0-100% | | Dimmer Curves | 5 x Curves: Standard, stage, TV, architectural, theater | | Operation Modes | 3 x Modes: DMX, Sound-Active, Internal Show | | Programs | 4 x Built-in shows | | DMX Connectors | 1 x XLR 3-pin input
1 x XLR 3-pin output | | DMX Channel Modes | 11 and 13 | | IR Remote Control | ADJ UC IR (available separately)
Airstream IR (transmitter available separately) | | Power Connector | PowerCon (locking) | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption | 53 W | | Cooling | Fan-cooled | | Dimensions (L x W x H) | 6.4 x 7.9 x 11.3" / 161.8 x 199.9 x 287.0 mm | | Weight | 7.3 lb / 3.3 kg | | | | Package Weight | 10.15 lb | | Box Dimensions (LxWxH) | 13.1 x 11.2 x 9.5" |
