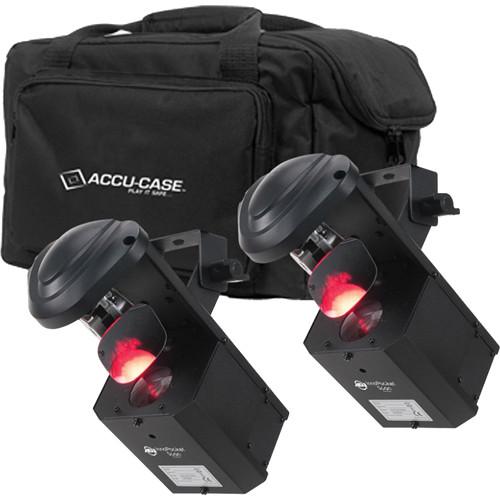

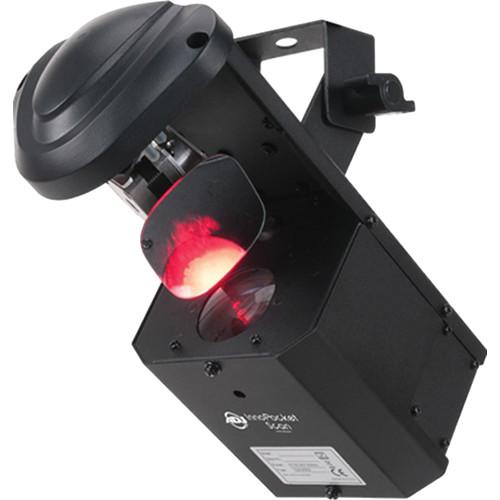

Product description The Pocket Scan Pak from American DJ combines two Inno Pocket Scan Mirrored Scanners with one F4 Par Bag to provide the primary components of a lighting package, while protecting the fixtures from on-the-road wear and tear. The Pocket Scanners are designed for lighting installations and live performance applications including road shows, small nightclubs, bars, lounges, bowling alleys, or entertainment centers.Built with precision stepper motors for speed and accuracy, this flat-mirrored scanner has a 14° beam angle that projects 8 fixed gobo/color patterns (plus spot/white) from a single wheel. Great for high-energy music, each light features 12 built-in light shows and compliments other moving head fixtures.The soft padded F4 Par Bag is divided into 4 compartments to keep your fixtures separate and well protected without taking up much space. The compact bag packs away neatly, taking up little storage space during your gig. The Pocket Scan Pak ships with two hanging yokes, two safety hooks, and two power cords. - Inno Pocket Scan With it s compact size and light weight, performance features, the American DJ Inno Pocket Scan is an eye-catching lighting effect well-suited to road shows, small nightclubs, bars, lounges, bowling alleys or entertainment centers. This fixture features 12 built-in light shows in a very compact, mobile case. Built with precision stepper motors for speed and accuracy, this flat-mirrored scanner has a 14 degree beam angle that projects 8 fixed gobo/color patterns (plus spot/white) from a single wheel. The Inno Pocket Scan is great for high energy music, and provides a great compliment to other fixtures with moving head effects.
- Attributes
-
- 12W LED DMX flat-mirrored scanner
- Single gobo/color wheel: 8 fixed gobo/colors plus spot/white
- 3 Operational modes: DMX, Sound Active and Internal Show
- 6 DMX channels
- 12 Built-in shows
- Gobo Shake effect
- Gobo scroll mode
- Beam angle: 14 degrees
- Daisy-chain up to 21 units @ 120VAC
- X/Y mirror movement
- Stepper motors with micro stepping
- Dimming: 0-100%
- 5 Selectable dimming curves: Standard, Stage, TV, Architectural and Theater
- Shutter: pulse effect, random strobe slow to fast
- Display inversion mode
- Hanging Yoke and safety hook included
- Multi-voltage operation
- Optional IR wireless remote control

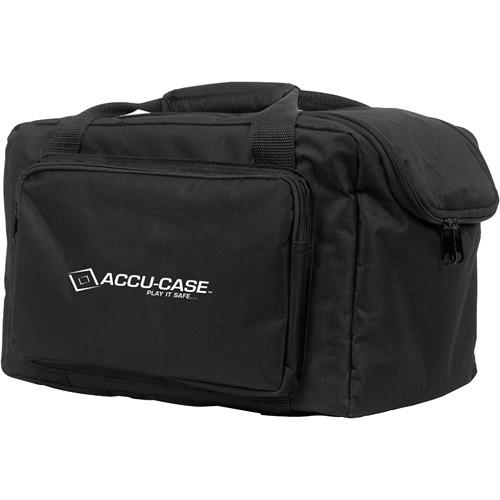

UPC: 819730013743 - Accu-Case F4 Par Bag A soft padded bag designed to hold up to four slim LED par cans, the Accu-Case F4 Par Bag from American DJ features a versatile design for transporting your lights, cables, clamps, or other lighting accessories. Two padded dividers can be removed from the interior to make room for oversized items and exterior zippered pockets can also be used to stow cables or controllers.
- Durable padded gig bag ideal for transporting slim light fixtures, cables, and clamps.
- Accommodates up to four slim LED par cans.
- Two padded dividers may be removed to accommodate other accessories.
- Dual exterior zippered pockets are ideal for holding cables or controllers.
UPC: 819730012586 In the Box Bundle Items 2 x Inno Pocket Scan rdwzqsfrctvt Accu-Case F4 Par Bag Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Pocket Scan Pak - 2x Inno Pocket Scan Mirrored Scanners with F4 Par Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Inno Pocket Scan
| Light Source | 12 W white LED source | | Bulb Life | Approximately 50,000 hr | | Color Wheel | 7 | | Gobos | 8 Fixed gobo/colors plus spot/white | | Beam Angle | 14° | | Color Wheel | 1x | | Modes | DMX, Sound Activation, Internal Show
12 Built-in shows, gobo shake effect
Gobo scroll mode, X/Y mirror movement
Display inversion mode | | Shutter | Pulse effect, random strobe slow to fast | | Dimming Range | 0 - 100%
5 Selectable dimming curves: Standard, Stage, TV, Architectural and Theater | | DMX Channels | 6 | | Connector | 1x DMX 3-pin XLR
IEC AC in/out | | Power Linking | Up to 21 Inno Pocket Scans @ 120V
Up to 37 Inno Pocket Scans @ 230V | | Power Consumption | 33 W full on | | Power Requirements | 100-240 VAC, 50/60 Hz | | Dimensions | 11.5 x 5.25 x 6.5" (294 x 132 x 160 mm) | | Weight | 6.0 lb (2.4 kg) | | | | Box Dimensions (LxWxH) | 16.0 x 10.0 x 9.0" | - Accu-Case F4 Par Bag
| | | Interior Dimensions | 14 x 10 x 9.2" / 35.6 x 25.4 x 23.5 cm | | | | Closure Type | Zipper | | Carry and Transport Options | Handle | | | | Box Dimensions (LxWxH) | 14.9 x 11.7 x 4.2" |
