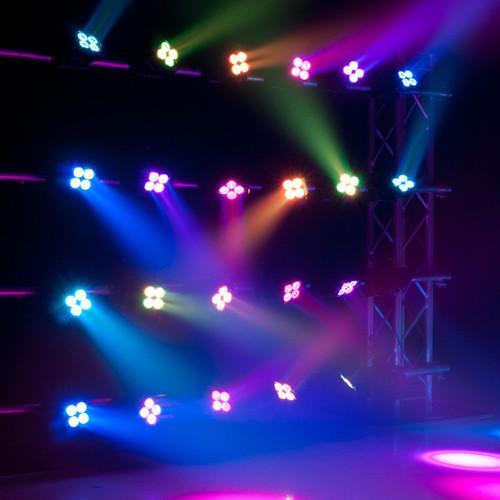

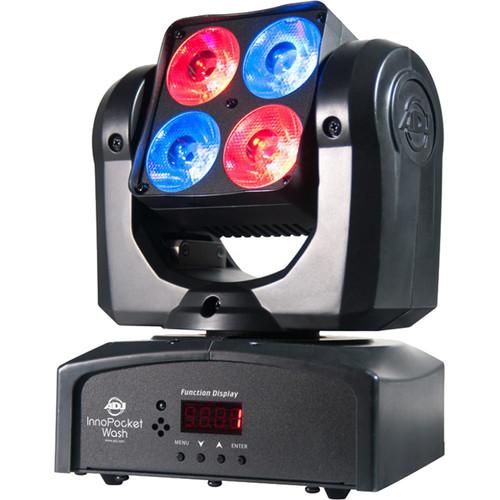

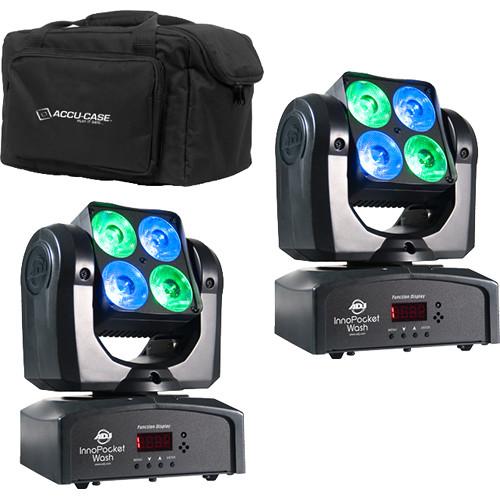

Product description The Pocket Wash Pak from American DJ includes two Inno Pocket Washes and one F4 Par Bag. Each Inno Pocket Wash features a 28° beam angle, 4x 10W 4-in-1 Quad LEDs, pan and tilt inversion mode, four built-in shows, and three operational modes. The washes can be stored and transported in the soft-padded F4 Par Bag for keeping your fixtures and accessories well protected. - Inno Pocket Wash Compact LED and Moving Head The Inno Pocket Wash from American DJ has a mini moving head that creates washes of color with its 28° beam angle. It can be used by mobile entertainers or in small clubs, bars, roller rinks, bowling centers, churches, or used for any mobile production. The Inno Pocket Wash features four 10 watt 4-In-1 quad LEDs (RGBW - red, green, blue, and white), and its fast moving head will provide a brilliant wash of colors. It has a pan and tilt inversion mode that makes one head do the opposite of another when linked together. Additional features allow users to control the Inno Pocket Wash by sound activation with its 12 built-in shows, an optional UC IR wireless remote, or use a DMX controller to create your own light shows. An AC power cable and an omega bracket are also included.
- 5 selectable (standard, stage, TV, architectural, and theater)
- Shutter: Pulse effect; random strobe slow to fast
- Linkable DMX via 3-pin XLR cable
- 4 DMX channel modes 9/11/19/21 with 12 built-in shows
- Compatible with American DJ UC IR Wireless Remote Control: Full on, stand by, strobe, color change, dimming, sound active on/off (American DJ UC IR sold separately)

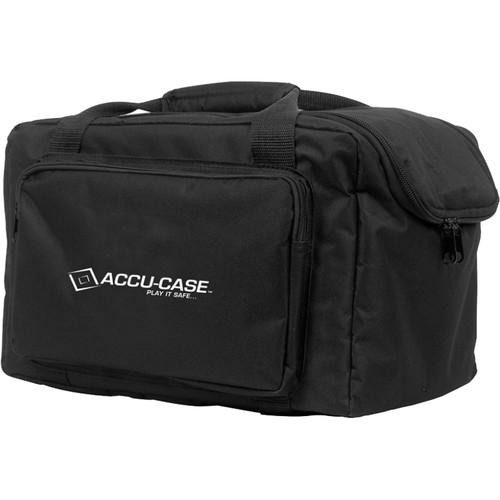

- Accu-Case F4 Par Bag A soft padded bag designed to hold up to four slim LED par cans, the Accu-Case F4 Par Bag from American DJ features a versatile design for transporting your lights, cables, clamps, or other lighting accessories. Two padded dividers can be removed from the interior to make room for oversized items and exterior zippered pockets can also be used to stow cables or controllers.
- Durable padded gig bag ideal for transporting slim light fixtures, cables, and clamps.
- Accommodates up to four slim LED par cans.
- Two padded dividers may be removed to accommodate other accessories.
- Dual exterior zippered pockets are ideal for holding cables or controllers.
UPC: 819730012586 In the Box Bundle Items 2 x Inno Pocket Wash Compact LED and Moving Head ufrztttdt - Limited 2-Year Warranty on LEDs
Accu-Case F4 Par Bag Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Pocket Wash Pak Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Inno Pocket Wash Compact LED and Moving Head
| Light Source | 4 x 10 W 4-in-1 RGBW LED source (rated at approximately 50,000 hrs) | | Operational Modes | 3 Modes: DMX control, sound active mode, and show mode | | DMX Channel Modes | 4 DMX Channel Modes: 9/11/19/21- 12 built-in shows | | Beam Angle | 28° | | Pan & Tilt | 8 and 16-Bit:
Pan: 540°
Tilt: 180°
Inversion | | Dimmer Curves | 5 selectable (standard, stage, TV, architectural, and theater) | | Shutter | Pulse effect; random strobe slow to fast | | Dimming | 0 to 100% | | Display | Digital display for function settings
Display inversion mode | | Data Linkable | Via 3-pin XLR cable for DMX linking | | Remote Control Compatibility | Compatible with American DJ UC IR Wireless Remote Control: Full on, stand by, strobe, color change, dimming, sound active on/off (ADJ UC IR not included) | | Power Consumption | 64.5 W total (full on) | | Multi Voltage | 100-240 VAC, 50/60 Hz | | Dimensions (L x W x H) | 6.7 x 5.9 x 8.4" (171 x 149 x 214 mm) | | Weight | 6.2 lb (2.8 kg) | - Accu-Case F4 Par Bag
| | | Interior Dimensions | 14 x 10 x 9.2" / 35.6 x 25.4 x 23.5 cm | | | | Closure Type | Zipper | | Carry and Transport Options | Handle | | | | Box Dimensions (LxWxH) | 14.9 x 11.7 x 4.2" |
