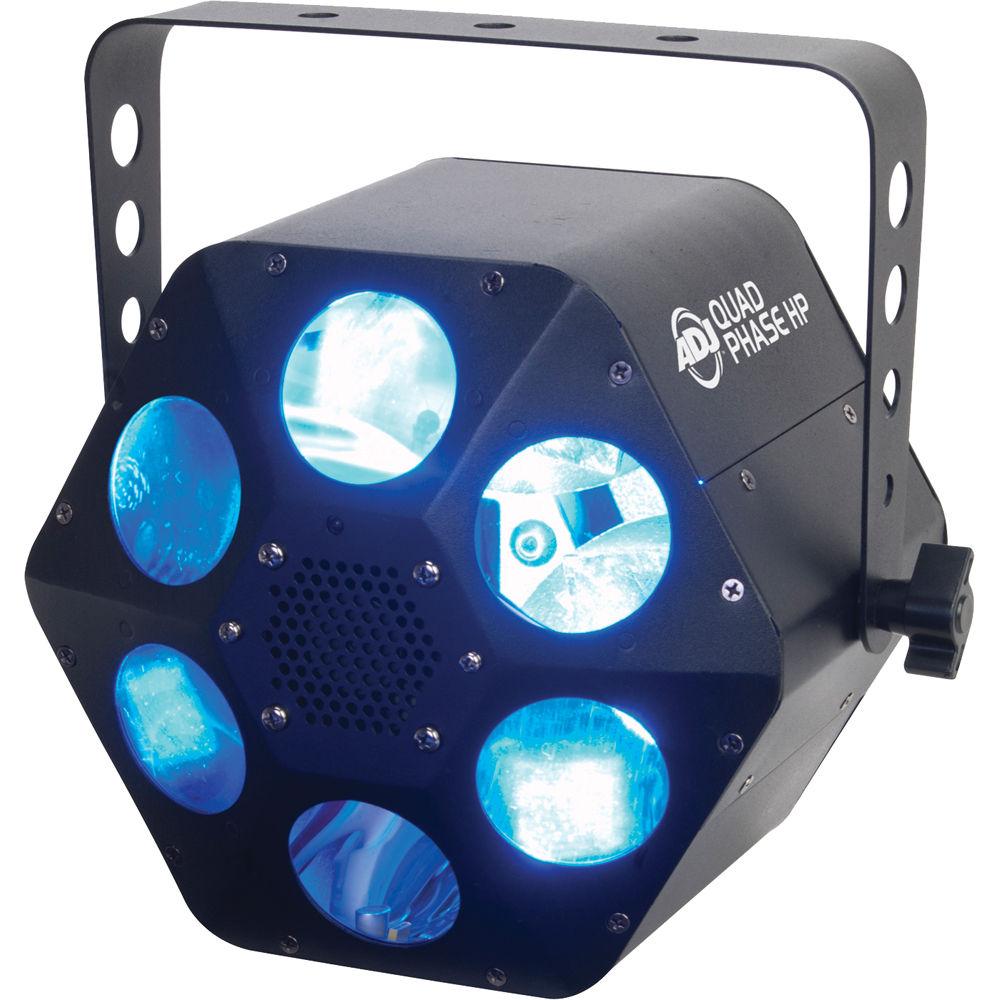

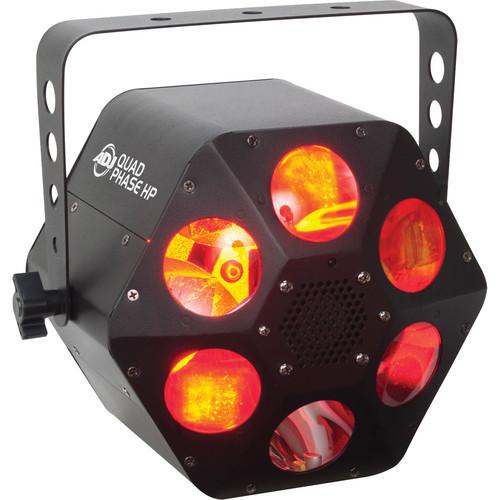

Product description The American DJ Quad Phase HP 32W LED Light is designed to fill a room with dozens of razor sharp beams of light. This moonflower features a 32W 4-in-1 quad color LED source (RGBW). The Quad Phase HP Light produces up to 15 colors in all.
It offers the following features sought after in special effects lights: DMX-512 for programming or linking capabilities, built-in sound active programs, a no-duty cycle (run all night), a long life, a high output LED source (30,000 hours), a 4-button DMX display on the rear (for easier programmability), IEC power daisy-chaining, and a 1.8 degree step motor for smooth movement. The Quad Phase HP Light can be controlled by a DMX Controller or ADJ’s UC3 Mini Controller (sold separately). - Moonflower effect with 32W Quad-Color LED 4-in-1 (Red, Green, Blue, White)technology produces color-changing beams of light
- Razor sharp beams fill a dance floor, ceiling, or wall
- With a 1.8˚ Long Life Stepper motor technology, it can produce quick accurate movement or smooth-fluid-move movements for mood music
- DMX-512 Protocol Compatible: 4 DMX channels (Color, Rotation, Strobe, Dimmer)
- Built-in programs (Sound Active and Master / Slave modes)
- Produces 15 preset colors
- Linkable via a 3-pin XLR cable (sold separately)

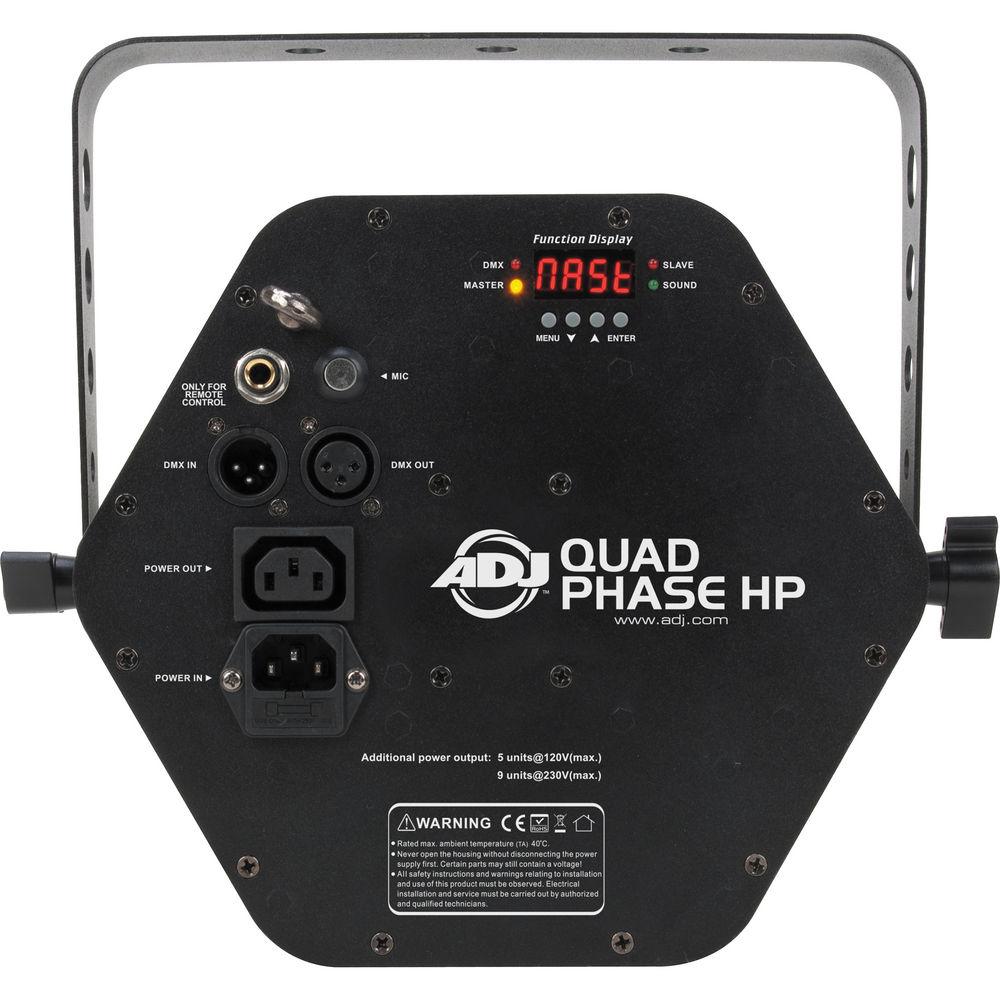

- 4-Button DMX display on the rear panel
- Safety hook on rear panel
- 2 Operating Modes: Sound active and DMX control
- Digital display for address and function setting
- UC3 controller (sold separately)
UPC: 819730010049 In the Box American DJ Quad Phase HP 32W LED Light Wireless IR Remote (ADJ RC1) Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Quad Phase HP 32W LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Quad Phase HP Specs | Voltage | 100 to 240 V, 50 / 60 Hz Auto Sensing Voltage: This fixture contains an automatic voltage switch, which will auto sense the voltage when it is plugged into the power source. | | LED | 1 x 4-in-1 32 W | | Power Draw | 64 W | | Fuse | 7 A | | Power Cord | Daisy Chain: 5 fixtures maximum | | Colors | RGBW | | Beam Angle | 65˚ | | DMX Channels | 4 | | Positions | Working: Any Safe, Secure Position | | Operation Modes | Sound Active, Master / Slave or DMX-512 | | Dimming | 0 to 100% electronic dimming | | Dimensions (L x W x H) | 12.5 x 8.0 x 11.0" (317.5 x 203.2 x 279.4 mm) | | Weight | 9.0 lb (4.0 kg) | | | | Package Weight | 10.1 lb | | Box Dimensions (LxWxH) | 15.0 x 10.6 x 9.7" |
