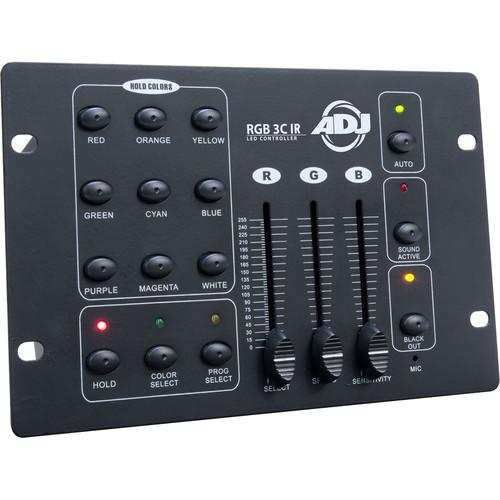

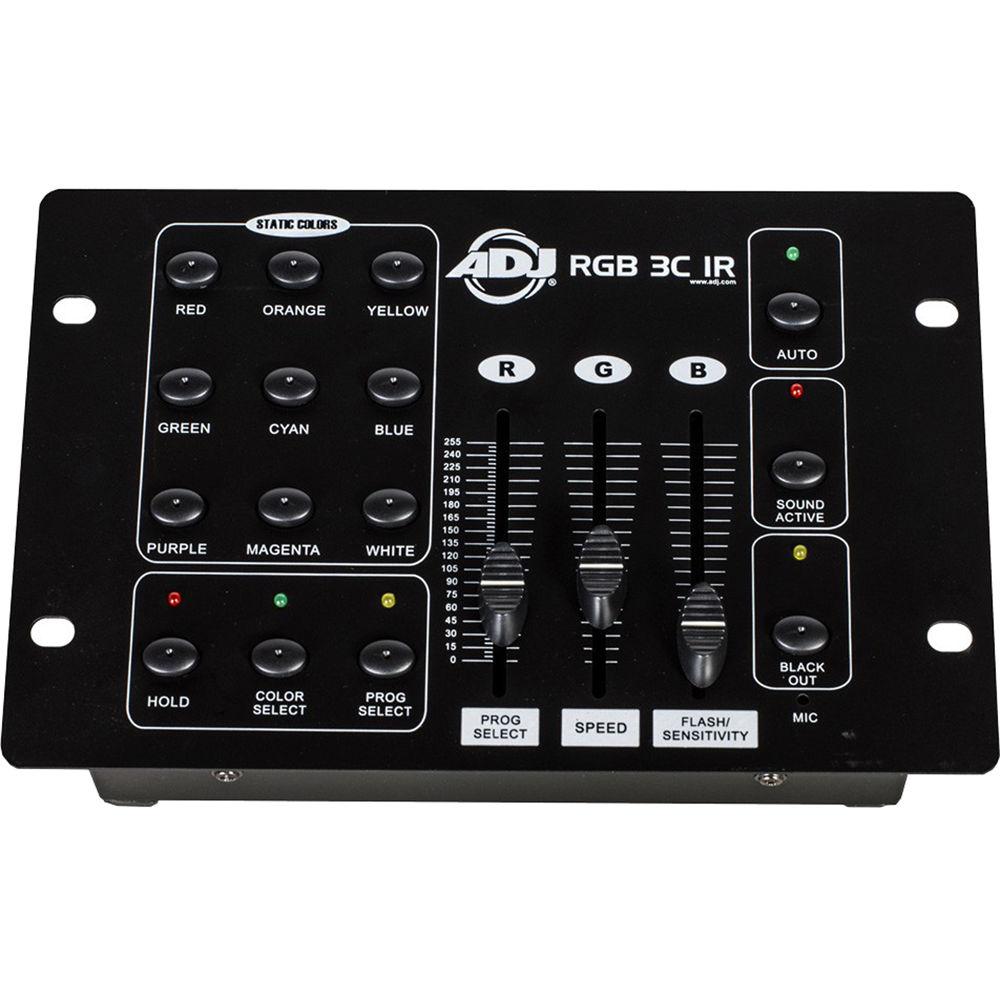

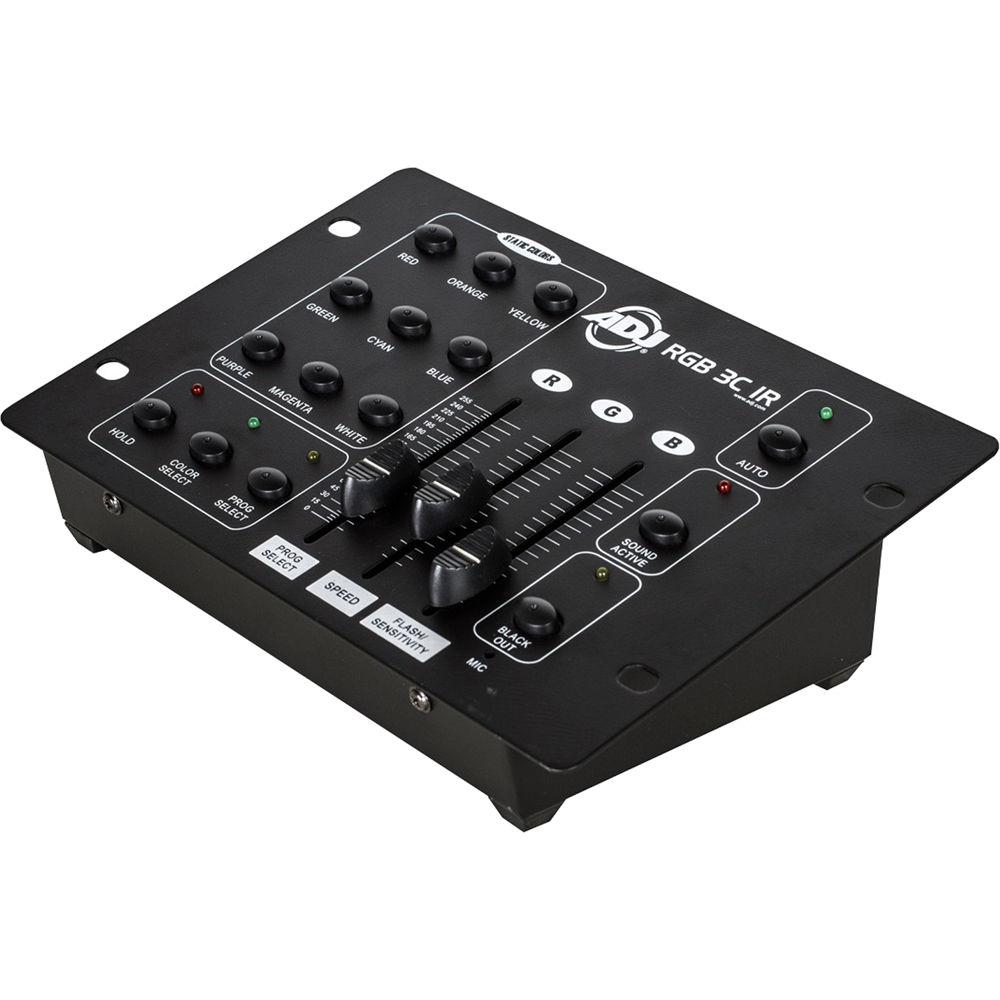

Product description What You Need to Know When Working with DMX Read More ufrztttdt The RGB 3C IR from American DJ is designed to control any standard 3-channel RGB LED fixture where channel 1 is red, channel 2 is green, and channel 3 is blue. Compact, lightweight, and easy-to-use, this unit offers a simple controller solution for mobile DJ setups, small clubs, bars, and more. The control panel includes nine direct-access Static Color buttons, three RGB faders to create custom colors and control the strobe function, a Program select button to access up to ten chase programs, and a Blackout button which together provide you with on-the-fly manual control of your light show. For hand-off operation the RGB 3C IR offers a Sound Active and an Auto Run mode. You can also use the convenient Hold button to pause the current scene and render all controls inactive. The unit is compatible with ADJ LED RC2 wireless IR remote (available separately). - 3-channel RGB LED DMX controller for fixtures with channel 1/red, channel 2/green, channel 3/blue
- Controls up to 8 individual fixtures or fixture groups
- 9 x direct-access static color buttons (red, orange, yellow, green, cyan, blue, purple, magenta, white)
- 3 x manual RGB faders for RGB intensity control
- On-the-fly Speed & Fade control of all chase programs—10 x chase programs built-in
- Sound Active, Auto Run, Static Color modes, and Color Strobe
- Hold button locks all buttons and faders, and pauses the current scene
- Compatible with ADJ LED RC2 wireless IR remote (available separately)—30' range

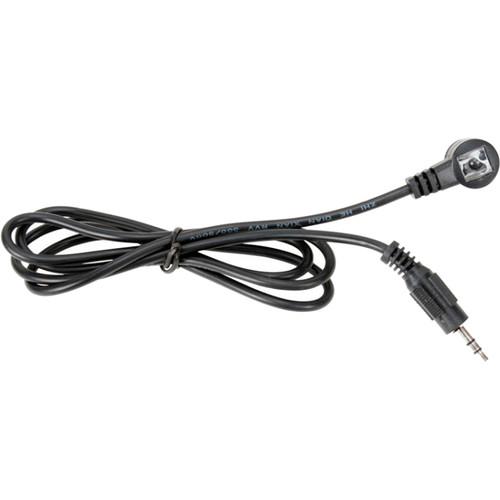

UPC: 819730016478 In the Box American DJ RGB 3C IR 3-Channel DMX Controller for RGB LED Fixtures External IR Receiver Sensor Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ RGB 3C IR 3-Channel DMX Controller for RGB LED Fixtures in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ RGB3C IR Specs | Buttons and Controls | 3 x Manual RGB faders
9 x Direct-access static color buttons
1 x Hold button
1 x Color Select button
1 x Program Select button
1 x Blackout button
1 x Auto button
1 x Sound Active button | | Operation Modes | Sound Active, Auto Run, Static Color | | Built-In Programs | 10 x Chase programs
Color strobe | | Wireless Control | ADJ LED RC2 wireless IR remote (available separately)

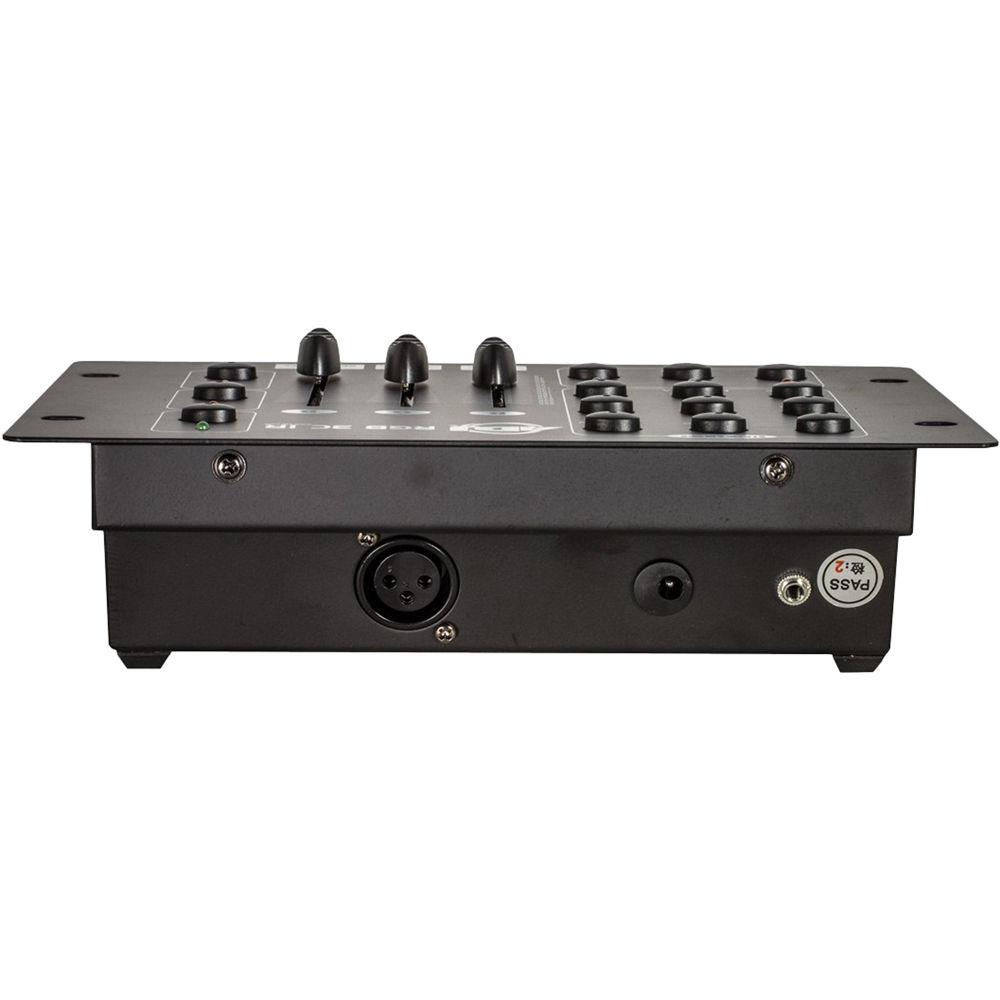

Range: 30' / 9.1 m | | Audio Trigger | Built-in microphone | | DMX Connectors | Output: 3-pin XLR | | Power Input | Power Adapter: 9 to 12 VDC, 300 mA minimum | | Power Consumption | 3.6 W | | Dimensions | 8.7 x 5.5 x 2.5" / 220.0 x 140.0 x 63.0 mm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 12.4 x 8.3 x 5.0" |
