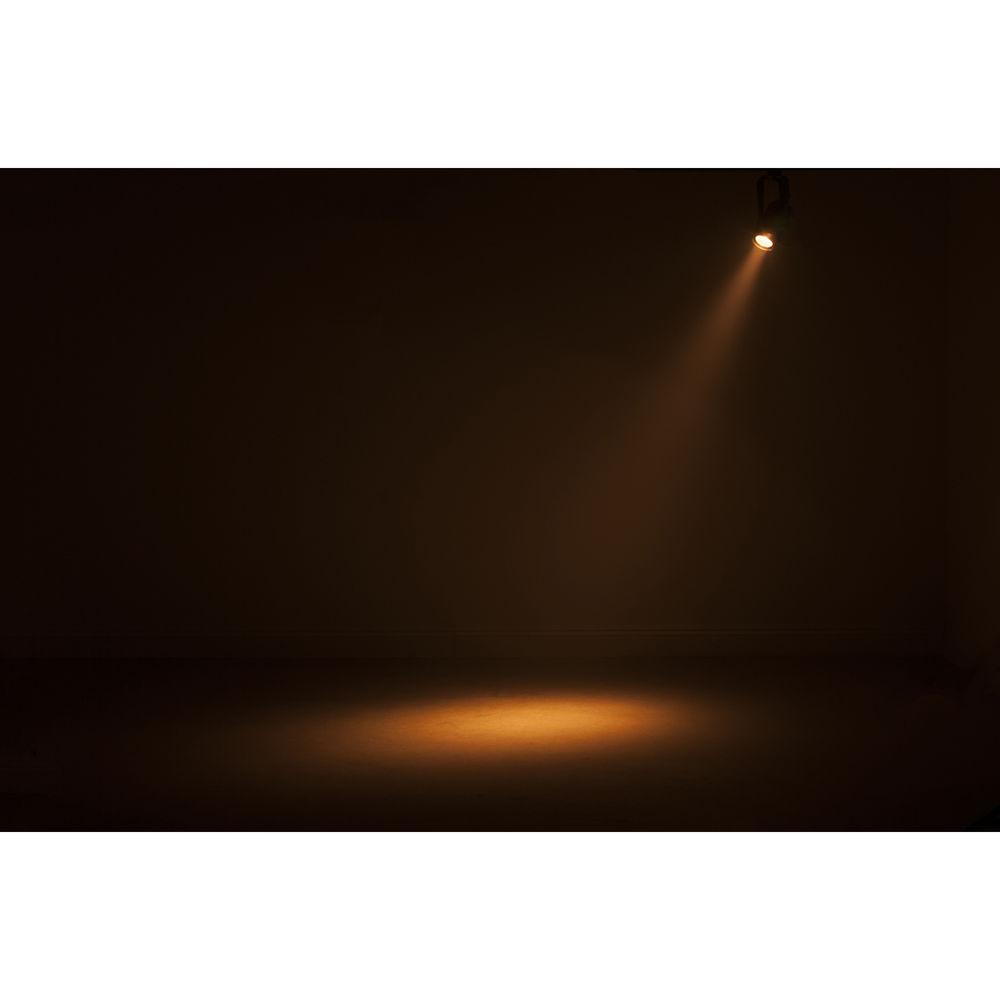

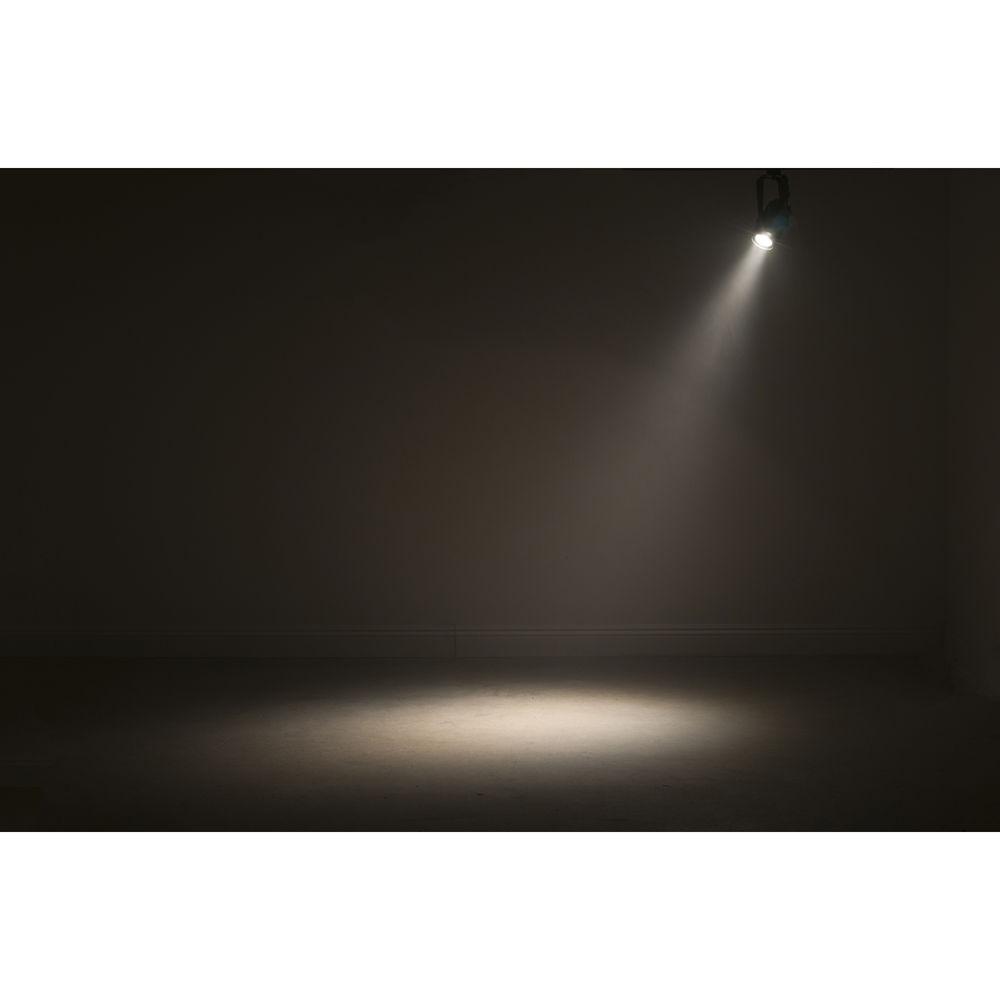

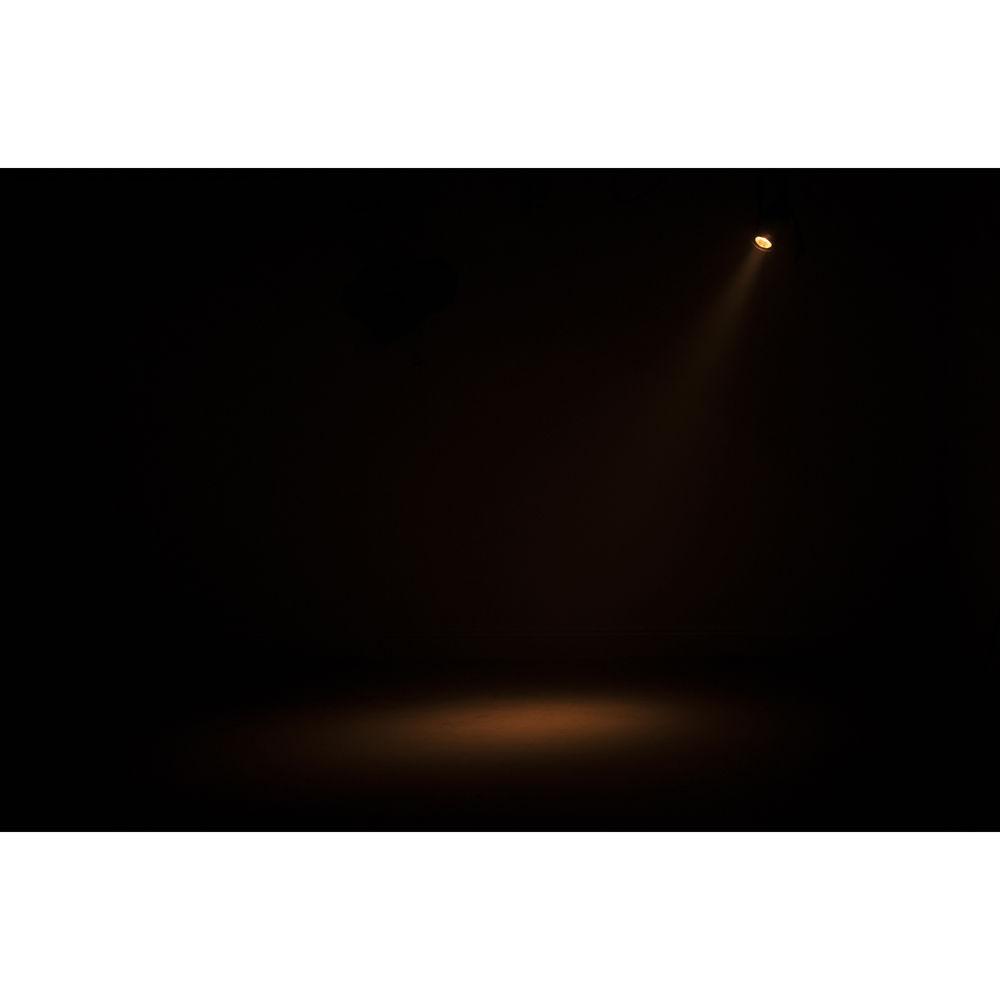

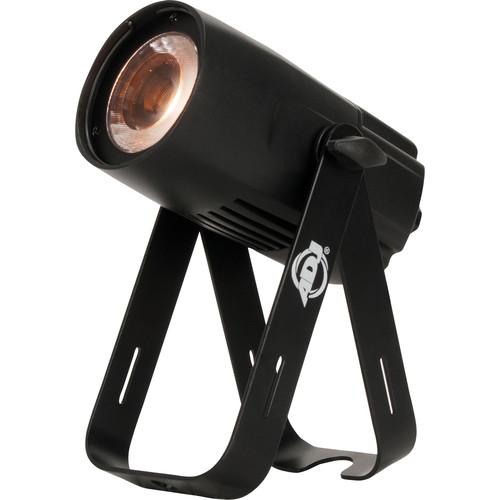

Product description The American DJ Saber Spot DTW is a 15W LED spotlight designed to deliver a narrow beam with flicker-free operation for lighting designers and technicians in retail environments and stage, television, and film production applications. It utilizes one 15W warm white LED to produce a 20° beam angle. Its standard color temperature is 3100K, while an amber LED (available separately) yields 1900K.Control capabilities include three DMX modes and five selectable dimming curves. The strobe rate is variable between 1 and 20 Hz. A four-button LED menu system offers direct access and DMX 3-pin jacks allow remote control functionality. The sturdy scissor bracket permits hanging or ground placement of the Saber Spot DTW. It ships with two frost filter lenses. - 3100K color temperature (1900K amber)
- Three DMX modes—1, 2, and 4
- 0 to 100% dimming of each module
- 1 to 20 Hz variable strobe rate

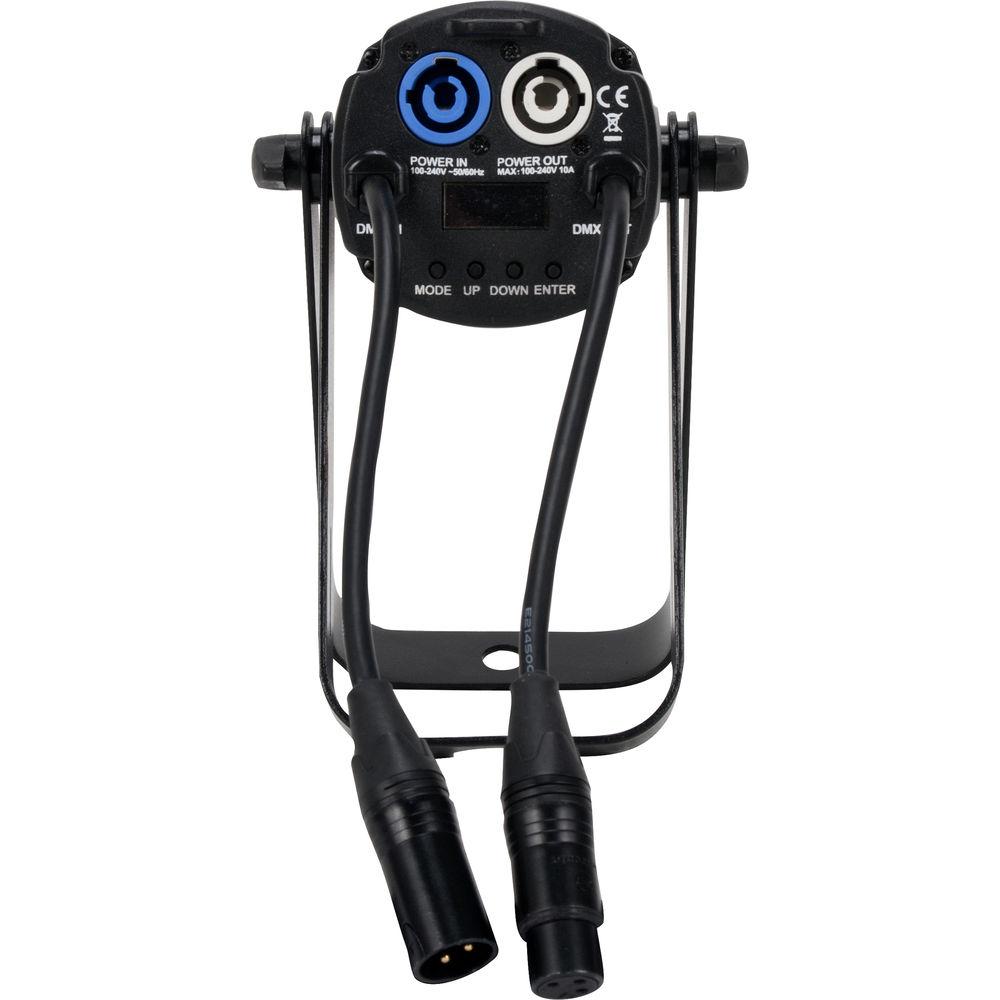

- 4-button LED menu system on rear panel
- Flicker-free operation with 3.6 kHz refresh rate
- DMX 3-pin input and output
- powerCON input and pass-through
- Scissor bracket allows fixture to be hung or set on ground
- Auto-sensing internal power supply
- Includes two interchangeable frost filter lenses
UPC: 818651024708 In the Box American DJ Saber Spot DTW 15W LED Spotlight 2 x Interchangeable Frost Filter Lenses Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Saber Spot DTW 15W LED Spotlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Saber Spot DTW Specs | Lamp | 15 W warm white LED | | Lamp Life | 10,000 hours (expected) | | Beam Angle | 20° | | Color | Warm white | | Color Temperature | 3100K (warm white), 1900K (amber) | | Illuminance | 726 lux at 9.8' / 3 m | | CRI | 92 (full on) | | Control | DMX Modes: 3 (1, 2, or 4)
Dimming Curves: 5
Dimming: 0 to 100% of each module
Flicker-free (3.6 kHz)
Dim to warm effect with amber LED | | Strobe Rate | 1 to 20 Hz | | DMX Connectors | 1 x DMX 3-pin input
1 x DMX 3-pin output | | Power Connection Type | 1 x powerCON input
1 x powerCON pass-through | | Power | 100 to 240 VAC, 50/60 Hz
Daisy-Chain Max: 33 fixtures at 120 V, 71 fixtures at 230 V | | Power Draw | 120 V, 60 Hz: 15 W, 0.13 A
220 V, 50 Hz: 15 W, 0.07 A | | Power Consumption | 24 W | | IP Rating | IP 20 (dry area, no liquids) | | Enclosure Material | Metal housing | | Dimensions (L x W x H) | 3.5 x 6.7 x 3.4" / 88 x 170 x 87 mm | | Weight | 2.6 lb / 1.2 kg |
