User Manual for American DJ Saber Spot Go Battery-Powered RGBW Pinspot Click to enlarge the picture
Contents of the user manual for the American DJ Saber Spot Go Battery-Powered
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Saber Spot Go Battery-Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

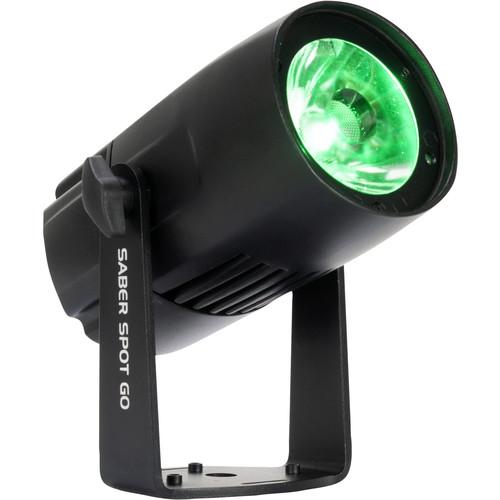

Product description The American DJ Saber Spot Go is a compact, battery-powered pinspot with smooth RGBW color mixing from one 15W 4-in-1 quad LED, well suited for performance stages, installations, table spotting, retail lighting, or anywhere electrical outlets are limited and running cables is not possible. The built-in ACL lens produces a razor sharp 4.5° beam angle, while a selection of battery life options includes 2, 4, 6, or 8 hours of operation.
The fixture is equipped with WiFLY EXR wireless DMX, which offers a range up to 2500'. With multiple channel modes of DMX, the fixture provides control over five dimmer curve modes, variable strobe speed, and 0-100% smooth 16-bit dimming. The Saber Spot Go features all-metal construction and includes an adjustable hanging bracket with a magnetic base. -
- 15W RGBW (4-in-1) LED engine (10,000 h)
- 4.5° beam angle with ACL lens
- WiFLY EXR wireless DMX built-in (wireless DMX up to 2500')
- Multiple DMX channel modes

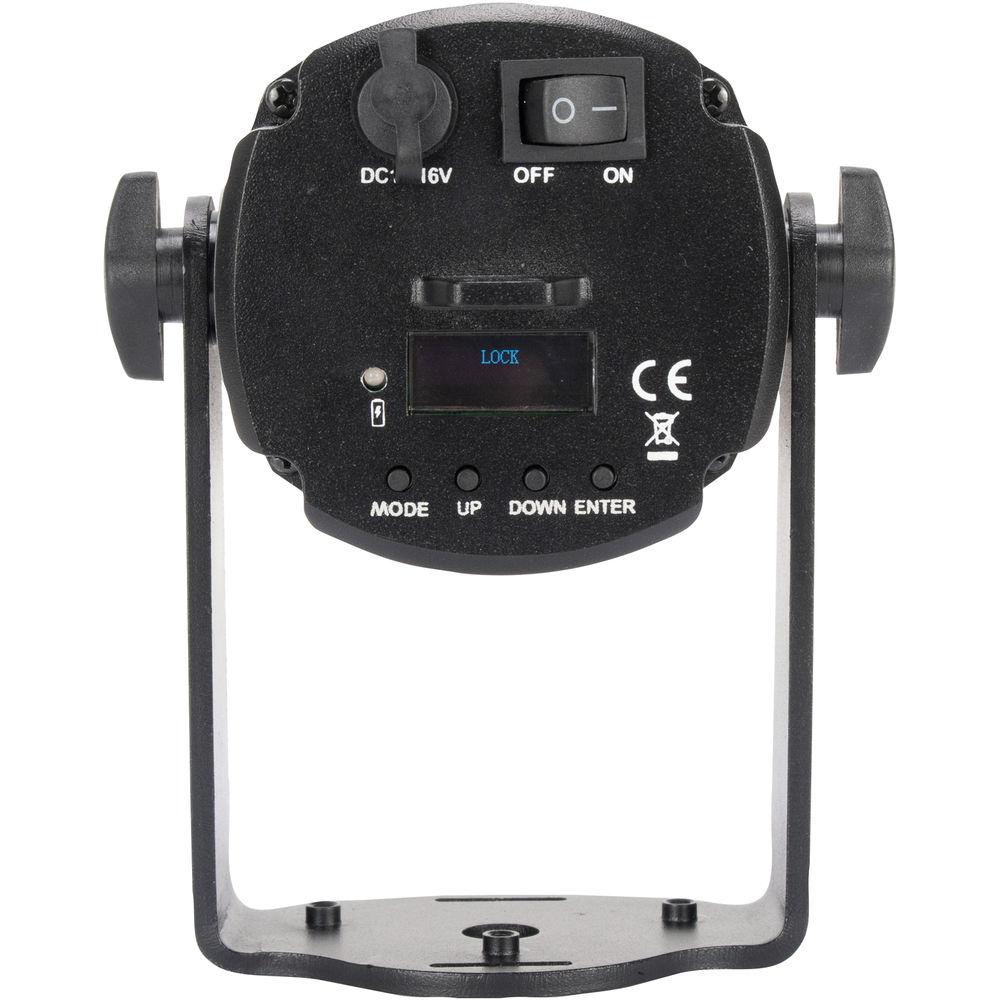

- Four-button control menu with LED display
- Five dimmer curve modes
- Variable strobe speed
- 0-100% dimming + smooth 16-bit dimming
- Running Time Mode: 2 / 4 / 6 / 8 hours
- All-metal construction
- Adjustable hanging bracket with magnetic base
UPC: 818651026047 In the Box American DJ Saber Spot Go Battery-Powered RGBW Pinspot Power (Charging) Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Saber Spot Go Battery-Powered RGBW Pinspot in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Saber Spot Go Specs | Source | 15 W (4-in-1) quad RGBW LED | | LED Life | 10,000 hours | | Beam Angle | 4.5° | | Dimming | 0-100% dimming + smooth 16-bit dimming
Dimmer Curves: 5 modes | | Menu Display | 4-button control with LED display | | DMX | WiFLY EXR wireless DMX built-in
Multiple DMX channel modes | | Battery Life | Running Time Mode: 2, 4, 6, or 8 hours | | Enclosure | All metal | | Operating Voltage | 100 to 240 V, 50 to 60 Hz (auto sensing) | | Dimensions (L x W x H) | 5.5 x 6.8 x 8.5" / 139.7 x 171.5 x 215.9 mm | | Weight | 3.0 lb / 1.4 kg | | | | Package Weight | 3.305 lb | | Box Dimensions (LxWxH) | 9.95 x 5.55 x 5.45" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
