User Manual for American DJ Saber Spot WW Pinspot Click to enlarge the picture
Contents of the user manual for the American DJ Saber Spot WW Pinspot
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Saber Spot WW Pinspot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

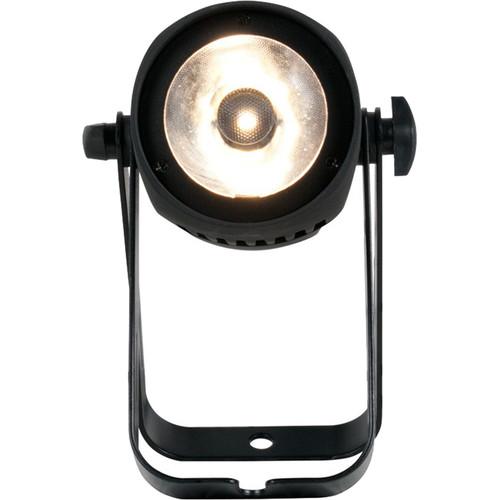

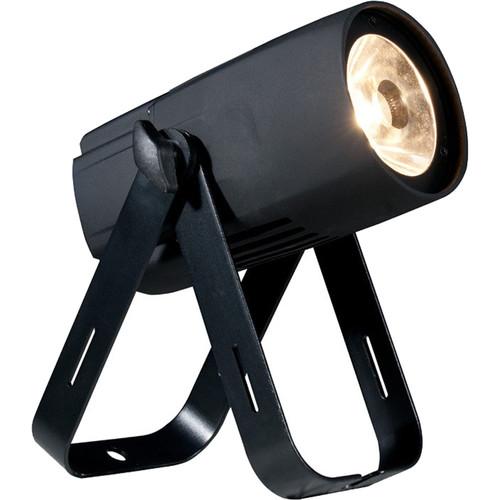

Product description The Saber Spot WW Pinspot from American DJ is a compact pinspot with smooth WW color mixing from one 15W warm white LED. It features DMX512, flicker-free operation, and built-in color macros. It also features strobing and electronic dimming. Saber Spot comes equipped with a 4-button DMX display system on the rear panel. The built-in ACL lens produces a razor sharp 4° beam angle. For hanging the fixture or setting it on the ground, it includes a scissor bracket system. This fixture is suitable for performance stages, installations, table spotting, and lighting retail stores. - Compact LED Pinspot with ACL lens for a razor sharp beam
- Run all night, no duty cycle
- Smooth RGBW color mixing (fast or slow color change operation)
- Flicker-free operation for film and television
- Electronic dimming from 0 to 100%
UPC: 819730019721 In the Box American DJ Saber Spot WW Pinspot Limited 1-Year Warranty Limited 2-Year Warranty on LED Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Saber Spot WW Pinspot in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Saber Spot WW Specs | Source | 15 W warm white WW LED | | Beam Angle | 4° | | Dimming | 0 to 100% electronic dimming | | Modes | 11 x DMX Modes: Channels: 3, 4, 4, 5, 6, 6, 8, 8, 9, 11, 12

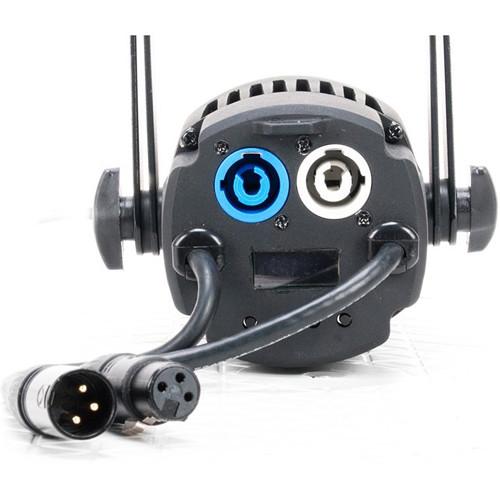

6 x Operational Modes: Static color mode, color change mode, color fade mode, auto run mode, sound active mode and DMX-512 mode | | Connection | Linkable via 3-pin DMX cables (in/out) | | Power Consumption | 15 W maximum | | LED Life | 10,000 hours | | Connector | 3-pin DMX in/out
powerCON in/out | | Operating Voltage | 100 to 240 V, 50 to 60 Hz (auto sensing) | | Dimensions | 3.5 x 6.75 x 3.5" (88 x 170 x 87 mm) | | Weight | 2.6 lb (1.2 kg) | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 11.5 x 5.5 x 5.5" |
