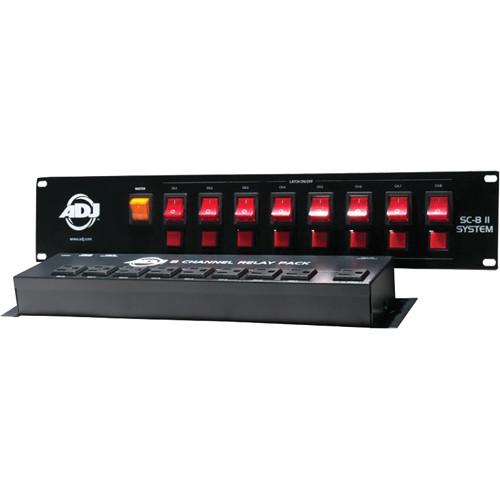

User Manual for American DJ SC-8 Analog Lighting Controller System Click to enlarge the picture
Contents of the user manual for the American DJ SC-8 Analog Lighting Controller
- Product category: Dimmers American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ Dimmers
 |
User manual for the American DJ SC-8 Analog Lighting Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

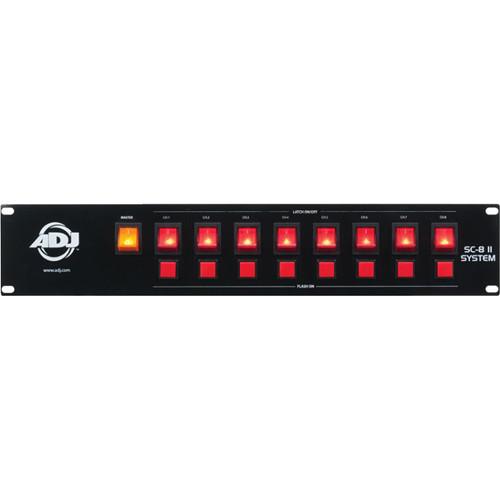

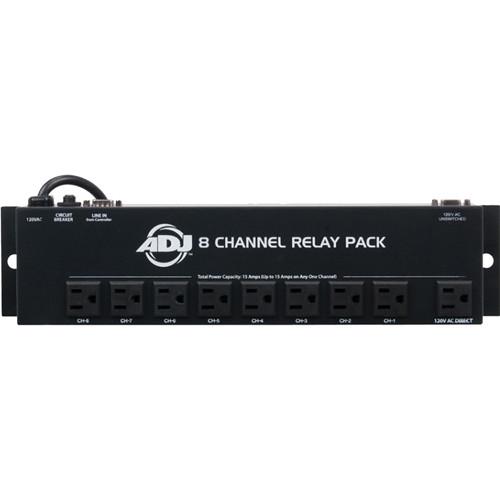

Product description The American DJ SC-8 Analog Lighting Controller System is an 8-channel light control system for non-DMX lighting. The SC-8 controller connects to the SRP8 power pack via the 9-pin com cable. It has 8 channels with on and off with a Flash On button for output, and 1 uninterrupted power plug. The controller also features a Pattern and Stand-by connector for an optional foot control chaser. UPC: 819730013132 In the Box American DJ SC-8 Analog Lighting Controller System SC-8 Controller Connecting Cable SC-RP8 Relay Pack for SC-8 System fafyzefuruyv Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ SC-8 Analog Lighting Controller System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ SC-8 II Specs | Channels | 8 | | Voltage | 120 VAC, 60 Hz | | Input | Controller
3-Pin female XLR
9-Pin female sub D connector
Power Pack
9-Pin male sub D connector
9-Pin female sub D connector | | Output | Power Pack: 5 A/channel, total 15A | | Fuse | Controller: 3 A | | Circuit Breaker | Yes on power pack, 15 A, 250 V | | Dimensions | Controller:
3.4 x 18 x 2.5" (8.6 x 45.7 x 6.3 cm)
Power Pack
3.6 x 14.7 x 1.6" (9.1 x 37.3 x 4.0 cm) | | Weight | Controller
4.5 lb (2.0 kg) Power Pack
2.5 lb (1.13 kg) | | | | Package Weight | 9.25 lb | | Box Dimensions (LxWxH) | 21.4 x 7.0 x 6.6" |
