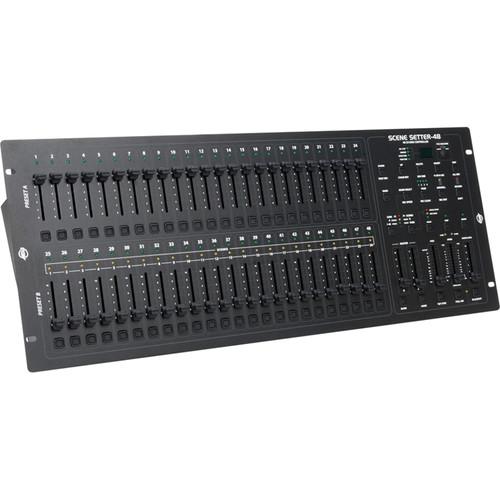

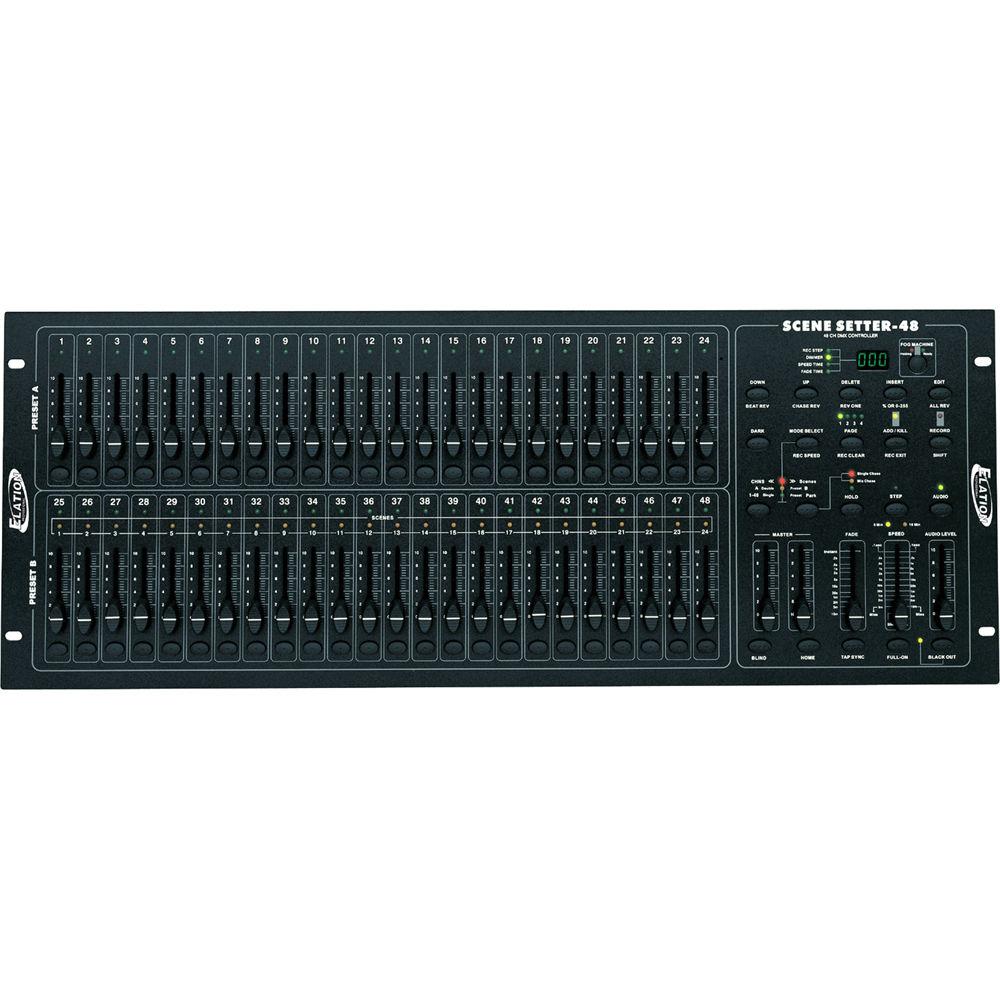

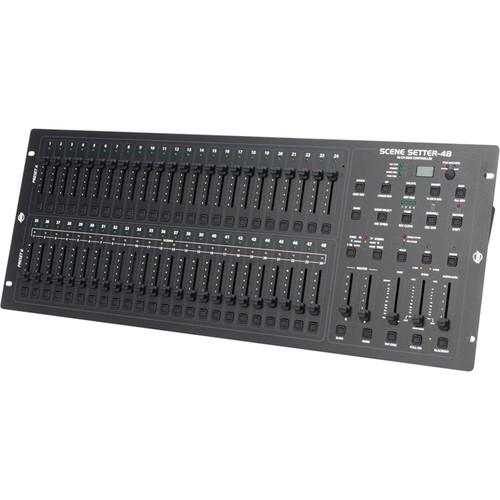

User Manual for American DJ Scene Setter-48 48-Channel DMX Dimming Console Click to enlarge the picture
Contents of the user manual for the American DJ Scene Setter-48 48-Channel DMX
- Product category: Lighting Consoles & Controllers American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ Lighting Consoles & Controllers
 |
User manual for the American DJ Scene Setter-48 48-Channel DMX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description What You Need to Know When Working with DMX Read More The Scene Setter-48 from American DJ is a 48-channel DMX dimming console designed to integrate your audio and lighting production by synchronizing your lights and fog machine with your music, while allowing you to make individual adjustment using 48 adjustable faders. Portable and lightweight (at 15.9 lb), this controller is well suited for mobile DJ setups, touring stage productions or permanent venue installations. The unit can run programs in Single mode or Mix mode simultaneously and offers a multitude of options for running scenes including Sound-Active, Speed Slider, and Standard Beat with Tap Sync. It also lets you create 4200 programmable scenes and 96 programmable chases (all password-protected), while running 12 chases at the same time. The console features a power failure memory function that restores the unit to its last condition when turning it on again, and is compatible with non-DMX fixtures when used in conjunction with the DP-DMX20 power pack or the DP-DMX20L and DP-DMX620 dimmer packs (available separately). - 48-channel DMX dimming console lets you synchronize music with lights and a fog machine
- Lightweight and portable for mobile DJ setups, touring stage productions or permanent venue installations
- Standard two-scene operation (2 x 24)
- Easily programmable – 96 recordable chases and 4200 scenes
- Run the Scenes with Sound-Active mode, Speed Slider, Standard Beat, and more
- Run programs in Single Mode or Mix Mode simultaneously
- Sound-active via built-in microphone or line input
- Blind function overrides chases on the fly
- Dark and Black-Out buttons
- Standard MIDI and DMX ports conveniently connect with other units and machines – Midi In/Out/Through
- Fog output button compatible with Vaporizer, Stallion, MB-700, and MB-1000 fog machines (available separately)
- Foot controller input for Dark or Full-On (controller available separately)
- Use in conjunction with DP-DMX20 power pack, DP-DMX20L and DP-DMX620 dimmer packs (available separately)
- Power failure memory automatically recovers the last condition when you turn on the machine
- Password protection for your programs
UPC: 819730012050 In the Box American DJ Scene Setter-48 48-Channel DMX Dimming Console Power Adapter Limited 2-Year Warranty (Excluding Faders and Tact Switches) Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Scene Setter-48 48-Channel DMX Dimming Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

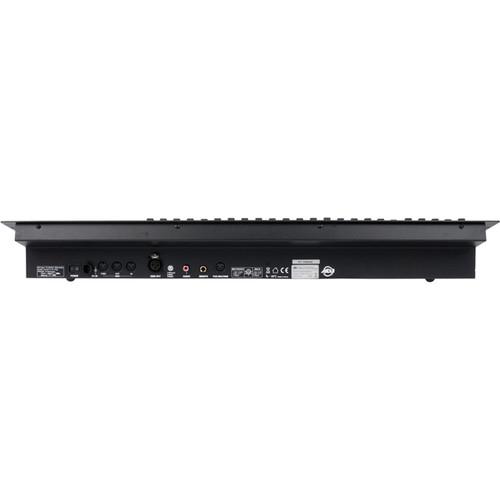

Technical parametersAmerican DJ SCENE SETTER 48 Specs | DMX Channels | 48 | | DMX Connectors | Output: 3-pin XLR | | Polarity Reverse | Switch | | MIDI | 5-pin standard interface, In/Out/Through | | Programs | 4200 scenes and 96 programmable chases | | Sound Active | Via built-in microphone or line input | | Audio Input | 100 mV, 1 V p-p (line level) | | Remote Input | 1/4" stereo jack for remote control (available separately) | | Other Connectors | Connector for fog machine | | Power Input | 12 to 20 VDC, 500 mA minimum | | Fuse | F0.5 A, 250 V (internal)
0.19 x 0.78" / 5 x 20 mm | | Dimensions | 27.99 x 10.39 x 3.34" / 711 x 264 x 85 mm | | Weight | 15.9 lb / 7.2 kg (approximately) | | | | Package Weight | 17.2 lb | | Box Dimensions (LxWxH) | 36.0 x 16.5 x 8.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
