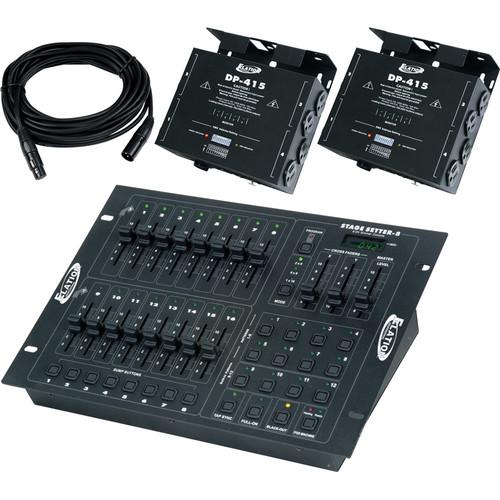

Product description What You Need to Know When Working with DMX Read More The American DJ Stage Pak 1 is a DMX controller and dimmer pack system compiled to provide everything needed for up to 8 channels of DMX lighting control right out of the box. The system consists of the American DJ Stage Setter 8 DMX controller, a pair of DP-415 4-channel dimmer pack / switchers and a pair of DMX control cables.The Stage Setter 8 is a fully functional 16-channel DMX controller well suited for the touring performer, musician, DJ, and venue installation. The Stage Setter 8 is capable of 8 or 16 channel operation over LED lighting effects and laser fixtures. The unit also includes a fog machine output with a dedicated trigger. The Stage Setter 8's LED display and intuitive controls make programming fast and easy. The unit features 4 built-in and 8 user programmable patterns. Its rack-mountable frame installs into a mobile rack for easy transport and storage. Stage Setter 8 DMX Controller - Three different operating modes; 2 x 8 (two banks of 8 channels), 8 x 8 (eight channels), 1 x 16 (one bank - 16 channels)
- 8 or 16 channel DMX operation
- Eight user programmable programs
- Fog machine output control (compatible with ADJ Vaporizer, Stallion, MB-700, and others)
- Standard DMX-512 protocol
DP-415 DMX Dimmer Pack - Compact 4-Channel DMX Dimmer
- 2x 3-pong Edison plugs per channel (8 total plugs)
- 10-position dip switch settings to address DMX
- Assign as a dimmer pack or switch pack
- Changeable hanging bracket to hang on truss
- Max Power: 15A Total, 5A per channel
UPC: 819730012227 In the Box American DJ Stage Pak 1 Controller & Dimmer Pack System Stage Setter 2 x DP-415 Dimmer Packs 2 x DMX XLR Cables 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Stage Pak 1 Controller & Dimmer Pack System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Stage Pak 1 Specs | Power | Stage Setter 8: DC 12~20V, 500 m A min.
Dimmer Pack: AC 120V~60Hz, 15A max. Dimmer Pack Channel Output: 15A max.,5A per channel
Dimmer Pack Fuse: F6.3A 250V 5x20mm (x4PCS) | | Patterns | 12 patterns, including 8 programmable patterns and 4 built-in patterns | | Connections | MIDI In, Out, Thru: 5-pin Multiple Socket
DMX: 3-Pin XLR Female | | Steps | Up to 32 steps for each pattern | | Dimensions | Stage Setter 8: 12.20 x 8.74 x 2.80" (310 x 222 x 71mm)
Dimmer Pack: 7.08 x 6.95 x 2.51" (180 x 177 x 64mm) | | Weight | Stage Setter 8: 5.30 lb (2.4 kg)
Dimmer Pack: 2.6 lb (1.2 kg) | | | | Package Weight | 16.6 lb | | Box Dimensions (LxWxH) | 17.5 x 11.9 x 8.9" |
