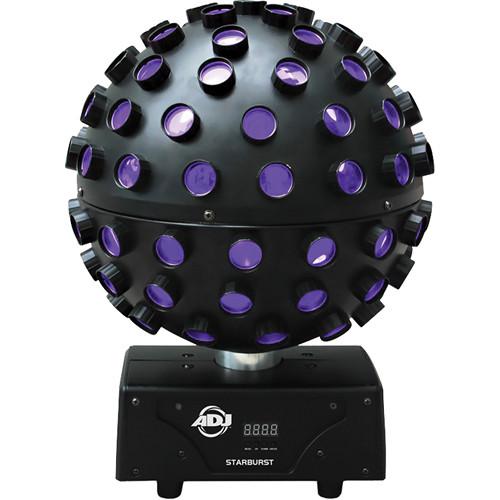

User Manual for American DJ Starburst 6-Color LED Sphere Effect - DMX Click to enlarge the picture
Contents of the user manual for the American DJ Starburst 6-Color LED Sphere
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
|
User manual for the American DJ Starburst 6-Color LED Sphere contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description The Starburst from American DJ is a rotating sphere effect with super-sharp, multi-color beams that react to sound or can be controlled by DMX. The light source consists of five 15W HEX LEDs producing red, green, blue, white, amber, and ultra-violet colors that, when mixed, offer a wider palette of colors than previously possible. The 34 beams offer a 1° beam angle and coverage of 360°. Three operational modes include auto-run, sound active, and DMX control with 13 channels. Additionally, the Starburst may be controlled via the optional UC3 wireless remote control. A low power consumption of 55W allows for the daisy-chaining of up to 20 units from one 120V circuit. The Starburst ships with a hanging bracket and a standard IEC power cord. -
- 5 x 15W 6-in-1 HEX RGBWA+UV LEDs (red, green, blue, white, amber & UV)
- Produces 34 crisp, bright beams
- Beam angle: 1 degree
- 13 DMX channels
- 3 operational modes: Auto run, sound active, DMX controlled
- Stand alone or master-slave set-up
- IEC power cord daisy chain 20 units @ 120V
UPC: 819730015174 In the Box American DJ Starburst 6-Color LED Sphere Effect - DMX (RGBWA+UV) Hanging Bracket IEC Power Cord Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Starburst 6-Color LED Sphere Effect - DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Starburst Specs | Light Source | 5x 15W HEX RGBWA+UV (6-in-1) LEDs (red, green, blue, white, amber, and UV)
Lamp Life: 50,000 hours | | Beam Angle | Beam Angle: 1° | | Voltage | 100 to 240 VAC, 50/60 Hz (IEC input only) | | Power Consumption | 55 W | | Dimensions (L x W x H) | 12.5 x 12.5 x 16.3" / 31.8 x 31.8 x 41.3 cm | | Weight | 8.0 lb / 3.6 kg | | | | Package Weight | 13.15 lb | | Box Dimensions (LxWxH) | 19.8 x 14.2 x 13.9" |
