User Manual for American DJ Startec UVLED 24 - LED Black Light Fixture Click to enlarge the picture
Contents of the user manual for the American DJ Startec UVLED 24 -
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Startec UVLED 24 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description The American DJ Startec UVLED 24 is a 2'-long black light LED fixture which gives you the look and footprint of a traditional fluorescent black light tube, but with the advantages of long-life LEDs (approximately 50,000 hours), low heat output, low power consumption, and no moving parts. Designed to create ultraviolet color washes, it is well suited for small performance stages, lounges, mobile productions, or special-effects installs. The Startec UVLED 24 features 48 0.3W SMD UV LEDs, which produce a wide, 120° beam angle. The LED bar is removable and can be replaced if necessary. Easy to operate, the unit features an On/Off switch, an auto-sensing power supply with a 3'-long power cord attached, and built-in mounting points so it can positioned wherever it's needed. - Key Features
-
- Black light bar with 48 x 0.3W SMD UV LEDs – length: 2'
- For small performance stages, lounges, mobile productions, special-effects installs
- Long-life LEDs (approximately 50,000 hours), low heat output, low power consumption, no moving parts

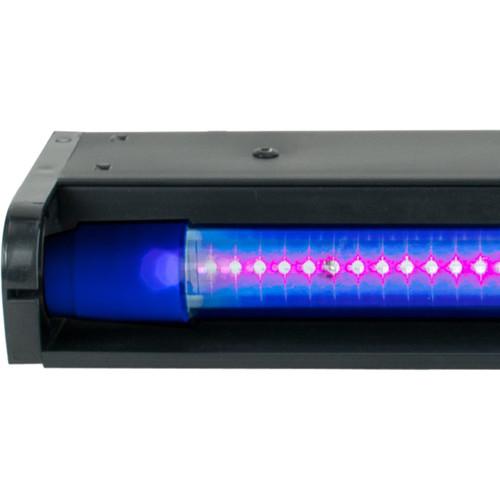

- Replaceable UV LED bar
- 120° beam angle

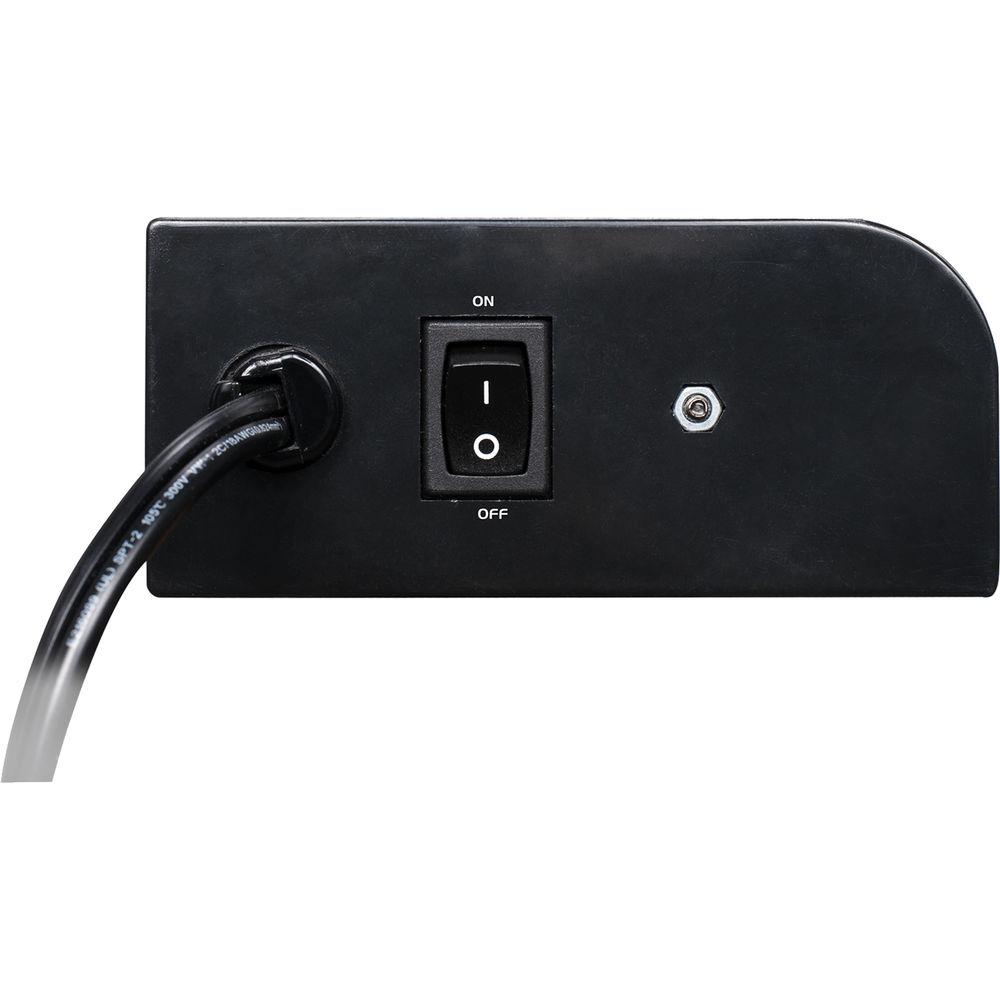

- Simple operation with On/Off switch
- Attached power cord (3')
- Built-in mounting points
- 12W power draw
- Universal auto-sensing power supply
UPC: 819730018908 In the Box American DJ Startec UVLED 24 - LED Black Light Fixture (24") Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Startec UVLED 24 - LED Black Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ UVLED 24 Specs | Light Source | 48 x 0.3 W SMD UV (ultraviolet) LEDs | | Life Expectancy | Approximately 50,000 hours | | Wavelength | 395 to 410 nm | | Beam Angle | 120° | | Mounting | Built-in mounting points | | Input Voltage | 100-240 VAC, 47/63 Hz, auto-sensing | | Power Consumption (Maximum) | 12 W | | Power Cord | 3' / 0.91 m (attached) | | Dimensions (LxWxH) | 24.00 x 1.65 x 3.70" / 609.60 x 41.91 x 93.98 mm | | Weight | 1.00 lb / 0.45 kg | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 26.0 x 5.0 x 2.9" |
