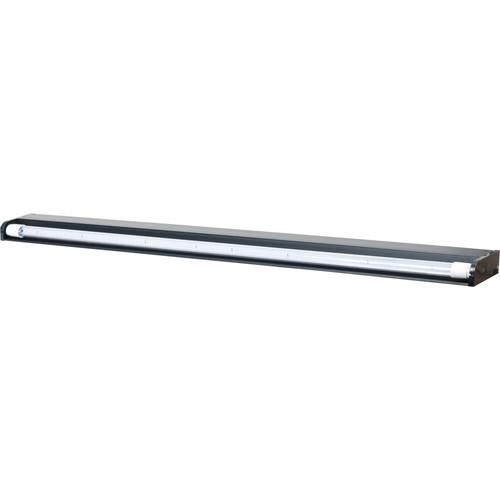

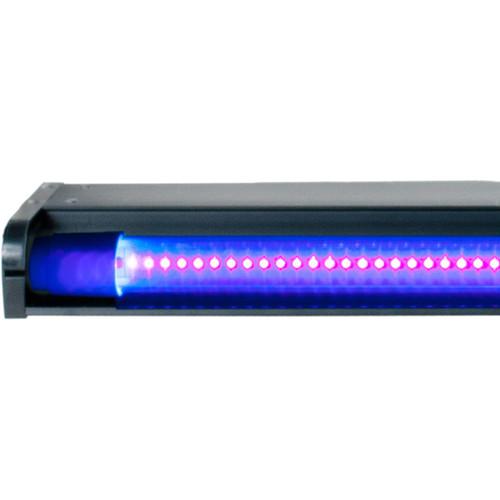

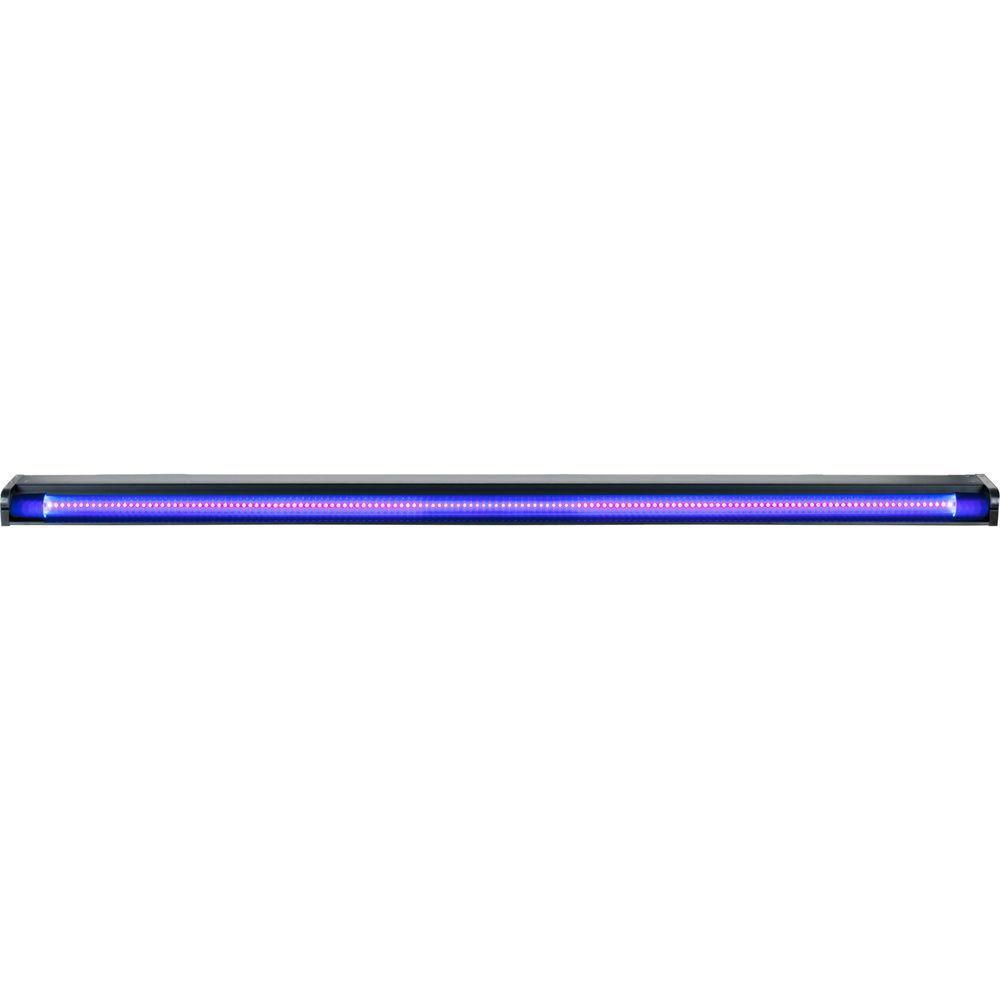

Product description The American DJ Startec UVLED 48 is a 4'-long black light LED fixture which gives you the look and footprint of a traditional fluorescent black light tube, but with the advantages of long-life LEDs (approximately 50,000 hours), low heat output, low power consumption, and no moving parts. Designed to create ultraviolet color washes, it is well suited for small performance stages, lounges, mobile productions, or special-effects installs. The Startec UVLED 48 features 96 0.3W SMD UV LEDs, which produce a wide, 120° beam angle. The LED bar is removable and can be replaced if necessary. Easy to operate, the unit features an On/Off switch, an auto-sensing power supply with a 3'-long power cord attached, and built-in mounting points so it can positioned wherever it's needed. - Key Features
-
- Black light bar with 96 x 0.3W SMD UV LEDs – length: 4'
- For small performance stages, lounges, mobile productions, special-effects installs
- Long-life LEDs (approximately 50,000 hours), low heat output, low power consumption, no moving parts
- Replaceable UV LED bar
- 120° beam angle

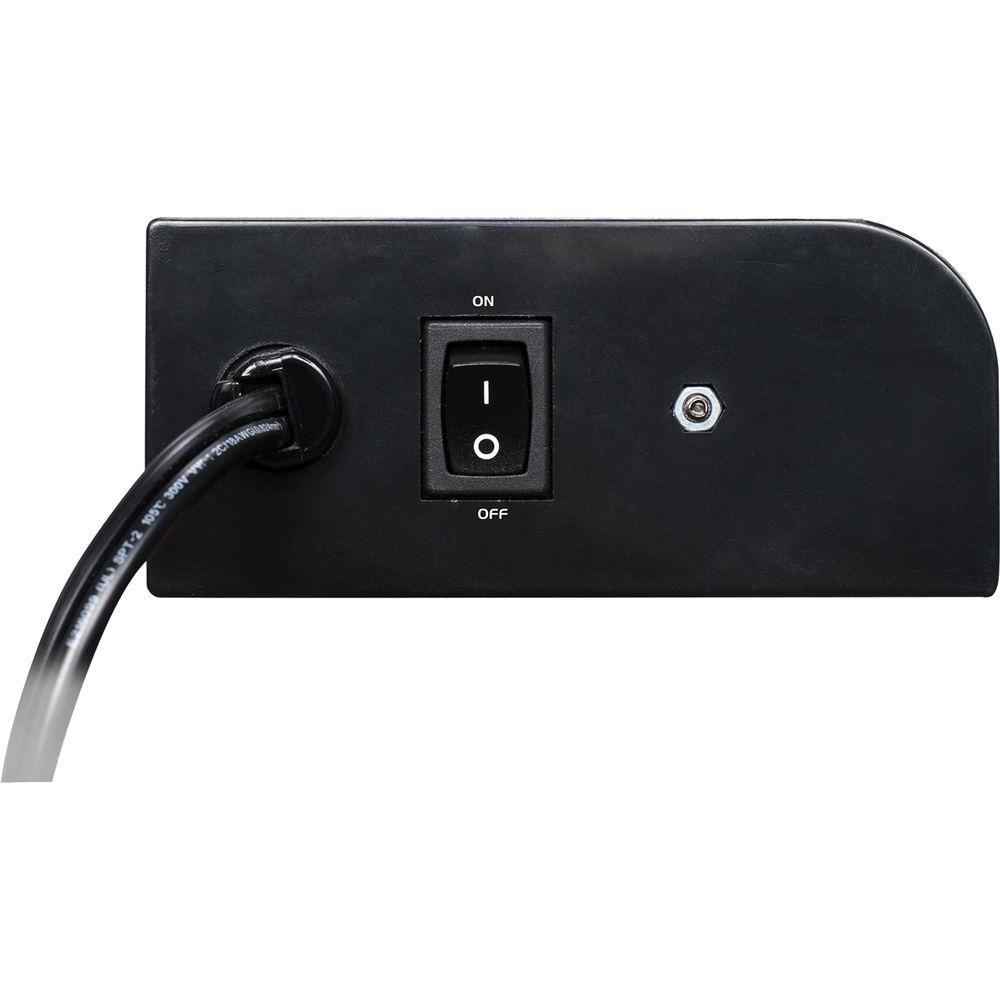

- Simple operation with On/Off switch
- Attached power cord (3')
- Built-in mounting points
- 20W power draw
- Universal auto-sensing power supply
UPC: 819730018915 In the Box American DJ Startec UVLED 48 - LED Black Light Fixture (48") Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Startec UVLED 48 - LED Black Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ UVLED 48 Specs | Light Source | 96 x 0.3 W SMD UV (ultraviolet) LEDs | | Life Expectancy | Approximately 50,000 hours | | Wavelength | 395 to 410 nm | | Beam Angle | 120° | | Mounting | Built-in mounting points | | Input Voltage | 100-240 VAC, 47/63 Hz, auto-sensing | | Power Consumption (Maximum) | 20 W | | Power Cord | 3' / 0.91 m (attached) | | Dimensions (LxWxH) | 48.0 x 2.0 x 4.0" / 1219.0 x 50.8 x 101.6 mm | | Weight | 1.70 lb / 0.77 kg | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 50.0 x 12.0 x 10.0" |
