User Manual for American DJ Stinger Gobo - LED Moonflower, Color Wash and Red Green Lasers Click to enlarge the picture
Contents of the user manual for the American DJ Stinger Gobo - LED
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Stinger Gobo - LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

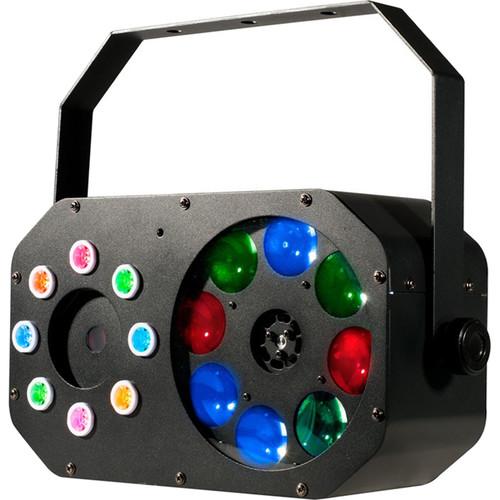

Product description The Stinger Gobo from American DJ is a DMX-intelligent LED moonflower, strobe, and laser lighting fixture. It can be used to cover the room with a moonflower gobo effect, wash the dance floor in colors, and mesmerize the crowd with the Galaxian-style red and green laser effects, which are suitable for nightclubs, DJ setups, and theater applications.Featuring three different lighting effects (moonflower gobo effect, color wash effect, and a red/green laser effect) and 6 built-in light shows, the Stinger delivers hours of fun and can be operated as a stand-alone fixture or in a Master/Slave setup.The Stinger Gobo has three operating modes: sound active, show mode, and DMX Control, and it is built with 2 DMX channel modes, a 2-channel mode and a 14-channel mode. It also includes an integrated mounting bracket and an AC power cord. - High output with three effects in one. Gobo effect, Strobe/Chase effect, and Laser effect with 8 x 3W RGBW (Red, Green, Blue, and White) LEDs + 8 x 1W RGBA (Red, Green, Blue, and Amber) LEDs + Red & Green Lasers
- Built with two DMX channel modes: 2 and 14 DMX channels
- Features three operation modes: Sound Active, Show Mode or DMX Controllable
- 6 exciting built-in Shows
- Produces 15 preset color combinations
- Stand-alone or Master/Slave setup
- Linkable via 3-pin XLR cable

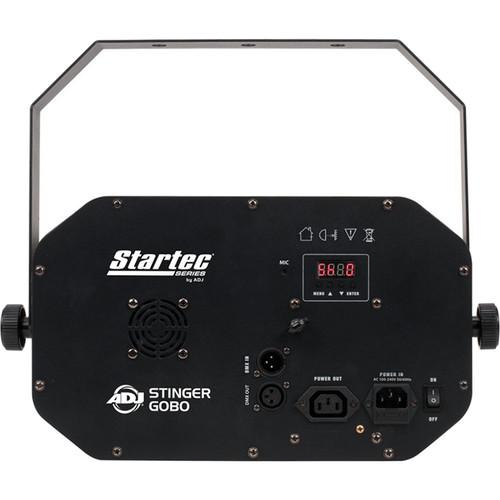

- 4-button DMX display on rear panel
- No duty cycle and can run all night
- Long-life LEDs rated at approximately 50,000 hours
UPC: 819730018946 In the Box American DJ Stinger Gobo - LED Moonflower, Color Wash and Red/Green Lasers AC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Stinger Gobo - LED Moonflower, Color Wash and Red Green Lasers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Stinger Gobo Specs | Light Sources | 8 x 3 W (2 Red, 2 Green, 2 Blue, and 2 White) LEDs
8 x 1 W (2 Red, 2 Green, 2 Blue, and 2 Amber) LEDs
4.9 mW red and green laser diodes | | Duty Cycle | None | | Operating Modes | Sound Active, Master/Slave, Standalone | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 2 x Modes: 2 or 14 channels | | Input Voltage | 100 VAC to 240 VAC, 50/60 Hz | | Power Connectors | Input: IEC
Output: IEC | | Power Cord Daisy Chain | 8 fixtures maximum (120 V)
16 fixtures maximum (230 V) | | Power Draw | 55 W | | Fuse | 2A | | Working Position | Any safe, secure position | | Dimensions (L x W x H) | 16.3 x 6.0 x 8.3" (410 x 151 x 210 mm) | | Weight | 11 lb (5 kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 16.4 x 11.3 x 8.6" |
