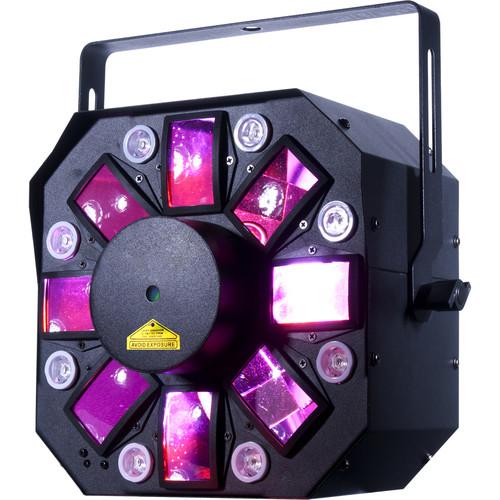

Product description The Stinger II from American DJ is a 3-in-1 LED lighting effect device with 2 or 9 DMX channels that can be used for several applications such as DJ setups, clubs, parties, live stages, and more. The light features six 5W Hex LEDs (RGBAWP), eight 3W UV LEDs, and a red and a green laser which produce color-changing beams of light on a dance floor, ceiling, or wall. The fixture can create moonflower, strobe, and laser effects with the three built-in operational modes (sound active, master/slave, and DMX control) that activate the lighting sequence. In addition, it produces 15 preset colors and several lights are linkable via a 3-pin XLR cable.The Stinger II can produce both quick, accurate movements, as well as smooth and fluid movements for mood music. It is built with electronic dimming from 0 to 100%, requires no duty cycle, and can run cool all night. There is an IEC AC in/out on the rear to daisy chain up to 10 units and the LEDs are rated at approximately 50,000 hours. The Stinger II ships with a standard IEC cable. -
- High-Output 3-FX-in-1: Moonflower, strobe and laser effect
- Dozens of razor sharp beams fill a dance floor, ceiling, or wall
- Using a 1.8 degree long-life stepper motor, it can produce quick accurate movements or smooth fluid movements for mood music
- 2 DMX Channel Modes: 2 channels & 9 channels
- 3 Operation Modes: Sound active, master/slave or DMX controllable
- Built-in Programs: Sound active and master/slave modes
- Produces 15 preset colors
- Linkable via 3-pin XLR cable

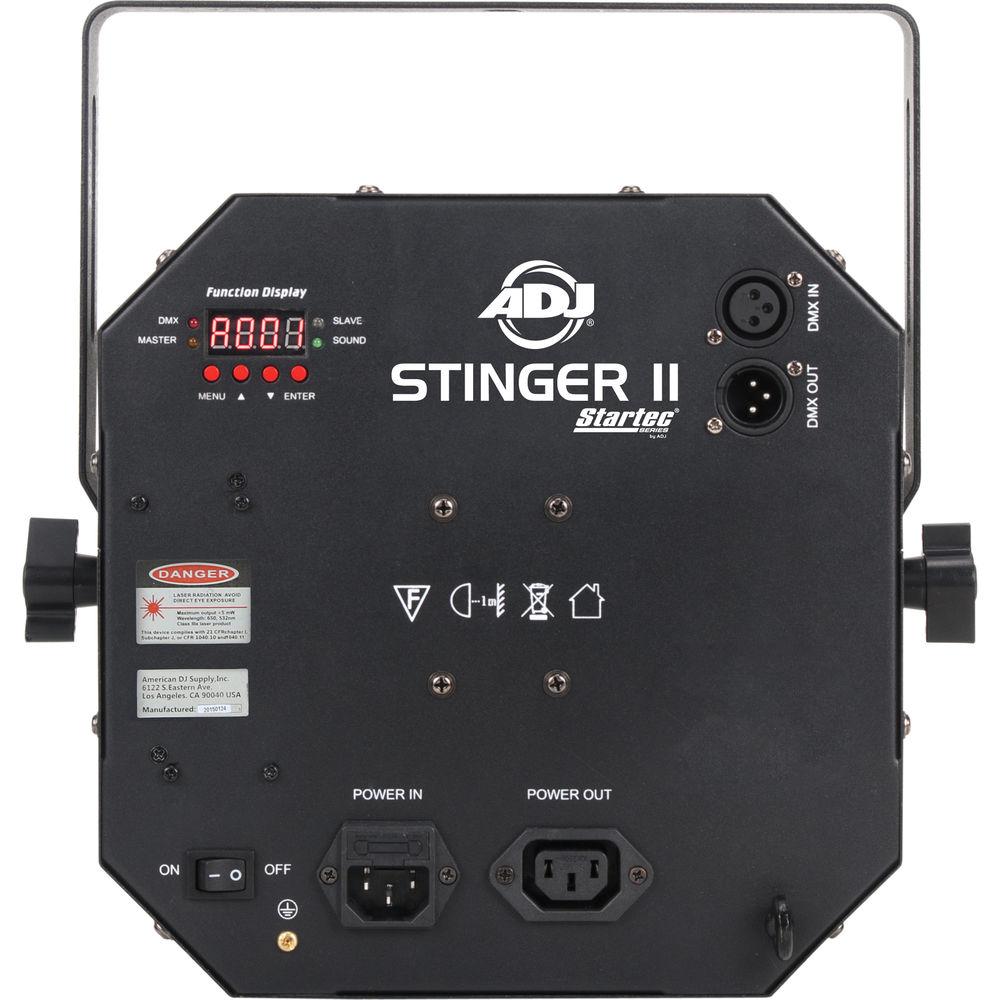

- 4-button DMX display on rear panel
- Strobe & pulse LED effect
- DMX-512 protocol
- Electronic Dimming: 0 to 100%
- No Duty Cycles: Runs extremely cool
- Safety Loop on rear panel
- Power Consumption: 70W
- Compatible with ADJ UC IR Remote (sold separately)
- IEC Power In/Out: Daisy chain power to connect up to 10 fixtures
- Long-life LEDs: Rated at approximately 50,000 hours
- Light Source: 6x 5W RGBA + white and pink LEDs; 8x 3W UV LEDs; red and green lasers
UPC: 819730017864 In the Box American DJ Stinger II - 3 FX-In-1 - Moonflower, Strobe, and Laser Effect with UV AC Power Cable (IEC) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Stinger II - 3 FX-In-1 - Moonflower, Strobe, and Laser Effect with UV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Stinger II Specs | Effects | Moonflower, strobe, and laser | | Light Sources | HEX LEDs: 6x 5 W RGBAWP (red, green, blue, amber, white, pink)
UV LEDs: 8x 3 W Ultraviolet
Lasers: Red and green, produces color-changing beams of light | | LED Lifetime | Rated at approximately 50,000 hours | | Operation Modes | Sound active, master/slave, and DMX controllable | | Built-In Programs | Sound active, master/slave modes | | DMX Channels | 2 or 9 | | DMX | Protocol: DMX-512
Connectors: 3-pin XLR-F, 3-pin XLR-M | | Display | Four-button DMX function menu | | Duty Cycle | None | | Electronic Dimming | 0 to 100% | | Wireless Remote | ADJ UC IR (sold separately) | | IEC | AC in/out on rear | | Power Cord Daisy Chain | Up to 10 fixtures | | Power Draw | 70 W max (full on) | | Multi Voltage | 100 to 240 V, 50/60 Hz | | Dimensions (L x W x H) | 12.0 x 9.0 x 12.3" / 304 x 230 x 313 mm | | Weight | 11.0 lb / 5.0 kg | | | | Package Weight | 12.3 lb | | Box Dimensions (LxWxH) | 13.5 x 13.5 x 10.8" |
